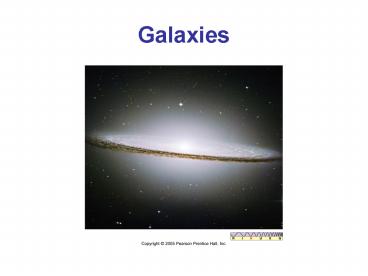

Galaxies

1
Galaxies
2
Galaxy Classification

• Spiral (S)
• Elliptical (E)
• Irregulars (Irr)

3
Normal Spirals

• Sa, Sb, Sc
• From a to c
• Bulge becomes smaller
• Arms less tightly wound

4
Barred Spirals

• SBa, SBb, SBc
• A to b to c similar to normal spirals.
• Arms at end of a bar passing though bulge.

5
Elliptical Galaxies

• E0, E1, E2, E3, E4, E5, E6, E7
• From E0 to E7
• Get more elliptical in shape
• Get fuzzy

6
Elliptical Galaxies
f

Dwarf elliptical galaxies orbiting M31
Giant elliptical galaxy at core of a galaxy
cluster.
Two types of elliptical galaxies, dwarfs and
giants.
7
Irregular Galaxies

• Small size
• No defined shape
• fuzzy

8
Irregular Galaxies
LMC
SMC
SMC and LMC are irregular galaxies orbiting the
Milky Way.
9
Hubble Tuning Fork Diagram
There is no observational evidence that this
diagram shows galaxy evolution. NOTE S0s are
spirals without arms.
10
S0 Class

• Look like E0s
• Contain dust and gas like spiral galaxies.
• Therefore, they were named as S0s.

11
Galaxy Clusters
Galaxies tend to congregate into groups called
galaxy clusters. These clusters can be
small containing tens of galaxies or large
containing hundreds or thousands of galaxies.
12
Galaxy ClustersThe Local Group

• Small cluster to which the Milky Way belongs.
• 1,000,000 pc in diameter.
• Contains 45 members.
• Andromeda Galaxy 2.2 million LY away.

13
Galaxy ClustersThe Virgo Cluster

• 18 Mpc
• 2500 galaxies
• M87, the central galaxy (giant elliptical)
• Local Group may be like an appendage to the Virgo
  Cluster.
• Super Clusters

14
What is our place in the universe?
15
Active Galactic Nuclei (AGNs)

• 20-25 of bright galaxies are not normal (do not
  fit Hubble classifications.)
• Among the most energetic object in the universe.
• Have bright nucleus

NGC 7742 looks like a fried egg.
16
Types of AGNs

• Seyfert Galaxies
• Radio Galaxies
• Quasars

17
Seyfert Galaxies

• Very bright central nucleus
• Faint spiral arms
• Variable in brightness

18
Seyfert Galaxies

• Nucleus changes brightness
• Time scales of weeks, months, and years.

PEGA at GSU has observed AGN microvariblility on
time scales of minutes.
19
Radio Galaxies

• Large radio emitting lobes
• Lobes extend out 10X larger than Milky Way or
  size of The Local Group.

20
Radio Galaxies
21
M87
22
Cygnus AColliding Galaxies
23
M86

• Also near center of Virgo Cluster
• Core-dominated radio galaxy

24
Quasars

• Tiny blue stellar looking objects with large
  radio emission similar to radio galaxies.
• Highly red shifted spectra.
• 50,000 km/s or more.

25
Quasars

• Quasar means quasi-stellar object.
• Distances from 240 Mpc to 9000 Mpc
• They are the brightest thing in universe but
  appear faint

26
Quasars

• They share characteristics of Seyfert galaxies
  and radio galaxies.
• Over 30,000 known

27
AGN Model

• Super massive black hole at center.
• Accretion disk
• Intense magneitc field
• Jets of high speed particles.

28
AGN Model
29
AGN Model

• Viewing angle determines type of energy seen.
• Viewing angle determines the type of AGN seen,
  Seyfert, radio galaxy, etc.

30
Possible Galaxy Evolution
31
Resources
Chaisson McMillan, (2002, 2004). Astronomy
Today (5th Ed.)
