Integrative Studies 410 Our Place in the Universe

1

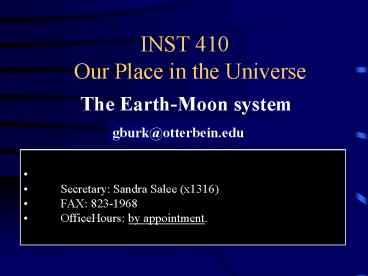

INST 410 Our Place in the Universe
The Earth-Moon system
gburk_at_otterbein.edu

• Secretary Sandra Salee (x1316)
• FAX [phone]
• OfficeHours by appointment.

2
The Earth-Moon System
Earth/Moon radius ¼ Earth/Moon mass
1/81 Earth-Moon distance 384,000 km
3
Features of the Earth

• Mass 6 ? 1024 kg
• Radius 6400 km
• Density 5500 kg/m3
• Water density 1000 kg/m3
• Surface rock density 2000-3000 kg/m3
• Distance to moon 384,000 km (250,000 mi)
• Period of rotation 1 day
• Period of revolution 1 year

4
Structure of the Earth

• Core
• Mostly iron and nickel
• Inner core solid, outer core liquid
• Mantle
• Mostly basalt, a heavy mineral containing iron
  and magnesium
• Soft can flow even though it is solid rock
• Crust
• Solid surface layer floats on the mantle

5
Structure of the Earth

• Density and temperature both increase with depth
• Crust
• Average thickness 15 km
• Mantle
• Average thickness 3000 km
• Core
• Inner cores radius 1300 km
• Outer cores radius 3500 km
• T 6000 K, similar to that of the Sun!

6
Surface Features
7
Earths Surface Dynamics

• Continental plates drift apart
• hot magma comes to surface ? Volcanism
• Volcanic islands Hawaii, Lanzarote (Spain)

8
Earths Changing Surface
9
Earths Atmosphere

• 78 Nitrogen, 21 Oxygen, 1 Other
• Troposphere region of weather
• Stratosphere stable and calm
• Ionosphere gases charged by interaction with
  radiation from space

10
Ozone Layer (O3)

• Absorbs most UV radiation from the Sun
• Hole over Antarctic
• Chlorofluorocarbons (CFCs) released by spray
  cans, refrigerators
• Latest pictures indicate the hole is bigger than
  ever!

11
Greenhouse Effect

• Earth absorbs energy from the Sun and heats up
• Earth re-radiates the absorbed energy in the form
  of infrared radiation
• The infrared radiation is absorbed by carbon
  dioxide and water vapor in the atmosphere

12
Magnetosphere

• Magnetic north pole about 7 west of geographic
  north pole

13
Motion of Charged Particles
14
Van Allen Radiation Belts

• Mainly heavier protons in the inner belt
• electrons in outer belt

15
Aurora Borealis
16
Aurora Borealis from Space
17
Features of the Moon

• Mass 1/81 Earths mass
• Radius 1/4 Earths radius
• Density 3,300 kg/m3
• Gravity 1/6 Earths gravity
• Period of revolution 1 month
• Period of rotation 1 month
• Synchronous rotation

18
Large-Scale Features

• Maria
• Dark areas resembling oceans
• Plains of solidified lava
• Part of the lunar mantle
• About 3.23.9 billion years old
• Highlands (Terrae)
• Light-colored, resemble continents
• The lunar crust
• More than 4 million years old

19
The Moon Far Side

• Can be seen by satellites only

20
The Mountains of the Moon

• Especially well visible near the terminator the
  borderline between light and shadow

21
Moon from our Observatory I

• Through 8 inch telescope, 40 mm eyepiece, Sony
  DSC 717 digital camera, December 31, 2003

22
Moon from our Observatory II

• Through 8 inch telescope, 40 mm eyepiece, Sony
  DSC 717 digital camera, December 31, 2003

23
Moon from our Observatory III

• Through 8 inch telescope, 40 mm eyepiece, Sony
  DSC 717 digital camera, December 31, 2003

24
A Lunation of 28.5 days
25
The Moon - Touchdown

• Note the soft edges of the crater ?Erosion!
• Traces of the Apollo lunar rover

26
Structure of the Moon

• Also consists of crust, mantle and core
• No hydrosphere, magnetosphere or atmosphere
• Little seismic action

27
Tides

• Daily fluctuations in the ocean levels
• Two high and two low tides per day
• A result of the difference in gravitational pull
  from one side of the Earth to the other
• F G M m / R2

28
Tides

• Earths rotation drags the tidal bulge with it
• Friction causes the Earths rotation to slow (by
  0.002 seconds every century), and the moon to
  spin away from Earth (about 4 cm every century)

29
Spring and Neap Tides

• Tides especially pronounced when sun and moon
  work together
• Same direction ? Spring tide
• Other direction ? Neap tide

30
Lunar Craters

• Old scars from meteoroid impacts
• Lots of them all sizes
• Copernicus 90 km across
• Reinhold 40 km across
• Also craters as small as 0.01 mm!

31
(Almost) Catastrophic Impacts

• Orientale Basin
• Almost 1000 km diameter
• A somewhat larger impact body could have
  destroyed the moon!

32
How They Form
33
Moons Changing Surface
34
Ages of the Earth and Moon

• Determined by radioactive dating
• Compare amount of radioactive material with
  amount of decay product
• Useful isotopes
• Uranium-238 (half-life 4.5 billion years)
• Uranium-235 (half-life 0.7 billion years)
• For shorter time scales, Carbon-14 (5730 years)
• Oldest surface rocks on Earth (Greenland,
  Labrador) about 3.9 billion years old
• When rocks solidified
• Lunar highlands 4.14.4 billion years old
• Rocks from lunar maria slightly younger, more
  recently melted
• Meteorites 4.5 billion years old
• Date to origin of solar system

35
Creation of the Earth-Moon system

• Sister theory Earth and Moon formed at same
  time in the same part of the solar system (but
  they have different compositions??)
• Capture theory Earth captured the Moon as it
  passed by need not have the same composition
  (but gravitational capture is improbable)
• Daughter or fission spinning Earth threw off
  the Moon (but how did it get to be spinning that
  fast?)
• Impact theory large body hits the (molten)
  Earth and is absorbed part of Earth's mantle is
  knocked out. (Plausible supported by computer
  simulations but there's no direct evidence!)

36
Impact (Big Whack) Theory
4
1
5
2
6
3
