Title: MARKET POSITIONING OF TETRA


1

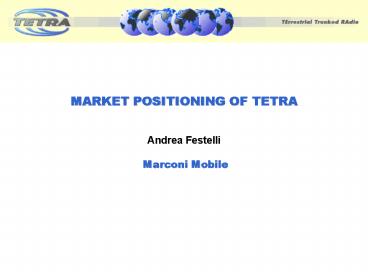

MARKET POSITIONING OF TETRA
  • Andrea Festelli
  • Marconi Mobile

2
Agenda
  • TETRA and public cellular systems
  • Comparison with other PMR technologies
  • TETRA market
  • State-of-the-art technology
  • The future

3
Frequently Asked Questions
  • Why do I need TETRA instead of public cellular
    networks (GSM, GSM-R, UMTS)?
  • Why do you say that TETRA is the winning PMR
    technology?
  • Is TETRA a mature technology?
  • Which are the relations between TETRA and UMTS?

4
(No Transcript)
5
Group communications
  • Point-to-multipoint voice and data including many
    supporting features such as
  • Unlimited number of included users
  • Unlimited site extension
  • Dynamic Group Number Assignment (DGNA)
  • Late entry
  • Talking party identification
  • ...

6
Control room and dispatching
operations
  • Focus on communications between radio terminals
    and control room/dispatcher operators
  • Call Authorised by Dispatcher (CAD)
  • Ambience/Discreet listening
  • Dynamic services management
  • ...

7
Secure communications
  • Multiple security schemes and algorithms
  • Authentication of User / Terminal
  • Authentication of the Infrastructure
  • Encryption
  • Air Interface Encryption
  • End-to-End Encryption
  • OTAR- Over The Air Re-keying
  • Security Management
  • Disabling of stolen radios

This is very confidential!
8
Communicate also when out of
network radio coverage
  • Fully digital trunked (TMO) and direct (DMO)
    modes of operation
  • Dual watch
  • Repeater
  • Gateway
  • DMO adds fringe or
  • out of coverage
  • area communications
  • DMO provides
  • communications within
  • coverage at times of
  • capacity limitations

9
And the professional mobile
specific features continue
  • Emergency calls
  • Fast call set-up
  • Concurrent voice and data
  • Real time short data services including status
    messages
  • Further PMR supplementary services call
    priority, access priority, area selection, ...

10
TETRA features differentiation from public
networks
TETRA
  • Features
  • Group/Broadcast Call
  • Dynamic Group Number Assignment
  • Call authorized by dispatcher
  • Ambience and Discreet listening
  • Authentication of the Infrastructure
  • End-to-end encryption
  • OTAR
  • Physical disabling of stolen radios
  • Direct Mode
  • DMO Gateway/Repeater
  • Fast Call Set-up
  • Emergency calls (preemptive)
  • Short Data Service
  • Packet Mode Data
  • Circuit Mode Data
  • Concurrent Voice Data

? GSM-R with limitations - - - - - - - - - - ?
GSM-R ? ? GPRS ? ? ? GPRS ? GSM-R
- - - - - - - - - - - ? ? ? ? ? ? ?
? ? ? ? ? ? ? ? ? ? ? ? ? (real time) ? ? ? ? ?

11
TETRA and other PMR technologies
  • TETRA is
  • Digital
  • TDMA based
  • Open standard

12
vs. analogue
Digital
  • Constant voice quality
  • Higher data rates
  • Efficient and effective secure communications and
    authentication

13
TDMA vs FDMA
Spectrum kHz
25
C H 1
C H 2
C H 3
C H 4
CH 1
Carrier 1
Carrier 1
12.5
CH 2
Carrier 2
Time
To
To
TDMA
FDMA
14
TDMA vs FDMA
  • Bitrate on demand
  • Higher data rates
  • Simultaneous voice and data
  • Simplex terminal for duplex
  • communications
  • One TRX to manage
  • four traffic channels

15
TETRA is a real open standard
  • TErrestrial Trunked RAdio (TETRA) is an open
    standard which is defined by the ETSI to meet the
    needs of the most demanding professional mobile
    radio users.
  • It has been fully accepted by all the European
    and many other Administrations.
  • ETSI has started the work program for TETRA
    release 2

16
Interoperability certification
  • The Interoperability Certificate (IOP) assures
    that various manufacturers infrastructure and
    terminals can indistinctly operate on any TETRA
    network
  • The various functionality tested and approved are
    summarized in public tables
  • Tests are executed by an independent accredited
    test house up to now Teledanmark (Danish
    operator)

17
TETRA and APCO 25
  • Project 25 is a Digital Radio Project that
    involves both APCO and TIA members, in ANSI/TIA
    Standardisation
  • Project 25
  • Phase 1 is 12.5kHz FDMA
  • Phase 2 has FDMA (6.25 kHz) and TDMA (12.5 and 25
    kHz) components
  • TETRA has been selected early in 2000 as TDMA
    option for the phase 2 (IMBE codec and DES
    encryption)
  • APCO 25 and TETRA are the only two digital
    standards for PMR originated from international
    standardisation institutes that are being
    deployed across the world

18
PMR technologies
iDEN
TETRA
TETRAPOL
ASTRO
EDACS
Trunked/Conventional
Trunked
Trunked
Trunked
Trunked/ Conventional
Trunked/ Conventional
Digital/Analogue
Digital
Digital
Digital
Digital/ Analogue
Digital/ Analogue
TDMA/FDMA
TDMA
TDMA
FDMA
FDMA
FDMA
Direct Mode Operation
NO
YES
YES
YES
YES
Enhanced Direct Mode Features
NO
YES
NO
NO
NO
Notes
800 MHz and 1,5 GHz frequency bands
-
-
-
-
Open/Proprietary
Proprietary
Open
Proprietary
Proprietary
Proprietary
19
Truly multi-vendor technology
  • Currently
  • 10 independent manufacturers of TETRA network
    infrastructure
  • 7 independent manufacturers of TETRA terminals

20
Competition benefits
  • Competitive prices
  • Competitive quality
  • Innovative products and solutions
  • Wide choice of products and Applications
    Developers

21
PMR market trends
The Worldwide Digital Radio Installed Base
(excluding iDEN) - 1st January 2001
3
14
36
TETRAPOL
APCO25
18
EDACS
TETRA
Other
29
Source IMS - June 2001
  • Total value of TETRA awarded contracts worldwide
    exceeds 2800 USm

22
PMR market trends
The Worldwide Digital Radio Installed Base
(excluding iDEN) - 1st January 2005
3
10
32
48
TETRAPOL
APCO25
7
EDACS
TETRA
Source IMS - June 2001
Other
23
Who buys TETRA?
Worldwide Tetra awarded contracts by segment
Update 10/2001 (total value over 2800 USm)
2
1
3
17
39
Public safety
Public access
Transport
Military
38
Utilities
Local government
Source Marconi internal info
24
Customer trends
  • Public safety and security services
  • EUROPE TETRA is the consolidated open standard
    technology for PSS radio mobile systems. Almost
    all European Countries are using (or have plans
    to use) TETRA
  • WORLD WIDE interest is consistently increasing
    and first projects are starting in all regions
  • Transport and utilities (Civil Users)
  • Projects in this segment partially suffered the
    spectrum issues for civil TETRA in the past but
    the solution to these problems is on the way

25
TETRA growth outside Europe China
  • On April 2001 TETRA has been adopted as national
    standard by Chinese administration. Most of the
    allocated radio channels are in the 800MHz
    frequency band
  • First tenders for TETRA have already been issued
    and assigned for transport (railways and subway
    companies) and public safety applications
  • TETRA market growth is envisaged for a long
    duration in China

26
TETRA growth outside Europe USA
  • TETRA adopted as basis of a 4-slot
  • TDMA system for Project 25 Phase II
  • MOU proposal includes use of DVSI IMBE codec,
  • DES encryption and Phase I FDMA interoperability
  • TR-8 formulating committee (TR-8.14) established
  • to develop ANSI/TIA standard
  • TR-8.14 is working on two variants
  • Standard for Public Safety with changes
  • Standard for Non Public Safety without changes to
    codec or encryption
  • Shell Standards in draft form, with ongoing work,
    to complete during 2001
  • North American TETRA Forum set up, providing
    support from users

27
TETRA is state-of-the-art
28
WAP and Bluetooth on TETRA
Network Management Center
Content Provider
WAP Terminal
IP
WAP GW
Internet
Database
LAN Server
IP
WAP Server
IP
Corporate Intranet
Switching/ RoutingNetwork
IP
IP
GPS
Bluetooth
Control Room Server
IP
IP
Voice/IP
Dispatcher
29
The future
  • UMTS is the future of cellular systems
  • TETRA is the future of PMR systems
  • TETRA and UMTS are complementary and will offer
    integrated services
  • TETRA release 2 is the answer

30
