Why Study Continental Aquatic Systems

1
(No Transcript)
2

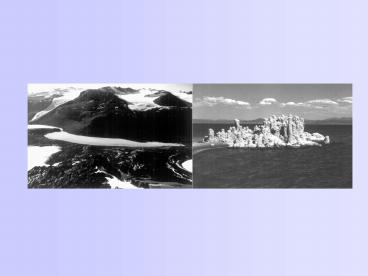

Unusual or Extreme Habitats

• Adaptations to Extremes
• Saline Lakes
• Hot Springs
• Cold Habitats
• Temporary Waters and Small Pools
• Ultra-Oligotrophic Habitats
• Deep Subsurface Habitats
• Neuston

3
Molecular Adaptations to Extremes

• DNA- stabilized against high temperature by more
  binding proteins, more CG pairs
• RNA- more extensive regions of base pairing in
  areas that need to hold conformation
• Membranes- higher temperatures increase
  saturation, branching and length. In Archaea,
  ether lipids

4
Molecular Adaptations to Extremes, continued

• Proteins- thermal stability, more ? sheets and ?
  helix, hydrophobic core, high external charge
• Salt- water is limiting. Need ways to stabilize
  proteins from too many ionic interactions.
  Complex animals pump out salt, halophilic
  bacteria and Archaea are isotonic with water.
  Some organisms use glycerol to remain isotonic
• Lack of water- similar to salt. Organisms in
  temporary habitats must be able to withstand
  desiccation

5
Saline Lakes

• Closed basins, evaporation balances with inputs.
  Many lakes on earth are saline
• Chemistry dependent upon watershed
• Limitation by O2 may be important because
  solubility decreases with increased salinity
• Brine shrimp can be important consumers, will not
  coexist with fish
• Aral Sea in Russia was the fourth largest lake in
  the world but irrigation has decreased the lake
  area by half. Dust storms from dried lake basin
  now cause health problems

6
Brine shrimp Artemia franciscana (ASLO image
gallery)
7
Salinity Tolerance
8
Hot Springs

• Thermophilic- heat loving organisms
• Bacteria and Archaea only inhabit highest
  temperatures
• Chemistry variable from very acidic to basic
• Acid springs dominated by sulfide sulfur
  oxidizing bacteria common

9
Upper Temperature Tolerances
10
Emerald pool- Yellowstone (waymark.com)
11
Adaptation to Hot Temperatures
12
Community Dynamics in Hunters Hot Spring
13
Cold Habitats

• Arctic habitats
• Organisms inhabit ice and snow
• Snow algae color snow pink
• Arctic lakes can be ice-free for only a month or
  two
• Antarctic lakes always have an ice cover

14
Watermelon snow (www.estes-park.com)
15
Temporary Waters and Small Pools

• Can be categorized by permanency
• Generally lack fish, larger pools can be
  important for large crustacea and amphibian
  breeding
• Prairie potholes important for waterfowl
• Small pools in plants etc. form unique habitat.
  Important for mosquito larvae
• Some vernal pools (e.g. California) have high
  numbers of endemic species

16
Ultra-Oligotrophic Habitats

• Very low nutrients can be stressful
• If carbonate low enough, mollusks cannot survive
• Organisms grow slowly

17
ultra-oligotrophic Waldo Lake(www.waldocats.org
/ )
18
Deep Subsurface Habitats

• All inhabited by microbes as long as liquid water
  exists
• Found at depths to 940 m
• Fungi rare, Bacteria and Archaea most common,
  protozoa top predators
• Active microbes found in waters isolated for 1200
  years
• Some may run off methanogenesis, H2 and CO2 come
  from rocks. Only ecosystem on earth not
  ultimately dependent upon photosynthesis

19
Water Surface Layer

• Neuston- microbes at surface, Pleuston-
  macrorgansims at surface
• Unique chemical and biological habitat
• Extreme, high light and UV
• Velia capria use chemical that lowers water
  tension to move up to 10 cm/s

20
Organisms of the Water Surface
21
(No Transcript)
22
Nutrient Use and Remineralization

• Use of nutrients
• Nutrient limitation and relative availability
• Resource ratios and stoichiometry of primary
  producers
• Stoichiometry of heterotrophs, their food, and
  nutrient remineralization

23
Use of Nutrients

• Uptake into cell, Michaelis-Menten V uptake,
  S substrate conc. Ks half saturation
  constant
• Monod equation, growth µ is growth rate
• Droop equation links concentration in cell (Q)
  and minimum concentration in cell for growth (Q0)
  to growth

24
(No Transcript)
25
Nutrient Limitation and Relative Availability

• Relative availability of nutrients
• Nutrient limitation
• The Paradox of the Plankton and nutrient
  limitation

26
Relative Availability of Nutrients
27
Concept of Nutrient Limitation

• Leibigs Law of the Minimum
• The case for multiple nutrient limitations

28
Hutchinsons Paradox of the Plankton

• Competitive exclusion principle- only one
  organism is a best competitor for a limiting
  resource and will dominate
• Leibigs Law- only one nutrient limits
• Observation- most phytoplankton cells have
  similar composition
• The Paradox- why are there commonly 100s of
  species of phytoplankton in a lake?

29
Resource Ratios and Stoichiometry of Primary
Producers

• Nutrient remineralization
• What short-term processes control the levels of
  dissolved inorganic nutrients such as ammonium
  and phosphate?
• Processes leading to remineralization
• Remineralization as a source of nutrient pulses
  in lentic systems

30
Redfield Ratio

• 106161 CNP by moles
• Algal cells have approximately this composition
  under balanced growth
• When N is limiting, may have 10651
• When P is limiting, may have 206321
• When N and P are limiting, may have 500161
• Can serve as an index of nutrient limitation

31
Nutrient Remineralization

• Usually uptake is high enough that nutrients
  would be completely exhausted without
  remineralization (regeneration)
• The concentration of dissolved nutrients is an
  amount, the flux through that pool is a rate.
  These two should not be confused
• Phosphate and ammonium concentrations can be very
  low in a eutrophic lake

32
Short-Term Processes can lead to an Equilibrium
Value of Nutrient Concentration

• Change in nutrient conc uptake - regeneration

33
(No Transcript)
34
Processes that lead to Nutrient Remineralization

• Leakage from healthy cells, excretion from
  animals
• Heterotrophic activities of bacteria
• Viral infections cause lysis of cells
• Nutrient remineralization often dominated by
  microbial processes
• In some cases, moving animals assist nutrient
  import (salmon, hippos, migrating zooplankton)

35
Nutrient Pulses

• Large algal cells are poor competitors for
  nutrients at low concentrations (low surface area
  to volume ratio)
• Pulses of nutrients may last long enough to give
  large cells an advantage if they run into the
  patches, but are they stable?
• Lehman and Scavia experiment

36
Stoichiometry of Heterotrophs, their Food, and
Nutrient Remineralization

• Heterotrophs remineralize nutrients in excess of
  need
• Assume 9 C of energy needed for each C used for
  growth, and growth is at Redfield ratio
• A heterotroph needs food at 1000161. If it
  eats food at 106161, it will excrete N and P

37
Bacterial Remineralization Depends on Food Source
38
Zooplankton Differ in Stoichiometry so vary in
Food Requirements and Remineralization
39
(No Transcript)
40
Trophic State and Eutrophication

• Definition of trophic state
• Why does nutrient pollution resulting in algal
  blooms matter in lakes?
• Natural and cultural processes of eutrophication

• Relationships among nutrients, water clarity, and
  phytoplankton
• Mitigating lake eutrophication
• Managing eutrophication in streams and wetlands
• Case studies of eutrophication
• Eutrophication and wetlands

41
Definition of Trophic State

• Based on nutrients or producer biomass
• A way to describe a continuum of possible trophic
  states
• Useful in comparing systems across large areas
  (e.g. an oligotrophic lake in Iowa may be
  eutrophic in Idaho)
• To be more accurate we should refer to
  heterotrophic state and autotrophic state

42
Two Trophic Classification Systems for Lakes
(autotrophic state)
43
Why Does Nutrient Pollution Resulting in Algal
Blooms Matter in Lakes?

• Taste and odor problems
• Blooms of toxic algae
• Aesthetics (people less willing to pay to live
  near, or recreate on, eutrophic lakes)
• Fish kills

44
Natural and Cultural Processes of Eutrophication

• Classical view that lakes slowly become more
  eutrophic as they fill and become shallow,
  eventually succession leads to a marsh, then a
  meadow
• Many large lakes may be oligotrophic for much of
  their history
• Natural eutrophication can occur, but
  eutrophication caused by humans (cultural
  eutrophication) is a world-wide problem

45
Relationships among Nutrients, Water Clarity and
Phytoplankton

• Managing eutrophication in lakes requires
  understanding of correlations between nutrients
  and algal biomass
• Management of fish populations can also include
  consideration of trophic state

46
Nutrient-Biomass Relationships
47
Linking Lake Clarity to Nutrients
48
Mitigating Lake Eutrophication

• Control of nutrient sources
• internal versus external loading
• Treatment in the lake
• Macrophyte removal

49
Steps to Mitigate External Loading
50
Why Eutrophication should be Controlled before
the Hypolimnion goes Anoxic

• FePO4 dissociates in anoxic conditions
• If hypolimnion goes anoxic then PO43- is
  continuously recycled from sediments into the
  water column, and mixed into the epilimnion
• Can take many years to recover from
  eutrophication even if point sources and
  non-point sources are controlled

51
Methods for Controlling Macrophytes
52
Managing Eutrophication in Streams and Wetlands

• Methods not as clearly defined for streams and
  wetlands, methods for streams more developed than
  for wetlands
• In general, principles are the same, control of
  nutrient sources is better than treating the
  symptoms

53
Relationship Between Algal Biomass and Nutrients
in Streams
54
(No Transcript)
55
Case Studies of Eutrophication

• Lake Washington
• Lake Trummen
• Lake Tahoe
• Lake Okeechobee
• The Clark Fork River

56
Lake Washington

• Noticed shift to eutrophic algal species
• Sewage diverted from Lake Washington in 1960s
• Cyanobacteria dropped out
• Were able to control trophic state before
  hypolimnion went anoxic

57
Effect of Nutrient Control in Lake Washington
58
Lake Trummen

• In Sweden, 1 m deep, poor water quality, frequent
  fish kills
• Controlled point and non point sources to lake in
  1960s but problems continued
• Calculated that it would take hundreds of years
  for nutrients in sediments to wash back out
• Top half meter of sediments dredged and sold as
  topsoil. Improved water quality to allow fish
  survival and human recreation

59
Lake Tahoe

• Ultra-oligotrophic lake on Nevada, California
  border
• Water retention time 700 years
• Septic systems were polluting lake, N limitation
  (detergent inputs)
• After sewage pumped out of basin, P limitation
  (watershed disturbance increased N inputs)
• Secchi depths are now 20 m rather than 40 m
  historically
• Future of lake uncertain

60
Everglades/ Okeechobee

• Ag fertilizer runoff caused algal blooms in
  Okeechobee and loss of native plant and algal
  communities in Everglades (cattail replacing
  sawgrass)
• Canals and locks decreasing natural flushing
• Trying to restore natural hydrology
• Experimenting with using wetland areas to scrub P
  from incoming waters
• Agricultural lobby very powerful, and huge tax
  base in Southern Florida, so this is a charged
  issue
• Not clear if the problems will be solved

61
Eutrophication and Wetlands

• Wetlands serve as nutrient sinks
• Better at N than P removal because there is no
  equivalent process to denitrification in the P
  cycle
• May work to remove plant biomass and allow
  re-growth (bulk removal of P)
• Many natural wetlands are oligotrophic, and
  nutrient pollution destroys natural system

62
(No Transcript)
63
Behavior and Interactions among Microorganisms
and Invertebrates

• Behavior of microorganisms
• Interaction types in microbial communities
• Predation and parasitism
• Competition
• Mutualism facilitation and syntrophy
• Chemical mediation of microbial interactions

64
Behavior of Microorganisms

• Motility
• Taxis
• moving toward or away from stimulus
• phototaxis, light
• geotaxis, gravity
• chemotaxis, chemicals
• magnetotaxis, magnetic fields

65
Relative Rates of Movement of Organisms
66
Random Walk Model of Chemotaxis
67
Interaction Types in Microbial Communities

• Density-mediated versus trait-mediated
  interactions
• Direct verses indirect interactions

68
Predation and Parasitism

• Viruses
• Consumption of small cells
• Scrapers and shredders
• Filter feeders
• Selectivity of particle feeders
• Microbial adaptations to avoid predation
• Parasitism
• Other exploitative interactions

69
(No Transcript)
70
Viruses

• All organisms have them
• May control algal blooms and bacterial
  populations at times
• Can be a problem in fish aquaculture
• Some small protozoa can engulf viruses
• Human disease viruses can survive in water
• Inactivated in natural environment over time
• May move genetic material across taxonomic lines

71
(No Transcript)
72
Consumption of Small Cells and Particles

• Function of particle size
• too small, the solution is too viscous, or
  collection apparatus is too small
• too large and wont fit in mouth
• Function of particle concentration
• Function of particle quality
• Greatest rates when entire assemblage is consumed

73
Consumption and Particle Size
74
Consumption and Concentration Energetic
Considerations
Protozoa increase consumption then level off
Daphnia slows down when particles are dense
75
Consumption by Taxonomic Group
76
Avoiding Predation

• Mechanical
• size (too small or too large)
• spines (chemical cues may induce protection)
• Chemical
• toxins (must be a majority in community, e.g.
  algal bloom)
• poor quality
• Behavioral
• escape

77
Competition

• Exploitation versus interference competition
• Resource ratio theory
• Allelochemicals

78
Resource Ratio Theory
79
increasing
Species 2 wins, (low Si, high P)
Species 2, zero survival line
coexistence
PO43-
Species 1 wins, (high Si, low P)
Species 1, zero survival line
increasing
SiO42-
80
(No Transcript)
81
Mutualism Facilitation and Syntrophy

• Highly co-evolved mutualisms rare in freshwaters
  relative to marine
• N-fixing symbionts occur
• Syntrophy
• Nostoc-midge example

82
(No Transcript)
83
Chemical Mediation of Microbial Interactions

• Most microbial interactions mediated by chemicals
• All organisms use chemical cues
• Need to consider hydrodynamics (e.g. Reynolds
  number)
• unidirectional interactions in unidirectional flow

84
(No Transcript)
85
Predation and Food Webs

• Detritivory and omnivory
• Adaptation to predation pressure
• Adaptations of predators
• Non-lethal effects of predation
• Trophic levels, food webs, and food chains
• The trophic cascade
• Theoretical community ecology and aquatic food
  webs

86
Detritivory and Omnivory Many Organisms are
Omnivorous
87
Using Stable Isotopes to Document Food Webs

• Several isotopes can be used to document food
  webs. The most common ratios used are 15N/14N
  and 13C/12C, expressed in parts per thousand
• Nitrogen is heavier as you move up the food web.
  Organisms track the C ratio in their food

88
Examples of Isotopes in Food Webs
89
Adaptation to Predation Pressure

• Mechanical
• size (too small or too large)
• spines (chemical cues may induce protection)
• Chemical
• toxins (must be large food item relative to
  predator)
• poor quality
• Behavioral
• escape (chemical, hydrodynamic, visual cues)

90
Diel Vertical Migration in Daphnia
91
Additional Behavioral Response of Daphnia

• May dive or swarm in response to chemicals
  released when conspecifics are crushed
• May produce diapausing eggs in response to
  chemical cues
• May reproduce more quickly at a smaller size

92
Adaptations of Predators

• Hide and wait versus active foraging
• Sensory adaptations (sight, visual, hydrodynamic,
  electrical, chemical)
• Functional response versus numerical response
  (Hollings functional response curves)
• Predation only when predator pressure is lower
  (e.g. many predators need to worry about being
  prey)

93
Functional Response Curves
94
Foraging can be Modified by Food Density
95
Non-lethal Effects of Predation

• Many predators dont kill prey, but can alter
  their survival
• Another prey species may be your savior if a
  predator switches to that prey instead of you
  when your population numbers are low
• Macrophytes are not eaten entirely, but can be
  grazed to some degree

96
Trophic Levels, Food Webs, and Food Chains

• Food chains
• producers, primary consumers, secondary
  consumers, decomposers
• simple linear viewpoint
• Food webs
• allow for more complexity such as feeding at
  different trophic level
• more difficult to work with

97
The Trophic Cascade

• Postulated since 1880 that predators can control
  herbivores and increase biomass of producers
• Top-down versus bottom-up control
• May use biomanipulation to control trophic state

98
Conceptual Diagram of Trophic Cascade
99
Biomanipulation in Netherland Lakes
100
Trophic Cascade in a River
101
Theoretical Community Ecology and Aquatic Food
Webs

• Are more diverse systems more stable?
• Is biodiversity related to ecosystem function?
• What controls lengths of food chains?

102
(No Transcript)
103
Nonpredatory Interspecific Interactions among
Plants and Animals in Freshwater Communities

• Competition
• Mutualism and facilitation
• Other species interactions
• Complex community interactions

104
Competition

• Difficult to establish in the field
• Primary producers compete for nutrients and
  light, benthic for space
• Can structure wetland plant communities
• Leads to evolutionary specialization (niche
  partitioning) over time

105
Niche Partitioning in Two Rotifers
106
Mutualism and Facilitation

• Mutualism usually approached on a case-by-case
  basis
• Cichlid fish will brood in multi-species groups
  to protect eggs from predators
• Groups of wetland plants may facilitate each
  other in harsh environments
• Invertebrates may facilitate others in feeding
  relationships

107
Mutualism in 3 Tubificid Oligochaetes
108
Other Species Interactions

• Many examples where one species has a strong
  effect on another and the second little effect on
  the first
• Humans are the ultimate example, we harm many
  species that have little influence on us. We
  also help some species (e.g. sportsfish) that
  have little effect on our survival

109
Complex Community Interactions

• Disturbance
• Succession
• Indirect interactions
• Strong interactors

110
Disturbance

• Response to disturbance dependent upon
  characteristics of disturbance and organisms
• Disturbance
• intensity
• areal extent
• frequency
• Organisms
• colonization ability
• resistance (e.g. diapause)
• distance to refugia
• growth rate
• What are some potential examples of disturbance
  in wetlands, lakes, and streams?

111
An Example of Harshness
Characterized by time since flood,
intensity of flood, time since dried,
length of dry period, and distance from source of
permanent water
112
Succession

• Often represented as a predictable sequence of
  community development after a disturbance or
  change in environment
• Seasonal succession in lakes
• Succession after reservoir construction
• Colonization after flooding in rivers
• Wetland restoration

113
Seasonal Succession in Lakes
Concentration
Si
Total P
Large grazer resistant phytoplankton
Cyanobacteria
Diatoms
per L
Small body rapid growing zooplankton
per L
Large zooplankton
Biomass per m2
Macrophytes
Total young of the year fish
per m2
Larvae of individual fish species
Total Fish Biomass per m2
All fish
Stratification
Autumn mixing
Winter Spring Summer Autumn Winter
114
Seasonal Succession in Fish Reproduction
115
Seasonal Succession in Streams
Leaves in stream
Light at stream surface
Amount
Discharge
Discharge or temperature
Temperature
Biomass
Periphyton
Fast seasonal, insect larvae with summer
reproduction
Biomass
Biomass
Slow seasonal, insect larvae with winter growth
Long-lived species and quick reproducers (fish,
predators, mosses , FBOM feeders)
Biomass
Winter Spring Summer Autumn Winter
116
Succession Following Reservoir Construction

• Macrophytes become established, community becomes
  more diverse over decade or so
• Productivity initially high because of nutrients
  released from flooded vegetation
• Fish and invertebrate communities shift from
  riverine to lacustrine and pelagic lake species

117
Succession and Wetland Restoration

• Two approaches
• let natural processes restore natural community
  (e.g. from seed bank or come in on waterfowl
  etc.)
• re-introduce native species
• Often difficult to introduce species and get them
  all to take
• Some species will take a long time to come back,
  if ever, so reintroduction needs to occur
• A blend of the approaches should be taken

118
Indirect Interactions

• How long are interaction chains in natural
  communities?
• Trophic cascade good example of indirect
  interaction chains
• Cladophora can benefit epiphytes (place to live)
  and indirectly grazers. The grazers may help
  Cladophora by lowering the amount of epiphytes
  that compete for nutrients

119
Indirect Interactions between Fish and Ducks
120
(No Transcript)
121
Fish Ecology and Fisheries

• Biogeographical determinants of fish assemblage
  diversity
• Physiological aspects influencing growth,
  survival, and reproduction
• Population dynamics of fishes
• Regulating exploitation of fish stocks
• Stocking fish for fisheries
• Aquaculture

122
Biogeographical Determinants of Fish Assemblage
Diversity

• More diverse on large continents than small
• More diverse in old lakes and watersheds
• More diverse in tropics than temperate
• More diverse with more within-habitat diversity
• More diverse in larger rivers than small

123
Fish Diversity with Distance Downstream
124
Physiological Aspects Influencing Growth,
Survival, and Reproduction

• Energetics control growth, survival and
  reproduction
• Osmoregulation can be important, particularly for
  andromedous species
• Temperature, oxygen, food quantity and quality,
  predator avoidance all important

125
Energetics across a Gradient
126
Temperature Interacts with Trophic State
127
Effect of a Predator on Food Consumption
128
Population Dynamics of Fishes

• Stock- population size
• Production- population growth
• Recruitment- number entering an age class
• Numerous indices to quantify stock, production,
  age structure,and recruitment

129
Regulating Exploitation of Fish Stocks

• Maximum sustainable yield- calculated when number
  of adults and young known
• Regulations used include size allowed, closed
  seasons, gear, and number of fish removed
• Closed seasons particularly useful for times when
  fish are susceptible to harvesting (e.g. spawning
  times)

130
Stocking Fish for Fisheries

• Many fisheries managers stock fish
• Useful to boost native stocks
• Can introduce new species (e.g. lake species when
  a reservoir or pond is made)
• Some major problems with introductions include
  disease, outcompeting native fishes,
  hybridization with native fishes, lack of genetic
  diversity in populations

131
Aquaculture

• World fish production dominated by carp, an
  important source of protein in many developing
  countries
• Management of aquaculture requires understanding
  of ecology including trophic state, transmission
  of disease, ecology of food organisms

132
Global Production of some Freshwater Organisms
in 1989
133
Zooplankton predators
Benthic predators
Foragers
0.7
2
0.5
Zooplankton
Benthic consumers
2
12
Phytoplankton
Periphyton
71
41
134
Freshwater Ecosystems

• General approaches to ecosystems
• Groundwater ecosystems
• Streams
• Lakes and reservoirs
• Wetlands
• Comparison of freshwater ecosystems

135
General Approaches to Ecosystems

• Trophic levels
• Energy flux budgets
• Efficiency of trophic levels not 100
• Nutrient budgets

136
Trophic Pyramids and Energy Flux
137
A Nutrient Flux Budget
138
Biodiversity and Ecosystem Function

• Controversial
• Usually enough microbial diversity is present for
  an ecosystem to function at same rate regardless
  of diversity
• Important in low diversity systems (e.g. if only
  one species of shredder, then its absence will
  substantially alter the ecosystem)
• Benthic invertebrate diversity may alter nutrient
  flux across sediment/water interface

139
Groundwater Ecosystems

• Often rely on organic material washed in from
  surface
• Can be ultraoligotrophic
• Permeability and water flow very important,
  animals common when large channels exist in
  groundwater

140
Relative Rates of Ecosystem Respiration
141
Streams

• Flood pulse concept
• Autochthonous versus allochthonous production
• Nutrient spiraling
• River continuum concept

142
Flood Pulse Concept

• The traditional idea was that floods were
  disturbances
• More recent realization that flooding is an
  integral part of ecosystems
• Moves materials to and from riparian flood zone
• Increases connectivity between oxbows and
  wetlands in riparian areas and river
• Resets communities
• Encourages reproduction of some species

143
Autochthonous versus Allochthonous Production

• When light reaches system, more primary
  production
• Forested areas have large amounts of leaf input
• Metabolic measurements suggest almost all streams
  are net heterotrophic, some just more so than
  others

144
Nutrient Spiraling
145
River Continuum Concept
146
(No Transcript)
147
Lakes and Reservoirs

• View of lake ecosystems has expanded to include
  watershed
• Global surveys suggest that shallow lakes are
  more common than deep (littoral zone important
  part of ecosystem)
• Surveys of CO2 shows supersaturation in most
  lakes, indicating that heterotrophy is more
  important that autotrophy

148
Generalized Ecosystem Characteristics of
Temperate Lakes
149
Wetlands

• Most productive ecosystems on earth
• Herbivory not very important in most systems
• Hydrology drives function, including flow
  thorough and nutrient sources

150
Pantanal, the Worlds Largest Wetland Ecosystem
Complex

• Brazil, Bolivia, Paraguay
• During wet season, floods connect pools
• During dry season, pools isolated and concentrate
  fish and their predators
• Home to many endangered species
• Plans underway to channelize river and decrease
  the upper part of the wetland by half

151
(No Transcript)
152
Comparison of Freshwater Ecosystems across
Gradients
153
Comparison of Trophic Webs
154
Experimental Design in Aquatic Ecology

• Natural Experiments
• Simulation Modeling
• Manipulative Experiments

155
Natural Experiments

• Things happen naturally to whole systems that can
  be used to test ideas about those systems (Mt.
  St. Helens)
• Natural patterns can be determined via
  correlation
• Not causation, but does increase understanding of
  systems

156
Simulation Modeling

• Models can indicate where we lack knowledge
• Models can test scenarios where experimentation
  is impossible (e.g., global warming)
• Sensitivity analysis can be used to find the
  variables that control the parameter of interest

157
Manipulative Experiments

• To formally test a hypothesis, a manipulative
  experiment is necessary
• Need controls and replication
• When experiments are properly designed,
  statistics can be used to test probability that a
  specific result supports the hypothesis
