Title: SEMINAR SERIES ON ADVANCED MEDICAL IMAGE PROCESSING EDGE DETECTION


1

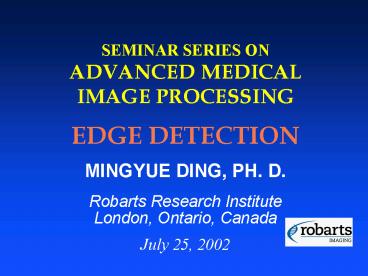

SEMINAR SERIES ONADVANCED MEDICAL IMAGE
PROCESSING EDGE DETECTION
  • MINGYUE DING, PH. D.
  • Robarts Research Institute
  • London, Ontario, Canada
  • July 25, 2002

2
CONTENTS
  • What is an edge?
  • Gradient, curvature and edge detection
  • Line detection-Hough transform technique
  • Edge representation-B-Spline fitting technique

3

WHAT IS AN EDGE?
  • An edge is a set of connected pixels that lie on
    the boundary between two regions
  • The pixels on an edge are called edge points
  • Position orientation of edge
  • Gray level discontinuity across an edge

4
WHY A GRAY LEVEL DISCONTINUITY HAPPENED?
  • Different colors, brightness, textures, material,
    tissues,
  • Different normal directions of surfaces
  • Different illuminance

5
DIFFERENT EDGES
A
Different color
Different brightness
6
DIFFERENT EDGES
Different texture
Different surfaces
7
UNIQUENESS OF EDGE
  • Most of edges are unique in space, i.e., its
    position and orientation keep the same in the
    space when viewing from different points
  • Non-unique edge-Limb edge

A

C

A
B
C
D


O1
D
B
Image 2
Image 1
O2
8
TYPES OF EDGES
  • Gray level profile
    derivatives
  • Step edge
  • Ramp edge
  • Peak edge

1st
2nd
1st
9
DIFFERENT TYPES OF EDGES IN A CT IMAGE
Ramp edge
Step edge
Peak edge
10
DEFINITION OF GRADIENT
  • A point is defined as an edge point if its 2-D
    first or second -order derivative is greater than
    a specified threshold.
  • Gradient of digital image, , is defined
    by a vector

11
GRADIENT CALCULATATION
  • Gradient at an edge point, (x,y), can also be
    interpreted as a complex number with its
    magnitude determined by
  • and the direction determined by

12
EDGE OPERATORS
  • The partial derivatives in x and y, ,
  • can be estimated using different ways
  • Roberts operator
  • Prewitt operator
  • Sobel operator

13
GRADIENT MASKS
  • All operators can be performed by the
    convolution using different masks.
  • Roberts operator masks

14
GRADIENT OPERATORS
  • Prewitt operator masks
  • Sobel operator masks

15
CURVATURE
  • Curvature is defined as the rate of change of
    edge direction.
  • Suppose is an edge, its
    curvature, , is defined as

16
CURVATURE
  • The curvature at A is larger than B

B
R1
R2
A
edge
17
LINE DETECTION
  • Line is the most often used and important edge in
    an image
  • A lot of edges are straight lines
  • Any edge can be considered as piecewise line edge
  • How to detect a straight line in an image?
  • To find the straight line that has the maximum
    number of points passing through it

18
NEEDLE DETECTION IN US IMAGE
Binary image
2D US gray level image
19
HOUGH TRANSFORM
  • In 1967, Hough proposed to detect line in
    parameter space, called Hough transform (HT)
    technique

B
y
b
b-xnayn
(x1,y1)


(x2,y2)
yAxB

A
b-x2ay2
b-x1ay1
Cluster
(xn,yn)

x
a
Parameter space
Image space
20
LINE-POINT DUALITY OF HOUGH TRANSFORM
  • Image space point, line, line detection
  • Parameter space line, point,cluster detection
  • Accumulator array
  • Quantilization of slope and intercept of line
  • Thus, the problem of line detection in image
    space becomes a cluster detection in parameter
    space

21
COMPUTATIONAL COMPLEXITY OF THE HT
  • Directly perform in (a,b) space

  • (1)
  • where
  • is the size of binary image
  • are the possible numbers of a and
    b
  • is the number of addition operations
    needed at each point in the binary image
  • is the fraction of points in the binary

22
PROBLEMS IN THE HT
  • If



  • (2)
    Problems
  • Too slow (570s on a computer of 108 adds/s)
  • Both a and b are unbounded when the line is
    parallel to y-axis

23
STANDARD HOUGH TRANSFORM (SHT)
  • In 1972, Duda Hart proposed a Standard HT
    (SHT). They used the polar coordinate equation of
    a straight line

Y
(3)
X
O
24
STEPS OF ACCUMULATOR ARRAY CALCULATATION IN SHT
1. Search a point in the binary image 2. Vary the
possible values of from 0 to 3. Calculate
from Eq. (3) 4. Increase by
1 5. If we find a new point in the binary image,
go to Step 1 otherwise stop.
25
COMPUTATIONAL COMPLEXITY OF THE SHT

  • (4)
  • If we use the same values of the parameters in
    (2), the computational complexity of the SHT is
  • It is Nb 512 times faster than HT, but still
    too slower for a real-time processing.

26
MOTIVATIONS OF REAL-TIME HOUGH TRANSFORM (RTHT)
  • Use the smallest image containing the line to
    replace the original image
  • Use Look-up Table for the operations of sin and
    cos
  • Two-stage searching strategy

27
SMALLEST IMAGE CONTAINING LINE
M
M
Smallest image
N
  • Original image

N
28
TWO-STAGE SEARCHING STRATEGY
  • 1. At the coarse stage, we use lower resolution
    image to detect the
    line where is the original image,
    is the magnifying factor,


  • .
  • 2. At the fine stage, we use with the
    approximate line direction determined at the
    coarse stage.

29
DETERMINATION OF OPTIMAL IMAGE RESOLUTION
  • The computational complexity at the coarse stage
    is

  • (5)
  • The computational complexity at the fine stage is

  • (6)
  • The total computational complexity of the RTHT is

  • (7)

30
DETERMINATION OF OPTIMAL IMAGE RESOLUTION
  • By deriving CRTHT in Eq. (7), we determine

31
COMPUTATIONAL COMPLEXITY OF THE RTHT
  • Substituting the value of into Eq. (7)
  • If we use the same values in (2), the
    computational complexity of the RTHT is

32
REAL-TIME NEEDLE TRACKING
Patient biopsy
Agar phantom
33
EDGE REPRESENTATION
  • Chain code easy but sensitive
    to noise
  • Edge fitting
  • More robust and continuous
  • B-spline is a powerful and popular model used in
    graphics and image processing

34
B-SPLINE FITTING
What is spline? A spline is a thin flexible
strip made of bamboo or steel that can be bent to
pass through or near given points in the plane In
B-spline, B means Basic
35
DEFINITION OF B-SPLINE
  • Mathematically splines are piecewise polynomials
    with pieces that are smoothly connected together.


  • (8)
  • (N1
    convolution)

36
PROBLEMS IN B-SPLINE
  • Need to determine the coefficients for every
    Basic functions
  • Difficult to determine the control points
  • Difficult to let the B-spline passing through the
    given points accurately.

37
CARDINAL-SPLINE


  • (9)
  • where is called the n-order
    cardinal-spline function and it can be calculated
    from the n-order B-spline function

38
BASIC FUNCTIONS
39
EXAMPLES




Cardinal-spline
Control points
Cardinal-spline used in initializing a prostate
contour
40
EXAMPLES

CONTOUR FITTING USING B-SPLINE
41
3D RECONSTRUCTION RESULTS
42
EDGE IN VTK/ITK
  • VTK
  • Edge operator
  • vtkEdgePoint, vtkImageGradient,
  • vtkImageGradientMagnitude,
    vtkImageSobel2D,
  • vtkImageSobel3D,
  • B-spline
  • vtkSpline, vtkCardinalSpline.
  • ITK
  • Edge operator
  • itkSobelEdgeDetectionImageFilter,
    itkSobelOperator
  • itkGradientMagnitudeImageFilter
  • itkGradientToMagnitudeImageFilter
  • itkGradientVectorFlowImageFilter
  • B-spline itkBSplineInterpolationWeightFunction
  • itkBSplineInterpolateImageFunction
