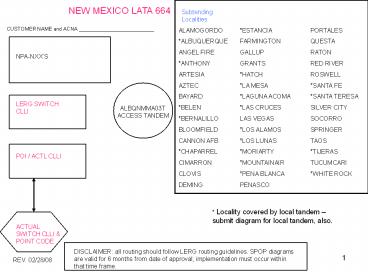

* Locality covered by local tandem

1
NEW MEXICO LATA 664
CUSTOMER NAME and ACNA
Locality covered by local tandem submit
diagram for local tandem, also.
REV. 02/28/08
2
INSTRUCTIONS
NEW MEXICO LATA 664
CUSTOMER NAME and ACNA

• Use previous slide as a template. Copy all and
  paste to new document
• In top left box enter the full NPA-NXXs
  assigned to the switch and in LATA 664 (on ASR,
  full NPA-NXXs should go in CNPANXX fields on
  Translations Questionnaire).
• In center left boxes enter LERG switch CLLI (this
  is always the PSL on the Access Service Request
  Form) and POI/ACTL CLLI (this is the ACTL on the
  Access Service Request Form). If POI/ACTL CLLI
  is owned by another OCN, LOA must be provided.
• In lower left hexagon enter actual switch CLLI
  from SHA screen in LERG and point code (actual
  switch CLLI is always the CSL and the point code
  is entered in the CSPC field on the TRUNKING form
  of the ASR). LERG switch CLLI and actual switch
  CLLI may be the same if the actual switch is in
  the same LATA and then PSL and CSL would be the
  same CLLI.
• EITHER enter a single line from POI/ACTL CLLI box
  to each access tandem circle and label 2W SPOP
  COMBINED and include quantity of trunks
  requested OR enter 2 lines from POI/ACTL CLLI box
  to each access tandem circle and label top line
  2W SPOP IXC and bottom line 2W SPOP
  Local/Intra and include quantity of trunks
  requested.
• Indicate the QWEST localities where you will be
  conducting business by changing the color to red.
• Full NPA-NXXs also known as Code Holder,
  LERG Assignee, or A Record Holder

REV. 02/28/08
3
NEW MEXICO LATA 664
CUSTOMER NAME and ACNA
REV. 02/28/08
4
INSTRUCTIONS
NEW MEXICO LATA 664
CUSTOMER NAME and ACNA

• Use previous slide as a template. Copy all and
  paste to new document
• In top left box enter the full NPA-NXXs
  assigned to the switch and in the ALBUQUERQUE, NM
  LOCAL CALLING AREA (on ASR, full NPA-NXXs
  should go in CNPANXX fields on Translations
  Questionnaire). If no full NPA-NXXs, MAY REQUEST
  ARLRN. SEE ARLRN PCAT FOR MORE INFORMATION.
  http//www.qwest.com/wholesale/clecs/slrn.html
• In center left boxes enter LERG switch CLLI (this
  is always the PSL on the Access Service Request
  Form) and POI/ACTL CLLI (this is the ACTL on the
  Access Service Request Form). If POI/ACTL CLLI
  is owned by another OCN, LOA must be provided.
• In lower left hexagon enter actual switch CLLI
  from SHA screen in LERG and point code (actual
  switch CLLI is always the CSL and the point code
  is entered in the CSPC field on the TRUNKING form
  of the ASR). LERG switch CLLI and actual switch
  CLLI may be the same if the actual switch is in
  the same LATA and then PSL and CSL would be the
  same CLLI.
• Enter a single line from POI/ACTL CLLI box to
  each local tandem circle and label 2W SPOP
  LOCAL and include quantity of trunks requested.
• Indicate the QWEST localities where you will be
  conducting business by changing the color to red.
• Full NPA-NXXs also known as Code Holder,
  LERG Assignee, or A Record Holder

REV. 02/28/08
5
NEW MEXICO LATA 664
CUSTOMER NAME and ACNA
REV. 02/28/08
6
INSTRUCTIONS
NEW MEXICO LATA 664
CUSTOMER NAME and ACNA

• Use previous slide as a template. Copy all and
  paste to new document
• In top left box enter the full NPA-NXXs
  assigned to the switch and in the LAS CRUCES, NM
  LOCAL CALLING AREA (on ASR, full NPA-NXXs
  should go in CNPANXX fields on Translations
  Questionnaire). If no full NPA-NXXs, MAY REQUEST
  ARLRN. SEE ARLRN PCAT FOR MORE INFORMATION.
  http//www.qwest.com/wholesale/clecs/slrn.html
• In center left boxes enter LERG switch CLLI (this
  is always the PSL on the Access Service Request
  Form) and POI/ACTL CLLI (this is the ACTL on the
  Access Service Request Form). If POI/ACTL CLLI
  is owned by another OCN, LOA must be provided.
• In lower left hexagon enter actual switch CLLI
  from SHA screen in LERG and point code (actual
  switch CLLI is always the CSL and the point code
  is entered in the CSPC field on the TRUNKING form
  of the ASR). LERG switch CLLI and actual switch
  CLLI may be the same if the actual switch is in
  the same LATA and then PSL and CSL would be the
  same CLLI.
• Enter a single line from POI/ACTL CLLI box to
  each local tandem circle and label 2W SPOP
  LOCAL and include quantity of trunks requested.
• Indicate the QWEST localities where you will be
  conducting business by changing the color to red.
• Full NPA-NXXs also known as Code Holder,
  LERG Assignee, or A Record Holder

REV. 02/28/28
7
NEW MEXICO LATA 664
CUSTOMER NAME and ACNA
REV. 02/28/08
8
INSTRUCTIONS
NEW MEXICO LATA 664
CUSTOMER NAME and ACNA

• Use previous slide as a template. Copy all and
  paste to new document
• In top left box enter the full NPA-NXXs
  assigned to the switch and in the SANTE FE,NM
  LOCAL CALLING AREA (on ASR, full NPA-NXXs
  should go in CNPANXX fields on Translations
  Questionnaire). If no full NPA-NXXs, MAY REQUEST
  ARLRN. SEE ARLRN PCAT FOR MORE INFORMATION.
  http//www.qwest.com/wholesale/clecs/slrn.html
• In center left boxes enter LERG switch CLLI (this
  is always the PSL on the Access Service Request
  Form) and POI/ACTL CLLI (this is the ACTL on the
  Access Service Request Form). If POI/ACTL CLLI
  is owned by another OCN, LOA must be provided.
• In lower left hexagon enter actual switch CLLI
  from SHA screen in LERG and point code (actual
  switch CLLI is always the CSL and the point code
  is entered in the CSPC field on the TRUNKING form
  of the ASR). LERG switch CLLI and actual switch
  CLLI may be the same if the actual switch is in
  the same LATA and then PSL and CSL would be the
  same CLLI.
• Enter a single line from POI/ACTL CLLI box to
  each local tandem circle and label 2W SPOP
  LOCAL and include quantity of trunks requested.
• Indicate the QWEST localities where you will be
  conducting business by changing the color to red.

• Full NPA-NXXs also known as Code Holder,
  LERG Assignee, or A Record Holder

REV. 02/28/08
