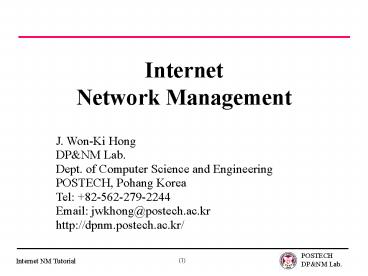

Internet Network Management

1
InternetNetwork Management
J. Won-Ki Hong DPNM Lab. Dept. of Computer
Science and Engineering POSTECH, Pohang
Korea Tel [phone] Email
jwkhong_at_postech.ac.kr http//dpnm.postech.ac.kr/
(1)
2
Contents

• Overview of Network Management
• Internet Network Management Framework
• ASN.1 BER
• CASE Diagrams
• SNMPv1, RMON, SNMPv2, SNMPv3
• Summary
• References

3
Overview of Network Management

• Todays Networks
• Network Management Requirements
• Network Management Systems
• NMS Software Architecture
• Distributed Network Management
• Proxy Agent
• Standard Management Frameworks

4
Todays Networks
SDH
FDDI
Access Networks
ATM
Token Ring
PCS
SS7
PSDN
WANs
Fast Ethernet
PSTN
Gigabit Ethernet
ISDN
B-ISDN
IN/AIN
Ethernet
Computer Networks
Telecom Networks
5
NM Users Requirements

• Controlling corporate strategic assets
• effective control of network computing
  resources
• Controlling complexity
• continued growth of devices, users, applications
  protocols
• Improving service
• users expect better service with increased
  resources
• Balancing various needs
• must assign and control resources to balance
  various needs
• Reducing downtime
• more users and applications depend on
  availability
• Controlling costs
• effective resource utilization in order to
  control costs

6
NM Functional Requirements

• Fault Management
• detection, isolation and correction of abnormal
  operations
• Configuration Management
• identify managed resources and their
  connectivity, discovery
• Accounting Management
• keep track of usage for charging
• Performance Management
• monitor and evaluate the behavior of managed
  resources
• Security Management
• allow only authorized access and control

7
Fault Management

• concerned with
• providing a reliable networking environment
• ensuring that the systems as a whole, and each
  essential component individually, are in proper
  working order
• redundant components and routes can be used to
  increase fault tolerance
• when a fault occurs, the manager should be able
  to
• determine exactly where the fault (i.e., abnormal
  condition) is
• isolate the rest of the network from failure
• reconfigure or modify the network for continued
  operation
• repair or replace the failed components to
  restore the network

8
Configuration Management

• concerned with
• initializing shutting down part or all of the
  network
• maintaining, adding and updating the
  relationships among components
• monitoring the status of components during
  network operation
• the network manager should be able to
• startup and shutdown operations on a network
• identify the components that comprise the network
  (discovery)
• change the connectivity of the components
  (possibly as a result of network upgrade, fault
  recovery or security checks)
• detect changes in the network configuration

9
Accounting Management

• concerned with
• keeping track of the usage of network resources
• charging the use of network resources
• monitoring the end-user activities for possible
  abuse, for suggesting better usage to users and
  for network planning
• the manager should be able to
• specify the kinds of accounting information to be
  recorded at various nodes
• specify the algorithms to be used in calculating
  the charging
• generate accounting reports

10
Performance Management

• concerned with
• providing an efficient communication environment
• monitoring and analyzing the performance of the
  components
• making proper adjustments to improve network
  performance
• the manager should be able to
• determine the capacity utilization, throughput,
  the average and worst-case response times
• monitor and gather data on the activities of
  components
• analyze the gathered data and assess performance
  levels
• determine the sources of performance problems
  fix them
• use the performance stats for future network
  planning

11
Security Management

• concerned with
• providing a secure networking environment
• preventing hacking, illegal and unauthorized
  access
• managing information protection and
  access-control facilities
• the manager should be able to
• generate, distribute and store encryption keys
• maintain and distribute passwords and other
  authorization or access-control information
• monitor and control access to networks
• collect, store and examine audit records and
  security logs
• enable disable the logging facilities

12
Network Management Systems

• A network management system (NMS) is a collection
  of tools for network monitoring and control
• based on the manager-agent paradigm
• the manager sends mgmt requests to one or more
  agents
• an agent performs requested operation and returns
  results
• when agents detect faults and they report to the
  manager
• NMS typically provides a GUI through which most
  or all management tasks can be performed
• Many commercial and freely available NMSs exist
• HP OpenView, IBM NetView, Sun Net Manager, etc.
• research prototypes from CMU, MIT, UC Davis, U.
  of Twente

13
(No Transcript)
14
Elements of a NMS
15
Network Management Entity (NME)

• NME is a collection of software devoted to the
  network management tasks
• is typically known as an management agent
• Each NME performs the following tasks
• collects statistics on network-related activities
• stores statistics locally
• responds to commands from the network manager,
  including commands to
• transmit collected stats to network manager
• change an attribute value
• provide status information
• generate artificial traffic to perform a test

16
Network Mgmt Application (NMA)

• NMA is a collection of software for performing
  network monitoring and control
• is typically known as network manager
• NMA provides an operator interface to allow an
  authorized user to manage the network
• NMA responds to user commands by displaying
  information and/or issuing commands to NMEs
• Standard protocols (e.g., SNMP, CMIP) are used to
  manage a multi-vendor network
• there may be more than one NMA in a large network
  which can lead to the need of a hierarchy of
  managers (e.g., top level manager, middle level
  managers, etc.)

17
NM Software Architecture

• User Presentation Software
• interfaces between user and NM software
• a unified user interface desirable
• includes graphical tools to display summarized NM
  information
• Network Management Software
• a set of NM applications (configuration,
  performance, etc.)
• a set of application elements (alarm handling,
  logging, etc.)
• NM data transport service
• Communication and Database Support Software
• local Management Information Base (MIB) access
  module
• communications protocol stack (e.g., TCP/IP, OSI)
  to interact with remote agents and managers

18
Architectural Model of NMS
19
Distributed Network Management

• Resources to be managed are widely distributed
• widespread use of departmental LANs
• need for local control optimization of
  distributed applications
• Hierarchical NM architecture desirable
• distributed NMSs are given limited access for
  network monitoring and control of departmental
  resources
• top-level NMS has a global access rights and the
  ability to manage all network resources
• Benefits of Distributed NM
• NM traffic overhead is minimized - traffic is
  localized
• Dist. mgmt offers greater scalability
• use of multiple NMSs eliminates the single point
  of failure

20
Typical Dist. Mgmt System Architecture
21
Proxy Agents

• Managed resources may have various mgmt
  interfaces
• some with different mgmt protocols (e.g., OSI vs.
  SNMP)
• some with proprietary mgmt interfaces (e.g.,
  older systems)
• small systems not capable of possessing NME
  (e.g., modems)
• Proxy agents are used to manage these devices
• managers use standard protocols to communicate
  with proxies
• proxy agents use proprietary protocols to
  communicate with proprietary devices
• proxy agents perform translations between
  managers and proprietary devices
• an agent to the manager and a manager to
  proprietary devices

22
Proxy Agent Architecture
23
Standard Mgmt Frameworks

• Internet Network Management Framework (IETF)
• SNMPv1, SNMPv2, SNMPv3
• OSI Network Management Framework (ISO/ITU-T)
• CMIP (X.700 Series)
• Telecommunication Management Network (ITU-T)
• TMN (M.3000 Series)
• Distributed Management Task Force (DMTF)
• DMI, CIM, WBEM

24
Summary of NM Overview

• Network Management Requirements
• Users Requirements
• Functional Requirements (FCAPS)
• Network Management Systems
• Network Management Entity (NME)
• Network Management Application (NMA)
• NMS Software Architecture
• Distributed Network Management
• Proxy Agent
• Standard Management Frameworks

25
Intro to Internet Network Management

• Background
• Origins of Internet
• Origins of Internet Network Management
• Evolution of SNMP
• SNMP Standards and RFCs
• SNMP Basic Concepts
• Network Management Architecture
• SNMP Protocol Architecture
• Proxies

3
26
Internet Network Management

• Also referred to as SNMP-based Network Management
• Simple Network Management Protocol (SNMP) is
  often referred to as the Internet Network
  Management Framework which includes
• management architecture
• structure of management information
• management protocol
• plus related concepts...
• Most widely used in computer communication
  networks
• Internet Engineering Task Force (IETF) is
  responsible for SNMP standardization

3
27
Origins of Internet

• ARPANET (formed by US DoD, 1969) connecting four
  geographically separated computers in US
• 23 computers in ARPANET (1971)
• Computers in UK and Norway were connected (1973)
• TCP/IP protocol suite as ARPANETs standard
  protocol (late 70s)
• TCP/IP as NFSNETs standard protocol (1984)
• Continued growth throughout the 80s, 90s and
  00s
• Need for the management of rapidly growing
  Internet!

3
28
Origins of Internet NM

• Internet Control Message Protocol (ICMP)
• until late 70s, e.g., Ping utility
• Simple Gateway Monitoring Protocol (SGMP) - 1987
• High-level Entity Management System (HEMS)
• generalized version of Host Monitoring Protocol
  (HMP)
• SNMP
• enhanced version of SGMP
• originally as an interim solution but it has
  found its place - very widely deployed
• CMIP over TCP/IP (CMOT)
• long-term solution
• did not go very far

3
29
Evolution of SNMP

• SNMPv1
• draft came out in 1988 and became full Internet
  standard in 1990
• most workstations, bridges, routers, switches and
  hubs are now equipped with SNMP agent
• many resource MIBs (e.g., systems applications)
  have been defined
• RMON (1995)
• Remote Monitoring, extends the SNMPv1 MIB and
  functions
• SNMPv2
• attempted to improve the deficiencies of SNMPv1
• several versions have appeared and became
  obsolete
• some RFCs obtained full standard, others will not
  likely become obsolete
• SNMPv3
• internet drafts came out in Feb. 1998
• currently Draft Standard --- standardization
  still continues.

3
30
IETF Standardization Process

• IETF forms a working group (WG) for a specific
  task
• WG generates one or more internet drafts (ID)
• ID document can follow one of three tracks
• (1) standards track, (2) informational, (3)
  experimental
• Internet documents are published as RFCs
• Internet Proposed Standard
• Internet Draft Standard
• Internet Full Standard
• Other status
• Obsolete a document that is replaced by an
  updated version
• Historic a document that is retired
• The latest status on IETF NM RFCs can be found
  from http//wwwsnmp.cs.utwente.nl/ietf/rfc/rfcbyst
  atus.shtml

3
31
SNMP Protocol RFCs
3
32
SNMPv1 Standards
3
33
SNMP NM Architecture

• The manager resides in Network Management Station
  (NMS) while the agent resides in the managed
  Network Node
• The manager requests the agent to perform Set and
  Get operations on the variables in the Management
  information Base (MIB)
• By means of traps the agent occasionally notifies
  the manager about some events related to network
  operation

Networked Node
Networked Node
2
34
SNMP Protocol Architecture
2
35
The Role of SNMP
2
36
SNMP Proxy Agent
Proxy agent
Management station
Proxied device
Mapping function
Management process
Manager process
Agent process
SNMP
SNMP
Protocol architecture used by proxied device
Protocol architecture used by proxied device
UDP
UDP
IP
IP
Network-dependent protocols
Network-dependent protocols
Network-dependent protocols
Network-dependent protocols
2
37
What will be covered next...

• Structure of Management Information
• Abstract Syntax Notation 1 (ASN.1)
• MIB Definitions
• Standard SNMP MIBs
• SNMP Operations
• Developing MIBs
• etc.

3
38
ASN.1 BER

• Abstract Syntax Notation One (ASN.1)
• Overview
• Properties Restrictions
• Type and Value Definitions
• ASN.1 Simple Types
• ASN.1 Structured Types
• ASN.1 Macro Definitions
• Basic Encoding Rules (BER)
• Overview
• Tags, Lengths Values
• Encoding Examples

39
Overview of ASN.1

• a machine independent data description language
• CCITT (X.208) and ISO (ISO 8824) standard
• define abstract syntax of application data
• define the structure of application and
  presentation protocol data units (PDUs)
• define SNMP and OSI Management Information Base
  (MIB)

40
ASN.1 Terminology

• Abstract Syntax
• describes the generic structure of data
• allows data types and values to be defined
• Data Type
• a named set of values -- may be simple or
  structured
• Encoding
• sequence of octets used to represent a data value
• Encoding Rules
• specifies the mapping from one syntax to another
• Transfer Syntax
• describes how data are actually represented in
  terms of bit patterns while in transit

41
Abstract Transfer Syntaxes
42
ASN.1 Module Definition

• ltmodulenamegt DEFINITIONS
• BEGIN
• EXPORTS
• IMPORTS
• AssignmentList
• END

43
Lexical Conventions

• Comments begin with two hyphens (--) and
  terminated either by another set (--) or the
  end of line character
• Identifiers begin with a letter, and may contain
  letters, digits, and hyphens, but may not end
  with a hyphen or contain two consecutive hyphens
• The type identifier must start with an uppercase
  letter
• The value identifier must start with a lowercase
  letter
• Reserved keywords are all uppercase
• Multiple spaces and blank lines can be considered
  as a single space

44
Categories of Data Types

• Simple (Primitive)
• atomic types, with no components
• Structured
• types with components
• Tagged
• types derived from other types
• Other
• CHOICE or ANY types
• Every ASN.1 data type, with the exception of
  CHOICE and ANY types, has an associated TAG

45
Classes of TAG

• UNIVERSAL
• Built-in types, application independent types
• APPLICATION
• Application specific types
• CONTEXT-SPECIFIC
• limited to a context within an application
• PRIVATE
• defined by users and not covered by any standard

46
ASN.1 Simple Types

• INTEGER
• the positive and negative whole numbers,
  including zero
• OCTET STRING
• a sequence of zero or more octets (8-bit bytes)
• OBJECT IDENTIFIER
• the set of values associated with information
  objects allocated by the standard
• NULL
• the single value NULL
• Other ASN.1 simple types include boolean, bit
  string, real, enumerated, PrintableString, etc.

47
ASN.1 Structured Types

• SET
• a collection of one or more types
• SET OF
• a collection of zero or more occurrences of a
  given type
• SEQUENCE
• an ordered collection of one or more types
• SEQUENCE OF
• an ordered collection of zero or more occurrences
  of a given type
• CHOICE
• a list of alternatives

48
ASN.1 Example
Informal Description of Personnel Record

• Name James W Hong
• Title Associate Professor
• Employee Number 20292
• Date of Hire May 26, 1995
• Name of Spouse In-Young B Hong
• Number of Children 2
• Child Information
• Name Suk D Hong
• Date of Birth 29 March 1988
• Child Information
• Name Myungdo M Hong
• Date of Birth 10 August 1994

49
ASN.1 Description of the Record Structure

• PersonalRecord APPLICATION 0 IMPLICIT SET
• Name,
• title 0 VisibleString,
• number EmployeeNo,
• dateOfHire 1 Date,
• nameOfSpouse 2 Name,
• children 3 IMPLICIT SEQUENCE OF ChildInfo
• DEFAULT
• ChildInfo SET
• Name,
• dateOfBirth 0 Date
• Name APPLICATION 1 IMPLICIT SEQUENCE
• givenName VisibleString,
• initial VisibleString,
• familyName VisibleString
• EmployeeNo APPLICATION 2 IMPLICIT INTEGER

50
ASN.1 Description of a Record Value

• givenName James, initial W,
  familyName Hong,
• title Associate Professor
• number 20292
• dateOfHire 19950526
• nameOfSpouse givenName In-Young, initial
  B,
• familyName Hong,
• children
• givenName Suk, initial D,
• familyName Hong,
• dateOfBirth 19880329,
• givenName Myungdo, initial M,
• familyName Hong,
• dateOfBirth 19940810

51
ASN.1 Macro Definitions

• ASN.1 macro notation can be used to extend the
  syntax of ASN.1 to define new types and values
• a macro definition is expressed in the macro
  notation and used to define a set of macro
  instances
• a macro instance is generated from a macro
  definition by substituting values for variables
• the macro is used to extend the ASN.1 syntax but
  does not extend the encoding

52
Macro Definition Format

• ltmacronamegt MACRO
• BEGIN
• TYPE NOTATION ltnew-type-syntaxgt
• VALUE NOTATION ltnew-value-syntaxgt
• ltsupporting-productionsgt
• END

53
Macro Definition Example

• OBJECT-TYPE MACRO
• BEGIN
• TYPE NOTATION SYNTAX type (TYPE
  ObjectSyntax)
• ACCESS Access
• STATUS Status
• VALUE NOTATION value (VALUE ObjectName)
• Access read-only read-write
  write-only
• not-accessible
• Status mandatory optional
  obsolete
• END

54
Overview of BER

• an encoding specification
• CCITT (X.209) and ISO (ISO 8825) standard
• describes a method for encoding values of each
  ASN.1 type as a string of octets
• based on the use of a type-length-value (TLV)
  structure

Fields of a BER encoded ASN.1 value
55
BER Type Field
56
Tag Values for SNMP Types
57
BER Length Field

• two forms of length field exist
• short form specified in a single octet
• long form specified in multiple octets

58
BER Examples - Integers
What value was encoded?
59
BER Example - Octet String
Value of Octet String encoded is EB069937
60
BER Example - SEQUENCE

• Message SEQUENCE
• version INTEGER version-1(0) ,
• community OCTET STRING
• Given the above definition,
• what is the BER encoding of
• sampleMessage 0, EB069937h ?

61
... and its BER encoding is
62
Summary

• We have covered a subset of ASN.1 and BER which
  are used in SNMP and OSI Management Frameworks
• ASN.1 is widely used in defining application data
  and protocol data units
• BER is widely used in defining transfer syntaxes
• Reference
• Stallings, SNMP, SNMPv2, SNMPv3 and RMON 1 and 2,
  3rd Edition, Addison-Wesley, Appendix B

63
SNMP Management Information

• Structure of Management Information
• Overview
• Meanings of MIB
• SNMP MIB Structure
• MIB Object Syntax
• Defining MIB Objects
• Defining MIB Tables

64
Overview of SNMP SMI

• Structure of Management Information (SMI)
• RFC 1155 (Full Standard)
• defines the general framework for defining SNMP
  MIBs
• describes how the managed objects (MOs) can be
  defined in the MIB, data types and values MOs can
  have and how MOs are named
• SNMP SMI uses a subset of ASN.1 BER
• SNMP MIB can store only simple data types
• scalars
• 2-dimensional arrays of scalars

65
Meanings of MIB

• a MIB - a single MO definition
• the MIB - the union of all MO definitions
• MIB - the actual values of management
  information in a system

management information
66
MIB Structure

• all MOs are structured hierarchically
• Leaf objects in the tree are real MOs
• Each MO has an OBJECT IDENTIFIER (OID)

67
Object Identifier (OID)

• uniquely identifies an MO in the MIB
• internet OBJECT IDENTIFIER
• iso(1) org(3) dod(6) 1
• can be written as 1 3 6 1 or 1.3.6.1
• OID for tcpConnTable is 1.3.6.1.2.1.6.13
• iso org dod internet mgmt mib-2 tcp tcpConnTable
• 1 3 6 1 2 1
  6 13
• What is the OID for the object ifInOctets? (Hint
  see MIB-II interfaces group)

68
Managed Object Syntax

• ASN.1 notation is used to define MOs and the
  entire MIB structure

• Universal Types
• INTEGER
• OCTET STRING
• NULL
• OBJECT IDENTIFIER
• SEQUENCE
• SEQUENCE-OF

• Application-wide Types
• Networkaddress
• Ipaddress
• Counter
• Gauge
• Timeticks
• Opaque

69
Defining Managed Objects

• the macro definition used for SNMP MIBs was
  initially defined in RFC 1155 (SMI) and later
  expanded in RFC 1212 (Concise MIB Definition)
• RFC 1155 is used for defining MOs in MIB-I
• RFC 1212 is used for defining MOs in MIB-II which
  is implemented in most SNMP agents today
• OBJECT TYPE MACRO definition is used to define
  MOs
• see Figure 5.3 (Macro for Managed Objects - RFC
  1212)
• see Figure 5.4 (SMI - RFC 1155)

70
Defining MO Tables

• SNMP MIB structure is a simple 2-dimensional
  table with scalar-valued entries
• A table typically consists of a SEQUENCE OF some
  entry
• A table entry typically consists of a SEQUENCE
  that includes a number of scalar elements
• See Figure 5.6 (MIB-II Specification of TCP
  Connection Table - RFC 1213)

71
CASE Diagrams SNMP Standard MIB

• Case Diagrams
• MIB-II

72
CASE Diagrams

• a useful tool for developing MIBs
• developed by Jeffrey Case in 1989
• for many MIB groups, it is necessary to record
  the traffic pattern at a particular protocol
  layer
• must make sure that every PDU received at a layer
  or issued from a layer is accounted for,
  including valid PDUs and PDUs with various types
  of errors
• Case Diagrams can be used to describe the flow of
  packets within individual layers

73
CASE Diagram Elements

• a main path in each direction between the layer
  below and a layer above
• a horizontal line cutting across a main path
  corresponds to a counter that counts all passing
  PDUs
• an arrow leaving the main path indicates a
  counter for an error condition or flow that
  results in PDUs not continuing on the main path
• an arrow into the main path indicates a counter
  for a point where additional PDUs are injected
  into the main path

74
Case Diagram - Example
75
Case Diagram Example Counters

• InReceives InErrors ReasmReqds ForwPDUs -
  ReasmOKs InDelivers
• OutSends OutRequests ForwPDUs
• - FragOKs FragCreates

76
MIB-II

• Internet Full Standard (RFC 1213)
• a superset of MIB-I (RFC 1156)
• the most important of the MIB specifications,
  covering a broad range of managed objects
• consists of 10 groups of objects
• all objects in MIB-II are mandatory but only
  groups applicable to managed devices need to be
  implemented
• e.g., bridge or router need not implement the tcp
  group

77
MIB-II
78
MIB-II Groups
79
MIB-II system Group
80
system Group Objects
81
sysServices Meanings
Service Layer Value
Application 7 64
Transport 4 8
Network 3 4
Data-link 2 2
Physical 1 1
Examples repeater (physical device)
1 bridge (data-link device) 2 router
(network device) 2 4 6 W/S host 64 8
72 PC 64 8 4 76 printer 64
82
Case Diagram for MIB-II interfaces Group
83
MIB Compiler Browser

• MIB Compiler
• MIB Browser

84
What is MIB Compiler?

• Allows a user to compile MIBs using a GUI
• checks whether the MIBs written in SMIv1 or SMIv2
  defined correctly
• Some tools provide MIB editor as well
• Example tools
• MG Soft MIB Compiler
• available from http//www.mg-soft.com
• SMIC (SNMP MIB Compiler)
• written by David Perkins
• Supported on MS-DOS, Windows95, NT, AIX, HP-UX,
  Linux, Solaris platforms
• available from http//www.snmpinfo.com/sismic.htm

85
What is MIB Browser?

• Allows a user to browse MIBs using a GUI
• Some browsers can function as an SNMP manager
• send SNMP queries to SNMP agents
• browse actual MIB in a system
• Example tool
• MG Soft MIB Browser
• Supported on Windows95, NT
• available from http//www.mg-soft.com/

86
Snapshot of MG-SOFT MIB Compiler
87
Snapshots of MG-SOFT MIB Browser
88
Remote SNMP Agent Discovery window on a given IP
range, Community string and SNMP port number.
Info window monitoring (using the default OID set
to monitor)
89
Setting value in a Remote SNMP Agent
Tringer-SNMP Trap Notification console.
90
SNMPv1 (RFC 1157)

• SNMP Operations
• Protocol Specification
• Transport-Level Support
• Limitations of SNMPv1

91
SNMP Operations

• Operations supported in SNMP are the inspection
  and modification of variables
• GET operation
• retrieves management information (values of
  scalar objects)
• SET operation
• updates management information (values on scalar
  objects)
• TRAP operation
• sends unsolicited scalar object values to notify
  problems

92
SNMP Operations (contd)

• Not possible to change the structure of a MIB
• cannot add or delete object instances
• No explicit action is supported
• Access is provided only to leaf objects in the
  MIB tree
• not possible to access an entire table or a row
  of a table with a single atomic action
• These simplify the implementation of SNMP but
  limit the capability of the NMS

93
SNMP Security Concepts

• Authentication service
• agent may wish to limit access to the MIB to
  authorized managers
• Access policy
• agent may wish to give different access
  privileges to different managers
• Proxy service
• agent may act as a proxy to other managed devices
• this may require authentication service and
  access policy for other managed devices on the
  proxy
• SNMP provides only a primitive and limited
  security capability via the concept of community

94
SNMP Community

• is a relationship between an agent and a set of
  managers that defines authentication, access
  control proxy characteristics
• a community is locally defined by the agent
• each community is given a unique community name
• an agent may establish a number of communities
• the community name is needed for all get and set
  operations
• the same community name may be used by different
  agents
• SNMP authentication service
• every SNMP message from a manager includes a
  community name (used as a password) --- very
  primitive
• most agents only allow GET operations

95
SNMP Community (contd)

• SNMP Access Policy
• an agent can provide different categories of MIB
  access using the following concepts SNMP MIB
  View Access Mode
• SNMP MIB View
• a subset of objects within a MIB
• different MIB views may be defined for each
  community
• the set of objects in a view need not belong to a
  single subtree
• SNMP Access Mode
• an access mode READ-ONLY, READ-WRITE is defined
  for each community
• the access mode is applied uniformly to all
  objects in the MIB view
• SNMP Community Profile
• a combination of a MIB view and an access mode

96
MIB ACCESS Category vs. SNMP Access Mode
97
SNMP Administrative Concepts
98
Object Instance Identification

• SNMP defines two techniques for identifying a
  specific object instance
• Serial access technique (via lexicographic
  ordering of objects)
• Random access technique
• Random access technique
• objects in MIB tables are referred to as columnar
  objects
• the object identifier is not sufficient to
  identify the instance
• SNMP convention
• concatenate the scalar object identifier with the
  values of INDEX objects, listed in the order
  which the INDEX objects are defined
• see the example in Table 7.2 on page 169

99
Lexicographical Ordering

• is used for accessing MIB objects serially
• given the tree structure of a MIB, the OID for a
  particular object may be derived by tracing a
  path from the root to the object
• lexicographical ordering is also referred to as
• preorder traversal (root, left, right) of a tree
• depth-first search
• useful for examining MIBs whose structure is not
  known to NMS

100
Lexicographical Ordering Example
101
SNMP Protocol Specification

• SNMP manager and agent exchange requests and
  management information using SNMP messages
• SNMP message includes a version number (e.g., 0
  for SNMPv1, 1 for SNMPv2), a community name and
  one of five types of protocol data units (PDUs)
• PDU Types GetRequest, GetNext-Request,
  SetRequest, GetResponse, Trap

102
SNMP Message Formats
103
SNMP Message Fields
104
SNMP Message Fields (contd)
105
Transmission of SNMP Message

• 1. The PDU is constructed using ASN.1
• 2. This PDU is passed to an authentication
  service with a community name and source
  destination transport addresses passed
• the authentication service performs any required
  transformations such as encryption or the
  inclusion of an authentication code
• 3. The protocol entity then constructs a message,
  consisting of a version field, the community
  name, and the result from step 2
• 4. This new ASN.1 object is then encoded using
  BER and passed to the transport service

106
Receipt of SNMP Message

• 1. The SNMP entity performs basic syntax-check of
  the message and discards it if it fails to parse
• 2. It verifies the version number and discards it
  if there is a mismatch
• 3. It then passes the community name, the PDU
  portion of the message and the source/destination
  transport address to an authentication service
• if authentication fails, the message is discarded
• if authentication succeeds, the authentication
  service returns a PDU in the form of an ASN.1
  object
• 4. If the PDU passes a basic syntax-check, the
  appropriate SNMP access policy is selected and
  the PDU is processed accordingly

107
SNMP PDU Sequences
108
GetRequest PDU

• is issued by an SNMP manager on behalf of NMS to
  retrieve information from an agent
• includes PDU type, request-id variablebindings
• GetResponse PDU containing the same request-id is
  used for the reply
• operation is atomic (all values are returned or
  none is)
• possible error-status
• noSuchName object instance cannot be found or it
  is an aggregate type
• tooBig the size of resulting values exceed a
  local limitation
• genErr may not be able to supply a value for at
  least one of the objects for some other reason

109
GetNextRequest PDU

• is also issued by an SNMP manager on behalf of
  NMS to retrieve information from an agent
• the PDU is the same as GetRequest PDU except
• In the GetRequest PDU, each variable in the
  variablebindings list refers to an object
  instance whose value is to be returned
• In the GetNextRequest PDU, for each variable in
  the variablebindings, the value of the object
  instance that is next in lexicographic order is
  returned
• allows NMS to discover the structure of a MIB
  view dynamically
• provides an efficient mechanism for searching a
  table whose entries are unknown

110
SetRequest PDU

• is issued by an SNMP manager on behalf of NMS to
  modify information in an agent
• the operation is also atomic
• if any one of the values cant be set, then the
  whole operation fails
• GetResponse PDU containing the same request-id is
  used for the reply
• if the operation succeeds, a GetResponse PDU is
  returned with the same variablebindings as in the
  original SetRequest PDU
• possible error-status
• noSuchName, tooBig, genErr plus
• badValue PDU contains at least one pair of
  variable name and value that is inconsistent

111
Trap PDU

• is issued by an SNMP agent to notify NMS of some
  significant event
• Trap PDU does not require a response and is not
  acknowledged -- can get lost
• Generic Trap types
• coldStart (0) unexpected restart due to a crash
  or major fault
• warmStart (1) routine restart
• linkDown (2) a communication link is
  inoperational
• linkUp (3) the link is back in operation
• authenticationFailure (4) received
  authentication-failed message
• egpNeighborLoss (5) EGP neighbor is down
• enterpriseSpecific (6) some enterprise-specific
  event occurred

112
Transport-Level Support

• SNMP requires the use of a transport service for
  the delivery of SNMP messages.
• SNMP makes no assumption about whether the
  underlying service is reliable or unreliable,
  connectionless or connection-oriented
• Most SNMP implementations use UDP
• It is possible to use CLTS
• UDP
• Unreliable, connectionless transport service in
  Internet
• CLTS
• Unreliable, connectionless transport service in
  the OSI architecture

113
Issues in using UDP

• since UDP provides unreliable transport service,
  SNMP messages can get lost
• What happens if a GetRequest or GetNextRequest
  message is lost?
• What happens if a SetRequest message is lost?
• What happens if a Trap message is lost?

114
Limitations of SNMPv1

• SNMP may not be suitable for the mgmt of truly
  large networks because of the performance
  limitations of polling
• SNMP is not well suited for retrieving large
  volumes of data, such as an entire routing table
• SNMP traps are unacknowledged may not be
  delivered
• SNMP provides only trivial authentication
• SNMP does not support explict actions
• SNMP MIB model is limited (does not support mgmt
  queries based on object types or values)
• SNMP does not support manager-to-manager
  communications
• Many of these problems are addressed in SNMPv2!

115
Remote Network Monitoring (RMON)

• Basic Concepts
• RMON Goals
• RMON MIB Table Management
• RMON MIB Groups
• RMON2

116
RMON Basic Concepts

• Extends the SNMP functionality without changing
  the protocol
• Allows the monitoring of remote networks
  (internetwork management)
• MAC-layer (layer 2 in OSI) monitoring
• Defines a Remote MONitoring (RMON) MIB that
  supplements MIB-II
• with MIB-II, the manager can obtain information
  on individual devices only
• with RMON MIB, the manager can obtain information
  on the LAN as a whole
• called network monitors, analyzers or probes

117
RMON RFCs
118
RMON Goals

• Monitoring subnetwork-wide behavior
• Reducing the burden on agents and managers
• Continuous off-line monitoring in the presence of
  failures (in network or manager)
• Proactive monitoring
• perform some of the manager functions (e.g.,
  diagnostics)
• Problem detection and reporting
• Provide value-added (analyzed) data
• Support multiple managers

119
Example Configuration for Remote Monitoring
120
Example of RMON with two interfaces
121
Control of Remote Monitors

• RMON MIB contains features that support extensive
  control from NMS
• Configuration control
• Action Invocation
• RMON MIB is organized into a number of functional
  groups
• Each group may contain one or more control tables
  and one or more data tables
• Control table (typically read-write) contains
  parameters that describe the data in a data table
  (typically read-only)

122
Configuration Control

• At configuration time, NMS sets the appropriate
  control parameters to configure the remote
  monitor to collect the desired data
• the parameters are set by adding a new row to the
  control table or by modifying an existing row
• a control table may contain objects that specify
  the source of data to be collected, the type of
  data, the collection timing, etc.
• To modify or disable a particular data collection
  function
• it is necessary first to invalidate the control
  row
• this causes the deletion of that row and the
  deletion of all associated rows in data tables
• NMS can create a new control row with the
  modified parameters

123
RMON MIB Table Mgmt (1)

• The RMON specification includes a set of textual
  conventions and procedural rules for row addition
  and deletion
• Textual conventions
• OwnerString DisplayString
• EntryStatus INTEGER
• valid (1),
• createRequest (2),
• underCreation (3),
• invalid (4)

124
RMON MIB Table Mgmt (2)

• Row Addition
• is achieved by using the SNMP SetRequest PDU
  which includes instance objects and their values
• Row Deletion
• is achieved by setting the status object for that
  row to invalid
• Row Modification
• is achieved by first invalidating the row and
  then adding the row with new object instance
  values

125
Example Control Data Tables
126
Transitions of EntryStatus State
127
RMON MIB
128
RMON MIB Groups

• 1. statistics maintains MAC-level utilization
  and error stats
• 2. history records periodic statistical samples
  from the stats group
• 3. alarm allows NMS to set sampling interval
  alarm threshold
• 4. host contains counters for traffic from hosts
  on the subnetwork
• 5. hostTopN contains sorted host stats that top
  a list based on some parameter in the host table
• 6. matrix shows utilization and error stats in
  matrix for host pairs
• 7. filter allows the monitor to observe packets
  that match a filter
• 8. capture specifies how data is sent to NMS
• 9. event specifies events to be generated by the
  RMON probe
• 10. tokenRing maintains stats config info for
  token ring subnet

129
RMON MIB2

• RMON MIB monitors MAC-level subnet traffic
• RMON MIB2 can monitor traffic of packets at
  layers 3 to 7 of the OSI Reference Model
• Provides Network-layer Visibility
• can distinguish between local LAN and remote LAN
  traffic
• Provides Application-layer Visibility
• can analyze traffic to and from hosts for
  particular applications
• can determine which applications are putting the
  load on the net
• RMON MIB2 is basically an extension of RMON MIB

130
RMON MIB2
131
RMON MIB2 Groups

• 11. protocolDir a master directory of all of the
  protocols that the probe can interpret
• 12. protocolDist aggregate stats on the amount
  of traffic generated by each protocol, per LAN
  segment
• 13. addressMap contains MAC and port addresses
  of the devices
• 14. nlHost network layer traffic stats per host
• 15. nlMatrix network layer traffic stats per
  pairs of hosts
• 16. alHost application layer traffic stats per
  host
• 17. alMatrix application layer traffic stats per
  pairs of hosts
• 18. userHistory periodically samples and logs
  user-defined data
• 19. probeConfig defines standard configuration
  parameters for RMON probes

132
Summary

• RMON extends the SNMP functionality without
  changing the protocol
• RMON can monitor information on a whole
  subnetwork
• RMON is used extensively in analyzing network
  traffic for problem detection and network
  planning
• RMON2 allows monitoring of traffic at layers 3 to
  7 in the OSI Model
• RMON2 can be used to analyze network traffic more
  accurately even to the application level

133
SNMPv2

• The Birth of SNMPv2
• SNMPv2 RFCs
• SNMPv2 Enhancements
• SNMPv2 Protocol Operations
• SNMPv2 Coexistence with SNMPv1

134
The Birth of SNMPv2

• a major problem with SNMP is the lack of security
• secure SNMP was proposed (July 1992) to solve
  this problem in SNMP
• Simple Management Protocol (SMP) was also
  proposed (July 1992) to extend the SNMP
  functionality
• secure SNMP SMP SNMPv2 (March 1993)
• a major security flaw was detected in this
  proposal and the security aspects were dropped
  and the result is community-based SNMPv2 (Jan.
  1996)

135
SNMPv2 RFCs

• RFC 1901 (experimental)
• Introduction to Community-based SNMPv2
• RFC 1902 (draft)
• Structure of Management Information for SNMPv2
  (SMIv2)
• RFC 1903 (draft)
• Textual Conventions for SNMPv2
• RFC 1904 (draft)
• Conformance Statements for SNMPv2

136
SNMPv2 RFCs (contd)

• RFC 1905 (draft)
• Protocol Operations for SNMPv2
• RFC 1906 (draft)
• Transport Mappings for SNMPv2
• RFC 1907 (draft)
• Management Information Base for SNMPv2
• RFC 1908 (draft)
• Coexistence between Version 1 and Version 2 of
  the Internet-standard Network Management Framework

137
SNMPv2 Key Enhancements

• SMIv2 (a superset of SMIv1)
• provides more elaborate specification and
  documentation of managed objects and MIB modules
• object type macros expanded (see Fig. 11.1, 11.2
  Table 11.2)
• creating and deleting conceptual rows in a table
  (as used in RMON)
• notification definitions
• information modules
• new SNMP MIB definitions are defined using SMIv2
• Manager-to-Manager Capability
• for managing large, distributed networks
• Protocol Operations
• bulk management information retrieval
• manager-to-manager communication

138
Comparison of Data Types
139
Notification Type MACRO
NOTIFICATION-TYPE MACRO BEGIN TYPE NOTATION
ObjectsPart
STATUS Status
DESCRIPTION Text
ReferPart VALUE NOTATION value
(VALUE NotificationName) ObjectsPart
OBJECTS Objects empty Objects
Object Objects , Object Object value
(Name ObjectName) Status current
deprecated obsolete ReferPart
REFERENCE Text empty Text string
END
140
Notification Type Example
coldStart NOTIFICATION-TYPE STATUS
current DESCRIPTION "A coldStart trap
signifies that the SNMPv2 entity, acting in
an agent role, is reinitializing itself and
that its configuration may have been
altered." snmpTraps 1 -- From RFC
1907
141
Module Identity MACRO
MODULE-IDENTITY MACRO BEGIN TYPE NOTATION
LAST-UPDATED value (Update UTCTime)
ORGANIZATION Text
CONTACT-INFO
Text
DESCRIPTION Text
RevisionPart VALUE NOTATION value
(VALUE OBJECT IDENTIFIER) RevisionPart
Revisions empty Revisions Revision
Revisions Revision Revision REVISION value
(Update UTCTime)
DESCRIPTION Text Text string END
142
Module Identity Example
rmon MODULE-IDENTITY LAST-UPDATED
"9605270000Z" ORGANIZATION "IETF RMON MIB
Working Group" CONTACT-INFO "Steve
Waldbusser (WG Editor) Postal
International Network Services 650
Castro Street, Suite 260 Mountain
View, CA 94041 Phone [phone]
Email waldbusser_at_ins.com
DESCRIPTION "The MIB module for managing
remote monitoring device implementations.
This MIB module augments the original RMON
MIB as specified in RFC 1757." mib-2
16
143
Object Identity MACRO
OBJECT-IDENTITY MACRO BEGIN TYPE NOTATION
STATUS Status
DESCRIPTION Text
ReferPart VALUE NOTATION value
(VALUE OBJECT IDENTIFIER) Status current
deprecated obsolete ReferPart
REFERENCE Text empty Text string
END
144
Object Identity Example
snmpUDPDomain OBJECT-IDENTITY STATUS
current DESCRIPTION "The SNMPv2 over
UDP transport domain. The corresponding
transport address is of type SnmpUDPAddress."
snmpDomains 1 -- from RFC 1906
145
SNMPv2 MIB Access
146
SNMPv2 Operations

• GetRequest - get the value for each listed object
• GetNextRequest - get next value for each listed
  object
• GetBulkRequest - get multiple values
• Response - respond to manager request
• SetRequest - set value for each listed object
• InformRequest - send unsolicited information from
  a manager to another
• SNMPv2-Trap - send unsolicited information from
  an agent to a manager

147
SNMPv2 PDU Formats
(d) variable-bindings
148
GetBulkRequest

• used to minimize the exchanges required to
  retrieve a large amount of information
• selection principle is the same as GetNextRequest
• the next object instance in lexicographic order
• includes a list of (N R) variable names in the
  variable-bindings list
• the first N variables for retrieving single
  values
• the next R variables for retrieving multiple
  values
• non-repeaters and max-repetition fields are used
  to indicate the number of N and R variables

149
Interpretation of GetBulkRequest Fields
For last R variables provide M values
each (first M lexicographic successors)
L number of names in variable-bindings field N
MAX MIN (non-repeaters, L), 0 M MAX
max-repetitions, 0 R L - N
150
GetBulkRequest Example
151
SNMPv2-Trap and InformRequest

• SNMPv2-Trap
• is sent from an agent to a manager when an
  unusual event occurs
• no response is required
• InformRequest
• is sent from a manager for passing information to
  an application running in another manager
• Response PDU is used to acknowledge the request
• for hierarchical or distributed management where
  multiple managers are involved

152
SNMPv2 PDU Sequences
153
PDU Comparisons
154
Transport Mappings

• RFC 1906 specifies the mapping of SNMPv2 onto the
  following transport protocols
• User Datagram Protocol (UDP)
• OSI Connectionless-Mode Network Service (CLNS)
• OSI Connection-Oriented Network Service (CONS)
• Novell Internetwork Packet Exchange (IPX)
• Appletalk
• The SNMPv2 document states that UDP is the
  preferred mapping

155
Coexistence by Means of Proxy Agent
156
Coexistence - Bilingual Manager
157
SNMPv2 Summary

• SNMPv2 is a natural extension of SNMPv1
• Key enhancements in SNMPv2 are
• more elaborate MIB specification capability
  (SMIv2)
• Manager-to-Manager communication
• Bulk information transfer
• SNMPv2 failed to improve on security
• More powerful but more complex than SNMPv1
• SNMPv3 work is currently underway, which promises
  to improve on security

158
SNMPv3

• The Birth of SNMPv3
• SNMPv3 Security Models and Levels
• Comparison with SNMPv1 SNMPv2

159
The Birth of SNMPv3

• SNMPv1 SNMPv2 both lack strong security
  features
• Internet being open environment, how to provide
  secure access between manager and managed devices
  has been a big concern
• SNMPv3 was born to solve this problem
• Security features provided in SNMPv3
• Authentication determining a message is from a
  valid source
• Encryption scrambling the contents of a packet
  prevents it from being seen by an unauthorized
  source

160
Recall Internet NM Framework

• Basically, SNMPv3 is a natural extension of
  SNMPv1 SNMPv2
• Internet NM Framework consists of
• 1. Manager-agent interaction model
• 2. a data definition language
• 3. definitions of management information (MIB)
• 4. management protocol
• 5. security and administration
• SNMPv3 inherited 1, 2, 3 4 from SNMPv2 and
  added new set of documents for 5

161
SNMP Security Models Levels (1)

• SNMPv3 provides for both security models levels
• Security model an authentication strategy that
  is set up for a user and the group in which the
  user resides
• Security level the permitted level of security
  within a model
• Three security models available - SNMPv1, SNMPv2,
  SNMPv3
• Three security levels available - noauth, auth,
  priv
• Authenticates a packet by using
• noauth a string match of the user name
• auth either the HMAC MD5 or SHA algorithms
• priv either HMAC MD5 or SHA algorithms and
  encrypts the packet using the CBC-DES(DES-56)
  algorithm

162
SNMP Security Models Levels (2)

• DES (Data Encryption Standard)
• MD5 SHA-1 Secure Hash Function
• HMAC Message Authentication Code

163
SNMPv1 vs. SNMPv3
164
SNMPv2 vs. SNMPv3

• RFCs 1902-1907 is incomplete in that it does not
  meet the original design goals of SNMPv2
• The unmet goals include provision of commercial
  grade security
• authentication origin identification, message
  integrity, replay protection
• privacy confidentiality
• authorization and access control
• suitable remote configuration and administration
  capabilities for these features
• SNMPv3 attempts to provide these

165
SNMPv3 Documents

• RFC 2570 "Introduction to version 3 of the
  Internet-standard Network Management Framework,"
  provides an overview of SNMPv3.
• RFC 2571 "An Architecture for Describing SNMP
  Management Frameworks," describes the overall
  architecture with special emphasis on the
  architecture for security and administration.
• RFC 2572 "Message Processing and Dispatching
  for the Simple Network Management Protocol
  (SNMP)," describes the possibly multiple message
  processing models and the dispatcher portion that
  can be a part of an SNMP protocol engine.
• RFC 2573 "SNMPv3 Applications," describes the
  five types of applications that can be associated
  with an SNMPv3 engine and their elements of
  procedure.
• RFC 2574 "The User-Based Security Model for
  Version 3 of the Simple Network Management
  Protocol (SNMPv3)," describes the threats,
  mechanisms, p
