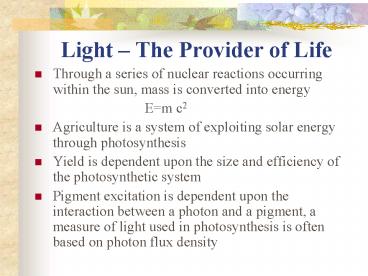

Light The Provider of Life

1
Light The Provider of Life

• Through a series of nuclear reactions occurring
  within the sun, mass is converted into energy
• Em c2
• Agriculture is a system of exploiting solar
  energy through photosynthesis
• Yield is dependent upon the size and efficiency
  of the photosynthetic system
• Pigment excitation is dependent upon the
  interaction between a photon and a pigment, a
  measure of light used in photosynthesis is often
  based on photon flux density

2
(No Transcript)
3
(No Transcript)
4
(No Transcript)
5
(No Transcript)
6
(No Transcript)
7
Light Quantification

• Electromagnetic Theory Light travels through
  space as a wave, and the number of waves passing
  a given point in a certain time interval is a
  frequency
• Quantum Theory Light travels in a stream of
  particles called photons. The energy present in
  one photon is called a quantum
• Photon Flux Density Number of photons striking a
  given surface area per unit of time

8
(No Transcript)
9
Solar Radiation

• Maximum solar radiation intensity occurs at 500
  nm
• Plants appear to have adapted to utilize solar
  radiation between 400 and 700 nm
• Solar radiation level decreases as it passes
  through the atmosphere due to absorption and
  scattering
• In addition, other factors that influence solar
  radiation include
• Angle of suns rays on that spot
• Daylength
• The amount of atmosphere the radiation passed
  through as a function of the angle of the suns
  rays
• The number of particles in the atmosphere (e.g.,
  dust, condensed water particles such as fog or
  clouds)
• Other minor factors such as fluctuations in solar
  output, distance from the earth to the sun, etc.

10
(No Transcript)
11
(No Transcript)
12
(No Transcript)
13
(No Transcript)
14

• Of the solar radiation absorbed during the
  daytime by a crop surface
• 75 - 85 Used to evaporate water
• 5 - 10 Sensible heat storage in the soil
• 5 - 10 Sensible heat storage in the atmosphere
  by convection processes
• 1 - 5 Goes into photosynthesis
• Wavelengths between 400 and 700 nm are most
  efficiently used in photosynthesis (Pn)
• Photosynthetically Active Radiation
• (PAR µE/m2/s)
• Photosynthetic Photon Fluence Rate
• (PPF µmol/m2/s)

15
Absorption and Fate of Light Energy

• Pigment Biological compound that absorbs light
• Absorption Extremely fast process (10-15 s)
• Energy of the absorbed photon is transformed to
  an electron in the molecule
• Energy of the electron is elevated from the
  ground (nonexcited) state to an elevated level
  known as the excited or singlet state
• A photon can only be absorbed if its energy
  content matched the energy required to raise the
  electron to a higher, allowable energy state
• An excited molecule has a very short lifespan
  (10-9 s) and must rid itself of any excess energy
  and return to ground state

16

• Dissipation of excess energy
• 1. Thermal deactivation (loses excitation energy
  as heat)
• 2. Fluorescence (emission of a photon of light by
  the excited molecule)
• 3. Inductive resonance or radiation less transfer
  (very efficient but require pigment molecules to
  be in close proximity)
• 4. Triplet energy state (more stable energy state
  and is sufficiently long to allow photochemical
  reactions to occur)

17
(No Transcript)
18

• Absorption and Action Spectrum
• Function of wavelength
• Action spectrum specific for an individual
  molecule

19
Selected Photoreceptors

• Chlorophyll
• Porphoryn head
• Made of 4 nitrogen containing pyrrole rings
• Long hydrocarbon tail (phytol tail)
• Chlorophyll molecule is completed with the
  addition of the magnesium ion chelated to the 4
  nitrogen atoms
• Four known types of chlorophyll (a,b,c,d)
• Absorption spectra is very specific

20
(No Transcript)
21
(No Transcript)
22
(No Transcript)
23
Carotenoids

• Lipid soluble
• Includes carotenes and xanthophylls
• Carotenes Predominately orange/red-orange
• B carotene major carotenoid in algae and higher
  plants
• May protect chlorophyll by absorbing excess blue
  light and combining with oxygen to form
  xanthophylls

24
(No Transcript)
25
(No Transcript)
26
(No Transcript)
27
Flavonoids

• Include the pink, purple, scarlet, and blue
  anthocyanins
• Water soluble pigments and are found
  predominately in vacuolar sap
• May protect the underlying tissue from UV-B
  radiation
• Attractants to insects (UV and visible spectrum)?

28
Phycobilins

• Serve as accessory light-harvesting pigments
  and/or critical regulatory system in green plants
• Three phycobilins are involved in Pn
  (phycoerythrin, phycocyanin, and
  allophycocyanin), and the 4rth (phytochromobolin)
  is an important photoreceptor
• Differ from chlorophyll in that the tetrapyrole
  group is covalently linked to a protein structure

29
Phycobilins (cont.)

• Phytochromobolin exist in 2 forms that are photo
  reversible
• (i) P660 (Pr) absorbs maximally at 660 nm
• (ii) Absorption at 660 nm converts it to a second
  far-red pigment (P735) or (Pfr)
• Absorption at 735nm converts the protein back to
  P660
• Pr is believed to be an active form of the
  pigment responsible for initiating a wide range
  of photomorphogenic responses

30
Photosynthetic Apparatus

• Light Reaction
• Chloroplast
• Chloroplast lamellae (membranes)
• Packed full of photosynthetic pigments
• Stroma lamellae (double lamella)
• Grana lamellae (stacked lamella)
• Stroma
• A less dense fluid filled area where the
  reduction of CO2 occurs
• The transformation of light energy to chemical
  energy (photophosphorylation) occurs in the
  lamellae

31

• Light reaction (cont.)
• Consists of the oxidation of water and production
  of chemical potential or reduced
• Nicotinamide adenine dinucleotide phosphate
  (NADPH) and the phosphorylation of adenosine
  diphosphate (ADP) to adenosine triphosphate (ATP)
• NADPH is one of the most powerful reductants
  (acceptors of electrons and suppliers of hydrogen
  ions) known in biological systems
• ATP is synonymous with available energy in the
  biological system (when a phosphate group is
  released from ATP, energy is also released)
• The released phosphate, attaching to some
  molecule (phosphorylation) by an energy input,
  raises the energy of the molecule and allowing it
  to undergo even more biochemical reactions
• Both NADPH and ATP are needed to convert CO2 to
  organic molecules

32
(No Transcript)
33
(No Transcript)
34
(No Transcript)
35
Electron Transport System

• Fairly well understood
• 2 reaction centres exist where energy from
  absorbed photons are used to drive the system
• After a pigment has absorbed a photon of light,
  the energy lifts an electron from a ground to an
  excited energy state
• While in the excited state the pigment molecule
  can donate and accept electrons from other
  molecules
• Photosystem II catalyses the removal of electrons
  from water molecules, and these electrons are
  accepted by a substance labelled Q.

36
(No Transcript)
37
(No Transcript)
38
(No Transcript)
39
(No Transcript)
40
(No Transcript)
41
Electron Transport System (cont.)

• Photosystem I uses more energy absorbed from
  photons to catalyse the removal of electrons from
  Q
• This sets up the energy required for
  photophosphorylation (ATP formation) and the
  reduction of NADP to NADPH
• Remember light reactions transform light energy
  to the short-term chemical energy of ATP and
  NADPH
• ATP and NADPH are used to reduce CO2 to stable
  organic forms from which dry weight results
• Electron Transport and Weed Control
• Triazine herbicides and derivatives of urea
  (diuron) act by interfering with the electron
  transport chain (bind the Q site of PSII)
• Viologen dyes diquat and paraquat Act by
  intercepting electrons on reducing side of PSI

42
(No Transcript)
43
(No Transcript)
44
(No Transcript)
45
Carbon Dioxide Fixation

• Agriculture is based on yield or weight of crop
  products
• Dry matter production is dependent upon the
  balance of CO2 (Pn) uptake and CO2 evolution
• During growth, respiration accounts for 25 to 30
  of total photosynthesis
• When respirationgtPn ?

46
(No Transcript)
47
Carbon Dioxide Fixation (cont.)

• The pathway by which all eukaryotic organisms
  incorporate CO2 into carbohydrate is known as
  carbon fixation or the photosynthetic carbon
  reduction (PCR) cycle
• Pathway was determined through the use of
  radiolabelled CO2 (14C)
• CO2 fixation is catalysed by the enzyme ribulose
  bis-phosphate (RuBP) carboxylase oxygenase
  (RuBISCO)
• RuBISCO is the most abundant protein in the world
  accounting for 50 of protein in leaves

48
Carbon Dioxide Fixation (cont.)

• 5 carbon sugar ribulose 1,5 bisphosphate (RuBP)
  is the acceptor molecule for which a 3 carbon
  molecule is made
• ATP produced in photophosphorylation is used to
  convert ribulose-5-phosphate to RuBP which is
  extremely unstable and is quickly hydrolysed into
  2 molecules of 3-PGA
• After CO2 fixation, ATP along with the reduced
  nucleotides from the light process, change the
• 3-phosphoglyceric acid (3-PGA) to
• 3-phosphoglyceraldehyde (3-PGald).

49
(No Transcript)
50
(No Transcript)
51
(No Transcript)
52
(No Transcript)
53
(No Transcript)
54
(No Transcript)
55
(No Transcript)
56
Carbon Dioxide Fixation C4 Plants

• In 1966, Hatch and Slack presented evidence that
  another pathway for CO2 fixation exists.
• 1st product from the mesophyll is a 4C compound
• Pathway encorporates CO2 using phosphoenolpyruvate
  (PEP) carboxylase enzyme
• ATP produced in photophosphorylation is used to
  convert pyruvate to PEP

57
(No Transcript)
58
Carbon Dioxide Fixation C4 Plants (cont.)

• The PEP (3C) is carboxylated to three four-carbon
  acids (oxaloacetate, malate, and aspartate)
• These acids are converted to the vascular sheath
  cells where they are converted to pyruvate
• In the change to pyruvate, a carbon is released
  that is converted, either by addition to RuBP or
  by addition to a two-carbon molecule to 3-PGA by
  RUBP carboxylase
• After 3-PGA is produced, the Calvin cycle is
  operative

59
(No Transcript)
60
(No Transcript)
61
(No Transcript)
62
(No Transcript)
63
(No Transcript)
64
Comparing C3 and C4 Species

• Anatomical differences
• L C4 species have chloroplasts in the vascular
  sheath cells, C3 species do not
• L Chloroplasts in mesophyll of C3 and C4 are
  structurally similar but no starch is produced
  in C4 plants (just 4C compounds)
• L Chloroplasts in vascular sheath cells of C4
  species are larger and have less developed grana
  than in mesophyll cell chloroplasts (since Calvin
  cycle is operative, they store starch)
• Remember the morphological differences?
• Previously covered material

65
(No Transcript)
66
Crassulation Acid Metabolism Plants

• Occurs predominately in succulent plants
• Adapted to arid conditions where low
  transpiration is a survival necessity
• Stomata are closed during the day and open at
  night to absorb CO2.
• Domestic examples of CAM plants
• - Pineapple
• - Agave (sisal, henequen) and prickly pear
• Fix CO2 into 4-C acids with PEP carboxylase only
  at night when stomata are open and energy
  required comes from glycolysis

67
(No Transcript)
68
(No Transcript)
69
(No Transcript)
70
(No Transcript)
71
Factors Essential for Photosynthesis

• Light
• As light levels increase Pn gradually increases
  until CO2 uptake equals CO2 evolution
• Therefore, CER (carbon exchange rate) 0
• Most C3 species including grapes reach light
  saturation before full sunlight

72
(No Transcript)
73
(No Transcript)
74
(No Transcript)
75
(No Transcript)
76
(No Transcript)
77

• Carbon Dioxide Concentration
• Dry air contains 78 N2, 21 O2, 0.93 argon,
  0.034 CO2 (340 ppm), and traces of other gases
• 85 to 95 of plants dry weight is dependent upon
  CO2 uptake in photosynthesis
• Greenhouse effect?
• CO2 absorbs infrared bands of light, earth should
  retain more heat
• Influence on plant physiology? Pn?

78
(No Transcript)
79
(No Transcript)
80
(No Transcript)
81
(No Transcript)
82
(No Transcript)
83

• Temperature
• Light reaction (photophosphorylation) is
  independent upon temperature in the temperature
  range in which plants grow.
• CO2 fixation is enzymatically controlled and
  dependent upon temperature
• Increases with temperature until enzyme
  denaturation occurs

84
(No Transcript)
85
(No Transcript)
86

• Water
• See the water relations material for the course
• Substrate for Pn
• Transpiration accounts for 99 of all water used
  by plants
• 1 is used to hydrate the plant, maintain turgor,
  and make growth possible
• Leaf Age and Mineral Status
• Major rate influencing the senescence rate is
  mineral nutrient status of the leaf
• Lower rates have been associated with
  deficiencies of N, Mg. Fe, P, and Ca

87
(No Transcript)
88
(No Transcript)
89
(No Transcript)
90
Photosynthate Utilization by the Plant

• After Pn, formation of a hexose sugar
• Many further changes occur
• Interconvert from glucose to fructose
• Combine to form sucrose for translocation
• Polymerize in chloroplast
• Transformed to compounds such as cellulose
