Title: Electronic Environments


1

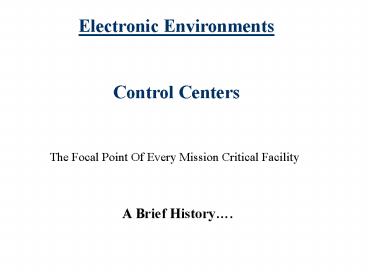

Electronic Environments Control Centers
The Focal Point Of Every Mission Critical Facility
A Brief History.
2
  • Shearson Lehman American Express - 1985
  • Mainframe Operations
  • Network Control - Monitoring 2 Front End
    Processors
  • Open Style Space Savings

3
  • Citibank - Manhattan, NY
  • Network Operations Control Console
  • Exhaust Fans in the Base, First Tier Second
    Tier Sections

4
  • American Express - Phoenix, AZ
  • Mainframe Ops / Network Ops / Print Area /
    Customer Support
  • Consolidation of Areas for increased
    communications
  • Introduction of Large Screen Technology

5
  • American Express - Phoenix, AZ
  • Mainframe Operations
  • Increased Line of Sight to all monitors with
    less movement
  • Reduced Staff

6
  • IBM (ISSC) / Kodak - Rochester, NY
  • Mainframe Operations
  • 80 Monitors / 40 Linear Feet
  • Rear Access

7
  • Federal Reserve Bank - Richmond, Virginia
  • Mainframe Operations
  • Network Operations
  • Customization
  • Glare Caused by Outside Light

8
  • Corestates - Philadelphia, PA
  • Mainframe Operations / Network Operations
  • Supervisors Look Over Operations

9
  • Fidelity Investments - Texas
  • Work Surface Lighting
  • Increased Keyboard Placement and Flexibility

10
  • Reuters - Hauppauge, NY
  • Overlooking the Enterprise
  • Reduced Height Consoles for Line of Sight
    While Seated

11
  • Space Planning
  • Control Room Design in Relation to Corporate
    Objectives Goals
  • Console Layout
  • Central Grouping of Main Operations Staff
  • Interdepartmental Adjacencies for Increased
    Communications
  • Key Positioning of Supervisory Staff For Line of
    Sight
  • A/V Wall Forward or Segregated per Functional
    Requirement
  • Library
  • Meeting Table
  • Shift Overlap
  • Shared Workstations
  • Lockers
  • Access, Egress, Entries Exits

12
Baxter Travenol - Illinois
13
Prudential Securities - Manhattan, NY
14
  • Workstation Design Ergonomics (A Compromise)
  • Operations Control
  • Typically a Multi-Tiered Environment
  • Shared Workstation Per Shift
  • Command Center Workstation Design
  • Number of Monitors to be Monitored
  • Number of Operators Prime Shift
  • Single, Double, Triple Tier Determinations
  • Monitor Layout by Application and Ease of
    Movement
  • Writing Surface Needs
  • Storage Needs
  • Keyboard Placement KVM Switching Options
  • Workstation Lighting

15
Computer Associates - Islandia, NY
16
IBM - Melville, NY
17
Barnett Bank
18
  • Work Station Design Ergonomics (A Compromise)
  • Network Operations Center (NOC)
  • Typically a Single Tier Environment
  • Possibly a Common Multi-Tier Area to Walk-Up
    Access
  • Individual Workstation Design
  • Open or Enclosed Style
  • Number of Monitors per Operator Workstation
  • CRTs or Flat Screens (Future Plans and
    Accommodations)
  • Number of CPU Accommodations Needed in Base
  • Number of Operators (Prime Shift)
  • Shift Overlap
  • Writing Surface Needs - Return Worksurfaces
  • File Binder Storage Needs
  • Workstation Lighting
  • Base Section Cable Management - Voice / Data /
    Power / Misc

19
  • IBM - Boulder, Colorado
  • Line of Sight

20
The Depository Trust Clearing Corporation -
Manhattan, NY
21
Atlanta DOT - Atlanta, Georgia
22
  • Large Screen Technology
  • Todays Choices
  • Direct View Monitors
  • Standard Television Design
  • Flat Panel Technology
  • Plasma
  • LCD
  • Projection Technology
  • Front Projection Systems
  • Rear Projection Systems
  • Cube Wall Systems

23
  • Lehman Brothers - Jersey City, NJ
  • Front Projection

24
  • Teligent
  • Rear Projection

25
  • Teligent
  • Direct View Monitors

26
  • The Associates - Texas
  • Rear Projection
  • Direct View Monitors

27
  • Large Screen Technology
  • Resolution (Clarity)
  • Screen Manipulation Switching
  • Master Control Systems
  • Hard RGB Switching
  • Video Wall Processing
  • KVM Integration
  • Audio
  • Cable Satellite Feeds

28
  • Facility Planning
  • Adjacency Analysis - Air Handling Units PDUs
  • Established Elements - Columns, Ceiling Height,
    Non Raised Floor, Etc..
  • Electrical Requirements
  • Heat Load Assessment
  • Access, Egress, Entries Exits - ADA
    Requirements

29
  • Computer Associates - Islandia, NY
  • Lighting

30
  • Corecom - PA
  • Rear Projection
  • Digital Clocks

31
  • Globix - Manhattan, NY
  • Cube Wall System
  • Video Wall Processing

32
  • INTERIOR DESIGN
  • Lighting
  • Carpet
  • Acoustics
  • Seating
  • Matching Finishes (Room Motif)

33
Concept NOC / Computer Rendering
34
  • ISO - Jersey City, NJ - Call Center
  • 50 Plasma Screens - Yoke Mounted

35
  • Metro Transit - Minnesota
  • Open Design Console for Flat Screen or CRT

36
  • Verizon - Dallas, Texas
  • Rear Projection
  • Video Wall Processor
  • Open Design Console

37
  • Verizon - Dallas, TX
  • Privacy Panels for Accoustics
  • White Board
  • CNN / Weather (NTSC Signal)

38
  • EMC - Hopkinton, MA
  • 42 Plasma Screens
  • Open Design Console - Trading Desk Design
  • Flat Screen Desktop Monitor Attachment Arms (
    Fixed / Articulating)

39
  • Network Solutions
  • Flat Screen Desktop Monitor Attachment Arms
    (Articulating)
  • Centered Monitor sits on its own Tilt
    Swivel

40
  • Prudential Securities - Manhattan, NY
  • Trading Floor

41
  • The New York Mercantile Exchange - Manhattan, NY
  • Project Management

42
  • The New York Mercantile Exchange - Manhattan, NY
  • Commissioning

43
Cairo Alexandria Stock Exchange - Cairo, Egypt
44
  • The New York Stock Exchange - Manhattan, NY
  • Cable Management
  • Viewing Angles

45
The New York Stock Exchange - Manhattan, NY
46
  • The New York Stock Exchange - Manhattan, NY
  • Internet Operations Center (IOC)
  • Non Raised Floor Environments

47
Super Booth - Morgan Stanley Dean Witter On The
Floor of The New York Stock Exchange - NY
48
Super Booth - JP Morgan On The Floor of The New
York Stock Exchange - NY
49
Presentation Room IBM - Boulder, Colorado
50
Crisis Management Center Computer Associates -
Islandia, NY
51
Board Room OM Technology - Manhattan, NY
52
  • War Room
  • ATT - Dayton, NJ
  • LCD Privacy Glass

53
  • War Room
  • ATT - Dayton, NJ
  • LCD Privacy Glass

54
  • Video Teleconferencing Facility
  • PKS - Phoenix, AZ
  • LCD Privacy Glass

55
Y2K Help Desk SIAC - Brooklyn, NY
56
Decision Support Center - Team Room IBM / Kodak
- Rochester, NY
57
Air Traffic Control Center American Airlines
58
Flight Information Display System
(FIDS) Pittsburgh International Airport
59
Customs Clearing Counters Pittsburgh
International Airport
60
Distance Learning Center US Army
61
Industrial / Factory Control Room Burton
Industries Long Island, NY
62
Financial Branch Facility CSFB - Manhattan, NY
63
Thank You For Your Time
