332:437 Lecture 17 FSM Hardware Modification for Reliability

1

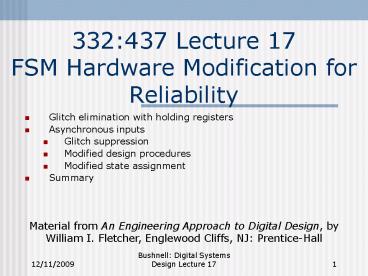

332437 Lecture 17 FSM Hardware Modification
for Reliability

• Glitch elimination with holding registers
• Asynchronous inputs
• Glitch suppression
• Modified design procedures
• Modified state assignment
• Summary

Material from An Engineering Approach to Digital
Design, by William I. Fletcher, Englewood Cliffs,
NJ Prentice-Hall
2
System Controller Architecture Refinement

• Add input and output Holding Registers to
  eliminate glitches
• Use separate SYNCH STROBE clock to synchronize
  asynchronous inputs usually at higher frequency
  than system clock (2X or 4X)
• Asynchronous input holding register
• Use edge-triggered D flip-flops or SR latches
  (need asynchronous set/reset inputs)

3
Example of Unwanted Glitches
4
State Machine Without Holding Registers
5
State Machine with Input Output Holding
Registers
6
State Machine with Holding Async. Set/Reset
Registers
7
Need Glitch-Free State Change Output Operation

• Problem Finite State Machine transition
• 111-gt000

Six possible transitions between 111 000
8
Finite State Machine Transitions

• Figure shows many possible transition paths in
  next state or output decoder outputs (which will
  be the next state or machine outputs)
• Unavoidable problem with any decoder addressed
  with a sequence of non-unit Hamming distance
  inputs.

9
Caused by Heisenberg Uncertainty Principle

• Bank of FFs triggered by same clock will not
  change state simultaneously
• 2nd Problem -- Nearly impossible to assign states
  to Finite State Machine so that state transitions
  are one Hamming distance apart (i.e., there is
  only a single bit change)

10
Glitch-Suppression Methods

• Fix output decoder
• Disable O/P decoder prior to state change
• Maintain disabled condition for some Dt after
  state change, to allow state change transient
  to settle out
• Main Problem Outputs that must remain asserted
  through several clock cycles are not allowed

11
GlitchSuppression Methods (continued)

• Use D-type Output Holding Register
• Eliminates glitches in outputs allows holding
  of outputs during multiple state changes

12
Glitch-Free Timing with Output Holding Register
13
Output Holding Register

• Uses special OUTSTROBE pulse to clock Holding
  Register some phase delay after clock goes high

14
Modified State Machine Design Procedure

• Decide whether to minimize output decoder,
  flip-flops, or next state decoder
• If not minimizing FFs use Moebius counter or
  One-Hot Design
• Design tight Flow Diagrams lead to tight
  Mnemonic-Documented State Diagrams

15
Modified State Machine Design Procedure
(continued)

• Use minimal locus reduced input dependency
  state assignment procedures

16
State Assignment Asynchronous Inputs

• For reliable state changes follow this rule
• Next states from a single state whose branching
  is controlled by an asynchronous variable must be
  given unit distance state assignments.
• Obviously applies to states that loop back on
  themselves
• Mark states controlled by asynchronous variables
  with

17
Two Corollaries

• Branching conditions for a state must not be
  controlled by gt1 asynchronous variable
• Only 1 state variable should be affected by any
  state change

18
Summary

• Glitch elimination with holding registers
• Asynchronous inputs
• Glitch suppression
• Modified design procedures
• Modified state assignment
