Designing spines

1

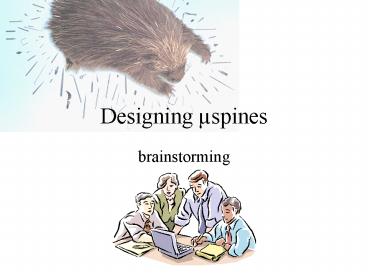

Designing µspines

• brainstorming

2
Increasing friction

• Brakes dynamic friction
• Static friction sport shoes
• penetrable surfaces (grass) football shoes with
  needles
• athletics rubber tracks rubber bumps (lamellae?)
• when running, half of one feet pushing very high
  normal force

3
Why spines ?

• Motivation
• Improve friction
• Most insects have spined legs various Gorbs
  papers
• Adhesion possible?
• We want to take advantage of asperities

4
At microscopic level

• For the interaction of spine and surface we can
  have two cases
• Hooking on asperity
• Pure friction

friction angle
adhesion
5
Interaction characterization

• Wall is flat
• Spine
• shape (tip size and roughness)
• Interaction
• relative hardness (penetrable/ impenetrable)
• relative approach angle
• relative force
• at microscopic level
• roughness and texture

6
Artificial vision

• If looking for asperities, why not just hook
  using vision remote image transmission and
  analysis, or a simple algorithm on board

7
Geometric considerations
8
Hooking on asperities

• Definition
• any stable, almost flat and horizontal part of
  the wall surface
• can be a protrusion or a hole (more stable)
• What is the chance of hooking on asperities?
• n. of vertical asperities whose size is greater
  than the tip, facing the climbing direction
  (half), with no obstruction to spine insertion,
  per unit of surface (can be on a linear
  dimension). Increases considering the tolerance
  on the spine number and transverse compliance and
  foot movement/climbing strategy

9
What spine angle?

• If we are looking for asperities, the spine angle
  with respect to the surface should be very steep
  for easier (non obstructed) insertion. We do not
  want a high normal force (for friction), just
  shear. We will reduce the spine length for higher
  load
• A spine that is also inclined horizontally
  (insect leg spines) is more stable on protrusions

10
Why a lower angle works fine?

• A lower angle is good for surfaces that are
  softer or brittle because the plastic deformation
  or the fragile break by shear is lower the
  compression strength (a normal force)
• With lower angle we have chances of getting the
  friction effect too

11
How many spines?

• Few
• Easier design up to three spines on a rigid
  plate are intrinsically compliant

• Many
• Lower load ? lower deflection
• Higher chance of finding an asperity
• Can be a combination of spine triplets

12
Axial compliance

• Benefits
• Many spines can adapt to protrusions or holes of
  different depth
• Notes
• Keep force to a minimum (lubrication)
• Low excursion almost constant force

• Drawbacks
• Design and fabrication complexity
• Non uniform force distribution
• in holes (good hooks) spines have lower axial
  force (if proportional to displacement)

13
Tear

• Due to high load and small surface, spines will
  only allow a short time use because they tear
  quickly and become blunt
• Possible reason for so few commercially available
• Ways of reducing tear
• Harder material (diamond tips)
• Renovating material (very thin metal wire in a
  stiff resin support)
• Additives in resin (sphere glass or fine talc)

14
Quick-cast with chopped fibers in wax. Various
shapes
15
Gecko vs. Roach (observations from movies)

• 4 vs. 6 legs
• Large vs. no toes (claws)
• Adhesion vs. crawling
• Long sure steps vs many short quick attempts
  (trials errors)

• Normal force for both?
• How many steps per second (on same surface type)?

16
Foot specialization

• Front legs
• few reliable hooks (standing)
• Intermediate legs?
• Back legs
• many less reliable hooks (propulsion)

17
(No Transcript)
18
(No Transcript)
19
Desired µspine features

• Thinner spine
• higher specific load ? bending and instability ?
  increase density
• better behavior on low roughness surfaces
• Higher roughness surfaces
• compliant toe
• Will water mattress
• Running strategy many quick steps

20
(No Transcript)
21
Types of spine shapes

• Cylinders (legs)
• Demos with magnets
• Flat - compliant
• various 10A Urethane samples
• Any shape
• Quick cast sample

• Resin coated metal wire magnetically attracting
  metal micro fibers
• Magnetically aligned pins in cast resin with
  fluid cushion
• Mould of resin skin with protrusions

22
Axial compliance solutions tested

• Individual std. pins lubricated with Vaseline in
  copper tube with tension or compression spring.
  Can be put in casts for embedding in feet
• Lower scale. 100 and 200 um pins in elastic
  medium (10A urethane) in a thermally shrinked
  tube. Should be aligned (with magnet) or put in
  metal tubes and filled with liquid resin
• The water cushion does not allow for high axial
  compliance. 10A very sticky, covered with Teflon
• Spines embedded in soft resin have higher
  deflection than axial compliance

23
(No Transcript)
24
(No Transcript)
25
Axial compliance by a viscous medium. Protrusion
to minimize deflection. Rigid outside to support
shear force.
26
Is transverse spine compliance desirable?

• High compliance may impact the friction angle and
  loose friction force
• Affects the load distribution
• The most stable configuration is of minimum
  energy and less force, so with higher compliance
  the spines will tend to loose good contact
  configuration
• Small compliance increases the chance of finding
  good contact points
• Optimal value should be investigated further

27
(No Transcript)
28
(No Transcript)
29
Axial compliance (by hand)
30
The importance of load application (low moment)
flat foot, close to the wall
31
Materials

• Legs
• stiffness DECT paper, rope?
• ferromagnetic fibers free samples from Bekaert
• sacrificial material for cushion
• paraffin wax Kevin
• Any shape
• 35A urethane in vacuum with Tap Plastics
  additives to improve hardness

32
Constraint on load µspine dimension
F Gecko weight / active µspines
l
d function (F, l, Ø, Ematerial)
active µspines Coeff x density x
foot_contact_surface
density µspines / surface
33
Pinned wheels and shells





http//www.ramsco-inc.com
34
(No Transcript)
35
Fabrication technique

• Legs
• density of spines defined by their
• uniform distribution achieved by vibration
  Sangbae
• inclination gravity and centrifugal force
• Tested .8 wire coated with 10A and 100 um spines
  at 30o. Good interaction with carpet and paper.
  Good for propulsion?

36
Scale

• Is insect spine effect scalable (larger) and
  still work with most roughness or do we want to
  keep them small and many?
• The size of spines is probably defined by what is
  available (Kevins pins and Bekaert fibers)

37
Multiscale (tree) spines
38
Foot testing

• Climbing strategy is fundamental (dead fly)
• 10A not testable adhesive gt 35A
• Performance
• benchmark configuration (tripod with fixed
  weight, inclined spine being tested)
• Static friction (inclined table)
• Tear
• of successful steps (renovating toe)

39
Test with two plates and Quick cast

• Parameters
• resin layer thickness
• time before raising
• elevation
• lateral displacement
• time before separation

• Variables
• resin
• top material, surface finish

1
2
3
time
40
To do next

• Legs
• dimensions/scale?
• feasibility of magnetic assembly
• Flat
• obtaining the thinnest skin with cushion with 35A
  and pins
• Any shape
• What (cone) shape and density Will paper?

41
Triplets

• Intrinsic compliance

42
(No Transcript)
43
Three rigidly connected spines
44
Claws or spines?

• claws Sangbae intuition on twiki

45
(No Transcript)
46
(No Transcript)
47
Squeezing
48
(No Transcript)
49
(No Transcript)
50
(No Transcript)
