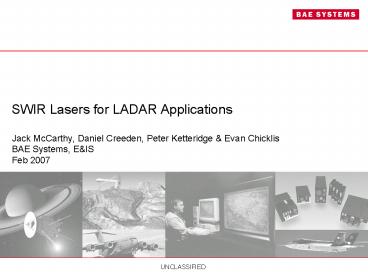

SWIR Lasers for LADAR Applications

1
SWIR Lasers for LADAR Applications

• Jack McCarthy, Daniel Creeden, Peter Ketteridge
  Evan Chicklis
• BAE Systems, EIS
• Feb 2007

2
Mid-IR Lasers
MIRVLS
DAIRCM
Cryo-Cooled Lamp Diode - Pumped 2micron Lasers
ZGP OPO
Mid-IR Lasers
Stirling Cycle Cooled Technology Packaged Lasers
Room Temperature 2micron Holmium
Laser Technology / Packaged Lasers
Room Temperature 2micron Thulium Laser Technology
ARPA I Multiband Laser
BIV Laser
ARPA II
LAMBS
3
Advanced Materials

• Developer of Novel Optical Crystals and
  Semiconductor Materials for Laser and EO Systems
• Solid State Laser Materials
• ZnGeP2
• AgGaSe2, CdGeAs2
• Semiconductor Laser Materials
• Optically Patterned GaAs
• GaSb waveguide Sources
• Novel Optical elements
• Chalcogenide Materials
• Photonic Bandgap Sources
• Photonic Filters

Melt-grown ZGP crystals for wavelength converters
OPGaAs Patterned GaAs OPO devices
Novel Non Linear Optical Components
4
SWIR Lasers All Conduction Cooled

• Developing Advanced SWIR Laser Technologies
• High Energy Solid State Lasers
• Diode Pumped High Storage NdYag Designators and
  Illuminators (Sniper Advanced Targeting Pod,
  ATP)
• Diode Pumped Er-Yag High Energy Eyesafe Flash
  Ladar Transmitters
• High PRF Solid State Lasers
• Diode Pumped High PRF Nd (3D LADAR Tx)
• Frequency Conversion to Harmonics Eyesafe
• Fiber Lasers
• Yb Fiber Laser Transmitter
• 1ns Fiber Laser Tx (1 1.5 microns)
• THz Transmitter

5
Diode Pumped NdYAG Designator/Rangefinder
Advanced Targeting Pod (ATP) deployed on
F/A-18 -300 mJ, 20 ns, 20 Hz, 1064 nm -100 mJ, 13
ns, 10 Hz, 1570 nm -16 lbs, 168 unit production
lot Next Generation -100 mJ, 20 ns, 20 Hz, 1064
nm -3.3 lbs, Battery Operated Derivative
Products -Eyesafe Harmonics
Hardware - Conduction Cooled and Flight Qualified
6
High PRF NdYVO4 Transmitter

• CW Diode pumped NdYVO4 operating at 1064 nm
  provides
• Efficient 5 -8 W source (1064nm), 100 duty
  factor, near diffraction limited
• Conduction cooled, low part count, simple
  configuration, low cost
• Scalable via higher power pump diodes/Added
  amplifier stages
• Remote fiber coupled pump provides minimal heat
  load/weight on gimbal
• Pump laser engine for NIR OPO Driver
• Intracavity OPO in NCMP KTP/KTA
• External Cavity PPLN

7
High PRF NdYVO4 Transmitter Performance
8
Fiber Laser Replacement - Why?

• Compact, efficient pulse amplification
• gt15 wall-plug efficiency
• High optical efficiency
• Low cost and lightweight
• COTS components
• No free-space coupling
• Large gain-bandwidth
• Can amplify signals from lt1000nm to gt1150nm
• Pulse flexibility
• Variable PRF (lt1kHz to gt1MHz) and pulse widths
  (lt500ps to gt1ms)
• Can generate high peak power pulses with a low
  pulse energy
• Power scaleable

9
Semiconductor Seed Oscillator
10
Bulk vs. Fiber
11
System Architecture Distributed Staging
Pre-Amplification
Power Amplification
Pump Diodes
Pump Diodes
SM Yb-doped fiber
SM Yb-doped fiber
15 µm LMA Yb-doped
20 µm LMA Yb-doped
30 µm LMA Yb-doped
Isolator
ASE Filter
1064nm Seed Diode
12
Results

• Developed all-fiber MOFA for high peak-power
  pulse amplification
• Distributed staging design for suppression of
  nonlinear effects

19W pump at 975nm
13
Results All Fiber Configuration

• High peak-power and pulse energy
• Peak powers gt250kW with pulse energies gt250µJ (20
  kHz, 1ns)
• Peak powers gt35 kW with pulse energies gt350 µJ
  (20 kHz, 10ns)
• Achieved pulse energies gt650 µJ at 10 kHz, 10ns
  (not shown on plots)
• Variable pulse width and PRF control for
  different applications

14
Pulse Characteristics
Spatial Profile

• Clean spectrum
• Stable pulses
• Good spatial output
• M2 measured to be lt1.5

Temporal Profile
M2lt1.5
15
Significance

• Efficient, high power source for 1064nm pulses
• No active optical alignment
• Repeatable fiber splicing
• No free-space coupling
• Mitigation of deleterious nonlinear effects
• Completely wave-guided source
• All light and amplification contained in the
  fiber
• Mechanically robust, monolithic source
• Total pulse control
• Independent control of pulse width and repetition
  frequency
• Easily scaleable to higher powers
• Linearly scaleable ? 30µm up to 100µm core fibers
  with SM operation
• Flexible architecture for driving nonlinear
  processes
• THz generation

16
Terahertz Spectrum

• Gap between IR and RF frequencies
• High THz absorption in atmosphere
• Must operate in THz transmission windows
• Little to no background at THz wavelengths

17
Why Terahertz?

• Imaging applications
• Low loss through paper, cotton, fabrics, etc.
• Non-ionizing radiation
• View metallic objects through clothing
• Real-time security screening
• IR Blind imaging
• Spectroscopic applications
• Materials have distinct absorption spectra in the
  THz region
• Enables chemical and explosive (and possibly IED)
  detection
• Post office mail screening
• Airport use check for explosives in baggage
• Port Security scan shipping containers

18
Our Approach Fiber Pumped DFM

• Difference frequency mixing (DFM)
• Amplify two near-IR (NIR) signals in a fiber
  amplifier chain
• Mix signals in a nonlinear crystal (ZGP)
• Difference frequency between the two signals is
  in the THz region
• Resultant THz signal will have high average and
  peak-power
• Phase-matching conditions
• Conservation of energy
• Conservation of momentum (Type I eeo
  interaction)

19
Fiber Pump Setup
Preamplifiers
1064 nm
SM fiber
SM fiber
SM fiber
15/130 fiber
SM fiber
SM fiber
SM fiber
1059 nm
20/125 fiber
COL
30/250 fiber
20
THz Setup

• Fiber-pumped ZGP
• Pyroelectric detector
• Average-power detection
• Microbolometer array
• THz imaging

Off-axis parabolic mirror
THz filter
Detector
THz filter
Fiber Pump
ZGP Crystal
Collimator
Off-axis parabolic mirror
21
Fiber Pumped THz Source

• 2mW average power output at 2.45THz
• 40W peak power at 100kHz PRF with 0.5ns pulses
• Optical conversion efficiency gt0.1
• Mixing 1055nm and 1064.2nm to get 122µm (2.45THz)
• Tunable in THz wavelength from 0.8-2.45THz
• By tuning one pump wavelength, we can tune the
  output THz wavelength
• THz output power drops as THz wavelength
  increases
• Due to phase-matching angle in the crystal
• Tuning limited by seed diodes
• Fiber as a pump allows for a lightweight, compact
  THz source
• ZGP crystal can be integrated into a qualified
  fiber-coupled package

10 mm
Crystal
Fiber
22
Results at 2.45THz (100kHz, lt1ns)
Theoretical model accounts for crystal absorption
at pump and THz wavelengths, Fresnel losses,
momentum mismatch, system losses, walk-off
Pump Pulse
Depleted Pump Pulse
Includes crystal absorption at the pump
wavelengths
23
Terahertz Imaging Razor Blade
Razor Blade
Razor Blade Image from Inside Tyvek Envelope
Tyvek Envelope
24
(No Transcript)
25
Terahertz Imaging Pocket Knife
Pocket Knife
Pocket Knife Image from Inside Tyvek Envelope
Tyvek Envelope
26
(No Transcript)
27
Terahertz Imaging Fiberglass Knife

• Unnoticeable by metal detectors
• Can be seen with THz imaging

Fiberglass Knife
Fiberglass Knife Image from Inside Tyvek Envelope
Tyvek Envelope
28
(No Transcript)
29
Summary

• SWIR Capabilities
• Designators/rangefinders
• High power, high energy, flight qualified
• LIDAR Systems
• DPSS, conduction cooled, AO Q-switched
• Fiber-based
• Pursuing new technologies
• Fiber-enabled technologies
• Small size, lightweight, less touch labor, COTS
  components
• More optical power efficiently and easily
  scaleable
• Highly efficient optical and electrical
• Off-gimbal operation beam delivery fiber
• Enables the development of new systems at
  different wavelengths
