AS 120 Principles of Aeronautical Science

1

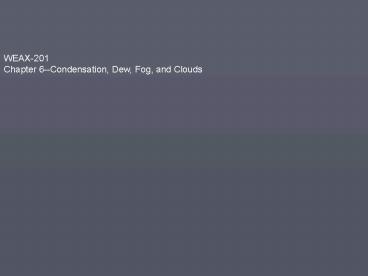

WEAX-201Chapter 6--Condensation, Dew, Fog, and
Clouds
2
CondensationWITH STYLE!!
3
A little less eye-catching, but the same
principle

• A cold drink sweats because warm, moist air
  comes in contact with the cold surface
• The air cools to below its dew point temperature
• Condensation occurs

4
Formation of Dew and Frost

• Dew forms when the temperature cools to the
  dew-point temperature
• If T Td lt 32F, frost forms instead of dew
• Dew/frost often forms close to the ground, and
  not on objects just above the ground
• Why?
• Dew and frost most often form on clear, calm
  nights
• Why?
• Dew can be an important source of moisture during
  periods of low rain fall.

5
Formation of Haze, Fog, and Clouds Condensation
Nuclei

• The process of condensation of vapor to form a
  cloud drop is not as simple as dew or frost
  formation
• Must have Cloud Condensation Nuclei (CCN) to form
  cloud drops
• CCN are small particles in the atmosphere
• Dust, volcanoes, factory smoke, forest fires
• Ocean salt, sulfate particles from phytoplankton
  in ocean
• They are most abundant in lower troposphere over
  urban areas
• They are quite small compared to a rain drop or
  cloud droplet

6
Sizes and Amounts of CCN

• Total mass of CCN put into atmosphere each year
  is about 2x1012 kg
• Two types of CCN
• Hydroscopic (water seeking)
• Water vapor readily condenses on these
• Ocean salt is a good example (sticky salt shaker
  when humid)
• Hydrophobic (water repelling)
• Water vapor does not readily condense on these
  (wax on car)

• Note 1cm3 is about the size of your thumb

7
Formation of Haze

• Two types of haze
• Dry haze - large/giant particles in the air
  (smoke, smog, dust)
• Wet haze - H2O condenses onto hydroscopic CCN
  can
• Can occur at RH as low as 75
• Wet haze has a dull gray, white color

8
Formation of Fog

• Fog forms as the RH increases to 100
• Haze particles grow into fog (cloud) droplets
  near the ground
• Fog is really a cloud near the ground
• International definition Visibility less than 1
  km
• National Weather Service definition Visibility
  is less than or equal to 6 miles and T-Td lt 5F
• Fog in heavily polluted areas can be a health
  problem since it becomes acidic

9
Types of Fog

• Radiation Fog
• Advection Fog
• Upslope Fog
• Steam Fog

10
Formation of Radiation Fog

• Conditions needed
• Moist air near surface of the ground
• Clear and calm nights
• Light winds to bring a larger volume of air in
  contact with the cooler ground
• Radiational cooling allows the air temperature to
  drop to the dew point temperature.

11
Formation of Radiation Fog

• Once the T reaches Td, radiation fog begins to
  develop
• Common in the fall - especially when weather is
  dominated by high pressure
• Often forms in valleys first since this is where
  the coldest air is. This is called valley fog

12
Valley Fog
13
(No Transcript)
14
(No Transcript)
15
Advection Fog

• Common off the west coast of the U.S.
• Cold current along coastline
• Warm water further to the west

16
Advection Fog

• Westerly winds advect warm moist air over colder
  water
• Warm, moist air to the cold water via conduction
• The parcel reaches saturation. Fog forms, and is
  advected onshore
• Need a light breeze for this process to occur

17
Advection Fog

• Advection fog can be an important source of
  moisture for plant life along the California-it
  rarely rains there during the summer months
• Why are advection fogs rare in the tropics?

18
Upslope Fog

• A parcel of warm, moist air climbs from the Gulf
  of Mexico as it is advected toward Denver
• As the parcel ascends up the slope, it expands,
  and the temperature cools to the dew point

19
Upslope Fog

• As the parcel ascends, it expands and cools to
  the dew point (lapse rate 10oC per 1000 meters)
• Upslope fog/clouds then form
• Neccessary ingredients
• Moist air
• Winds that move the air up the slope
• A slope

20
Steam Fog

• Common here in late fall and winter
• Seen over lakes or heated pools in winter
• Need cold air over a warm body of water

21
Steam Fog

• Heat and moisture are transferred from the warm
  water to the cooler, drier air
• This occurs in a shallow layer near the lakes
  surface
• This is an unstable situation with warm,
  saturated air at the surface below cooler air
• Whisps of warmer, moister air rise into the
  cooler airsteam fog is formed
• On a cold morning, you can see your breath. Why?

22
Foggy Weather

• Where is it foggy????
• Pacific Coast
• Appalachian highland region
• New England
• Foggiest spot in the U.S. Cape Disappointment,
  WA
• it's foggy for 2556 hours per year, or about 107
  days.
• Fog is a significant weather problem for aviation
  ops

23
Introduction to Cloud Types- Know the cloud
types- Be able to identify clouds
24
(No Transcript)
25
(No Transcript)
26
Introduction to Cloud Types

• Clouds are comprised of liquid droplets of
  various sizes and/or ice crystals
• They are characterized according to their height
  location in the atmosphere and their vertical
  development
• High clouds
• Middle clouds
• Low clouds
• Vertically developed clouds

• NOTE cloud names come from Latin words
• cirrus - curl
• stratus - layer
• cumulus - heap
• nimbus - violent rain

27
High Clouds - Cirriform

• High clouds are comprised largely of ice
• Cloud-base heights for high clouds
• Tropical Region//Middle Latitudes//Polar Regions
• 6-18 km 5-13 km 3-8 km

28
High Clouds - Cirrus (Ci)
Cirrus Clouds (Ci)- high, thin wispy clouds at
jet stream level in the upper troposphere
Associated with fair weather
29
High Clouds - Cirrostratus (Cs)

• High, thin, sheet-like clouds
• Produce halos around the sun/moon
• Many of the optical phenomenon we learned a
  couple of weeks ago are caused by Cs
• A sign that poor weather is often approaching
  (12-36 hours away)

30
(No Transcript)
31
Cirrocumulus Clouds (Cc)

• High clouds
• Resemble fish scales or small rounded white puffs
• About the size of your thumbnail

32
(No Transcript)
33
Middle Clouds Alto__

• Middle clouds are composed of water and/or ice
• Cloud-base heights for middle clouds
• Tropical Region//Middle Latitudes//Polar Regions
• 2-8 km 2-7 km 2-4 km

34
Altocumulus Clouds (Ac)- Shallow, puffy or
wave-like in appearance Appear to be larger than
your thumb, but smaller than your fist when
holding your arm up to the sky
35
Cc
Ac
36
Special type of Ac cloud that forms in high speed
wind conditions Usually downwind of mountain
ranges
37
Altostratus Clouds (As)

• Grayish/blue-gray appearance
• Thin layer covering entire sky uniformly
• Found ahead of approaching storms
• Can see the sun through altostratus, but NO halo
  will be observed

38
(No Transcript)
39
Low Clouds

• Cloud-base heights for low clouds
• Tropical Region//Middle Latitudes//Polar
• 0-2 km 0-2 km 0-2
  km

40
Stratus Clouds (St) -Uniform grayish cloud
covering the entire sky -Fairly common here in
the winter -Light, continuous drizzle
41
(No Transcript)
42
(No Transcript)
43
(No Transcript)
44
St
As
45
Nimbostratus Clouds (Ns)

• Darker gray, "wet" looking low clouds
• Produce light/moderate precipitation over a large
  region

46
(No Transcript)
47
(No Transcript)
48
Stratocumulus Clouds (Sc)

• Low, lumpy, puffy clouds in patches or rounded
  masses
• Fair weather clouds (usually)
• Appear the size of your fist when holding your
  arm up to the sky

49
(No Transcript)
50
(No Transcript)
51
Vertically Developed Clouds - Cumulus (Cu)

• Cumulus Clouds
• Look like cotton balls/cauliflower in the sky
• Whiter than Sc, and often more vertically-develope
  d
• Sub-categories of cumulus
• cumulus humilis - slightly developed Cu
• cumulus congestus (or moderate Cu) moderately
  developed

52

• Cumulus humilis

• Cumulus congestus

53
Developing Cumulus
54
Cumulonimbus Clouds (Cb)

• Thunderstorms
• Develop from growing Cu
• Can extend up to the troposphere
• Can contain both water and ice
• Produce precipitation (rain, snow, hail, etc)
• Produce lightning and severe weather
• Form a distinctive "anvil" cloud at the top of
  the storm

55
(No Transcript)
56
(No Transcript)
57
(No Transcript)
58
Other unusual clouds - Scud

• Scud are ragged low clouds drifting beneath the
  actual cloud base
• Often form due to turbulent mixing of air
• Warm air from the updraft
• Cool air from the downdraft
• Cause huge problems for general aviation

59
Other Unusual clouds - Lenticular Clouds

• Form as air flows over mountains
• Look like pancakes, UFOs
• Appear to stay stationary

60
(No Transcript)
61
Lenticular Cloud Time Lapse
62
Other Unusual Clouds - Pileus

• Forms as a growing thunderstorm deflects moist
  air up and over the top of the building cumulus
  congestus or cumulonimbus

63

• Mammatus clouds
• Found in the anvil portion of intense
  thunderstorms
• Indicate strong downdrafts in upper portions of
  a thunderstorm
• Indicate hail or tornadoes

64
Other Unusual Clouds - Pollution Induced

• Hot air from a smoke stack can rise high enough
  to produce a cloud

65
Unusual CloudsHole Punch Clouds

• Occurs in Ac clouds
• Ci above dropped light snow that fell into the
  lower Ac deck
• Acted much like cloud seeding (chap 8)
• Cloud droplets in the Ac cloud coalesced on the
  falling snowthis cleared a hole in the Ac deck
• From the WKRG-TV page
• Occurred in December in southern Alabama

66
Effects of Aircraft on Clouds
Contrails

• Jets passing through thick Ci clouds can raise RH
  to the point where precipitation begins, and
  clouds begin to clear

Courtesy WKRG-TV
67

• If a jet is flying through air with low humidity,
  the moist air might produce a short-lived
  contrail. Thus, the forecast would be for the
  weather will remain fair. However, if the
  contrail is a thick, long lasting trail it
  indicates that high humidity is in the atmosphere
  and it could be a sign of a storm approaching.

68

• - Cloudiness has increased by about 20 over some
  portions of the US
• These areas are along the major air traffic
  routes
• The cloud increases are due to contrails
  produced by aircraft
• Implication for climate??

69
