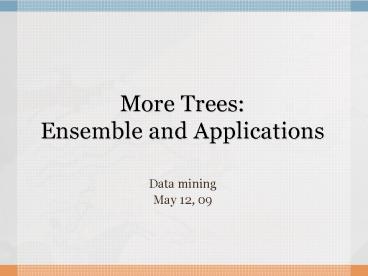

More Trees: Ensemble and Applications

1
More TreesEnsemble and Applications

• Data mining
• May 12, 09

2
Bias Variance Decomposition
Average error distance bias variance noise
3
Bias

• T_2 is a pruned version of T_1, thus having a
  larger bias

4
Bias

• Bias
• is the distance from the true decision boundary
  (target) to the average trained boundary
• becomes larger when stronger assumptions are made
  by a classifier about the nature of its decision
  boundary
• less sensitive to the data (already has its own
  mind, not very open-minded)

5
Variance

• A training set is one instance of many possible
  data sets possible
• We could have gotten a different training set
• If so, would the trained classifier be very
  different? If so, large variance
• Variance
• is the variability of trained boundaries from
  one another

6
Variance

• If a classifier is overfitted, it would result in
  a large variance
• Because the resulting classifier will be very
  different depending on the particular training
  data set

7
Bias Variance

• Average boundaries (100 data sets)
• Whose bias is larger? In general?

8
Ensemble Methods

• Construct a set of trees (or classifiers) from
  the training data
• Predict class label of previously unseen records
  by aggregating predictions made by multiple
  classifiers

9
General Idea
10
Why does it work?

• Suppose there are T25 base classifiers
• Each classifier has error rate, ? 0.35
• Assume classifiers are independent
• Probability that the ensemble classifier makes a
  wrong prediction

11
Examples of Ensemble Methods

• How to generate an ensemble of classifiers?
• Bagging of complex overfitted classifiers
  (trees, neural networks)
• Boosting of simple underfitted classifiers
  (stump)
• Random Forest of complex trees

12
Bagging (Breiman)

• Generate T bootstrap data sets by sampling with
  replacement an example of T3, n10
• Each sample has probability (1 1/n)n of being
  selected
• Build classifier on each bootstrap data set
• Combine output of t classifiers
• Reduces variance of classifiers

13
Why Bagging works

• Smoothing effect

14
Boosting

• An iterative procedure to adaptively change
  distribution of training data by focusing more on
  previously misclassified records
• Initially, all n records are assigned equal
  weights
• Unlike bagging, weights may change at the end of
  boosting round

15
Boosting

• Records that are wrongly classified will have
  their weights increased
• Records that are classified correctly will have
  their weights decreased

• Example 4 is hard to classify
• Its weight is increased, therefore it is more
  likely to be chosen again in subsequent rounds

16
Example AdaBoost

• Base classifiers C1, C2, , CT
• Error rate
• Importance of a classifier

17
Example AdaBoost

• Update of weight of the training record i during
  j-th boosting round
• Weight increases for incorrectly classified
  pattern while decreases for correctly classified
  pattern
• The higher the weight, the more likely to be
  selected

18
Example AdaBoost

• Instead of majority voting, prediction by each
  classifier is weighted according to
• Classification

19
Random Forest
20
Random Forest

• A forest (set) of decision trees, each of which
  is built based on a random subset of variables
• Less intelligent individually, but as a group,
  intelligent
• When a large number of variables exist

21
Ensemble

• Pros
• Reduces model error
• Is Easy to automate
• Cons
• Hurts Interpretability
• Requires more Time for training and evaluation
• Reference
• Introduction to Data Mining by Tan, Steinbach,
  and Kumar for more information

22
Up-sell

• American Express

Platinum
Amount per Transaction
Gold
Maximize
You Want your Customer To spend more
ARPU
Green
?? ?? CRM ???? CRM ??? ?
23

• Target Marketing (cf Mass Marketing)
• Who to recommend Platinum Card among our valued
  customers?
• gt Those who show similar usage patterns to
  Platinum customers
• How to find them?
• gt Decision Tree

24
To identify Platinum Customers

• Objective Identify those non-platinum customers
  who are very much like platinum customers
• Identify Platinum behaviors
• How? using Decision Tree

Compare with Platinum customers
Non-Platinum customers
Candidates for Up-sell
Pseudo-Platinum customers
25
To identify Platinum customers

• Idea

Build a DT from Usage Data of both Platinum and
non-Platinum customers
Target those non-Platinum customers who are
incorrectly classified as Platinum customers by
the DT
26
To identify Platinum customers (Usage data how
much on where)

• Variables stores 17, amount of usage (total,
  credit/cash/Loan ratio)
• Training Data Platinum/non-platinum 4,877 /
  4,877 (Training/Validation 6040)

C
A
B

• U Data
• A Training Data (Platinum customers)
• B Training Data (non-P customers)
• BC to be scored

U
27
To identify Platinum Customers

• Resulting Rules
• IF 5 star hotel 110 dollars or more use of
  Airline
• THEN Platinum 93.1 (787)
• IF Country Club gt 480 Japanese Restaurant gt
  100 no use of Airline
• THEN Platinum 92.7 (151)
• IF Country Club gt 70 Japanese Restaurant lt
  240 5 star hotel lt 110 use of ?
• Airline
• THEN Platinum 93.3 (90)
• Identify Prospects
• Among 295,123 non-Ps

28
Target Marketing Channel

• First decile experienced telemarketers
• Second decile less experienced telemarketers
• Third decile letter
• Fourth decile SMS
• Fifth decile email
• Below no action

29

• www.netflix.com
• Monthly DVD movie service
• Revenue 5M in 2000 to 1B in 2006
• Busted Blockbuster (www.blockbuster.com )
• CEO Hastings, Stanford CS Masters
• A true analytics maniac
• Test test test before doing anything

30
Netflix Core competence

• Cinematch Movie Recommendation engine
• Clustering of movies customer evaluation
• Personalized homepage with recommendations
• 1M cash award for 10 improvement
• Throttling Send movies to valued C first
• Valued C those who watch it rarely
• Movie procurement decision made based on
• Customer response to similar movies

31

• Started as an Internet bookstore
• Now they sell just about anything
• Shin ramen?
• www.amazon.com

32
Amazon Core Competence

• Product Recommendations
• Past purchase history
• Past search history
• Check recommendations
