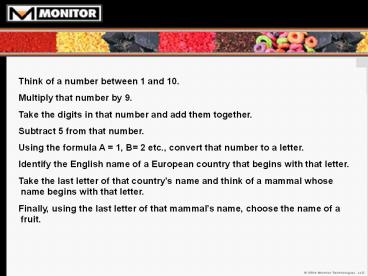

• Think of a number between 1 and 10.
• Multiply that number by 9.
• Take the digits in that number and add them
  together.
• Subtract 5 from that number.
• Using the formula A 1, B 2 etc., convert that
  number to a letter.
• Identify the English name of a European country
  that begins with that letter.
• Take the last letter of that countrys name and
  think of a mammal whose name begins with that
  letter.
• Finally, using the last letter of that mammals
  name, choose the name of a fruit.

2
(No Transcript)
3
(No Transcript)
4
Recent Directions In Bulk Solids Level
Measurement Monitoring

• Self-Validating sensors eliminate overfilling
• Successfully implement continuous level

5
Level Measurement

• Continuous v. intermittent
• Six primary technologies
• Contact / non-contact
• Sensor location
• Converting to weight
• How do we ensure success?

Guided-wave radar in use measuring seed corn at
Syngenta plant
6
Level Monitoring

• Presence / absence
• Five primary technologies
• Contact v. non-contact
• Low or high level
• What if they fail?

RF capacitance sensor in use monitoring high
level condition in flyash silo at Buzzi Unicem
cement plant.
7
When Level Monitors Fail The Cost of
Overfilling Your Bin/Silo

• 5K estimate (concrete producer) ...
• lost material
• clean-up costs
• fines due to air quality issues
• damaged bags, baghouse, vents
• lost production

8
Top Ten Ways You Know You Have Overfilled A Silo
10 Pneumatic tubing is cascading to the
ground as the pressure blows the fill
lines off the silo 9 The bag house on top
of the silo is no longer visible, as its now
covered by the material that was in your
silo 8 The creaking sound you hear is
coming from the roof of the building next to
the silo as material spills onto it 7 The
truck driver filling the silo suddenly looks very
sheepish as he prepares to make like a Baptist
Church and split 6 Flocks of pigeons
suddenly get airborne
9
Top Ten Ways You Know You Have Overfilled A Silo
5 It sounds like its hailing outside
while the sun is out 4 There is a loud clanking
sound as the silo railing hits the pavement 3
A Sherpa asks if you need a guide to climb
the mountain of material now piled next to the
silo 2 Your maintenance manager is in a
panic because he cant find a shovel
10
And the 1 Way You Know You Have Overfilled A Silo
All of your employees are scrambling to move
their cars!
11
Preventing Silo OverfillThe Number One Solution
?

• Self-Validating Level Monitors
• Not new concept
• More than simple fail-safe
• Sensor determines self-health
• Sensor outputs provide assurance
• Characteristics of a self-validating point level
  monitor
• Continuous diagnostic of critical internal
  functions
• Independent level and health status outputs
• Premium price

12
Todays Self-Validating Technologyfor Bulk Solids

• Most universal bulk solids technology
• Lowest cost technology
• Multiple vendors
• Self-Validating technologies
• Optical
• Hall-effect
• Fail-Safe PLUS
• Premium justified by ROI

13
Most Popular Continuous Level Measurement Device?

• Guided Wave Radar
• Usage increasing at nearly 21 per year (Venture
  Development Corporation)
• Should be strongly considered for bulk solids
• Broad application base in bulk solids
• High reliability with no moving parts
• Affordable
• Easy to install
• Multiple vendors
• How do we ensure successful installations?

14
Ensuring Successful Use of Guided Wave Radar

• How does it work?
• TDR (time domain reflectometry)
• Energy focused down wave guide
• Time-of-flight related to distance / level
• Direct and TBF (tank bottom following) modes
• Direct preferred
• TBF can provide solution for low dielectric
  materials

15
(No Transcript)
16
48 full vessel Er 1.7 PVC compoundTBF Mode
used
Material level
End of counterweight
Measuring PVC compound at Er 1.7 at plastic
pipe manufacturer
17
Ensuring Successful Use of Guided Wave Radar

• TECH TIP Accurate measure of Er (dielectric
  constant) of material
• Measuring range is directly related to Er
• rule of thumb the of radar energy actually
  reflected by the material surface is the
  dielectric constant value, i.e. Er 2.0 means ?
  2 of energy is reflected

18
(No Transcript)
19
Ensuring Successful Use of Guided Wave Radar

• TECH TIP Respect the signal field around wave
  guide
• Problems
• Parasitic signal reflections
• Signal degradation
• Solutions
• Proper sensor location
• Proper installation

20
Nozzle effect
Plastic Pellet Er 1.7 Range 20 ft.
Parasitic reflections affect measurement range
and ability.
21
Ensuring Successful Use of Guided Wave Radar

• TECH TIP Respect the signal field around
  wave guide
• Most common problem
• Using inappropriate nozzle
• Half-coupling preferred
• H must be lt D if nozzle used
• NEVER extend nozzle in silo

22
Ensuring Successful Use of Guided Wave Radar

• TECH TIP Respect the signal field around wave
  guide
• 2nd most common problem
• Sensor location allows probe to contact
  obstructions or silo wall
• Best location between 1/6 to 1/4 of diameter in
  from silo wall
• Take angle of repose into account
• 3rd possible problem
• Probe too long

23
Ensuring Successful Use of Guided Wave Radar

• TECH TIP Respect the signal field
  around wave guide

Installation not optimized Instructions not
followed
24
Ensuring Successful Use of Guided Wave Radar

• TECH TIP Respect the signal field
  around wave guide

Installation optimized Instructions followed
25
Feed Pellet Er 1.85
Probe too long, touching cone. No end-of-probe
reflection.
26
Summary Ensuring Successful Use of Guided Wave
Radar

• Guided Wave Radar is reliable and accurate
• Proper application considerations
• Dielectric constant
• Measuring range
• Sensor mounting location (consider angle of
  repose)
• Proper installation considerations
• Eliminate nozzles if possible follow D gt H rule
• Sensor mounting location material flow (probe
  must not contact silo)
• Proper probe length (especially for low
  dielectric applications)

27
Summary Self-Validating Level Monitors

• Unknown Level Monitor Failure Can Lead to
  Overfilling Silos and Bins
• Overfilling can cost you big time
• material loss, cleanup, damage, fines, lost
  time, lost production
• Self-validating level monitor is not just a
  simple fail-safe device
• detects BOTH level monitor health and material
  presence/absence
• beyond fail-safe (not just power failure)
• The cost of a self-validating level monitor?
  About 300.
• The value of preventing silo overfilling?
  Priceless!
