Internet2 Overview

1

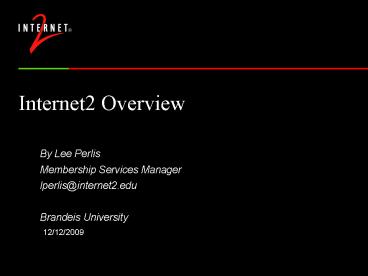

Internet2 Overview

• By Lee Perlis
• Membership Services Manager
• lperlis_at_internet2.edu
• Brandeis University

2
Internet2 FAQ

• What (and why) is Internet2?
• Will Internet2 replace todays Internet?
• Will there be an Internet3?
• How (or when) can I connect to Internet2 from
  home?
• Whats your stock ticker symbol?

3
People on the Internet
Millions of People
SourceNua Internet Surveys
4
Computers on the Internet
Millions of Computers
SourceInternet Domain Survey
5
Yesterdays Internet

• Thousands of users
• Remote login, file transfer
• Applications capitalize on underlying technology

6
Todays Internet

• Millions of users
• Web, email, low-quality audio video
• Applications adapt to underlying technology

7
Tomorrows Internet

• Billions of users and devices
• Convergence of todays applications with
  multimedia (telephony, video-conference, HDTV)
• Interconnect personal computers, servers, and
  imbedded computers
• New technologies enable unanticipated
  applications (and create new challenges)

8
The Network Performance Gap
hype
More
technological potential
Performance
performancegap
actualperformance
Less
Time
9
Todays Internet Doesnt

• Provide reliable end-to-end performance
• Encourage cooperation on new capabilities
• Allow testing of new technologies
• Support development of revolutionary applications

10
Download of The Matrix DVD
11
What Is Internet2?

• A project of the university community working
  with our corporate colleagues and government to
  close the gap between the potential and reality
  of the Internet

12
Why Internet2?

• The Internet was not designed for
• Millions of users
• Congestion
• Multimedia
• Real time interaction
• But, only the Internet can
• Accommodate explosive growth
• Enable convergence of information work, mass
  media, and human collaboration
• Internet2 is focused on theInternets potential
  for our future

13
Why University Leadership?

• The Internet came from the higher research
  university community
• Stanford -- the Internet protocols
• NSFNet -- the scaled-up Internet
• CERN -- The WWW protocols
• University of Illinois -- The Web browser
• Research universities require an advanced
  Internet and have demonstrated they can develop it

14
Internet Development Spiral
Commercialization
Privatization
ANS/Core
MichNet
PSI
Todays Internet
AOL
SURANet
UUNet
InternetMCI
NYSERNet
ANS
NSFNet
ARPANet
GigaBit Testbeds
Intelligent Networks
NGI
MBone
Internet2
Research and
Partnerships
Development
15
Internet2 Mission

• Develop and deploy advanced network applications
  and technologies, accelerating the creation of
  tomorrows Internet.

16
Internet2 Goals

• Enable new generation of applications
• Re-create leading edge RE network capability
• Transfer technology and experience to the global
  production Internet

17
Organization Membership

• Regular members 199 U.S. research universities
• Corporate members 70 companies
• Affiliate members 30 non-profits supporting
  Internet2

18
Requirements for Regular Membership

• Campus Infrastructure -- more than 100 million
  bit/second network
• Connectivity to national Internet2 backbone --
  155 million bit/second or greater
• Share Internet2 backbone expense
• Support for application development and common
  software
• 1-2 million/year typical expenditure

19
Internet2 Focus Areas

• Advanced Applications
• Middleware
• Advanced Network Infrastructure
• New Network Capabilities
• Partnerships

20
Advanced Applications

• Distributed computation
• Virtual laboratories
• Digital libraries
• Distributed/Distance learning
• Digital video
• Tele-immersion
• All of the above in combination

21
Virtual Laboratories

• Real-time access to remote instruments
• University of Pittsburgh,Pittsburgh
  Supercomputing Center3-D Brain Mapping

22
Virtual Laboratories

• Real-time access to remote instruments
• University of North Carolina, Chapel
  HillDistributed nanoManipulator

23
Virtual Laboratories

• Mauna Kea Observatories
• AURA
• University of Hawaii

24
Virtual Laboratories

• Space Physics Aeronomy Research Collaboratory
  (SPARC)
• University of Michigan
• NSF

25
Tele-immersion

• Shared virtual reality
• University of Illinois at ChicagoVirtual
  Temporal Bone

Images courtesy Univ. of Illinois-Chicago
26
Tele-cubicles and the CAVE
Source University of Illinois-Chicago
27
Distributed Computation

• Large-scale computation
• University Corporation for Atmospheric Research

Image courtesy of UCAR
28
Middleware

• A layer of software between the network and the
  applications
• Authentication
• Identification
• Authorization
• Directories
• Security

29
Internet2 Middleware Initiative

• Internet2 community has unique needs and
  capabilities
• Middleware Architecture Committee for Education
• Early Harvest and Early Adopters
• PKI
• Shibboleth (authentication)
• Computational middleware (Beta Grid)
• Medical middleware
• Directories

30
Applications and Engineering
Applications
Motivate
Enables
Engineering
31
Internet2 Network Infrastructure

• Backbones operate at 2.4 Gbps (OC48) capacity
  today
• GigaPoPs provide regional high-performance
  aggregation points
• Local campus networks provide 100 Mbps to the
  desktop

32
National Networks

• Internet2 Backbone Networks
• Abilene
• vBNS
• Federal Backbone Networks
• DREN
• ESnet
• NREN

33
Internet2 Network Architecture
GigaPoP One
GigaPoP Two
GigaPoP Four
GigaPoP Three
34
Network Architecture
35
Internet2 Backbone Networks
Donna Cox,Robert Patterson, NCSA
36
Internet2 GigaPoPs40 August 2002
37
New Network Capabilities

• Quality of Service QBone
• http//www.internet2.edu/qbone/
• Scalable IP Multicast
• http//www.internet2.edu/multicast/
• IPv6
• Distributed Storage I2-DSI
• http//dsi.internet2.edu/
• Digital Video I2-DV
• http//dv.internet2.edu/
• I2MI GlueWorks
• www.internet2.edu/middleware/

38
Internet2 Universities 199 Universities as of
August 2002
39
Internet2 Partnerships

• Internet2 universities are recreating the
  partnerships that fostered the Internet in its
  infancy
• Industry
• Government
• International

40
Internet2 Corporate Partners

• 3Com
• Advanced Network Services
• Alcatel
• ATT
• Cabletron Systems
• Cisco Systems
• IBM
• ITCDeltacom
• Lucent Technologies

• Marconi
• Microsoft
• Netcom Systems
• Nortel Networks
• Qwest Communications
• SBC Communications
• WCI Cable
• WorldCom

41
Internet2 International Partners

• AAIREP (Australia)
• APAN (Asia-Pacific)
• ARNES (Slovenia)
• BELNET (Belgium)
• CANARIE (Canada)
• CESnet (Czech Republic)
• CUDI (Mexico)
• DANTE (Europe)
• DFN-Verein (Germany)
• Fundacion Internet 2 Argentina (Argentina)
• GIP RENATER (France)
• GRNET (Greece)
• HEAnet (Ireland)
• HUNGARNET (Hungary)

• INFN-GARR (Italy)
• Israel-IUCC (Israel)
• JAIRC (Japan)
• JISC/UKERNA (UK)
• NORDUnet (Nordic countries)
• POL-34 (Poland)
• RCCN (Portugal)
• RedIRIS (Spain)
• RESTENA (Luxembourg)
• REUNA
• SingAREN (Singapore)
• Stichting SURF (Netherlands)
• SWITCH (Switzerland)
• TAnet (Taiwan)
• TERENA (Europe)

42
Additional Participation

• Over 70 Internet2 Corporate Members
• Over 30 Affiliate Members

43
Membership Activities

• Member Meetings 2/yr -Atlanta,GA Fall 2000
• Joint Techs Workshops 4/yr
• Campus Networking Workshops
• Working Groups
• Internet2 Days
• Mailing Lists

44
Internet2 Working Groups

• IPv6
• Measurement
• Multicast
• Network Management
• Network Storage
• Quality of Service
• Routing
• Security
• Topology

45
Internet2 and the Next Generation Internet
Initiative
Internet2
NGI
Federal agency-led
University-led
Developing education and research driven
applications
Agency mission-driven and general purpose
applications
Building out campus networks, gigaPoPs and
inter-gigapop infrastructure
Funding research testbeds and agency research
networks
Interconnecting and interoperating to provide
advanced networking capabilities needed to
support advanced research and education
applications
46
Technology Transfer Conduits

• Collaborating on advanced applications
• Deploying pre-commercial infrastructure and
  protocols
• Establishing expertise and human capital
• Large-scale proof of concept

47
Unanticipated Innovation

• Lesson of the Web
• Network growth and value are non-linear
• New technologies enable qualitatively different
  uses
• Users become innovators

48
Advanced Networking on the Web

• www.internet2.edu
• www.internet2.edu/abilene/
• www.ngi.gov
• www.vbns.net
• www.advanced.org/teleimmersion(National
  Teleimmersion Initiative)

49
For More Internet2 Information

• On the Web
• www.internet2.edu
• www.internet2.edu/html/lists.html
• Email
• info_at_internet2.edu
• lperlis_at_internet2.edu

50
www.internet2.edu
51
Internet Development Spiral
Commercialization
Privatization
Todays Internet
Internet2
Research and
Development
Partnerships
Source Ivan Moura Campos
