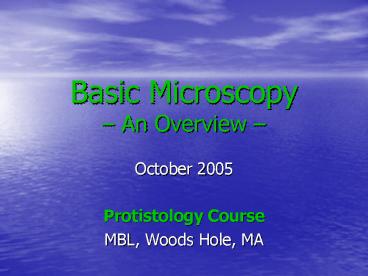

Basic Microscopy An Overview

1
Basic Microscopy An Overview

• October 2005
• Protistology Course
• MBL, Woods Hole, MA

2

• Brief History of the Microscope
• Whats a microscope?
• Definition of Magnification
• Conventional Viewing Distance
• Leeuwenhoek gt Compound gt Stereo Microscope
• The Telescope, a simple detour
• How to make the specimen visible Contrast!
• Definition of Contrast
• Techniques
• Brightfield
• Phase
• Darkfield
• Pol
• DIC (Differential Interference Contrast)
• Fluorescence
• Optical Sectioning an expansion of Fluorescence
• Setting up the Microscope (Lab)
• Koehler Illumination
• Resolution Empty Magnification

Agenda
3

• Other things you may wish to know but there
  wont be enough time today
• Components of the Microscope
• Different Light Sources
• Field / Aperture Diaphragms
• Condensers why
• Objectives what to consider in the selection
  process
• Adapting Cameras
• Understanding Numerical Aperture
• Diffraction Experiment

4
(No Transcript)
5
(No Transcript)
6
(No Transcript)
7
Objects appear to the eye at different
magnifications, depending on their distance from
the eye. Accommodation (lens) will make it
possible.
What is Magnification?
MB 2x MA
A
B
8
Objects appear to the eye at different
magnifications, depending on their distance from
the eye. Accommodation (lens) will make it
possible.
What is Magnification?
MB 2x MA
A
B
9
Conventional Viewing Distance
?
1x
250 mm
10
Magnification 1x
1x
f 250 mm
1x
11
Magnification via Single Lens
1x
f 250 mm
Magnifying Glass (Loupe)
5x
Example f50mm
12
The simple microscope
Leeuwenhoek Microscope
13
The ?-corrected Compound Microscope
Eyepiece
Tube lens (Zeiss f164.5mm)
Objective
14
Q What happens if we take the objective away?
Eyepiece
8
Tube lens (Zeiss f164.5mm)
8
Objective
250mm
f


M
Tube


f
250mm
Eyepiece
Answer We have created a Telescope
15
AxioImager Upright Research Microscope
16
Axiovert 200 Inverted Research
Microscope
17
The basic light microscope types
Upright microscope .
Inverted microscope
18
Illumination via Transmitted Light
The specimen must be transparent !
19
Upright microscope .
Inverted microscope
20
Illumination via Reflected (Incident) Light
Eg. Fluorescence, Opaque Samples
21
Upright microscope .
Inverted microscope
22
Mixed Illumination
Upright microscope .
Inverted microscope
23
Other Ways to Illuminate
Reflectors Ring Lights Fiber Optics LEDs Etc.
24
Which Microscope types are typically illuminated
this way?
Reflectors Ring Lights Fiber Optics LEDs Etc.
25

• Couldnt one build a microscope for both
  eyes, and thereby generate spatial images?
• Question addressed to Ernst Abbe in 1896
• by Horatio S. Greenough

26
1897 the first Stereo Microscope in the world,
built by Zeiss, according to the Greenough
principle
1896 Drawing by Horatio S. Greenough
27
Greenough Type
Telescope Type
Introduced first by Zeiss - 1946
Introduced first by Zeiss - 1897
28
Greenough Stereo Microscopes
SteMi DV4
29
Greenough Stereo Microscopes
SteMi 2000 (2000-C, 2000-CS)
30
Research Stereo Microscopes
SteREO Discovery V12
SteREO Lumar V12
31

• Short Break
