Title: Fast waveform digitization with the DRS chip


1

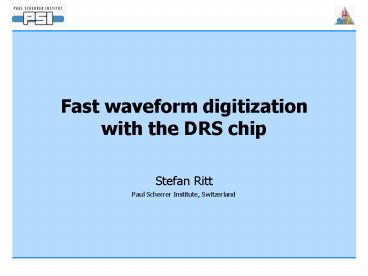

Fast waveform digitization with the DRS chip
  • Stefan Ritt
  • Paul Scherrer Institute, Switzerland

2
The MEG Experiment at PSI
  • Needed
  • Pile-up rejection (BG from 108 µ decays in
    unsegmented calorimeter)
  • ADC dynamic range of 12 bit
  • TDC resolution of 40 ps
  • Analog pipeline (L1 trigger) 300ns
  • 3000 channels

Goal m ? eg at 10-13
2 GS 12 Bit 100 /Chn
3
Domino Sampling Chip Principle
0.2-2 ns
Inverter Domino ring chain
IN
Waveform stored
Out
FADC 33 MHz
Clock
Shift Register
Time stretcher GHz ? MHz
Keep Domino wave running in a circular fashion
and stop by trigger ? Domino Ring Sampler (DRS)
4
The DRS3 Chip
domino wave
  • Design Properties
  • 12 channels at 1024 bins
  • Cascadable 6x2k, , 1x12k bins
  • Sampling speed 10 MHz 5 GHz
  • Readout speed 33 MHz
  • ROI readout (3 ms for 100 bins)
  • Fabricated in 0.25 mm 1P5M MMC process (UMC), 5 x
    5 mm2
  • Radiation Hard (CMS Pixel library, R.
    Horisberger)
  • Power consumption 50 mW _at_ 2 GHz
  • Packaged chip costs
  • 35 / chn. (MPW run)
  • 3 / chn. (SPW run)

8 inputs
MUX
shift register
Reference clock
5
PLL Stabilization
  • Temperature coefficient 500ps / ºC
  • Jitter after PLL stabilization 200ps / turn
  • Improved timing with clock reference channel
    lt100ps

Vspeed
PLL
R. Paoletti, N. Turini, R. Pegna MAGIC
collaboration
External Common Reference Clock (1-4 MHz)
6
Linearity and Noise
  • Careful design gave linearity 0.1V 1.1Vbetter
    0.5 mV, Tc 50 ppm
  • Fixed pattern noise 6 mV (RMS)
  • Noise after offset correction (in FPGA code
    during readout) 0.25 mV (RMS) ? 12 bit SNR
  • Bandwidth 450 MHz, to beimproved with small
    design change for mass production

7
VPC USB boards
USB interfaceboard
DRS3
32 channels input
14-bit flash ADCAD9248
DRS2
PSI general purposeVME board with 2 PPC cores
8
Comparison with other chips
9
MEG with DRS2
  • Drift chamber anode cathode signals _at_ 500 MHz
  • Moving baseline
  • 50 ns pile-up rejection
  • Cluster density ? particle ID

hits
Virtualoscilloscope
Moving average baseline
Crosstalk removal by subtracting empty channel
Template fit
Final noise level 0.32 mV (bin), 0.07 mV
(baseline)
10
Real-time aspects
  • How to get rid again of the waveform data?

11
Managing the waveform data
  • 3000 Channels _at_ 100 Hz _at_ 1024 bins _at_ 24 bit 880
    MB/sec
  • All data needs calibration
  • Need extensive data compression
  • Event rate can be improved if compression moves
    upstream

Optimize implementation
MIDAS DAQ
GbitEthernet 100 MB/s
Front-end PC
Back-end PC
DRS
FPGA
PPC
Fiber 84 MB/s
PPC
CPU
CPU
CPU
CPU
VME
12
Compression algorithms in FPGA
  • Zero suppression hit if max. value gt average
    3 x s
  • Readout window start / width in respect to
    trigger
  • Pile-up flag Zero-crossings of first derivation
  • Re-binning 41, 81, 161
  • ADC Numerical integral of hit over baseline
  • TDC Only simple threshold (usable to recognize
    accidentals) and time-over-threshold
  • Spline calibration
  • Waveform fitting

4 ns bins
0.5 ns bins
Must be implemented in PC
Not feasiblein FPGA
TOT
13
DAQ cluster

clock start stop sync
pE5 area
cave
Ancillary system
Trigger
Front-End PCs
PC (Linux)
3 crates
Ready
20 MHz clock
Gigabit Ethernet
Event builder
PC (Linux)
PC (Linux)
Trigger
PC (Linux)
PC (Linux)
On-line farm
storage
6 crates
9 VME creates
11 dual-Xenon PCs with hyper-threading
14
Event rate before MT

15
Multi-threading model
Calibration Thread
Zero-copy ring buffers
VME
Round-Robin distribution
Calibration Thread
VME Transfer Thread
Collector Thread
Calibration Thread
Network
Ring buffer functionsin MIDAS rb_create() rb_get
_wp() rb_increment_wp() rb_get_rp() rb_increment_r
p()
Calibration Thread
16
Event rate with 4 threads


17
Conclusions
  • Waveform digitizing with DRS chip opens new
    exiting possibilities for pile-up recognition and
    pulse-shape discrimination
  • This technology can completely eliminate the
    needs for traditional ADCs and TDCs at attractive
    costs
  • Switching from ADC/TDC data to waveforms
    increases the demand for computing power and
    storage dramatically and requires new strategies
    for data reduction
  • Effective multithreading will be the future in RT
    computing
