Using x86 protected mode on our anchorclusters machines

1

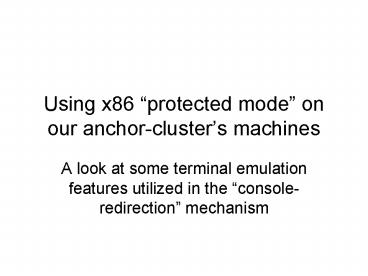

Using x86 protected mode on our
anchor-clusters machines

• A look at some terminal emulation features
  utilized in the console-redirection mechanism

2
Our remote-access scheme
sixteen Core 2 Duo systems
. . .
anchor08
anchor07
anchor06
student workstation
telnet application
anchor05
pyramid
anchor04
CS file-server
anchor03
rackmount PC system
KVM cable
anchor02
null-modem serial cables
anchor01
ethernet cables
3
A programming hurdle

• When you try to test a boot-time program on one
  of our anchor machines, you will encounter a
  problem when your program enters protected-mode
  you can no longer see the current screen-output,
  nor control your program using keyboard-input,
  since the normal console redirection capability
  (which telnet relies on) has been disabled

4
The consoles output

• At boot-time the anchor machines use a
  real-mode interrupt-handler in the BIOS to
  continually transfer information (via the
  null-modem serial-cable) from the display memory
  of the local machine to the telnet program
  running on the pyramid server
• From there it gets sent over the Ethernet network
  to a students computer screen

5
The consoles input

• When a student types a keystroke, it gets sent
  via the network to the telnet program running
  on pyramid, whereupon it then is forwarded to
  the anchor machine via the null-modem
  serial-cable connection
• This scheme allows us to do our work on the
  anchor-machines remotely from our classroom or
  CS Labs, or even from home

6
The IVTs role

• But this scheme relies on BIOS code that handles
  UART interrupts in real-mode
• When a program enters protected-mode, it has to
  switch from its Table of Interrupt Vectors (used
  in real-mode) to a different table for
  dispatching of interrupts to ISRs
• At that point we lose all the functionality that
  BIOSs interrupt-handlers provided!

7
Our reimplementation

• Just as weve seen how to regain some of the
  functionality provided by the real-mode BIOS
  code, by writing our own protected-mode
  interrupt-handlers for the keyboard and the
  timer, we can restore the basic console
  redirection capability by writing our own
  interrupt-handler for the UART when the CPU is in
  its protected-mode

8
Some details

• We need to write trivial interrupt-handlers for
  a few peripherals besides the UART
• For the timer (so we can see something thats
  changing on the display screen)
• For the keyboard (so we can control when to quit
  watching our display)
• For any spurious interrupts that the 8259 PIC
  delivers to the CPU (so we wont crash due to
  unwanted General Protection Exceptions)

9
Idea for UARTs RX-interrupts

• When our UART receives a new scancode sent by the
  telnet program on pyramid we need it to be
  treated as if it were from the anchor-machines
  keyboard but the anchors keyboard is
  out-of-our-reach
• So we issue a command to the keyboard-controller
  to write that scancode into its Output Buffer
  register (command 0xD2)

10
Idea for UARTs TX-interrupts

• When the UART issues its THRE-interrupt
  (Transmitter Holding Register Empty), we want to
  output a new byte of information from the
  anchor-machines video memory
• The video memory consists of alternating
  ascii-codes and attribute-codes, requiring
  distinct treatments for proper display on the
  remote terminal (or Desktop window)

11
Clearing the screen

• Here is an ANSI command-sequence that clears the
  terminals display-screen
• char cmd \0332J
• int len strlen( cmd )
• write( 1, cmd, len )

12
Reposition the cursor

• Here is an ANSI command-sequence that moves the
  cursor to row 12, column 40
• char cmd \0331240H
• int len strlen( cmd )
• write( 1, cmd, len )

13
Format of attribute bytes
VGA text-color attributes byte
7 6 5 4
3 2 1 0
BLINK
BG red
BG green
BG blue
FG intense
FG red
FG green
FG blue
foreground color
background color
14
ANSI color-codes
0 black 1 red 2 green 3 brown 4
blue 5 magenta 6 cyan 7 gray
15
Color-translation table
IBM VGA DEC ANSI -------------------------
--------------------------------------------------
----- 000 black 000 black 001
blue 100 blue 010 green 010 green 011
cyan 110 cyan 100 red 001 red 101
magenta 101 magenta 110 brown 011
brown 111 gray 111 gray -------------------
--------------------------------------------------
-----------
16
Setting text attributes

• Here is an ANSI command-sequence that sets
  foreground and background colors
• char cmd \0333244m
• int len strlen( cmd )
• write( 1, cmd, len )

17
Cursor visibility commands

• Here are ANSI command-sequences that will hide
  or show the terminals cursor
• char hide \033?25l // lowercase L
• char show \033?25h // lowercase H

18
console output algorithm
unsigned char color_table 8 0, 4, 2, 6,
1, 5, 3, 7 typedef struct unsigned char
ascii, color PEL PEL vram (PEL
)0x000B8000 PEL prev 0, 0 for (int row
0 row lt 24 row) printf( \033?25l
) // make the cursor invisible printf(
\033ddH, row1, 1 ) // cursor to rows
beginning for (int col 0 col lt 80
col) PEL curr vram row80 col
if ( curr.color ! prev.color
) int fg color_table (curr.color gtgt
0)7 int bg color_table (curr.color gtgt
4)7 printf( \033ddm, fg 30, bg
40 ) printf( c, curr.ascii ) prev
curr printf( \033?25h ) // make the
cursor visible fflush( stdout ) // insure all
data written
19
Programming interface
The PC uses eight consecutive I/O-ports to access
the UARTs registers
0x03F8 0x03F9 0x03FA 0x03FB
0x03FC 0x03FD 0x03FE 0x03FF
RxD/TxD
IER
IIR/FCR
LCR
MCR
LSR
MSR
SCR
modem status register
line status register
interrupt enable register
modem control register
line control register
scratchpad register
receive buffer register and transmitter holding
register (also Divisor Latch register)
interrupt identification register
and FIFO control register
20
Modem Control Register
7 6 5 4
3 2 1 0
0
0
0
LOOP BACK
OUT2
OUT1
RTS
DTR
Legend DTR Data Terminal Ready (1yes,
0no) RTS Request To Send (1yes, 0no)
OUT1 not used (except in loopback mode)
OUT2 enables the UART to issue interrupts
LOOPBACK-mode (1enabled, 0disabled)
21
Modem Status Register
7 6 5 4
3 2 1 0
DCD
RI
DSR
CTS
delta DCD
delta RI
delta DSR
delta CTS
set if the corresponding bit has changed since
the last time this register was read
Legend ---- loopback-mode ---- CTS
Clear To Send (1yes, 0no) bit 0 in Modem
Control DSR Data Set Ready (1yes, 0no)
bit 1 in Modem Control RI Ring
Indicator (1yes,0no) bit 2 in Modem Control
DCD Data Carrier Detected (1yes,0no) bit 3
in Modem Control
22
Line Status Register
7 6 5 4
3 2 1 0
Error in Rx FIFO
Transmitter idle
THR empty
Break interrupt
Framing error
Parity error
Overrun error
Received Data Ready
These status-bits indicate errors in the received
data
This status-bit indicates that the data-transmissi
on has been completed
This status-bit indicates that the
Transmitter Holding Register is ready to accept
a new data byte
This status-bit indicates that a new byte of data
has arrived (or, in FIFO-mode, that the
receiver-FIFO has reached its threshold)
23
Line Control Register
7 6 5 4
3 2 1 0
Divisor Latch access
set break
stick parity
even parity select
parity enable
number of stop bits
word length selection
00 5 bits 01 6 bits 10 7 bits 11 8 bits
0 1 stop bit 1 2 stop bits
0 normal 1 break
0 no parity bits 1 one parity bit
0 not accessible 1 assessible
1 even parity 0 odd parity
24
Interrupt Enable Register
7 6 5 4
3 2 1 0
0
0
0
0
Modem Status change
Rx Line Status change
THR is empty
Received data is available
If enabled (by setting the bit to 1), the UART
will generate an interrupt (bit 3) whenever
modem status changes (bit 2) whenever a
receive-error is detected (bit 1) whenever the
transmit-buffer is empty (bit 0) whenever the
receive-buffer is nonempty Also, in FIFO mode,
a timeout interrupt will be generated if
neither FIFO has been serviced for at least
four character-clock times
25
FIFO Control Register
7 6 5 4
3 2 1 0
RCVR FIFO trigger-level
reserved
reserved
DMA Mode select
XMIT FIFO reset
RCVR FIFO reset
FIFO enable
00 1 byte 01 4 bytes 10 8 bytes 11 14
bytes
NOTE DMA is unsupported for the UART on our
systems
Writing 1 empties the FIFO, writing 0 has no
effect
Writing 0 will disable the UARTs FIFO-mode,
writing 1 will enable FIFO-mode
26
Interrupt Identification Register
7 6 5 4
3 2 1 0
0
0
highest priority UART interrupt still
pending
00 FIFO-mode has not been enabled 11
FIFO-mode is currently enabled
highest 011 receiver line-status
010 received data ready 110 character
timeout 001 Tx Holding Reg empty
000 modem-status change lowest
1 No UART interrupts are pending 0 At least
one UART interrupt is pending
27
Response to UART interrupts

• In order of highest-to-lowest priority
• 0x06 Receive errors (input Line Status)
• 0x04 Received data (input Rx-Data)
• 0x0C FIFO Timeout (input/output Data)
• 0x02 THRE (output Tx-Data, or input IIR)
• 0x00 Modem state (input Modem Status)

28
How to transmit a byte
Read the Line Status Register
Transmit Holding Register is Empty?
NO
YES
Write byte to the Transmitter Data Register
DONE
29
How to receive a byte
Read the Line Status Register
Received Data is Ready?
NO
YES
Read byte from the Receiver Data Register
DONE
30
Demo-program

• We wrote a boot-time program (its called
  xmitvram.s) that we can run on one of our
  anchor-cluster machines
• It shows how a protected-mode interrupt-handler
  for the serial UART interrupts can send ANSI
  terminal-control strings (along with ASCII
  character-codes) to the telnet terminal
  emulator application on pyramid

31
In-class exercise

• Modify this simple C program so that it will
  print its Hello message in colors and be
  located in the center of the screen

include ltstdio.hgt int main( void ) printf(
Hello, world! \n )
