Title: OS_Ch401'ppt


1

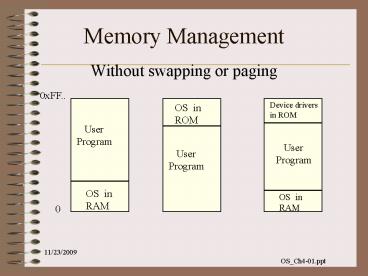

Memory Management
  • Without swapping or paging

0xFF..
Device drivers in ROM
OS in ROM
User Program
User Program
User Program
OS in RAM
OS in RAM
0
2
Multiprogramming with fixed partitions
  • How to organize the memory ?
  • How to assign jobs to partitions ?
  • Separate queues vs. single queue

3
Relocation and Linking
  • Compile time - create absolute code
  • Load time - linker lists relocatable instructions
    and loader changes instructions (at each
    reload..)
  • Execution time - special hardware needed to
    support moving of processes during run time
  • Dynamic Linking - used with system libraries and
    includes only a stub in each user routine,
    indicating how to locate the memory-resident
    library function (or how to load it, if needed)

4
Memory Protection
  • Hardware
  • IBM 360 had a 4bit protection code in PSW and
    memory in 2k partitions - process code in PSW
    matches memory partition code
  • Two registers - base limit
  • base is added by hardware without changing
    instructions
  • every request is checked against limit
  • In the IBM/pc there are segment registers (but no
    limit)

5
Multiprogramming - Swapping
  • Processes from disk to memory and from memory to
    disk
  • Whenever there are too many jobs to fit in memory
  • To use memory more efficiently, move to variable
    partitions
  • Allocating memory
  • Freeing memory and holes
  • possible solution memory compaction
  • another need dynamic growth of program memory

6
Allocating memory - a series
7
Allocating memory - growing segments
8
Memory allocation - Keeping track (bitmaps
linked lists)
9
Strategies for Allocation
  • First fit
  • Next fit - start search from last location
  • Best fit - a drawback generates small holes
  • Worst fit - solve the above problems badly
  • Quick fit - several queues of different sizes
  • Buddy system (Knuth 1973)
  • Separate lists of free holes of sizes of powers
    of two
  • For any request, pick the 1st hole of the right
    size
  • Not very good memory utilization
  • Freed blocks can only be merged with their own
    size

10
The Buddy System
11
Some issues of memory allocation
  • Fragmentation
  • Internal wasted parts of allocated space
  • External wasted unallocated space
  • Allocating swap space
  • Processes are swapped in/out from the same
    location
  • Allocate space for non-memory resident processes
    only

12
Paging and Virtual Memory
  • Divide memory into fixed-size blocks
    (page-frames)
  • Small enough blocks - many for one process
  • Allocate to processes non-contiguous memory
    chunks - avoiding holes..
  • 232 addresses for a 32 bit (address bus) machine
    - virtual addresses
  • A memory management unit (MMU) does the mapping
    to physical addresses
  • pages ---gt page frames

13
Memory Management Unit
14
Paging
15
MMU Operation page fault if accessed page is
absent
16
Page table considerations
  • Can be very large (1M pages for 32bits addresses)
  • Must be fast (every instruction needs it)
  • One extreme will have it all in hardware - fast
    registers that hold the page table and are loaded
    with each process, too expensive
  • The other extreme has it all in memory and each
    memory reference during instruction translation
    is doubled, can be too large...
  • To avoid keeping page tables in memory completely
    - make them multilevel

17
Page Tables - Handling the size problem
18
PDP-11 1 Level Paging Hardware
  • 8k pages
  • 16 bit addresses - 13bits offset 3 bit page
  • Separate Text and Data - Page table size 16
  • 4Mb physical memory - processes get 64k x 2 bytes

19
Two level paging - VAX
  • 512 byte pages (small...)
  • Division of virtual space to 4 user data and
    stack system ...
  • 2M pages (per process) !!!
  • Solution - page tables reside in virtual address
    space and may be paged
  • bits

2
21
Virtual page number
Offset
20
Two level paging - VAX
21
SPARC 3 level pagingContext table (MMU
hardware) - 1 entry per process
22
68030 4 level paging
  • Programmable number of page table levels
  • A global Translation Control Register (TCR)
    defining the paging level scheme
  • ignore first few bits in the address (limiting
    space)
  • page sizes from 8bits to 15bits
  • each of up to four levels can be allocated its
    number of bits
  • The MMU uses the TCR to translate addresses

23
Associative Memory - content addressable
memorypage insertion - complete entry from page
tablepage deletion - just the modified bit to
page table
24
Associative Memory
  • With a large enough hit-ratio the average access
    time is close to 0
  • linked lists, for example, are bad..
  • Only a complete virtual address (all levels) can
    be counted as a hit
  • with multi-processing associative memory can be
    cleared on context switch - wasteful..
  • Add a field to the associative memory to hold
    process ID and a special register for PID

25
No page tables - MIPS R2000
  • 64 entry associative memory for virtual pages
  • if not found, TRAP to the operating system
  • software uses some hardware registers to find the
    virtual page needed
  • a second trap may happen by page fault...

26
Too large virtual memory
  • 64 bit addresses create the need for gigantic
    page tables
  • Physical memory is much smaller (even if 32bit)
  • invert page tables to be indexed by page frame
    (Hash table)

27
Pages the dataPage frames the physical memory
locations
  • Page Table Entries (PTE) contain (per page)
  • Page frame number (physical address)
  • Present/absent bit (valid bit)
  • Dirty (modified) bit
  • Referenced (accessed) bit
  • Protection
  • Caching disable/enable

page frame number
28
Page Replacement
  • Demand paging - Page missing ??
  • Retrieve page into empty page frame
  • No empty page frame ?
  • Evict (replace) a page
  • Many algorithms possible for selecting a page for
    replacement
  • Optimal page replacement
  • Discard page to be used the longest time ahead
  • Not realizable...
  • but can be used to compare to real algorithms !!

29
Optimal page replacement
  • Demand comes in for pages
  • 7, 5, 1, 0, 5, 4, 7, 0, 2,
    1, 0, 7
  • an optimal algorithm faults on
  • 7 5 1 (0,1) - (4,5) - - (2,4) (1,2)
    - -
  • altogether 7 page-replacements
  • take FIFO for example
  • 7 5 1 (0,7) - (4,5) (7,1) - (2,0) (1,4)
    (0,7)(7,2)
  • 3 additional page-replacements

30
NRU - Not Recently Used
  • There are 4 classes of pages, according to
    reference and modification bits
  • Select a page at random from the least-needed
    class
  • Easy scheme to implement
  • Prefers a frequently referenced (not modified)
    page on an old modified page
  • Class b is interesting, can only happen when
    clock tick generates an erasure of the referenced
    bit..

31
Good old FIFO
  • implemented as a queue
  • the usual drawback
  • oldest page may be a referenced (needed) page
  • second chance FIFO
  • if reference bit is on - move to end of queue
  • Better to implement as a circular queue
  • no overhead of movements on the queue

32
LRU - Least Recently Used
  • Approximate the optimal algorithm -
  • most recently used page as most probable next
    reference
  • Replace page used furthest in the past
  • Not easy to implement - needs counting of
    references
  • Use a large counter (number of operations) and
    save in a field in the page table, for each page
    reference operation
  • Another option is to use a bit array of nxn bits
  • In both cases the page entry with the smallest
    number attached to it is selected for replacement

33
LRU with bit tables
34
NFU - Not Frequently Used
  • In order to record frequently used pages add a
    counter to all table entries
  • At each clock tick add the R bit to the counters
  • Select page with lowest counter for replacement
  • problem remembers everything
  • remedy (an aging algorithm)
  • shift-right the counter before adding the
    reference bit
  • add the reference bit at the left
  • Less operations than LRU, depends on the
    intervals used for updating

35
NFU - the aging simulation version
36
Characterizing paging systems
  • a Reference string (of requested pages)
  • number of virtual pages n
  • number of physical page frames m
  • a page replacement algorithm
  • can be represented by an array M of n rows

37
Stack Algorithms
  • Definition Set of pages in physical memory with
    m page frames is a subset of the pages in
    physical memory with m1 page frames (for every
    reference string)
  • Stack algorithms have no anomaly
  • Example LRU, optimal replacement
  • FIFO is not a stack algorithm
  • Useful definition
  • Distance string distance from top of stack

38
(dynamic) Page Allocation Policies
  • Demand paging
  • fixed number of pages per process (initially 0
    pages loaded)
  • Locality of reference - a valid statistical
    phenomenon
  • Working set - sets of pages used by each process
  • Thrashing - very frequent page faults
  • instructions are microseconds page faults are
    milliseconds
  • what to do for processes being swapped ?
  • Working set model - dynamic number of pages per
    process (can be used for prepaging - load working
    set before running process)
  • Keep track by aging by lookback parameter
    WSClock

39
Allocation to multiprocessors
  • Fair share is not the best policy(static !!)
  • allocate according to process size
  • must be a minimum for running a process...

40
Dynamic set - Page Allocation
  • 0 2 1 3 5 4 6 3 7 5 7 3 3 5 5 3
  • with 5 page frames (LRU)
  • p p p p p p p - p - - - - - -
    - optimal
  • with ? 5 (and LRU)
  • p p p p p p p - p - - (4) - (3) - -
  • WSClock Tp -- ref(frame) gt ?
  • Tp0 50 Tp1 70 Tp2 90 ? 20
  • page-frames 0 1 2 3 4 5 6
    7 8 9 10
  • ref 0 0 1 1 1 0 1 0 0
    1 0
  • process ID 0 1 0 1 2 1 0
    0 1 2 2
  • last_ref 10 30 52 71 81 37 61 27 31
    47 55

41
Page Daemons
  • It is useful to keep a number of free pages
  • freeing of page frames can be done by a page
    daemon - a process that sleeps most of the time
  • awakened periodically to inspect the state of
    memory - if there are too few free page frames
    then they free page frames
  • yet another type of (global) dynamic page
    replacement policy
  • this strategy performs better than evicting pages
    when needed (and writing the modified to disk in
    a hurry)

42
Additional issues Locking and Sharing
  • i/o channel/processor (DMA) transfers data
    independently
  • page must not be replaced during transfer
  • OS can use a lock variable per page
  • Pages of editors code - shared among processes
  • swapping out, or terminating, process A (and its
    pages) may cause many page faults for process B
    that shares them
  • looking up for evicted pages in all page tables
    is impossible
  • solution maintain special data structures for
    shared pages

43
Page fault Handling
  • 1. trap to kernel, save PC on stack and
    (sometimes) partial state in registers (and/or
    stack)
  • 2. assembly routine saves volatile information
    and calls the operating system
  • 3. find requested virtual page
  • 4. check protection. if legal, find free page
    frame (or invoke page replacement algorithm)
  • 5. if replacing, check if modified and start
    write to disk. Mark frame busy. Call scheduler
    to block process until the write-to-disk process
    has completed.

44
Page fault Handling (cont.)
  • 6. transfer of requested page from disk
    (scheduler runs alternative processes)
  • 7. upon transfer completion, enter page table,
    mark new page as valid
  • 8. back up faulted instruction
  • 8. schedule faulting process, return from
    operating system
  • 10. restore state and restart execution of
    faulted process

45
Segmentation
  • several logical address spaces per process
  • a compiler needs segments for
  • source text
  • symbol table
  • constants segment
  • stack
  • parse tree
  • compiler executable code
  • Most of these segments grow during execution

46
Segmentation vs. Paging
47
Segmentation - segment table
48
Segmentation with Paging
  • MULTICS combined segmentation and paging
  • 218 segments of up to 64k words (36 bits)
  • addresses are 34 bits -
  • 18 bit segment number
  • 16 bit - page number (6) offset within page
    (10)
  • Each process has a segment table (STBR)
  • the segment table is a segment and is paged
    (8bits page10 offset). STBR added to 18 bits
    seg-num
  • Each segment is a separate virtual memory with a
    page table (6 bits)
  • segment tables contain segment descriptors - 18
    bits page table address 9 bits segment length

49
segmentation and paging - locating addresses
50
Segmentation - Memory reference procedure
  • 1. Use segment number to find segment descriptor
  • segment table is itself paged because it is
    large, so in actuality a STBR is used to locate
    page of descriptor
  • 2. Check if page table is in memory
  • if not a segment fault occurs
  • if there is a protection violation TRAP (fault)
  • 3. page table examined, a page fault may occur.
  • if page is in memory the address of start of page
    is extracted from page table
  • 4. offset is added to the page origin to
    construct main memory address
  • 5. perform read/store etc.

51
Paged segmentation on the INTEL 80386
  • 16k segments, each up to 1G (32bit words)
  • 2 types of segment descriptors
  • Local Descriptor Table (LDT), for each process
  • Global (GDT) system etc.
  • access by loading a 16bit selector to one of the
    6 segment registers CS, DS, SS, (holding the
    16bit selector during run time, 0 means
    not-in-use)
  • Selector points to segment descriptor (8 bytes)

Privilege level (0-3)
52
80386 - segment descriptors
53
80386 - Forming the linear address
  • Segment descriptor is in internal (microcode)
    register
  • If segment is not zero (TRAP) or paged out (TRAP)
  • Segment size is checked against limit field of
    descriptor
  • Base field of descriptor is added to offset (4k
    page-size)

54
80386 - paged segmentation (contnd.)
  • Combine descriptor and offset into linear address
  • If paging disabled, pure segmentation (286
    compatibility). Linear address is physical
    address
  • Paging is 2-level
  • page directory (1k) page table (1k)
  • pages are 4k bytes each (12bit offset)
  • Page directory is pointed to by a special
    register
  • PTEs have 20bits page frame and 12 bits of
    modified, accessed, protection, etc.
  • Small segments have just a few page tables

55
80386 - 2-level paging
Write a Comment
User Comments (0)
About PowerShow.com
