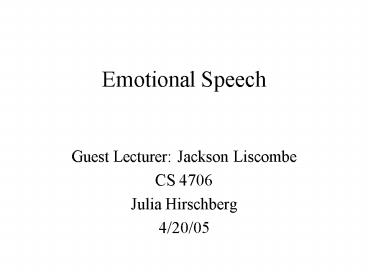

Title: Emotional Speech


1
Emotional Speech
  • Guest Lecturer Jackson Liscombe
  • CS 4706
  • Julia Hirschberg
  • 4/20/05

2
Assumptions (1)
  • Prosody is
  • pitch fundamental frequency (f0)
  • loudness energy (rms)
  • duration speaking rate, hesitation
  • Prosody carries meaning
  • given/new
  • focus
  • discourse structure

3
Assumptions (2)
  • Text to Speech Synthesis (TTS)
  • formant-based
  • concatenative / unit selection
  • Articulatory
  • Machine learning techniques
  • predefined set of features
  • learn rules on a training corpus
  • apply rules to unseen data

4
Outline
  • Why do we care about emotional speech?
  • Emotional Speech Defined
  • Perception Studies
  • Production Studies
  • Lauren Wilcox on voice quality

5
Emotion. What is it Good For?
  • Spoken Dialogue Systems
  • customer-care centers
  • task planning
  • tutorial systems
  • automated agents
  • Approaching Artificial Intelligence

6
Emotion. Why is it hard?
  • Colloquial def. ? Technical def.
  • Emotions are non-exclusive
  • Human consensus low

7
Study I Consensus
  • Liscombe et al. 2003
  • User study to classify emotional speech tokens
  • Semantically neutral (dates and numbers)
  • 10 emotions
  • confident, encouraging, friendly, happy,
    interested
  • angry, anxious, bored, frustrated, sad
  • Example

8
Study I Consensus
p 9
Study I Consensus
  • Emotions are heavily correlated
  • Emotions are non-exclusive
  • Are emotion labels appropriate?
  • activation
  • valency

10
Perception of Emotional Speech
  • Machine learning to predict emotional states in
    human speech
  • Common Features
  • prosody
  • lexical items
  • voice Quality

11
Acted Speech
  • 1990s - present
  • Aubergé, Campbell, Cowie, Douglas-Cowie,
    Hirscheberg, Liscombe, Mozziconacci, Oudeyer,
    Pereira, Roach, Scherer, Schröder, Tato, Yuan,
    Zetterholm,

12
Study II Acted Speech
  • 4 actors
  • 10 emotions
  • Binary decision trees (RIPPER)
  • Accuracy ranged from 70 - 80
  • Prosody indicative of anger, happy, sad
  • Voice quality indicative of anxious, bored

13
Emotional Speech in Spoken Dialogue Systems
  • Batliner, Huber, Fischer, Spilker, Nöth (2003)
  • Verbmobil (Wizard of Oz scenarios)
  • Ang, Dhillon, Krupski, Shriberg, Stolcke (2002)
  • DARPA Communicator
  • Lee, Narayanan (2004)
  • Speechworks call-center
  • Prosodic, Lexical, and Discourse-level features

14
Study III Call-center
  • ATTs How May I Help You system
  • Predict anger and frustration

15
Study III Call-center
That amount is incorrect.
16
Study III Call-center
17
Study III Call-center
18
Study III Call-center
  • Feature sets
  • Prosodic (f0, rms, speaking rate)
  • Discourse (turn number, dialog act)
  • Lexical (words)
  • Contextual (dialogue history)

19
Study III Call-center
20
Study IV Tutorial
  • Physics tutorial system
  • Detect student uncertainty
  • Examples

21
Production of Emotional Speech
22
TTS Where are we now
  • Natural sounding speech for some utterances
  • Where good match between input and database
  • Stillhard to vary prosodic features and retain
    naturalness
  • Yes-no questions Do you want to fly first class?
  • Context-dependent variation still hard to infer
    from text and hard to realize naturally

23
  • Appropriate contours from text
  • Emphasis, de-emphasis to convey focus, given/new
    distinction I own a cat. Or, rather, my cat
    owns me.
  • Variation in pitch range, rate, pausal duration
    to convey topic structure
  • Characteristics of emotional speech little
    understood, so hard to convey a voice that
    sounds friendly, sympathetic, authoritative.
  • How to mimic real voices?

24
Examples of Emotional Synthesis
http//emosamples.syntheticspeech.de/
25
The Role of Voice Quality in Communicating
Emotion, Mood, and Attitude
L. Wilcox Overview of Speech Communication paper
for COMS4706
  • Christer Gobl, Ailbhe Ni Chasaide
  • Some slide content borrowed from
  • an online voice quality tutorial by K. Marasek
  • Experimental Phonetics Group
  • at the Institute of Natural Language Processing
    University of Stuttgart, Germany

26
Voice Quality
  • The characteristic auditory coloring of ones
    voice
  • Derived from a variety of laryngeal and
    supralaryngeal features
  • Present throughout ones speech.
  • The natural and distinctive tone of speech sounds
    produced by a particular person yields a
    particular voice (Trask 1996).
  • This paper focuses on harsh voice, tense voice,
    modal voice, breathy voice, whispery voice,
    creaky voice, and lax-creaky voice and the role
    of these voice qualities in affective expression.
  • The larynx is used to transform an airstream into
    audible sounds.
  • This process is central to perceived voice
    quality.
  • Most people in linguistics view voice qualities
    in terms of one quality in contrast with another.
  • Phonemic voice quality has a contrastive
    function in the phonological system of a
    language.

27
Experiment
  • -Subjects are asked to listen to synthesized
    utterances.
  • -Utterances were synthesized with seven different
    voice qualities.
  • -Subjects were asked to identify pairs of
    opposing affective attributes

28
Motivation for experiment
  • Many vocal expressions signal affect pitch
    variables, speech rate, pausing structure,
    duration of accented/unaccented syllables, these
    are easier to measure that voice quality
  • Voice quality is said to play a fundamental role
    in affective communication but few empirical
    studies seek to understand voice source
    correlates.
  • Some natural voice qualities said to map to
    affect and therefore assist in characterizing
    emotion in speech (based on phonetic
    observations)

29
Motivation for Experiment
  • -Different researchers have found varied mappings
    in their own empirical studies. Further study
    could confirm some previous findings
  • Lavar 80, Scherer 86, Laukkanen 96
  • Breathy intimacy
  • Whispery confidentiality, secrecy
  • Harsh voice anger
  • Tense voice anger, joy, fear
  • Lax voice sadness
  • But not all agree
  • Murray, Arnott (93)
  • Breathy anger, happiness
  • Modal to tense sadness

30
Motivation for Experiment
  • -Some findings conclude that glottal source
    contributes to the perception of valence as well
    as vocal effort (Laukkanen 97).
  • -Synthesis might be an ideal tool for examining
    how individual features of a signal contribute to
    the perception of affect.
  • -Previous work has generated emotive synthetic
    speech through manipulation of voice quality
    parameters (Cahn, 90, Murray, Arnott 95) but
    the synthesizers used didnt offer full control
    of these parameters (DECtalk)
  • -Voice quality might signal strong as well as
    milder emotional states and speaker attitude

31
Different speech source behaviors generate
different voice qualities. Larynx adjusts in
different ways to create different phonatory
gestures, features
  • Laver (80) defines three which are considered in
    this paper
  • Adductive tension
  • (interarytenoid muscles adduct the arytenoid
    muscles)
  • Medial compression
  • (adductive force on vocal processes- adjustment
    of ligamental glottis)
  • Longitudinal pressure
  • (tension of vocal folds)
  • Recall scary glottis animation
  • ? diagram online voice quality tutorial by
  • K. Marasek Experimental Phonetics Group at the
  • Institute of Natural Language Processing ,
  • University of Stuttgart, Germany

32
Modal voice
  • neutral mode
  • muscular adjustments are moderate
  • vibration of the vocal folds is periodic with
    full closing of glottis, so no audible friction
    noises are produced when air flows through the
    glottis.
  • frequency of vibration and loudness are in the
    lowto mid range for conversational speech

33
Tense voice voiced phonation
  • Very strong tension of the vocal folds, very high
    tension in the vocal tract leads to harsh voice
    quality.

34
Whispery voice voiceless phonation
  • Very low adductive tension
  • Medial compression moderately high
  • Longitudinal tension moderately high
  • Little or no vocal fold vibration
  • ( produced through turbulences generated by
    the friction of the air in and above the larynx,
    which produces frication)

35
Creaky voice voiced phonation
  • vocal folds vibrate at a very low frequency
    vibration is somewhat irregular, vibrating mass
    is heavier because of low tension (only the
    ligamental part of glottis vibrates)
  • The vocal folds are strongly adducted
  • longitudinal tension is weak
  • Moderately high medial compression
  • Vocal folds thicken and create an unusually
    thick and slack structure.

36
Lax - creaky
  • Despite definition of creaky voice quality,
    creaky voice is found to have high glottal
    tension at times, and low tension at others
  • Different creaky quality, lax-creaky was created
    in experiment as separate from creaky.
  • Lax-creaky breathy voice settings reduced
    aspiration noise and added creakiness for
    experiment.

37
Breathy voice voiced phonation
  • Tension is low
  • minimal adductive tension,
  • weak medial compression
  • medium longitudinal tension of the vocal folds
    folds do not come together completely leading to
    frication

38
Voice quality estimation is difficult
  • If estimated with respect to a controlled neutral
    quality, how is that controlled quality known to
    be truly neutral? One must match the natural
    laryngeal behavior to the neutral model of
    behavior.
  • How adequate are the models of vocal fold
    movements for the description of real phonation?
  • The established relationships between a produced
    acoustical signal and the voice source are
    complex and since we are only able to observe the
    behavior of voicing indirectly, prone to error.
    Otherwise need direct source signal obtained by
    invasive techniques (ouch) and invasion might
    interfere with signal.

39
Voice quality estimation
  • Inverse filtering approach
  • Speech production source signal vocal tract
    filter response
  • Inverse filtering cancels the effects of the
    vocal tracts, resulting signal is estimate of
    source ill-posed problem
  • (popular approaches are automatic- based on
    linear predictive analysis but do worse for
    non-modal (colorful) qualities
  • Still need to measure the inversely filtered
    signal

40
Example
41
Experiment
  • -Subjects are asked to listen to synthesized
    utterances.
  • -Utterances were synthesized with seven different
    voice qualities.
  • -Subjects were asked to identify pairs of
    opposing affective attributes

42
Experiment - details
  • Natural utterances recorded in anehoic chamber
    ("anechoic" "without echo) high quality
    recording of the Swedish utterance ja adjo
    (semantically neutral) statement heard by
    non-swedish speaking native speakers of Irish
    English. The recording was digitized at high
    sampling frequency and high resolution (16bit)
    and prepared for analysis

43
Experiment- details
  • Recorded utterance analyzed and parameterized.
    The popular LF (Liljencrants-Fant) model of
    differentiated glottal flow (Fant et al., 1995)
    was used to match the measured glottal waveform
    with a theoretical model of the voice source.
    Using LF a waveform is described by a set of
    mathematical functions that model a given segment
    of the waveform. The following parameters were
    used in the experiment
  •

  • EE - excitation strength
  • RA normalized value of TA - time constant of
    the exponential curve, describes the "rounding of
    the corner" of the waveform between t4 and t3
    divided by t0 (amount of residual airflow after
    the main excitation prior to ax glottal closure.
  • RG measure of glottal frequency as determined
    by the opening branch of the glottal pulse
    (normalized to fundamental frequency)
  • RK measure of glottal pulse skew, defined by
    the relative durations of the opening and closing
    branches of the glottal pulse.

44
Experiment - details
  • Utterance resynthesized with modal voice quality
    (moderate tension) formant synth (KLSYN88a synth
    Sensimetrics corp- Boston) allowing control of
    source and filter parameters and different
    variations of each
  • Once synthesized with modal voice, the modal
    stimuli is reproduced six times, each time with a
    different non-modal voice quality (tense,
    breathy, whispery, creaky, harsh, lax-creaky) .
    This is done by adjusting parameters such as
  • - fundamental frequency
  • Open Quotient (OQ) (ratio of the time in which
    the vocal folds are open and the whole pitch
    period duration)
  • Speed Quotient (also called skewness or rk)
  • (ratio of rise and fall time of the glottal flow
  • -more, differently to create different voice
    qualities

45
Experiment - details
  • Perception tests constructed with each of the
    stimuli and given to subjects
  • 8 short subtests with 10 randomally chosen
    stimuli were given to subjects. Interval between
    sets 7 secs
  • within each set of stimuli 4 sec interval
  • Subjects respond to the affective content of the
    stimuli on a scale of 1 to 7 (opposite terms on
    either side) responses elicited for one
    particular pair of opposite affective attributes
    (bored vs. interested, friendly vs. hostile, sad
    vs. happy, intimate vs. formal, timid vs.
    confident afraid vs. unafraid)
  • 12 subjects partipicated 6 male, 6 female

46
Results
47
(No Transcript)
48
Results
  • Voice quality and subject variable were
    statistically highly significant
  • Differences between individual qualities were
    statistically significant
  • Most readily perceived
  • Relaxation and stress
  • Highly perceived
  • Anger, boredom, intimacy, content, formal
  • (aside from anger- these could be categorized as
    states, moods, attitudes, so consistent with
    experiment goal)
  • Least well perceived
  • Unafraid, afraid, friendly, happy, sad
  • Milder states better signaled than strong emotion

49
Results
  • Notice modal stimuli is not perceived as totally
    neutral
  • Similar response patterns occurred with
    breathy/whispery and tense/harsh
  • Lax-creaky vs creaky does show significant
    differences
  • Results and their comparison to previous
    findings
  • Lax-creaky lower arousal, activation
  • Whispery timid, afraid
  • Tense high arousal/activation (confident,
    interested, happy, angry)
  • Breathy, whispery, creaky, and more so lax
    creaky relaxed, content, intimate, friendly,
    sad, bored)
  • Lax-creaky, more so than whispery- effectively
    signaled intimacy
  • And lax-creaky, more so than breathy, signaled
    sadness Linking of breathy voice to anger and
    happiness were not supported
  • A shift from modal to tense elicited happy affect
    (rather than sad as proposed by Murray/Arnott
    99)
  • Anger is shown to link to tense voice and joy
    (Scherer 86)
  • As one moves from high to low activation stimuli
    set, cross-subject variability increases

50
Some pros and cons of this study
  • Showed that voice quality alone can evoke
    differences in speaker affect
  • But when comparing only synthesized voices, isnt
    it a question of which is relatively more
    colorful?
  • voice qualities are multi-colored and each map
    to a variety of affective expression
  • (expressions are in some cases related, in others
    unrelated)
  • traditional view that voice quality conveys
    valence of emotion but not activation is
    challenged (for affective states with negative
    valence, activation still differentiates them and
    is detected with voice quality alone)
  • Hard to know to what degree naturally occurring
    phonomena matches model matches synthesis and
    which level to look at to improve or criticize
    when hearing final synthesis.
  • Aside from a phonetic system, subjects might
    associate voice qualities depending on personal
    situations, events, etc (could whispery sound
    sinister?)
  • When only deciding between 2 extremes, subjects
    might have difficulty trying not to listen for
    the purpose of choosing one or another (?)
  • - but same data reduction occurred, so beginning
    natural utterance not exact copy

Write a Comment
User Comments (0)
About PowerShow.com
