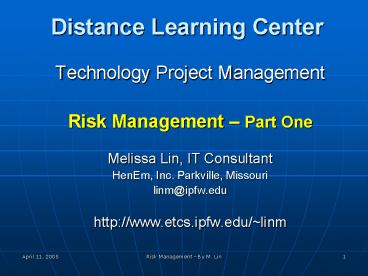

Distance Learning Center

1
Distance Learning Center

• Technology Project Management
• Risk Management Part One
• Melissa Lin, IT Consultant
• HenEm, Inc. Parkville, Missouri
• linm_at_ipfw.edu
• http//www.etcs.ipfw.edu/linm

2
Basic Concept

• Risk management focuses on
• Known unknowns
• Proactive management
• The alternative to proactive management is
  reactive management, also called crisis
  management. This requires significantly more
  resources and takes longer for problems to
  surface.

3
Risk Management

• Historically, we focused our attentions on
  schedule and cost risk management
• Risk and Information are inversely related
• Risk Management focuses on the future
• Today, our primary emphasis is on technological
  risk management
• Can we design it and build it?
• What is the risk of obsolescence?

4
Definition Of Risk

• A probability (Likelihood) of occurrence of
  that event
• Impact is the amount at stake

Risk f(Likelihood, Impact)
event
5
Tolerance For Risk

• Risk avoider
• Risk neutral
• Risk lover

6
Decision-Making Categories

• Decision Making Categories
• Complete uncertainty
• Hurwicz criterion
• Wald (maximin) criterion
• Savage criterion
• Laplace criterion
• Relative risk (partial information)
• Complete certainty

7
Example 1 Decision Making under Certainty

• A company wishes to invest 50 million to develop
  a new product
• Product choices
• A product
• B product
• C Product
• States of nature
• A strong market demand (N1 Up)
• An even market demand (N2 Even)
• A low market demand (N3 Low)

8
Example 1 (continue)
States of Nature
Payoff Matrix (Profit in Millions)
Payoff 50 40 -50 50
50 60 100 80 90
9
Example 2 - Decision Making under Risk
States of Nature
Payoff Matrix (Profit in Millions)
E1 Payoff for strategy 1 50 0.25 40
0.25 90 0.5 67.50E2 55 million E3
20 millions
10
Example 2 - Decision Making under Risk (continue)
States of Nature
Payoff Matrix (Profit in Millions)
E1 Payoff for strategy 1 50 0.6 40
0.2 90 0.2 56E2 52 millions E3 66
millions
11
Savage, Minimax Criterion
Table 2
Table 3 Regret Table
12
Laplace Criterion
Table 17-2
Table 17-4
13
Five Steps to Develop Payoff Table

• List all the alternatives.
• List the future consequences of each alternative.
• Identify the payoffs associated with each
  combination.
• Assess the degree of certainty that these
  combinations will materialize
• Decide on a decision criterion.

14
Developing and Using Payoff Tables
Establishing the procedure to follow
Construct the Payoff table
Decision-making under complete uncertainty
Decision-making under certainty
Decision-making under risk
Maximin Approach Maximax Approach Minimax regret
Approach Insufficient Reason Approach
Expected Monetary Value (EMV) Approach Expected
Opportunity Loss (EOL) Approach Expected Value of
Perfect Information (EVPI) Approach
15
Decision Tree Example (Fig. 17-3)

• A Manufacturing Example the probability of each
  combination of manufacturing process
• A product can be manufactured using Machine A or
  Machine B
• Machine A has a 40 chance of being used, and
  machine B has 60
• Both machines use either process C or D
• When machine A is selected, process C is selected
  80 of the time, and the process D 20
• When machine B is selected, process C is selected
  30, and process D 70

16
Decision Tree Example (Fig. 17-3)
17
Expanded Tree Example (Fig. 17-4)

• A Make or Buy Decision Example
• Make the product
• Purchase a new machine (35,000)
• Market good 70 of time, 80,000 profit
• Market poor 30,000 profit
• Subcontract out the work
• Administration cost 5,000
• Market good 50,000 profit
• Market poor 15,000 profit

18
Expanded Tree Example (Fig. 17-4) (continue)
Subcontract
19
Summary

• Risk Management
• Concepts
• Definition
• Tolerance
• Next - Risk Management Process

20
Question?

• Answers
• Email linm_at_ipfw.edu
• http//www.etcs.ipfw.edu/linm
