Functional languages e.g. Scheme, ML

1

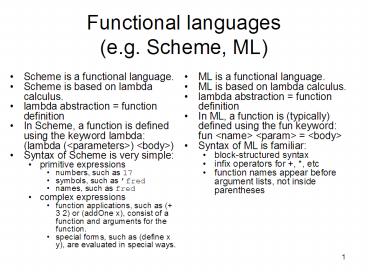

Functional languages(e.g. Scheme, ML)

• Scheme is a functional language.
• Scheme is based on lambda calculus.
• lambda abstraction function definition
• In Scheme, a function is defined using the
  keyword lambda (lambda () )

• Syntax of Scheme is very simple
• primitive expressions
• numbers, such as 17
• symbols, such as fred
• names, such as fred
• complex expressions
• function applications, such as ( 3 2) or (addOne
  x), consist of a function and arguments for the
  function.

• special forms, such as (define x y), are
  evaluated in special ways.

• ML is a functional language.
• ML is based on lambda calculus.
• lambda abstraction function definition
• In ML, a function is (typically) defined using
  the fun keyword fun

• Syntax of ML is familiar
• block-structured syntax
• infix operators for , , etc
• function names appear before argument lists, not
  inside parentheses

2
Evaluation(Scheme and ML share model focus on
Scheme)

• Numbers are interpreted in base 10.
• Names are looked up in an environment, starting
  with the current environment, following static
  links, until the name is found. If it is not
  found, an error occurs.
• (define ) is evaluated by first
  evaluating , and binding, in the current
  environment, the name to that value.

• (lambda ) is evaluated by creating an
  appropriate closure (sometimes called a
  procedure). The closures environment link
  refers to the environment which was active when
  the closure was created.
• All members of an application are evaluated,
  after which the first is applied to the rest.

• A procedure application is evaluated by creating
  an environment to bind the parameters of the
  procedure to its arguments, and then evaluating
  the body relative to this new environment. The
  static link of the environment refers to the same
  environment as the closure, whereas the dynamic
  link refers to the environment that was active
  when the procedure was applied.

3
Examples

• 12
• 12
• (define x 12)
• x
• 12
• (define addOne
• (lambda (x) ( x 1)))
• (addOne x)
• 13
• (define add
• (lambda (x y) ( x y)))
• (add 3 x)
• 15
• (define adder
• (lambda (x)
• (lambda (y) ( x y))))
• (define add3 (adder 3))
• (add3 x)
• 15

- 12 val it12int - val x12 val x12int -
x val it12int - fun addOne x x1 val addOn
efnint-int - addOne x val it13int - fun ad
d (x,y) xy val addfnintint-int - add(3,
x) val it15int - fun adder x y xy val ad
derfnint-int-int - val add3 adder 3 val a
dd3fnint-int - add3 x val it15int - val
add7 adder 7 val add7fnint-int - add7 x
val it19int
4
Scheme

• Although Scheme is syntactically a simple
  language, it supports sophisticated modeling
  higher-order functions are a powerful tool in
  describing problems.
• Many ideas in design patterns have their roots in
  functional programming (e.g. strategy allows us
  to treat methods as first-class, a decorator acts
  like a function which maps a function to a
  function think of the stream decorators in
  Java).
• With mutation (the ability to change a name-value
  binding in an environment) sophisticated systems
  can be built quite compactly.

5
Review of evaluation model

• Numbers evaluation to themselves (a character
  string representing a number evaluates to its
  base 10 numeric representation).

• For example
• 213 if you ask Scheme to evaluate a number
• 213 you get the number as a result

6
Evaluating names

• A name is evaluated by looking it up. Lookup
  starts in the current environment, and continues
  along the chain of statically-linked environments
  until either a binding is found (in which case
  the corresponding value is returned) or it isnt
  (in which case an error occurs).
• For example (assuming no binding for x exists
  yet)

• x
• Error reference to undefined identifier x
• (define x 12)
• x
• 12

7
Primitives

• Primitives, such as and -, are ordinary names
  with name-value bindings established at start-up
  in the primitive environment, the base
  environment for evaluation (base in the sense
  that its static link is null).
• We can use wherever we need a function.
• For example
• (define applyOperator (lambda (op) (op 3 4)))
• (applyOperator )
• 7
• (applyOperator -)
• -1
• We can also rebind the names of primitives (not a
  good idea in general, but this shows that
  primitives are not treated differently from other
  names in the language).
• ( 3 4) name refers to addition function
• 7
• (define -) name now refers to subtraction
  function

• ( 3 4)
• -1

8
lambda forms

• A lambda form (lambda abstraction) defines a
  function in Scheme.

• Informally, the syntax is
• (lambda () )
• When a lambda form is evaluated a closure results
  (which is printed as ).

• For example
• (define addOne (lambda (p) ( p 1)))
• addOne

9
Function applications

• A function application is evaluated by first
  evaluating each expression inside the
  application, then applying the function to its
  arguments.
• This is accomplished by first creating a new
  environment in which the functions parameters
  are bound to its arguments, and then evaluating
  the functions body with respect to the new
  environment (which is now the current
  environment).

10
Evaluating (addOne 4)
primitive env


-

cons


user env
addOne
p
4
( p 1)
11
Local bindings

• In a language like C or Java we can create local
  bindings inside a function/method by defining
  local variables

• int mystery(int x, int y, int z)
• int a func1(x,y)
• int b func2(y,z)
• Local bindings can be created using a let-form
• (define mystery (lambda (x y z)
• (let ((a (func1 x y)) (b (func2 y z)))
  )

• Let-form is just syntactic sugar for a procedure
  application the above let-form is equivalent
  to

• ((lambda (a b) ) (func1 x y) (func2 y z))

12
Evaluating(define foo (let ((a 1) (b 2)) (lambda
(c) ( a b c))))
primitive env
c


( a b c)
-

cons


user env
a b
(lambda (c) ( a b c))
addOne
a
1
foo
b
2
(lambda (c) ( a b c))
13
Mutation

• set! allows an existing name-value binding to be
  changed.

14
Structuring data

• So far weve seen two types of values that we can
  bind to names

• numbers
• functions
• two others are
• symbols
• pairs

15
Symbols

• A symbol is an unevaluated name.
• Consider the following interaction
• (define x 12)
• x
• 12
• The x in the define is not evaluated. It is a
  symbol.

• The x in the second line is evaluated by looking
  up the value it is bound to in the current
  environment.

16
Using symbols

• We can bind a name to a symbolic value by quoting
  the symbol quoting prevents evaluation

• (define fifi 'poodle)
• fifi
• poodle
• The quote mark (') is syntactic sugar for the
  form (quote ) the above is equivalent to

• (define fifi (quote poodle))

17
Pairs

• cons is a primitive function which builds a
  pair.

• A pair has two members.
• (cons 'a 'b) builds a pair
• whose first member is the symbol a
• whose second member is the symbol b
• cons is therefore a pair constructor.
• Graphically

b
a
18
accessors

• car returns the first member of a pair
• cdr returns the second member of a pair
• (define myPair (cons 'a 'b))
• (car myPair)
• a
• (cdr myPair)
• b

19
How is a pair displayed?

• (define myPair (cons 'a 'b))
• myPair
• (a . b)
• Pairs are printed with a dot (.) separating the
  first (left) and second (right) components.

20
The REPL

• When interacting with a Scheme system, a
  Read-Eval-Print Loop (REPL) reads what you type,
  evaluates it, prints the resulting value, and
  loops back to repeat.
• The reader and printer parts of the REPL handle
  syntactic sugar (like converting 'a into (quote
  a)) and also printing things like lists.

21
Lists

• What is a list?
• A recursive definition
• the empty list () is a list
• a pair whose cdr is a list is a list
• We can build a list using cons and ()
• (define myList (cons 'a '()))
• myList
• (a)

22
Wait a minute!!

• (define myPair (cons 'a 'b))
• myPair
• (a . b)
• (define myList (cons 'a '())
• myList
• (a)

23
What's going on?

• Why did myList print as (a) rather than as (a .
  ())?

• In fact, they are entirely equivalent the REPL
  strikes again. The printer formats pairs which
  cdr is a pair in a special way to make lists
  easier to read.

24
Printing lists

• (a . (b . (c . (d . ())))) is printed as (a b c
  d)

• Graphically the structure is
• This structure can be built in a variety of ways,
  some of which are shown on the next slide.


a
b
c
d
25
Choiceschoices

• (cons 'a (cons 'b (cons 'c (cons 'd '()))))
• (list 'a 'b 'c 'd)
• '(a b c d)
• '(a . (b c d))
• (cons 'a (list 'b 'c 'd))
• and so on!

26
Association lists

• An association list is a list of pairs.
• Used to implement a look-up table of key-value
  pairs.

• The primitive assoc is used to search an
  association list, given a key.

• Example on next slide.

27

• (define aList '((fifi . poodle)
• (fido . bulldog) (clifford . bigRed)
• (lassie . collie)))
• (assoc 'fido aList)
• (fido . bulldog)
• (assoc 'rufus aList)
• f

28
Mutating pair components

• set-car! mutates the value of the car of a pair
• set-cdr! mutates the value of the cdr of a pair
• (define myPair (cons 'a 'b))
• myPair
• (a . b)
• (set-car! myPair 'fred)
• myPair
• (fred . b)
• (set-cdr! myPair 'wilma)
• myPair
• (fred . wilma)

29
Lists in other languages

• Lists in ML
• Lists in Prolog

30
Homework issues

• What is basic algorithm?

31
Homework issues

• What is basic algorithm?
• while file is not empty
• read in a line
• if the line is an odd line,
• then write line to output file
• else dont
