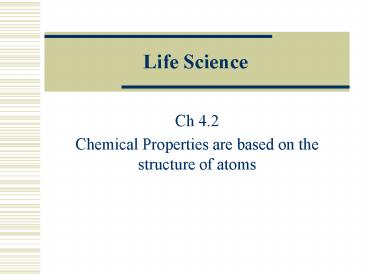

Life Science

1
Life Science

• Ch 4.2
• Chemical Properties are based on the structure of
  atoms

2
What are atoms?

• Gets its name from Greek word atomos
• Meaning invisible
• It is the smallest particle of an element
• Example atom of carbon or oxygen or gold

3
Atoms of all elements are made of..
SOURCEThomas Jefferson National Accelerator
Facility - Office of Science Education
http//education.jlab.org/faq/index.html
4
Even smaller particles
5
What is the nucleus?

• The central core
• Protons and neutrons packed tightly together

6
http//education.jlab.org/atom tour/fact1.html
7
What about electrons?

• Electrons have much less mass than neutrons and
  protons
• The move continuously about the outside of the
  nucleus
• The attraction between the negatively charged
  electrons and the positively charged protons
  keeps the electrons close to the nucleus

8
Figure 4.4 from text

• Helium has 2 protons and 2 neutrons
• This model represents the moving electrons as a
  spherical cloud
• In a real atom, this cloud is much larger than
  the nucleus
• See page 75

9
What is Atomic Number?

• The difference among elements is the number of
  protons in their atoms
• All atoms of a particular element have the same
  atomic number (number of protons)
• The number of protons determine the atoms
  properties and behavior

10
(No Transcript)
11
IMPORTANT

• Individual atoms do not have melting or boiling
  points, density, color, or any other observable
  properties
• Individual atoms do not look like the element
  that is made from these atoms.
• Because of their unique atomic number (number of
  protons), the atoms shows special characteristics
  associated with that number of proton.

12
What are isotopes?

• Isotopes of an element have the same number of
  protons in their atoms but have different
  numbers of neutrons
• Some isotopes are stable (do not change over
  time)
• Some isotopes are unstable and break down, giving
  off radiation radioactive isotopes

13
Atoms of three isotopes of carbon (figure 4.5
text)
12
13
14
Notice the number of electrons is always 6
14
Electrons and Reactivity

• Electrons differ in the amount of energy they
  have and how tightly they are held by the protons
  of the nucleus
• Chemists describe this as energy levels

15
Energy Levels

• First or lowest energy level (nearest the
  nucleus) can hold 2 electrons
• Second energy level can hold 8

16
Reactivity

• For example
• hydrogen atom has 1 electron
• Since the electrons fill the lowest energy level
  first, hydrogens electron occupies the first
  energy level

17
Energy Levels continued

• Carbon has 2 electrons in its lowest energy level
  and 4 more in the second level
• Nitrogen has 2 electrons in its lower energy
  level and 7 more in the second level
• Because more electrons are needed to fill the
  second level, this conditions makes these atoms
  chemically reactive

18
Energy levels

• Atoms such as helium and argon have no
  partly-filled energy levels
• They are said to be inert- do not react

19
www.colorado.edu/physics/2000/applets/a2.html
Periodic Table
20
(No Transcript)
21
(No Transcript)
22
Homework

• Page 77
• Questions 1 - 4
