BP PRODML Activities

1

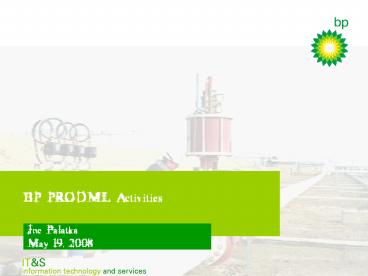

BP PRODML Activities

• Joe Palatka
• May 19, 2008

2
PRODuction XML PRODML
3
PRODML Overview

• Energy industry initiative to create an industry
  standard XML-based data exchange format for
  production operations.
• Used WITSML (Drilling data) as starting point
• Phase I scope Near real time production
  optimization ? 2006
• PRODML Standards, Version 1.0 available on
  October 16, 2006
• Phase II 2007 Expand successes of Phase I to
  approach commercialization in 2008
• Next step Publish for community review PRODML
  1.1

4
Who have been the early leaders in PRODML
development?

• Vendors
• Halliburton
• Invensys
• OSIsoft
• PETEX
• Schlumberger
• Sense
• Intellifield
• TietoEnator
• Weatherford

• Operators
• BP
• Chevron
• ExxonMobil
• Shell
• Statoil

• Standards
• Energistics
• (formerly
• POSC)

5
PRODML Producing Asset Scope
The Production Domain

• Decisions we can effect in a day

6
PRODML IT Scope
External data transfer
Data Processing / monitoring and reporting
software
AP 3
AP x
AP 4
AP 5
AP 2
AP 1



Office Domain
Application Databases
Historian

DCS and real time applications
real time apps
DCS historian

Process Control Domain
Fields instruments
7
BP PRODML Phase I Pilot

• Sub-set of Horn Mountain
• PI Historian data June 2nd to June 10th
• Three gas lift wells
• A-2 Juliet
• A-3 Foxtrot
• A-4 Alpha
• The purpose was to test the capability of PRODML
  not the Petro-Technical applications
• PRODML Interactions (Web Services)
• Plug Play Applications (OSIsoft or Sense
  Consolidator)
• Pilot overview Four phases
• Monitor Gas lift gas from the PI Historian
• Alert Trigger based on minimum gas lift gas
  available value
• Optimize Run optimiser - Triggered by user
  manual inputs
• Report Report optimiser results

8
Horn Mountain Field BP Phase I Pilot

• Located 84 miles from Venice, Louisiana offshore
  in Mississippi Canyon Block 126 and 127.
• Ownership
• 67 by BP-operator
• 33 by OXY
• Water depth at platform 5,422
• Current Production
• Crude, 36 mbd
• Gas, 18 mmcfd
• Water, 31mbd

9
Demo Process BP Phase I Pilot

• Monitor
• Comparison of the actual lift gas rate from PI
  Historian to the trigger minimum lift gas rate
  (Previously set)
• Alert
• When the actual lift gas rate falls below the
  trigger lift gas rate sends alert to operator
  requesting a maximum lift gas rate
• Optimize
• The optimizer is triggered when the maximum rate
  is provided by the operator
• Report
• The optimisation results are provided to the
  operator

10
BP Phase I Pilot Gas Lift (Horn Mountain)
5
13
4
Monitor
Sense Intellifield SITECOM Data Server
Alert
Optimise
OSIsoft PI Historian
Report
13
View Results
Note AddToStore acknowledgement Omitted from
diagram
Note Portal to Data Server interactions Out of
scope (may use PRODML)
OSIsoft or Sense Consolidator
2
11
BP Phase I Pilot Asset View
12
Summary - BP Phase I Pilot

• Tested PRODML Interactions benefits (Web
  Services)
• Re-use (Intra and Inter Pilot)
• Loose Coupling (Common interface, Plug Play)
• Extensibility (New functionality easily added by
  adding additional web services or XML objects)
• Showed ability to Plug Play Applications
  (OSIsoft or Sense Consolidator)

13
BP Pilot NM Creation
Kongsberg Intellifield PRODML Client and Data
Server
Weatherford GL Optimiser
OSIsoft PI Historian
Matrikon NM Source
PRODML, demonstrated WG06
PRODML, demonstrated WG07
PRODML Pilot Interactions
Human interaction
14
BP Pilot NM Maintenance
Kongsberg Intellifield PRODML Data Server
Weatherford GL Optimiser
OSIsoft PI Historian
Matrikon NM Source
PRODML, demonstrated WG06
PRODML, demonstrated WG07
PRODML Pilot Interactions
Human interaction
15
BP Phase II Pilot Network Model Historical
Version
Sense Intellifield PRODML Data Server
Weatherford GL Optimiser
OSIsoft PI Historian
Matrikon NM Source
Network Model Version Legend Synchronised No
n Synchronised
Note Portal to Data Server interactions are out
of scope (may use PRODML)
