LongRange Dependence in a Changing Internet Traffic Mix

1

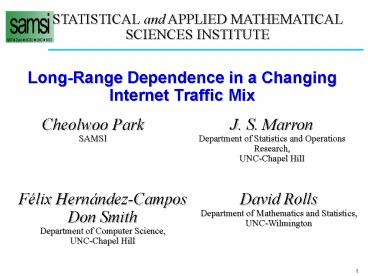

Long-Range Dependence in a Changing Internet
Traffic Mix
STATISTICAL and APPLIED MATHEMATICAL SCIENCES
INSTITUTE
J. S. Marron Department of Statistics and
Operations Research, UNC-Chapel Hill
Cheolwoo Park SAMSI
Félix Hernández-Campos Don Smith Department of
Computer Science, UNC-Chapel Hill
David Rolls Department of Mathematics and
Statistics, UNC-Wilmington
2
Measurements
Capture TCP/IP packet headers on Gigabit Ethernet
link (inbound from Internet)
1 Gbps Ethernet
Internet
UNC
Monitor (tcpdump)
35,000 Internet Users
3
Summary data

• Two-hour traces, 2nd week in April of 2002 and
  2003
• 500 AM, 1000 AM, 300 PM, 930 PM on each of 7
  days
• 28 traces (56 hours) per year

• 2002 Traces
• 5 billion packets
• 1.6 terabytes of network traffic
• 95 TCP packets
• 5 UDP packets
• 93 TCP bytes
• 7 UDP bytes
• 10 max 2-hr. mean link utilization
• 0.01-0.16 packets dropped by monitor

• 2003 Traces
• 10 billion packets
• 2.9 terabytes of network traffic
• 75 TCP packets
• 25 UDP packets
• 86 TCP bytes
• 14 UDP bytes
• 18 max 2-hr. mean link utilization
• 0 packets dropped by monitor

4
Hurst parameter (H) estimates and confidence
intervals

• H estimated from wavelet analysis tools
  (logscale diagrams of D. Veitch)
• H estimates for 2003 packet counts were
  significantly lower than for 2002 (not true for
  byte counts).
• Several traces had H gt 1 or very wide confidence
  intervals.
• H estimates were independent of time of day or
  day of week (both packets and bytes) in both
  years.

5
H not related to link utilization or active TCP
connections
6
Extreme examples of H gt 1 or wide confidence
intervals
7
Dependent SiZer analysis of wide CI example

• Test for statistically significant differences
  from FGN process with parameters estimated from
  data, H0.8
• Top local linear smoothing of data with
  different window widths
• Bottom statistical inference on trends of
  smoothed curve at each window width

8
Dependent SiZer analysis of H gt 1 example

• Analysis shows both non-linear trends and greater
  variability than FGN process at many time scales

9
Logscale diagram of typical 2002 and 2003 traces

• Protocol dependent analysis suggested by increase
  in UDP
• Filtered traces to create new traces TCP only
  and UDP only
• TCP is dominant influence in all cases except
  2003 packet counts where UDP dominates.
• Sharp increase at middle scales shapes H estimate
  (less slope so lower H).

10
Same conclusion for all traces.Why?
11
The Blubster effect (2003s hot new peer-to-peer
file sharing application)

• Recall that UDP packets increased to 25 of 2003
  packets (but only 14 of bytes).
• Analysis of UDP packets found 70 from
  application (Blubster) in 2003 that was
  negligible in 2002.
• Second filtering make Blubster-only and Rest
  (TCP other UDP) traces.
• Blubster alone dominated H estimate for packets,
  not bytes

12
Why?Blubsters packet traffic is periodic

• SiZer analysis of Blubster trace looking for
  structure beyond white noise
• Found high-frequency variability with periods in
  1-5 second range (caused by update and search
  queries among peers)
• These correspond to the time-scales in logscale
  diagram where UDP dominates the wavelet
  coefficients.

13
Results summary

• We presented results from a study of traffic on
  the UNC Internet link from two years, 2002 and
  2003.
• A single application generating about 18 of
  packets and lt 10 of bytes in traces can strongly
  influence the H estimate (in this case, because
  of periodic behavior).
• A significant number of traces produced H
  estimates gt1 or wide confidence intervals.
• Dependent Sizer is an effective tool for
  augmenting wavelet analysis and understanding
  structure in Internet data.
• H was not related to time-of-day, day-of-week,
  link utilization, or number of active TCP
  connections.
