Extending LANs: Fiber Modems, Repeaters, Bridges, and Switches

1

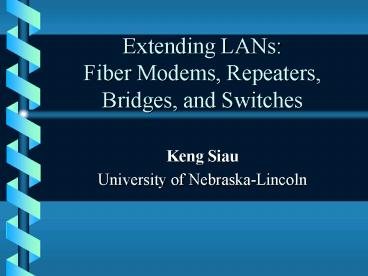

Extending LANs Fiber Modems, Repeaters,
Bridges, and Switches

• Keng Siau
• University of Nebraska-Lincoln

2
LAN Extensions

• Several techniques extend diameter of LAN medium
• Most techniques use additional hardware
• Fiber Modems
• Repeaters
• Bridges
• Switches

3
Fiber Optic Extensions

• Insert fiber modems and fiber optic cable into
  AUI cable
• Fiber modems
• Convert AUI signals to digital signal
• Transmit digital signals via fiber optic cable to
  other modem
• Most often used to connect LANs on different
  buildings

4
Fiber Optic Extensions
5
Repeaters

• Bidirectional, analog amplifier that retransmits
  analog signals
• One repeater can effectively double the length of
  an LAN segment

6
Limits on Repeaters

• Can't extend Ethernet with repeaters indefinitely

• CSMA/CD requires low delay if medium is too
  long, CSMA/CD won't work
• Ethernet standard includes limit of 4 repeaters
  between any two Ethernet stations

7
Repeaters used to Connect Ethernet Segments
8
Bridges

• Connect two LAN segments
• Retransmits frames from one segment on other
  segment(s)
• Handles complete frame
• Uses NIC like any other station
• Performs some processing on frame
• does not forward interference or other problems
• Invisible to other attached computers

9
Bridges
10
Frame Filtering

• Only forward frames where necessary
• Bridge performs frame filtering and forwards
  frames along LAN segments to destination
• Learns location of stations by watching frames
• Forwards all broadcast and multicast packets

11
Switches

• Hardware includes an electronic device that
  connects to one or more computers and allows them
  to send and receive data
• With switching, multiple stations can transmit
  simultaneously
• Provides much higher aggregate bandwidth

12
Switches
13
Summary

• Optical fiber and modems can be used to extend
  AUI for single station
• Repeater acts as amplifier and retransmits analog
  signals
• Bridge accepts entire incoming frame and
  retransmits
• Switches provide full LAN speed to each port by
  simulating separate LAN segments
