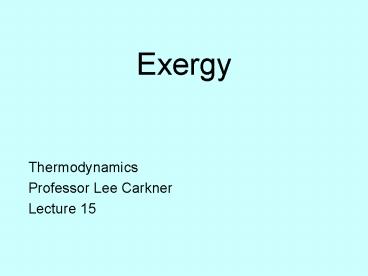

1
Exergy
  • Thermodynamics
  • Professor Lee Carkner
  • Lecture 15

2
PAL 14 Reversibility
  • Air compressed with constant specific heats
  • R 0.287 (Table A-1), k 1.4 (Table A-2)
  • (T2/T1) (P2/P1)(k-1)/k
  • T2 T1(P2/P1)(k-1)/k (290)(800/100)(0.4/1.4)
    525.3 K
  • w Du cvDT 0.727(525.3-290)

3
PAL 14 Reversibility
  • Air compressed with non-constant specific heats
  • Need to use reduced pressure table (A-17)
  • For T1 290, Pr1 1.2311 and u1 206.91
  • Pr2 (P2/P1)Pr1 (800/100)(1.2311) 9.849
  • For table A-17 this corresponds to T2 522.4 K
    and u2 376.16
  • w u2-u1 (376.16-206.91)

4
Exergy
  • Exergy (x) is a measure of the work potential of
    an energy source
  • Defined as
  • The dead state is defined as the state in
    thermodynamic equilibrium with the environment
  • Exergy is the upper limit for the work an actual
    device could produce

5
Exergy Systems
  • e.g. the amount of work you can generate from a
    geothermal well depends on where you dump the
    waste heat
  • Kinetic energy
  • Potential Energy
  • Both KE and PE can be completely converted to
    work
  • n.b. V and z are relative to the environment

6
Kinds of Work
  • Surroundings Work
  • Wsurr P0(V2-V1)
  • Useful work
  • Wa W P0(V2-V1)
  • Reversible work
  • If the final state is the dead state the
    reversible work equals the exergy
  • Irreversibility
  • I Wrev - Wu

7
Second Law Efficiency
  • Our standard thermal efficiency has 100 as an
    upper limit
  • We instead want to compare the work output to the
    true maximum that given by a reversible engine
  • The second law efficiency is
  • hth,rev is the Carnot Efficiency

8
Comparing With Efficiency
9
Efficiencies
  • Work producing devices
  • hII
  • Work consuming devices
  • hII
  • Refrigerators
  • hII
  • General Definition
  • hII xrecovered/xsupplied 1
    (xdestroyed/xsupplied)

10
Exergy of a Closed System
  • The exergy per unit mass (f) is
  • f (u-u0)P0(v-v0)-T0(s-s0)V2/2gz
  • For a process we can subtract the exergies at the
    two states
  • Df (u2-u1)P0(v2-v1)-T0(s2-s1)(V22-V21)/2g(z2-
    z1)

11
Flow Exergy
  • The flow energy is Pv and we can find its exergy
    by subtracting the work needed to displace the
    fluid against the atmosphere
  • By including this in our previous relationship we
    find the flow or stream exergy, y
  • y (h-h0)-T0(s-s0)V2/2gz
  • Exergy change of a fluid stream is
  • Dy (h2-h1)-T0(s2-s1)(V22-V21)/2g(z2-z1)

12
Exergy Transfer Heat
  • The most work that a given amount of heat can
    generate is through a Carnot cycle, so we can use
    the reversible efficiency to find the exergy
  • Where T0 is the temperature of the environment

13
Transferring Exergy
14
Exergy Transfer Work
  • One exception is overcoming atmospheric pressure
    for moving boundary work
  • Xwork W Wsurr W P0(V2-V1)
  • e.g. shaft work, electrical work, etc.

15
Exergy Transfer Mass
  • Mass flow carries exergy into or out of a system
    just as it does energy
  • May have to integrate if fluid properties are
    variable
  • Xmass
  • Xheat

16
Next Time
  • Next class Tuesday, April 18
  • Exam 2 Wednesday, April 19
  • Read 8.6-8.8
  • Homework Ch 8, P 38, 42, 64, 75
