POSC Caesar Association PCA

1

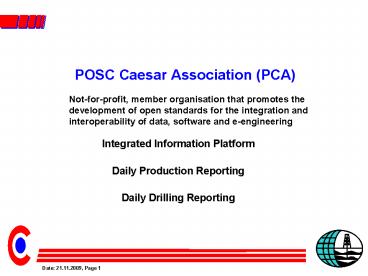

POSC Caesar Association (PCA)
Not-for-profit, member organisation that promotes
the development of open standards for the
integration and interoperability of data,
software and e-engineering

• Integrated Information Platform
• Daily Production Reporting
• Daily Drilling Reporting

2
POSC Caesar Association (PCA) - Status

• PCA is established at ISO to promote the
  interests of the oil and gas industry.
• PCA is collaborating with POSC
• PCA is beginning to collaboration with FIATECH
• Defining common goals (use ISO 15926)
• Defining specific activities and projects
  (equipment data sheets)
• PCA is interested in a stronger presence in the
  USA
• PCA establishing Special Interest Groups (SIGs)
  to focus on specific oil and gas industry needs
  and the implementation of ISO 15926.
• PCA is interested in more testing of ISO 15926
  via real implementations
• PCA initiates and participates in projects an
  example Integrated Information Platform (IIP)
  project reference data is to be owned and managed
  by PCA
• 3.5 million
• Participants include Statoil, Norwegian Oil
  Industry Association, Capgemeni, National Oilwell
  Varco, Poseidon, OilCamp, FMC, NTNU, POSC, DNV,
  Norwegian Research Council

3
Integrated Information Platform (IIP)

• Daily Production Reporting terminology(1100
  terms)
• Will provides consistent operator and partner
  production activity and volume reporting

• Subsea Equipment and Production terminology (1000
  terms)
• Engineering, procurement and maintenance
  processes

• Standardized integrated information model
  (RDL)
• Geometry and topology
• Seismic
• Drilling and logging (WITSML)
• Reservoir
• Production
• Safety and automation system
• Subsea equipment
• Reliability and maintenance

• Daily Drilling Report
• Will provide consistent operator and partner
  daily drilling reporting
• Subset of drilling and logging terms, originally
  from WITSML (2700 terms)

• Condition based monitoring (CBM)
• Support integrated view of information from
  several sources of CBM data

4
Daily Production Reporting - Objectives

• Define all production and activities terms that
  are reported today for the NCS into one
  production report
• Daily production reporting (volumes, masses,
  temps, etc)
• Daily activity reporting (marine ops, alarms,
  well testing, etc.)
• HSE information not included in scope
• Implement solution in a software tool for use by
  operators, their partners and the Norwegian
  authorities
• Benefits
• Daily production data will be standardized across
  production licenses and more easily available for
  partners for internal manipulation and
  calculations.
• Use of standardized reference data (bsw, net
  oil, etc.). Provide a common understanding and
  meaning that will ease integration by providing a
  defined unambiguous terminology of a domain
  library
• A manual process has been automated. Better
  accuracy and data quality.

5
Daily Production Reporting - Status

• Status
• Completed 800-900 terms and definitions
• Included terms and definitions in ISO 15926
• Software implementation, piloting and testing for
  two fields (Valhall / BP and Åsgard / Statoil)
• Participants
• BP, ChevronTexaco, ConocoPhillips, ENI,
  ExxonMobil, Hydro, NPD, Petoro, Shell, Statoil,
  Total
• Integrated Information Platform (IIP) Project,
  with DNV as IIP project manager and POSC as
  developer of XML data exchange formats
• TietoEnator, with License Web and Energy
  Component software

6
Daily Production Reporting Technical Solution
Generic XML DB (LicenseWeb)
Partner/Operator
Operator
XML file
Non std reports
Reference Data Library (ISO 15926)
XML file

Make std reports Storage of documents/XML
Special reports
Internal Prod. data system
XML
Std Prod rapport
Prod report
Excel rapporter
License Web
Valhall (BP) Åsgard (Statoil)
XML
7
Daily Drilling Report - Scope

• Participants
• Authorities, associations NPD, OLF, Norwegian
  Petroleum Safety Authority
• BP, ConocoPhillips, Eni, ExxonMobil, Hydro,
  Statoil, Shell, Total
• CapGemini, Sense Intellifield, National Oilwell
  Varco
• Projects Aksio and Integrated Information
  Platform Project
• Scope - Define all drilling terms that are
  required to be reported today for the NCS in one
  drilling report
• Standardize drilling data concepts
• Provide solution for import and export of
  reported data to and from License Web
• Piloting and evaluation of solution
• Benefits
• Operators are primarily interested in simplifying
  effort to comply with reporting demands from
  Authorities
• Norwegian Authorities are currently reworking the
  list of data elements for Daily Drilling
  Reporting.
• Enhanced consistency and interoperability between
  existing drilling applications and databases

8
Daily Drilling Reporting
9
Summary

• PCA developing reference data for ISO 15926
• Allows for information integration across
  engineering disciplines
• Daily Production Report and the Daily Drilling
  Report
• Allows for information consolidation without
  cross referencing and manual input
