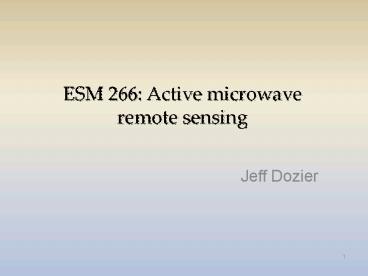

ESM 266 Active microwave remote sensing

• Jeff Dozier

2
Active and passive remote sensing

• Passive uses natural energy, either reflected
  sunlight or emitted thermal or microwave
  radiation
• Active sensor creates its own energy
• Transmitted toward Earth
• Interacts with atmosphere and/or surface
• Reflects back toward sensor (backscatter)

3
Widely used active remote sensing systems

• Active microwave (radar)
• long-wavelength microwaves (1-100cm)
• recording the amount of energy back-scattered
  from the terrain
• Lidar
• short-wavelength laser light (e.g., 0.90 µm)
• recording the light back-scattered from the
  terrain or atmosphere
• Sonar
• sound waves through a water column
• recording the amount of energy back-scattered
  from the water column or the bottom

4
Frequency-wavelength relation

• Generally in the microwave part of the spectrum
  we use frequency instead of wavelength
• Typically measured in s1, called Hertz (Hz)
• Most often Gigahertz (GHz) 109Hz

5
Microwave band codes
Unusual names are an artifact of the original
secret work on radar remote sensing in World War
II
6
Sending and receiving a pulse of microwave
radiation
7
SIR-C/X-SAR images of Rondonia, Brazil
April 10, 1994
8
Advantages of radar

• All weather, day or night
• Some areas of Earth are persistently cloud
  covered
• Penetrates clouds, vegetation, dry soil, dry snow
• Sensitive to water content, surface roughness
• Can measure waves in water
• Sensitive to polarization and frequency
• Interferometry (later) using 2 receiving antennas

9
Disadvantages of radar

• Penetrates clouds, vegetation, dry soil, dry snow
• Signal is integrated over a depth range and a
  variety of materials
• Sensitive to water content, surface roughness
• Small amounts of water affect signal
• Hard to separate the volume response from the
  surface response
• Sensitive to polarization and frequency
• Many choices for instrument, expensive to cover
  range of possibilities
• The math can be formidable

10
How it works

• Pulses of active microwave electromagnetic energy
  illuminate strips of the terrain at right angles
  (orthogonal) to the direction of travel
• called the range or look direction
• The terrain illuminated nearest the aircraft is
  the near-range
• The farthest point of terrain illuminated is the
  far-range

11
How it works (cont.)

• Aircraft or satellite travels in a straight line
  the azimuth direction
• Pulses of microwave electromagnetic energy
  illuminate strips of the terrain orthogonal to
  direction of travel the range or look direction
• Terrain illuminated nearest the sensor in the
  line of sight is the near-range
• The farthest point of terrain illuminated by the
  pulse of energy is the far-range
• Generally, objects that trend (or strike) in a
  direction orthogonal (perpendicular) to the range
  or look direction are enhanced much more than
  those objects in the terrain that lie parallel to
  the look direction
• Consequently, linear features that are
  imperceptible in a radar image using one look
  direction may appear bright in another radar
  image with a different look direction.

12
Nomenclature

• nadir
• azimuth flight direction
• look direction
• range (near and far)
• depression angle (?)
• incidence angle (?)
• altitude above-ground-level, H
• polarization

13
Variability with look direction
14
Depression angles and incidence angles

• Depression angle (g) between a horizontal plane
  extending out from the sensor and the
  electromagnetic pulse of energy from the antenna
  to a specific point on the ground
• Incidence angle (q) between the radar pulse and
  the normal to Earths surface
• When surface is flat, q 90g

15
Polarization

• 1st letter is transmitted polarization, 2nd is
  received
• Can have VV, HH (like)
• HV, VH (cross)

16
Polarization with visible light

• In this case, incoming radiation (sunlight) is
  not polarized (or is polarized in both
  directions)
• Vertically polarized light is reflected from
  surface
• At this view angle, horizontally polarized light
  is not
• So horizontal filter allows us to see the bottom

17
Polarization with radar
18
Radar geometry

• is weird, not like cameras or multispectral
  sensors
• Uncorrected radar imagery is displayed in
  slant-range geometry, based on the distance from
  the radar to each of the respective features in
  the scene
• But can also display in ground-range geometry, so
  that features in the scene are in their proper
  planimetric (x,y) positions
• Radar resolution has 2 dimensions, range and
  azimuth

19
(No Transcript)
20
Range resolution
21
Azimuth resolution
22
Foreshortening, layover, shadow
Geometric distortions in all radar imagery
23
Foreshortening

• In flat terrain, easy to convert a slant-range
  radar image into a ground-range radar image
• but with trees, tall buildings, or mountains,
  you get radar relief displacement
• the higher the object, the closer it is to the
  radar antenna, and therefore the sooner (in time)
  it is detected on the radar image
• Terrain that slopes toward the radar will appear
  compressed or foreshortened compared to slopes
  away from the radar

24
Foreshortening
25
Layover

• Extreme case of foreshortening, when incidence
  angle is less than slope angle toward radar (i.e.
  ?lta)
• cannot be corrected
• got to be careful in the mountains

26
Shadow

• When slope away from radar is steeper than the
  depression angle, i.e. a gt ?

27
Speckle

• Grainy salt-and-pepper pattern in radar imagery
• Caused by coherent nature of the radar wave,
  which causes random constructive and destructive
  interference, and hence random bright and dark
  areas in a radar image
• Reduced by multiple looks
• processing separate portions of an aperture and
  recombining these portions so that interference
  does not occur

28
Synthetic aperture radar (SAR)

• Major advance in radar remote sensing to improve
  azimuth resolution by synthesizing a long antenna

29
Synthetic aperture radar (SAR)
30
Based on Doppler principle

• Frequency (pitch) of a wave changes if the
  receiver and/or source are in motion relative to
  one another
• Train whistle has a increasing pitch as it
  approaches, highest when it is directly
  perpendicular to the listener (receiver)
• Point of zero Doppler
• After train passes by, its pitch will decrease in
  frequency in proportion to the distance it is
  from the listener (receiver)
• This principle is applicable to all harmonic wave
  motion, including the microwaves used in radar
  systems

31
Synthetic aperture radar
32
Creation of SAR image
33
Radar equation
34
Radar backscatter coefficient

• Primary signal of interest
• Percentage of electromagnetic energy reflected
  back to the radar from within a resolution cell
• Depends on terrain parameters like
• geometry, surface roughness, moisture content,
  and
• radar system parameters (wavelength, depression
  angle, polarization, etc.)

35
Roughness
36
Nile River, Sudan
Space shuttle color VNIR
SIR-C Color Composite Red C-band HV Green
L-band HV Blue L-band HH
37
Sources of radar backscattering from a vegetation
canopy

• Subscripts
• t trunk
• s soil
• c leaves
• m multiple

38
Types of scattering from a pine stand
39
Strength of scattering from a pine stand depends
on frequency
40
RADARSAT-2 (launched Dec 2007)

• C-band radar (5.4 GHz) with HH, VV, HV, and VH
  polarizations

41
SIR-C/X-SAR web site at JPL

• SIR-C
• Spaceborne Imaging Radar-C (following SIR-A in
  1981 and SIR-B in 1984)
• X-SAR
• X-band Synthetic Aperture Radar (built by
  Germans)
• Flew on Shuttle, 2 10-day missions in 1994
