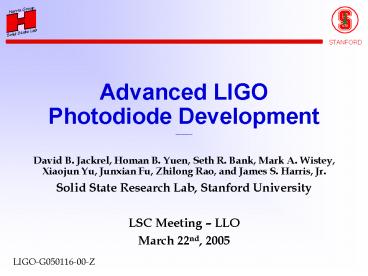

Advanced LIGO Photodiode Development ______

1
Advanced LIGO Photodiode Development______

• David B. Jackrel, Homan B. Yuen, Seth R. Bank,
  Mark A. Wistey, Xiaojun Yu, Junxian Fu, Zhilong
  Rao, and James S. Harris, Jr.
• Solid State Research Lab, Stanford University
• LSC Meeting LLO
• March 22nd, 2005

LIGO-G050116-00-Z
2
Outline

• AdLIGO Photodiode Specifications
• Device Results
• Damage Threshold
• AdLIGO Devices
• Future Directions

3
Advanced LIGO Schematic
4
Photodiode Specifications
5
Rear-Illuminated PD Advantages

• High Power
• Linear Response
• High Speed

Conventional PD
Adv. LIGO Rear-Illuminated PD
6
Materials Analysis InGaAs/GaAs vs. GaInNAs/GaAs

• X-Ray Diffraction
• Transmission Electron Microscopy
• Surface Roughness Mapping
• Photoluminescence
• Deep-Level Transient Spectroscopy
• Absorption Spectra
• Etc.

7
Device Internal Quantum Efficiency (Low Power
50 mW)
8
External Quantum Efficiency Thick Substrate
Ext. Efficiency
Bias (Volts)
Optical Power (mW)
9
Damage Threshold LLO Devices (9/23/03)
P gt 2e6 W/cm2 (???) (gt180 W in 100 ?m spot)
10
LHO Damaged PDs Shutter Problems (2/22/05)
Damaged Devices
Undamaged Devices
acoustic coupling -Robert Schofield
11
LHO Damaged PDs Shutter Problems (2/18/05)
No injected Peak at 280 Hz
12
Rear-IlluminatedDamage-Threshold Test
13
Front-IlluminatedDamage-Threshold Test
14
AdLIGO Devices
15
AdLIGO Devices Commercial Vendors
http//www.stanford.edu/djackrel
16
In Progress / Future Directions

• Substrate removal
• GaInNAs(Sb) growth (w/ upgraded system)
• ARC
• 1/f noise experiments
• Successor - Zhilong Rao
• Packaging devices / Testing components
• Higher saturation power? (? RF detection?)
• Surface uniformity?, Backscatter?, etc.

17
Future Directions What types of diodes are
needed?

• Quantum Efficiency?
• Damage Threshold?
• Saturation Power?
• RF detection
• AdLIGO laser stabilization
• Electronic Noise?
• DC
• RF? (180 MHz)
• Frequency Response?
• Commercially available?
• Other???

18
XRD Reciprocal Space Map (004)
MM-InGaAs
GaInNAs
19
Surface Roughness
MM-InGaAs RMS 6.2 nm
110
-110
GaInNAs RMS 0.8 nm
20
Optimizing Post-Growth Anneal
21
Scanning PhotoluminescenceIntensity
InGaAs Uniformity 10.8
GaInNAs Uniformity 15.9
22
Scanning PL Intensity Maps
InGaAs
GaInNAs
23
GaInNAs Temp. Dependent PL Localization Energy
24
Deep Level Transient SpectroscopyMajority
Carrier Traps
25
1 ?m GaInNAs Film Transmission
26
2 ?m InGaAs Absorption Spectrum
27
InGaAs vs. GaInNAs Dark I Density
28
Dark and Photocurrent (SNR)
29
Photovoltaic Response
30
C-V Curves
GaInNAs 1/RC ? 7 MHz
InGaAs 1/RC ? 15 MHz
31
LCR Resonant Circuit Modeling
FWHM ? 15 MHz
32
Damage Threshold Tests
