Title: Data mining II The fuzzy way


1

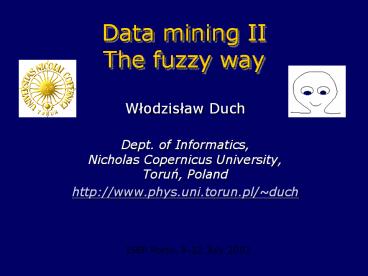

Data mining IIThe fuzzy way
  • Wlodzislaw Duch
  • Dept. of Informatics, Nicholas Copernicus
    University, Torun, Poland
  • http//www.phys.uni.torun.pl/duch

ISEP Porto, 8-12 July 2002
2
Basic ideas
  • Complex problems cannot be analyzed precisely
  • Knowledge of an expert may be approximated
    using imprecise concepts. If the
    weather is nice and the place is attractive
    then not many participants stay at the school.
  • Fuzzy logic/systems include
  • Mathematics of fuzzy sets/systems, fuzzy
    logics.
  • Fuzzy knowledge representation for
    clusterization,
  • Classification and regression.
  • Extraction of fuzzy concepts and rules from
    data.
  • Fuzzy control theory.

3
Types of uncertainty
  • Stochastic uncertainty Rolling dice,
    accident, insurance risk -
    probability theory.
  • Measurement uncertainty About 3 cm
    20 degrees - statistics.
  • Information uncertainty Trustworthy
    client, known constraints - data
    mining.
  • Linguistic uncertainty Small, fast,
    low price fuzzy logic.

4
Crisp sets
young x ? M age(x) ? 20
myoung(x)
1 age(x) ? 20 0 age(x) gt 20
Membership function
  • myoung(x)

Ayoung
1
0
x years
5
Fuzzy sets
  • X - universum, space x ?X
  • A - linguistic variable, concept, fuzzy set.
  • mA a Membership Function (MF), determining
    the degree, to which x belongs to A.

Linguistic variables, concepts sums of fuzzy
sets. Logical predicate functions with continuous
values. Membership value different from
probability. m(bold) 0.8 does not mean bold 1
in 5 cases. Probabilities are normalized to 1, MF
are not. Fuzzy concepts are subjective and
context-dependent.
6
Fuzzy examples
  • Crisp and fuzzy concept young men

Ayoung
Ayoung
1
1
?0.8
0
0
x years
x years
x23
x20
Boiling temperature has value around 100
degrees (pressure, chemistry).
7
Few definitions
  • Support of a fuzzy set A
  • supp(A) x ? X ? A(x) gt 0

Core of a fuzzy set A core(A) x ? X ? A(x)
1
a-cut of a fuzzy set A Aa x ? X ? A(x) gt a

Height max x ? A(x) ? 1 Normal fuzzy set sup
x ? X ? A(x) 1
8
Definitions illustrated
MF
1
.5
a
0
Core
X
Crossover points
a - cut
Support
9
Types of MF
Trapezoid lta,b,c,dgt
Gaus/Bell N(m,s)
?(x)
?(x)
1
1
s
0
0
x
a
b
c
d
x
c
10
MF example
Singleton (a,1) i (b,0.5)
Triangular lta,b,cgt
?(x)
?(x)
1
0
x
a
b
c
11
Linguistic variables
W20 gt Ageyoung. L. variable L. value. L.
variable temperature terms, fuzzy sets
cold, warm, hot
?(x)
?cold
?warm
?hot
1
0
40
20
x C
12
Fuzzy numbers
  • MP are usually convex, with single maximum.
  • MPs for similar numbers overlap.

Numbers core point, ?x ?(x)1 Decrease
monotonically on both sides of the
core. Typically triangular functions (a,b,c) or
singletons.
13
Fuzzy rules
  • Commonsense knowledge may sometimes be captured
    in an natural way using fuzzy rules.

IF L-variable-1 term-1 and L-variable-2
term-2 THEN zm. L-variable-3 term-3
IF Temperature hot and air-condition price
low THEN cooling strong
What does it mean for fuzzy rules IF x is A then
y is B ?
14
Fuzzy implication
  • If gt means correlation T-norma T(A,B) is
    sufficient.
  • AgtB has many realizations.

15
Interpretation of implication
  • If x is A then y is B correlation or implication.

AgtB ? not A or B A entails B
AgtB ? A and B
16
Types of rules
  • FIR, Fuzzy Implication Rules.
  • Logic of implications between fuzzy facts.
  • FMR, Fuzzy Mapping Rules.
  • Functional dependencies, fuzzy graphs,
    approximation problems.
  • Mamdani type IF MFA(x)high then
    MFB(y)medium.
  • Takagi-Sugeno type IF MFA(x)high then yfA(x)

Linear fA(x) first order Sugeno type. FIS,
Fuzzy Inference Systems. Combine rules fuzzy
rules to calculate final decisions.
17
Fuzzy approximation
  • Fuzzy systems F ?n ? ?p use m rules to map
    vector x on the output F(x), vector or scalar.

Singleton modelRi IF x is Ai Then y is bi
18
Rules base
Temperature
freezing cold chilly
Heating
Price cheap so-so expensive
full full medium full medium
weak medium weak no
IF Temperaturefreezing and Heating-pricecheap
THEN heatingfull
19
1. Fuzzification
Fuzzification from measured values to
MF Determine membership degrees for all fuzzy
sets (linguistic variables)
Temperature T15 C Heating-price
p48 Euro/MBtu
?chilly(T)0.5
?cheap(p)0.3
1
1
0.5
0.3
0
0
t
p
15C
48 Euro/MBtu
IF Temperature chilly
and Heating-price cheap...
20
2. Term composition
Calculate the degree of rule fulfillment for all
conditionscombining terms using fuzzy AND, ex.
MIN operator.
?A(X) ?A1(X1) ? ?A2(X2) ? ?AN(XN) for rules
RA ?all(X) min?chilly(t), ?cheap(p)
min0.5,0.3 0.3
21
3. Inference
Calculate the degree of truth of rule conclusion
use T-norms such as MIN or product to combine the
degree of fulfillment of conditions and the MF of
conclusion.
?full(h)
?conclusions(h)
1
Inference MIN ?conclmin?cond, ?full
?cond0.3
...
0
h
THEN Heatingfull
?mocno(h)
?konkl(h)
1
?cond 0.3
...
Inference ?concl. ?cond ?full
0
h
22
4. Aggregation
Aggregate all possible rule conclusion using MAX
operator to calculate the sum.
THEN Heatingfull THEN Heating medium THEN
Heating no
1
0
h
23
5. Defuzzification
Calculate crisp value/decision using for example
the Center of Gravity (COG) method
?concl(h)
COG
1
0
h
73
For discrete sets a center of singletons, for
continuous
mi degree of membership in i Ai area under MF
for the set i ci center of gravity for the set
i.
Si mi Ai ci Si mi Ai
h
24
FIS for heating
Fuzzification
Defuzzification
Inference
Rule base
if tempfreezing then valveopen
?freeze
?cold
?warm
?full
?half
?closed
?freeze0.7
0.7
0.7
if tempcold then valvehalf open
0.2
0.2
?cold 0.2
T
v
Measured temperature
if tempwarm then valveclosed
Output that controls the valve position
?hot 0.0
25
Takagi-Sugeno rules
Mamdani rules conclude that IF X1 A1 i X2
A2 Xn An Then Y B
TS rules conclude some functional dependence
f(xi) IF X1 A1 i X2 A2 . Xn An Then
Yf(x1,x2,..xn)
TS rules are usually based on piecewise linear
functions(equivalent to linear splines
approximation) IF X1 A1 i X2 A2Xn An
Then Ya0 a1x1 anxn
26
Fuzzy system in Matlab
rulelist 1 1 3 1 1 1 2 3
1 1 1 3 2 1 1 2 1 3 1 1
2 2 2 1 1 2 3 1 1 1
3 1 2 1 1 3 2 3 1 1 3 3 3 1
1 fisaddrule(fis,rulelist) showrule(fis) gensu
rf(fis) Surfview(fis)
1. If (temperature is cold) and (oilprice is
normal) then (heating is high) (1) 2. If
(temperature is cold) and (oilprice is expensive)
then (heating is medium) (1) 3. If (temperature
is warm) and (oilprice is cheap) then (heating is
high) (1) 4. If (temperature is warm) and
(oilprice is normal) then (heating is medium) (1)
5. If (temperature is cold) and (oilprice is
cheap) then (heating is high) (1) 6. If
(temperature is warm) and (oilprice is expensive)
then (heating is low) (1) 7. If (temperature is
hot) and (oilprice is cheap) then (heating is
medium) (1) 8. If (temperature is hot) and
(oilprice is normal) then (heating is low) (1)
9. If (temperature is hot) and (oilprice is
expensive) then (heating is low) (1)
first input second input output rule
weight operator (1AND, 2OR)
27
Fuzzy Inference System (FIS)
IF speed is slow then break 2 IF speed is
medium then break 4 speed IF speed is high
then break 8 speed
slow
medium
high
MF(speed)
.8
.3
.1
speed
2
R1 w1 .3 r1 2 R2 w2 .8 r2 42 R3 w3
.1 r3 82
Break S(wiri) / Swi 7.12
28
First-order TS FIS
  • Rules
  • IF X is A1 and Y is B1 then Z p1x q1y r1
  • IF X is A2 and Y is B2 then Z p2x q2y r2
  • Fuzzy inference

A1
B1
z1 p1xq1yr1
w1
X
Y
A2
B2
z2 p2xq2yr2
w2
X
Y
w1z1w2z2
x3
y2
z
P
w1w2
29
Induction of fuzzy rules
  • All this may be presented in form on networks.
  • Choices/adaptive parameters in fuzzy rules
  • The number of rules (nodes).
  • The number of terms for each attribute.
  • Position of the membership function (MF).
  • MF shape for each attribute/term.
  • Type of rules (conclusions).
  • Type of inference and composition operators.
  • Induction algorithms incremental or refinement.
  • Type of learning procedure.

30
Feature space partition
Regular grid
Independent functions
31
MFs on a grid
  • Advantage simplest approach
  • Regular grid divide each dimension in a fixed
    number of MFs and assign an average value from
    all samples that belong to the region.
  • Irregular grid find largest error, divide the
    grid there in two parts adding new MF.
  • Mixed method start from regular grid, adapt
    parameters later.
  • Disadvantages for k dimensions and N MFs in each
    Nk areas are created !Poor quality of
    approximation.

32
Optimized MP
  • Advantages higher accuracy, better
    approximation, less functions, context dependent
    MPs.
  • Optimized MP may come from
  • Neurofuzzy systems equivalent to RBF network
    with Gaussian functions (several proofs). FSM
    models with triangular or trapezoidal functions.
    Modified MLP networks with bicentral functions,
    etc.
  • Decision trees, fuzzy decision trees.
  • Fuzzy machine learning inductive systems.
  • Disadvantages extraction of rules is hard,
    optimized MPs are more difficult to create.

33
Improving sets of rules.
  • How to improve known sets of rules?
  • Use minimization methods to improve parameters of
    fuzzy rules usually non-gradient methods are
    used most often genetic algorithms.
  • change rules into neural network, train the
    network and convert it into rules again.
  • Use heuristic methods for local adaptation of
    parameters of individual rules.
  • Fuzzy logic good for modeling imprecise
    knowledge but ...
  • How do the decision borders of FIS look like? Is
    it worthwhile to make input fuzzy and output
    crisp?
  • Is it the best approximation method?

34
Fuzzy rules and data uncertainty
  • Data has been measured with unknown error. Assume
    Gaussian distribution

x fuzzy number with Gaussian membership
function. A set of logical rules R is used for
fuzzy input vectors Monte Carlo simulations for
arbitrary system gt p(CiX) Analytical evaluation
p(CX) is based on cumulant
Error function is identical to logistic f. lt 0.02
35
Fuzzification of crisp rules
  • Rule Ra(x) xgta is fulfilled by Gx with
    probability

Error function is approximated by logistic
function assuming error distribution s(x)(1-
s(x)), for s21.7 approximates Gauss lt 3.5
Rule Rab(x) bgt x gta is fulfilled by Gx with
probability
36
Soft trapezoids and NN
The difference between two sigmoids makes a soft
trapezoidal membership functions.
Conclusion fuzzy logic with s(x) - s(x-b) m.f.
is equivalent to crisp logic Gaussian
uncertainty. Gaussian classifiers (RBF) are
equivalent to fuzzy systems with Gaussian
membership functions.
37
Optimization of rules
  • Fuzzy large receptive fields, rough estimations.
  • Gx uncertainty of inputs, small receptive
    fields.

Minimization of the number of errors difficult,
non-gradient, but now Monte Carlo or analytical
p(CXM).
  • Gradient optimization works for large number of
    parameters.
  • Parameters sx are known for some features, use
    them as optimization parameters for others!
  • Probabilities instead of 0/1 rule outcomes.
  • Vectors that were not classified by crisp rules
    have now non-zero probabilities.

38
Summary
  • Fuzzy sets/logic is a useful form of knowledge
    representation, allowing for approximate but
    natural expression of some types of knowledge.
  • An alternative way is to include uncertainty of
    input data while using crisp logic rules.
  • Adaptation of fuzzy rule parameters leads to
    neurofuzzy systems the simplest are the RBF
    networks and Separable Function Networks (SFN),
    equivalent to any fuzzy inference systems.
  • Results may sometimes be better than with other
    systems since it is easier to include a priori
    knowledge in fuzzy systems.

39
Disclaimer
  • A few slides/figures were taken from various
    presentations found in the Internet
    unfortunately I cannot identify original authors
    at the moment, since these slides went through
    different iterations one source seems to be
    J.-S. Roger Jang from NTHU, Taiwan.
  • I have to apologize for that.
Write a Comment
User Comments (0)
About PowerShow.com
