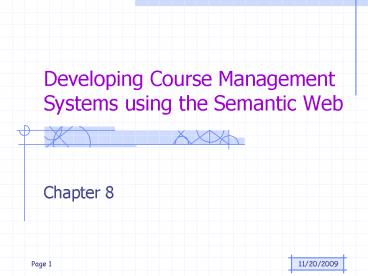

Title: Developing Course Management Systems using the Semantic Web


1
Developing Course Management Systems using the
Semantic Web
  • Chapter 8

2
Evolution of Internet Computing
scale
Parallel HPC
Semantic discovery
??????
Automate (discovery)
Discover (intelligence)
Transact
Integrate
Interact
Inform
Publish
time
3
Next generation web (Web 2.0)
4
Introduction
  • Next generation web (Web 2.0) will be based on
    the semantic web
  • Success of the web 2.0 vision is dependent on
    development of practical and useful semantic
    web-based applications.
  • Semantic web
  • We have
  • Semantic technologies (OWL, RDF, SPARQL, RDQL)
  • Language to represent knowledge
  • Language to query knowledge bases
  • Language to describe business rules
  • We need application models and applications in
    commercial settings

5
Topics for discussion
  • Course management system based on semantic web
    S-CMS
  • Well known CMSs is Blackboard.com (ublearns) and
    WebCT.com
  • S-CMS provides
  • Information and solution management for students
    and faculty
  • Automate different procedures such enroll or
    register for classes

6
S-CMS Architecture
7
S-CMS Architecture
Instance layer
8
S-CMS Architecture
Instance layer
9
S-CMS Architecture
Application layer
Instance layer
10
S-CMS Architecture
Admin
Application layer
Instance layer
11
S-CMS Architectural layers
  • Seven distinct layers Source, connection,
    instance, query, inference, application,
    presentation

12
The Source Layer
  • Responsibility Data and information needed for
    course management
  • Data stored in RDBMS
  • Faculty, courses, students, degrees, enrollment
    relations, personal information about students
    and teachers.
  • Draw a relational model to represent details of
    this layer.

13
The Source Layer (contd.)
  • HTML data An Eclipse plug-in was built to handle
    all the information available on a web page in
    HTML format (Suggestion request sites to provide
    RSS feeds)
  • Databases many university-wide databases
  • Data integration directly into the application
    (this is expensive time and skill-wise, not
    extensible, fragile, new sources means new code)
  • Semantic layer use of semantics and ontologies
    makes the integration process automatic
  • Scale of the project This particular case study
    used 200 tables and 600 views and the number of
    students in the range of 13000.

14
The Connection layer
  • Responsibility connecting to various data source
    using a variety of protocols
  • SQL connectors, XML connectors, Web connectors
  • In other applications
  • Web services enabled data (SOAP/REST over HTTP)
  • RSS feed (XML over http)
  • Pure text
  • Legacy databases
  • Pure HTML from public sites

15
The Connection Layer (Contd.)
  • Maintains a pools of connections to several data
    sources
  • Connections to relations data sources and HTML
    web sites(!) HTML Eclipse plugin was developed.
  • public class CMSServerImpl extends
    UnicastRemoteObject implements CMSServer
  • ..// a method in this class
  • URL url new URL(
  • "http//www.buffalo.edu/etc.html" )
  • Reader in new Reader(
  • new InputStreamReader(
    url.openStream() ) )
  • inputLine in.readLine()
  • // parse and extract data from this inputLine and
    loop

16
The Connection Layer (contd.)
  • Major difficulty Obtain a copy of the University
    database with real data from the administration.
  • This needs authorization that takes about 3
    months.
  • Database with sensitive fields (PIN and phone
    numbers) were blacked out. Had to work with
    pseudo data.

17
The Instance Layer
  • Responsibility for managing semantic web
    information such as ontologies describing
    university domain information such as course,
    students, projects and teachers.
  • It is also in charge of transformation of
    relational data into ontological instances.
  • This layer creates knowledge-base that will be
    used by the upper layers.

18
The Instance Layer
  • Major challenge need to query across multiple
    heterogeneous, autonomous and distributed (HAD)
    university data produced by multiple
    organizational units.
  • Different types of data, varying formats,
    different meanings, referenced using different
    names? integration challenges
  • Four types of heterogeneity were identified

19
Heterogeneities Identified
  • System heterogeneity Application reside on
    different hardware and operating system platforms
  • Syntactic heterogeneity Information sources use
    different representations and encodings
  • Structural heterogeneity Different document
    layouts, formats, and schema.
  • Semantic heterogeneity intended meanings are
    different
  • Solution for seamless integration use of
    semantic integration
  • Global scheme was used to address structural and
    syntactic heterogeneity.
  • Ontologies was used to overcome semantic
    heterogeneity
  • Ontologies can be used in communication between
    humans, among software systems, and to improve
    design and quality of the software systems.

20
Ontology Creation
  • OWL was the chosen language
  • The development of an ontology-driven application
    starts with creation of an ontology schema
  • The ontology schemas in this application contain
    the definition of various classes, attributes and
    relationships
  • Protégé was selected as ontology editor

21
Ontology creation (contd.)
  • OWL documents University Resource Descriptor
    (RUD) and Student University Descriptor (SUD)
  • Inference over OWL documents needed to answer
    questions such as
  • Who are the teachers and students?
  • What courses are offered by a department?
  • Which courses are assigned for a specific
    teacher?
  • For which courses a student is enrolled?
  • Which projects are assigned to a course?
  • What are the students grades in a course?

22
RUD University Resource Descriptor ontology
  • All the information mentioned earlier is
    represented in OWL.
  • It has also has hundreds of relationships between
    concepts.
  • Relationships will be used in inference layer to
    infer new knowledge.

23
SUD Student University Descriptor Ontology
  • SUD is a resource that describes a university
    student.
  • Each student has SUD.
  • Name, id, courses taken, degree, telephone
    number, age, etc.
  • SUD is described using OWL as shown in the next
    slide

24
SUD OWL definition
ltowlClass rdfIDStudentgt
ltrdfssubClassOfgt ltowlRestrictiongt
ltowlcardinality rdfdatatypehttp//www
.w3.org/2001/XMLSchemaintgt1
lt/owlcardinalitygt
ltowlonPropertygt
ltowlDatatypeProperty refIDAverageScore/gt
lt/owlonPropertygt
lt/owlRestrictiongt
25
Ontology Population
ltstudent rdfIDLeeHall11204199gt () ltStudentID
rdfdatatype http//www.w3.org/2001/XMLSchemanon
NegativeIntegergt2041999 lt/StudentIDgt ltStudentNamegt
Lee Halllt/StudentNamegt ltDegreegtComputer
Sciencelt/Degreegt ltStudentEmailgtlhall_at_mail.edult/Stu
dentEmailgt ltStudiesgt ltSubject
rdfIDService_Oriented_Systemsgt
ltSubjectNamegtService Oriented Systemslt/SubjectName
gt (...) lt/Subjectgt lt/Studiesgt () lt/Studentgt
This is a SUD instance. RUD and SUD instances are
automatically created. The book list a list of
difficulty they faced when creating this ontology.
26
The Query Layer
  • Responsibility allow querying of the
    knowledge-base
  • Query layer provides an interface to the
    knowledge-base formed by all the SUD and RUD
    ontology instances that were automatically
    generated.
  • This interface understands four languages
  • RDF query language (RQL)
  • RDF data query language (RDQL)
  • Buchingae
  • SPARQL

27
Sample queries (RDQL Buchingae)
  • Buchingae is a simple web-oriented rule language.
    By "web-oriented", we mean that you can directly
    refer to URI resources such as web ontology
    elements or RDF resources when writing rules.
    Buchingae is a language appropriate for
    specifying production rules.
  • RDQL is a query language that treats RDF as pure
    data.

28
Sample queries (contd.)
SELECT ?X, ?C, ?Z WHERE (?X lthttp//apus.uma.pt/
RUD.owlHasGPAgt ?Y), (?X lthttp//apus.uma.pt/RUD
.owlStudiesgt ?C) (?Y lthttp//apus.uma.pt/RUD.ow
lValuegt ?Z) and Zgt3.0 // this a RDQL query for
selecting all student with GPAgt3.0
Query qu is pStudies(?st, ?course) and
pTeaches(?prof, ?course) Can you guess what
this query does?
These queries are NOT meant to be designed by end
users of the system. Sys admin creates a set of
queries and makes them available thru
user-friendly Interface.
29
The Inference Layer
  • Responsibility allows carrying out inference
    using semantic rules on the knowledge-base.
  • For example Infer if the changes in the program
    was effective. (Of course, effectiveness should
    have been defined using the rules.)

30
The Inference Layer (contd.)
  • A rule management system was implemented to
    extract and isolate course management logic from
    procedural code.
  • Since rules for enrollment may change often, it
    is not a good practice to embed this in the
    source code.
  • This option of detaching enrollment rules from
    application logic gives administrators an
    effective way to create rule base and to change
    the rules.

31
The Inference Layer (contd.)
  • The rules are defined using SWRL (Semantic Web
    Rule Language)
  • They correspond to axioms about classes or the
    instances stored in the ontology warehouse
    (knowledge-base).
  • By applying rules we can infer new facts.

32
SWRL query sample
rulebase rb01 (.) rule R01 is if
classTaken (?x, RUDCS6100) and
classTaken (?x, RUDCS6550) then
eligible (?x, RUDCS8050)
33
The Application layer
  • Responsibility Interface to the Teachers and
    Students
  • Teachers can create projects associated with the
    course, and define semantic rules for enrollment
    (say, prerequisites).
  • Students can interact with the courses and
    projects.

34
Application layer (contd.)
  • The whole project was implement using Eclipse IDE
    (can be easily done using Netbeans IDE)
  • S-CMS Manager This is used by teacher, for
    viewing courses, adding rules related to the
    courses, add project and rules related to
    projects, etc.
  • Dynamic Web enrollment This is for students to
    enroll in courses.
  • Report Generator for teachers to list a class or
    grades etc.
  • Grading ontology and its plug-in Grading feature
    is a plug-in that allows a teacher to define
    grading policy.

35
Evaluation
  • S-CMS was benchmarked in an university
    environment for a specific department.
  • Server with SQL 2000 and a client machine running
    S-CMS.
  • Intel P4, 3.0Ghz, 512MB, 40Gb disks, MS
    windowsXP, connectivity 100Mb Lan
  • 13000 ontological instances
  • Scaled well for the student population
  • Start up loading of data took about 7 min 32 sec

36
Summary
  • Development of semantic web has the potential to
    revolutionize the WWW
  • S-CMS discussed was fully based semantic
    technologies.
  • Easily adaptable and extensible
  • Wave of the future, if not the current trend.
Write a Comment
User Comments (0)
About PowerShow.com
