ClientServer Systems

1

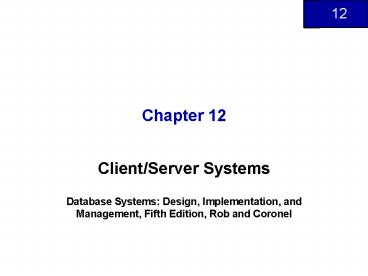

Chapter 12

• Client/Server Systems
• Database Systems Design, Implementation, and
  Management, Fifth Edition, Rob and Coronel

2
In this chapter, you will learn

• What client/server computing is
• What the advantages of using client/server
  systems are
• How client/server systems evolved
• About client/server systems components and how
  they interact
• What effect the client/server system has on the
  DBMS
• How client/server systems might be introduced
  into an organization
• What factors affect the implementation of
  client/server systems

3
Client/Server Computing

• Computing model for the development of
  computerized systems
• Client requests specific service
• Server provides requested service
• Reside on same or different computers

Figure 12.1
4
Client/Server Computing (cont.)

• Key to client server power is where request
  processing takes place
• Extent of sharing processing
• Thin client
• Thin server
• Fat client
• Fat server
• Classification
• 2-tier
• 3-tier

5
Forces that Drive Client/Server Trend

• Changing business environment
• Growing need for enterprise data access
• Demand for end-user productivity gains based on
  efficient use of data
• Technological advances
• Growing cost/performance advantages

6
Evolution of Computing Environment
Figure 12.2
7
Mainframe vs. Client/Server Systems
Table 12.1
8
Managerial Expectations of Client/Server Systems

• Client/Server efficiency functions
• Platform independent development
• Optimized distribution of processing activities
  among different platforms
• User friendly and cost effective techniques,
  methodologies, and specialized tools
• Observations
• Tool, not end goal
• Not answer to all data management problems
• Has own set of management problems

9
MIS Expectations of Client/Server Benefits

• Reduced development and implementation costs
• Reduced development time and increased programmer
  productivity
• Extended system life cycle through scalability
  and portability
• Reduced system operational cost
• Change of MIS function from development to
  end-user support
• Enhanced information deployment

10
Organizational Expectations of Client/Server
Benefits

• Flexibility and adaptability
• Improved employee productivity
• Improved company work flow and way to reengineer
  business operations
• New opportunities for competitive advantages
• Increased customer service satisfaction

11
Components of Client/Server Architecture

• Client
• Front-end application
• Server
• Back-end application
• Communications middleware
• Communications layer

Figure 12.3
12
Example Client/Server Architecture
Figure 12.4
13
Client/Server Principles

• Hardware independence
• Software independence
• Operating systems
• Network systems
• Applications
• Open access to services
• Process distribution
• Process autonomy
• Maximization of local resources
• Scalability and flexibility
• Interoperability and integration
• Standards

14
Server Components

• File services
• Print services
• Fax services
• Communications services
• Database services
• Transaction services
• Miscellaneous services

15
Server Components
Figure 12.6
16
Typical Characteristics of Server Hardware

• Fast CPU
• Fault-tolerant capabilities
• Dual power
• Standby power
• Error checking and correcting memory
• RAID
• Expandability of CPU, memory, disk, and
  peripherals
• Bus support for multiple add-on boards
• Multiple communications options

17
Server Process Benefits

• Location independence
• Resource optimization
• Scalability
• Interoperability and integration

18
Database Middleware

• Network independence
• Front-end application accesses data without
  regard to network protocols
• Database server independence
• Generic SQL to access different database servers
• Isolates programmer from SQL dialect differences

19
Communications Middleware

• Two levels
• Physical level
• Client and server computers
• Logical level
• Client and server processes
• Interprocess communication (ICP) protocols

20
OSI Network Reference Model
Table 12.2
21
Information Flow through OSI Model
Figure 12.7
22
Transport Process ID
Figure 12.8
23
Network Protocols

• Transmission Control Protocol/Internet Protocol
  (TCP/IP)
• Internetwork Packet Exchange/ Sequenced Packet
  Exchange (IPX/SPX)
• Network Basic Input Output System (NetBIOS)
• Application Program to Program Communications
  (APPC)

24
Database Middleware Components
Figure 12.9
25
Interactions between Middleware Components
Figure 12.10
26
Middleware Accessing Multiple Database Servers
Figure 12.11
27
Middleware Accessing Mainframe Databases
Figure 12.12
28
Middleware Classifications

• Messaging-oriented middleware (MOM)
• Remote-procedure-call-based (RPC-based) middle
  ware
• Object-based middleware

29
Competing Standards

• Client operating systems
• Microsoft Windows
• OS/2, Apple Mac OS, Unix, Linux
• Client graphical user interfaces
• Microsoft Windows
• OS/2 Presentation Manager, Macintosh, UNIX
• Server operating systems and network protocols
• Database servers Unix, OS/2, Windows NT
  Server/2000 Server
• Printer and file servers Novell Netware
• LAN protocols TCP/IP, IPX/SPX, NetBIOS
• Middleware
• ODBC, IDAPI, DRDA, QE

30
Client/Server DBMS Functions

• Transparent data access to multiple,
  heterogeneous clients
• Allow client requests to the database server over
  network
• Process client data requests at local server
• Send only SQL results to clients over network

31
Application Logic Components
Figure 12.14
32
Client/Server Architectural Styles

• Two Key Questions
• How is the division made?
• Where should the results of division be placed?
• Five Functional Logic Components
• Presentation logic
• I/O processing logic
• Application of business logic
• Data management logic
• Data manipulation logic

33
Application Functional Components
Figure 12.15
34
Functional Logic Splitting
Figure 12.16
35
Client/Server versus Traditional DP

• Proprietary to open systems
• Maintenance-oriented coding to analysis, design,
  and service
• Data collection to data deployment
• Centralized to distributed style
• Vertical, inflexible to horizontal, flexible
  organizational style
• Differences in IS components

36
Client/Server Implementation Issues

• Management Issues
• Communications infrastructure
• Applications
• Controlling escalating and hidden costs
• People and cultural changes
• Multiple vendor relationships
• Development tool acquisition
• Determination if client/server approach is
  correct
