Title: NanoTest impact module


1
Impact

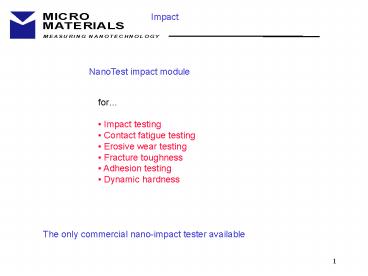

NanoTest impact module
  • for
  • Impact testing
  • Contact fatigue testing
  • Erosive wear testing
  • Fracture toughness
  • Adhesion testing
  • Dynamic hardness

The only commercial nano-impact tester available
2
Bringing nanomechanical measurements into the
real-world
Importance of Nano-impact testing
Quasi-static tests are very useful Nanoindentatio
n mechanical properties (hardness,
modulus, creep) Nanoscratch tribological
properties (abrasive and sliding wear)
The need for dynamic testing Materials often
fail by fatigue not overload so optimisation
based on nanoindentation/scratch can be
insufficient for applications where materials are
exposed in service and/or in processing to
fatigue wear or erosive wear (impact wear)
Dynamic nanomechanical tests (nano-impact and
contact fatigue) have been developed by Micro
Materials to address this problem
The solution
3
Impact
Nano-impact testing - simulating fatigue wear and
failure
2 different methods
Sample oscillation
  • Accurately controlled impacts
  • Known energy to failure
  • Wear mechanisms
  • High frequency oscillation
  • High cycle fatigue

4
Impact by sample oscillation Operating principles
Impact testing - simulating fatigue wear and
failure
Test parameters
Key features
  • Applied Load
  • Oscillation frequency
  • Oscillation Amplitude
  • Sample scanning
  • Probe geometry
  • Impact Angle
  • High frequency oscillation
  • High cycle fatigue
  • Time-to-failure
  • Adhesion failure
  • Fracture Behaviour

5
Impact by sample oscillation
Impact Testing of a brittle TiN coating on Si
  • 100 mN applied load is
  • on throughout test
  • 80 Hz oscillation frequency
  • Oscillation on 30 s after start
  • Oscillation off 30 s before end
  • Film failure after 250 s
  • For bulk materials wear rates are determined
    from changes in probe depth
  • For coatings, time-to-failure is related to the
    bonding strength to the substrate

SEM of test stopped just after
transition Impact-induced coating damage - ring
cracks spread outwards until failure
CRAFT Project BRST-CT97-5196 Impact
characterisation of single and duplex surface
engineered steels
6
Contact fatigue testing of thick ceramic glazes
Collaboration with Ito Tecnologia Cerámica,
Castellon, Spain
80 Hz oscillation frequency 1 N applied load

...clear differences in time-to-failure and
overall depth changes...
7
Contact fatigue testing of thick ceramic glazes
Effect of microstructure on impact performance
Glaze coating B
Glaze coating C
small needle-like crystals aid impact resistance
larger rounded crystals do not help impact
resistance
8
Contact fatigue of ceramic coatings comparison
to other testing techniques
  • Hardness and Youngs modulus did not vary
  • Scratch testing frustrated by high surface
    roughness
  • Correlation with fracture toughness data
  • Impact resistant samples had high fracture
    toughness
  • Time-to-failure
  • Change in Probe Depth

measures of resistance to brittle fracture
Micro-impact testing a new technique for
investigating fracture toughness BD Beake (MML),
Maria Jesus Ibanez Garcia (ITC Spain) and JF
Smith (MML), Thin Solid Films 398-399 (2001)
438-443.
9
Pendulum impulse Operating principles
  • Unique points
  • Quantification of adhesion energy
  • Determination of total energy delivered
  • to contact point
  • Dynamic hardness measurement

Static Force Impact Angle Acceleration
distance Impact Frequency Test probe geometry
Experimental variables include
10
Impact by sample oscillation
Impact-induced fatigue failure of Polymeric
Coating on soft Al substrate
Fatigue-induced surface damage Contact changes
from impact (essentially non-energy absorbing) to
contact fatigue (energy absorbing) on film failure
  • Time-to-failure
  • Rapid high-cycle fatigue tests

11
Ceramics and glasses brittle behaviour
Fracture and fatigue wear by Nano-impact testing
Unimplanted SiO2
1 x 1016 N cm-2 implanted SiO2
1 impact every 4 s in these tests
Damage regimes in the impact test 1 before
impact 2 plastic deformation 3 slow crack
growth (fatigue) 4 abrupt failure and material
removal 5 further slow crack growth
  • Fatigue resistance from
  • time-to-failure
  • Ion-implantation
  • improves toughness

BD Beake (MML), J Lu, Q Xue, J E and T Xu, (all
Lanzhou Institute of Chemical Physics) Proc FMC8
2003
12
Impact
Nano-impact testing reveals fatigue differences
on coatings of the same hardness
DLC coating on tool steel
Carbon coating on tool steel
Coating failure
Multiple coating failures
  • depth vs. time impact plot for multilayered
    carbon coating at 1mN
  • long time to failure
  • depth vs. time impact plot for multilayered DLC
    coating at 1mN
  • note short time-to-failure

13
Impact failure of 550 nm DLC film on Silicon
Coating debonding - adhesion failure Abrupt depth
change at failure gt film thickness
CVD Coating Deposition RF Power
  • Nano-impact shows how deposition conditions
  • influence coating performance
  • Time-to-failure
  • Failure mechanism

Coating fracture cohesive failure Depth change
at failure less than film thickness
BD Beake et al, Diamond and Related Materials,
11, 1606, 2002
14
Impact failure of 100 nm DLC films on Silicon
1 initial contact 2 plastic deformation 3
fatigue (slow crack growth) 4 fast crack
propagation and material removal 5 further slow
crack growth
  • Scratch test showed little difference in
    critical load
  • Impact test shows clear difference in behaviour

15
Fatigue and Fracture Wear of ta-C films
80 nm on Si
80 nm on Si
60 nm on Si
5 nm on Si
Damage mechanism in the impact test before
impact - plastic deformation - slow crack growth
(fatigue) - abrupt failure and material removal -
further slow crack growth
  • time-to-first-failure to rank impact resistance
  • some plastic deformation of the substrate does
    occur (depth at failure)

16
Fatigue and Fracture Wear of ta-C films
Procedure developed for analysing fracture
behaviour
  • Sort initial time to failure in individual tests
    into ascending order
  • Plot time to failure vs. probability of the
    sample failing in that time
  • Use time for failure probability of 0.5 to rank
    impact resistance

Probability of fracture within 300 s 0.9
A key advantage of nano-scale impact is
the possibility of repeat testing at different
locations
Probability of fracture 0.5 at 75 s
17
Nano-impact mapping of biomaterials
Grids of impacts to determine differences in
toughness/ductility
  • Nano-scale ductility of crab shell varies
    across the shell
  • Finer mesh sizes can be used to investigate
    this behaviour at much smaller scale
  • Initial results suggest test can be used to
    identify osteopaenia (2-5 times greater risk of
    osteoporosis in later life)

Collaboration in progress with Universities of
Limerick and Lancaster
Collaboration in progress with University of
Maryland
