mCAP

1

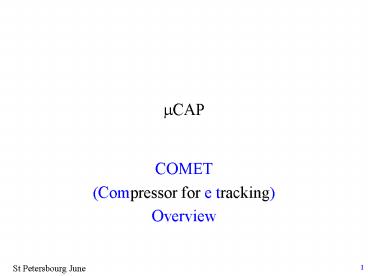

mCAP

• COMET
• (Compressor for e tracking)
• Overview

2
Data connections
ePC2 Anodes 1024 Cathodes 2 x 320
ePC1 Anodes 512 Cathodes 2 x 192
Bundles of 20 twisted pairs 16 wires
threshold power
Bundles of 20 twisted pairs 16 wires
threshold power
Cathodes 64 wires x 6
Anodes 64 wires x 8
Cathodes 64 wires x 10
Anodes 64 wires x 16
Controller
Controller
2xSIS3600
7 modules housing 128 wires each 56 bundles of
16 wires
13 modules housing 128 wires each 104 bundles
of 16 wires
2x16 twisted pairs 1x10 twisted pairs
2x16 twisted pairs 32 bits data words 1x10
twisted pairs commands
3
Onecompressormodule
Pulser board
4
Thecontrollermodule
5
Pulser
Normalized puls of variable width
The four preamplifiers connected to one FPGA are
flashing together
On pin 39 750 mV (cmd 70) Linear up to 1V, then
saturates Rise time 100 ns Noise Fall time (t1/2) 1500 ns
Cathode pulse positive polarity
jumper on () Anode pulse negative
polarity jumper on (-)
6
Data maximum flows, input impedances
Clock 50MHz
LVDS Twisted pairs 110 ohms Logic pulses Width
25 ns
LVDS
Each SIS3600 has Max rate 20 Mo/s FIFO 32
Kwords of 32 bits Full in 6.4 ms Data strobe
period 200 ns
Controller
Controller
26 FPGAs rate rate FIFO 512 words of 32 bits
ECL
ECL Twisted pairs 100 ohms Data width 200
ns Strobe width 65 ns
7
Block diagram inside one FPGA
32 bit words
Time A word B word
baff ffff date date date date date date bits
bits bits bits bits bits bits bits bits
bits bits bits bits bits bits bits
30 ns
Time counter
Clk2 100Mhz
Time_max 22430 ns503 ms
Edge detection
MUX
DataA (input 0/32)
32 Abits builder
32 bits sequence builder
FIFO 512 k 32b words
Pattern generator
Test
Edge detection
MUX
DataA (input 1/32)
Tokin
Readout sequence 200 ns period
Mask
Inhibit
Tokout
32 Bbits builder
Data_out
Command for modes
8
Data transfer to the SIS3600 FIFO
Inspection time for one turn DT (2.7
FPGA_Nbr NbrOfDataWords x 0.2 ) x 10-6 s
65 ns
Next
Data
200 ns
Data rate at which one FPGA_FIFO gets full
rate 512 / DT
Rate 512 / (2.7 n 5120.2) 4.6 MHz data
for one wire
for one wire
9
Inhibit and Time_clears
Generates several interrupts and several TCL -
Overlap of data over blocks - TCl within a
block . The the time clears are real and
connected to new started blocks
Never a problem but dead time waiting the end of
the 400 ms period.
Problem to be taken very seriously
10
Conclusion
The problems were Mismatch in resistor chain
command ? bad input impedance for LVDS lines
and crosstalk between inputs - cured by
replacing all resistors at the input Spurious
bad events loss of data correct sequence
? baldly interpreted as time clears
-cured by discovering that the length of the
command cable played a role in the input
impedance of the SIS3600 (100 ohm in series)
but also 2K resistors in parallel. - cured
by removing the 2K resistors for the data and
for the NEXT signal (! The SIS manual is
wrong) - cured by recomputing the resistors in
the ECL output driver Discovering of real time
clears ? due to the external end and
start of bocks - to be studied in the
ultimate DAQ. COMET works fine and fast we
need to be careful with the external logic.
11
(No Transcript)
12
Data flow and rate reductions
5 MHz
Start TDC, ref. time, clocks, from master module
p4
50 MHz
Read and refresh rate 200 Hz
1 kHz
Evt rate 10 kHz
Units
Acq. rate
Bits/evt Buffer size
Channels
Data
Muon channels anodes mPC1 50 anodes mPC2
54 anodes TPC 74 3 thres. cathodes TPC 37
2 thres.
10 TDC400 out data 48 bits time 16
bits
641040
10k64400 32 MB/s
400
1.536MB
Tmax 13.1 ms
VME bus
mSC anode 1 mSC_A anode 1
2
432 20 Compressors out data 32 bits
timecode 32 bits
I.R.
ePC1 ePC2 channels anodes 1536 cathodes
1024
40kB
2560 20128
Tmax 419 ms
eSC1 anodes 32 eSC2 anodes 32
10k532 200 kB/s
532
1 TDC V767
64
128kB
Tmax 1.7 ms
13
ePC 128 channel compressor unit, dead-time free
20 ns 50 Mhz clk input
Logic
Div 1/5
A
Time counter
Data
Z-1
FIFO
B
Time code 32 bits A 32 bits B Time code 32
bits D Time code 32 bits C Time code 32 bits
A ...... ......
Bits Time 22 bits 419 ms Code unit nbr
( 5 bits) connectors (4
bits) Unused 1 bit Data 32 Buffer size
512 words Evt nbr (3w) 170 Filling time
17 ms at 10 kHz
Z-1
C
Z-1
Circular check of the content and emptying
commands
A
To VME I.R. buffer
14
19 inch ePC full compressor
Clk
ePC 128 ch compressor
Control bus
ePC 128 ch compressor
MASTER MODULE
5 MHz
Div 1/10
ePC 128 ch compressor
Circular checker of the 20 buffer status in ePC
compressors and readout controller
1 kHz
Div 1/50000
Clk 50 MHz
20 units
VME bus
extra VME CRATE
VME I.R. SIS3600 32 bits input FIFO 128
kB Speed 20 MB/s
Data bus
ePC 128 ch compressor
15
Option 1 compressor without VME protocol
Clk
P1
Tranceiver
Reset
Ovfl
Tranceiver
FIFO
Data
EPF 10K50
VME BUS
Tranceiver
Strobe
Token in
P2
Tranceiver
Token out
JTAG
Cost EPF 10K50 -1 250
PCB 100
Tranceivers drivers 50 Mechanics
conn. 150 TOTAL (tax free)
550
20 spare tax 14000
16
Option 1 master board, no VME protocol
5 MHz output
Div 1/10
1 kHz output
Div 1/50000
Clk 50 MHz
Clk
Ext clk input Reset
Reset
P1
Ovfl
Strobe
VME BUS
32 bits output to Input Register max rate 20 MB/s
Data
Tranceiver
Return token
P2
Start token
Micro Processor
On/off
Init
Loading flash memory
JTAG
Flash memory
Cost Processor 50
PCB 800
Tranceivers drivers 50
Mechanics conn. 150 TOTAL (tax free)
1050
tax 1300
17
Option 2 compressor with a VME protocol
Clk
Reset
P1
EPF 10K30
Tranceiver
FIFO
Tranceiver
Data
VME BUS
Tranceiver
P2
Tranceiver
FPGA for VME protocol
JTAG
Cost EPF 10K50 -1 250
FIFO 2k 32 bits 63 EPF
10K30 -1 70 PCB
100 Tranceivers
drivers 50 Mechanics conn.
150 TOTAL (tax free) 683

• More general BUT
• much more man work
• more complex in data acquisition
• 20 times more interrupts
• multiple data flow in Ethernet

20 spare tax 18000
18
Sequences in the edge detection
20 ns
20 ns
1 2 3 4 5
6 7 8
Time
1 2 3 4
5 6 7 OR
0 0 0 not3 and20 0 0
0 0 0 1 0 0 not3
and20 0 0 0 0 0 1
1 0 not3 and21 0 0 0
0 1 1 1 1 not3 and20
1 0 0 0 1 1 1
1 not3 and20 0 1 0 0
1 1 1 1 not3 and20 0
0 1 0 1 0 1 1 not3
and20 0 0 0 1 1 1
0 1 not3 and20 0 0 0
0 0 0 1 0 not3 and21
0 0 0 0 1 0 0
0 not3 and20 1 0 0 0
1
Cells
1 2 34 5 6 7 8 9 10
Time
19
COMET block drawing
20
Compressor Layout
Ch0
Ch0
P1
A
FPGA
B

-

-
Ch1
Ch1
P2
FPGA
Side view
Front view
21
Controller Layout
P1
CPU
FPGA
Ext Int
P2

-

-
Side view
Front view
22
(No Transcript)
23
Onecompressormodule
A0
A1
B0
B1
A0
A1
B0
B1
24
Pulser
