Trigger Framework Tutorial

1
Trigger Framework Tutorial

• Dan Edmunds
• Michigan State University
• 14-Apr-2009

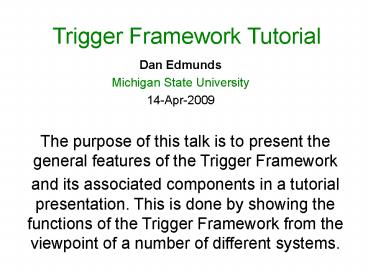

The purpose of this talk is to present the
general features of the Trigger Framework and
its associated components in a tutorial
presentation. This is done by showing the
functions of the Trigger Framework from the
viewpoint of a number of different systems.
2
TFW Tutorial Outline

• DAQ Context and Beam Structure in Run II
• Current Run II Beam Structure and Slang Terms
• DAQ System Buffering
• Scope of the System, Physical Location, Hardware
  Implementation
• Location in MCH
• Basic Cards in the Trigger Framework
• Level 1 Functions of the Trigger Framework
• Location of the Trigger Framework in making the
  Level 1 Trigger Decision
• Simplified block diagram of the Trigger Framework
  L1 Decision logic
• Level 2 Functions of the Trigger Framework
• Information to and from the L2 Global Stage
• Simplified view of issuing the L2 Trigger
  Decisions
• Routing Master Function of the Trigger Framework
• Trigger Framework Information to the Routing
  Master

3
TFW Tutorial Outline (continued)

• Readout to Level 3 Function of the Trigger
  Framework
• Trigger Framework Readout to a standard VRB crate
• Block Diagram of a standard VRB crate.
• Trigger Control Computer Connections to the
  Trigger Framework
• Block Diagram of the Trigger Control Computer
  Connections to the Trigger Framework
• Function of and data carried on these connections
• Example of Commands from COOR
• Scalers and Monitoring Functions of the Trigger
  Framework
• Sources of Monitoring Information
• Trigger Monitoring and Luminosity Monitoring
• Trigger Operation Monitoring vs Physics Analysis
  Monitoring
• Content of the Monitoring Information
• Initialize and Cold Start of the Trigger
  Framework
• What happens at Trigger Framework Initialize
• Cold Start of the Trigger Framework and
  associated hardware

4
TFW Tutorial Outline (continued)

• The following web pages and references give more
  information about the D-Zero Run II Trigger
  Framework.
• http//www.pa.msu.edu/hep/d0/l1/framework/tfw_tuto
  rial_march_2003.html
• http//www.pa.msu.edu/hep/d0/l1/framework/tfw_tuto
  rial_april_2009.ppt
• http//www.pa.msu.edu/hep/d0/l1/framework/tfw_tuto
  rial_april_2009.pdf
• Article title The D0 Level 1 Trigger System
• Reference NIMA48840
• Journal title Nuclear Inst. and Methods in
  Physics Research, A
• DOI information 10.1016/j.nima.2008.08.036
• Available online at
• http//dx.doi.org/10.1016/j.nima.2008.
  08.036

5
(No Transcript)
6
(No Transcript)
7
Buffering in the DAQ system
8
(No Transcript)
9
L1 Trig Framework Principal Functions
10
TFW and TFW TCC
11
Location of the TFW racks in MCH-1
12
TFW racks in MCH-1
13
a card from the TFW
14
(No Transcript)
15
(No Transcript)
16
One L1 Trigger Decision Logic
17
(No Transcript)
18
Geographic Sections
19
(No Transcript)
20
(No Transcript)
21
SCL Hub End
22
(No Transcript)
23
(No Transcript)
24
TFW TCC Connections (TRICS)
25
(No Transcript)
26
(No Transcript)
27
(No Transcript)
28
(No Transcript)
29
Power Up Instructions on the Web
30
Power Up Instructions (cont)
