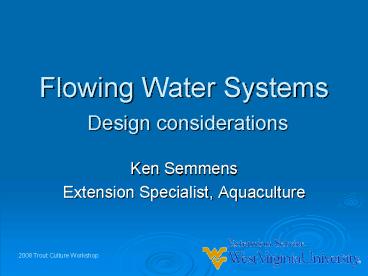

Flowing Water Systems Design considerations

• Ken Semmens
• Extension Specialist, Aquaculture

2008 Trout Culture Workshop
2
Flowing Water Systems

• Layout
• Materials
• Components
• Types of flowing water systems

3

• Schematics of circulating ponds used in
  aquaculture (Klontz).

4

• Schematics of circulating ponds used in
  aquaculture (Klontz).

5
Schematic of the Kingfisher D-end Circulating
Pond (from Klontz)
6
(No Transcript)
7
Types of Flowing Water Systems

• Traditional Raceways
• Floating Raceways
• Recirculating Systems

8
Recirculating System
9
The Freshwater Institute Jefferson County
10
(No Transcript)
11
(No Transcript)
12
(No Transcript)
13
Floating Raceway
14
Raceway at Dogwood Lake
15
(No Transcript)
16
Greer Industries Pendleton County
17
Flowing Springs Farm Raceway made
with cement blocks

18
Serial reuseAdvantages
Disadvantages

• Waste Removal
• Transmission of disease
• Water Quality declines with each use.

• Proven Format
• Predictable
• Low risk
• Labor efficient
• Easy to manage

19
Water Volume

• Monthly observation of water source for at least
  one full season.
• Temperature
• Flow rate.
• Estimating Flow
• Cross section in feet (length x width).
• Multiply by velocity (ft/sec) to get ft3/second
• 1 ft3/s 448 gallons/minute (gpm)
• Design facility to operate at low flows.

20
(No Transcript)
21
Suggested Water Quality Limits
By Skip Thompson, NCSU, Area Specialized Agent -
AquacultureLast Updated April, 2002
22
Elevation

• Gravity flow
• Low risk of water failure
• No pumping cost
• Free oxygen with proper use of elevation.

• Need a foot of drop for a Low Head Oxygenator
  (LHO)

23
Original Design Plan RMF
24
Raceway Structures

• Intake Capture the water
• Head box Distribute the water
• Raceway Fish Production
• Effluent Treatment Recover and discharge the
  water

25
Intake

• Train the water into a pipe.
• Conserve temperature
• Exclude
• Leaves
• Fish
• Predators

26
(No Transcript)
27
From NCSU Extension
28
From NCSU Extension
29
Intake
30
(No Transcript)
31
Raceways

• Recommend
• Gravity flow
• At least 4 exchanges/hour
• Maintain oxygen gt 5 mg/l

32
Earthen raceways
Earthen Raceway
33
Earthen raceway with liner and concrete water
control structures
34
Gravity Flow No LHO
35
(No Transcript)
36
Gravity Flow with LHO
37
Aeration

• Oxygen from the air is limited.
• Saturation, 1500 ft
• 50 F 10.68 mg/l
• 55 F 9.97 mg/l
• 60 F 9.44 mg/l

38
Aeration by Powerhouse
39
Diffusing the Air
Diffuser in Action
Air Diffuser Rack
40
Tools of the Trade
Emergency Generator
41
Oxygen

• Theoretically should be able to dissolve up to 5
  times the amount of oxygen with aeration.
• Practical expectation, - grow about 50 more fish
• Expensive to install and use, but has been shown
  to be cost effective.
• Reliable
• Do not require medical grade

42
Oxygen
Compressed
Bulk Liquid Oxygen
43
Dissolving Pure Oxygen
44
Low-Head Oxygen Unit
45
Another View of LHO Units
Front View
Top View
46
Dissolving Oxygen(From Soderberg 1995)
47
Dissolving Oxygen(From Soderberg 1995)
48
Dissolving Oxygen
Saturometer
49
Tools of the Trade
Grading Sorting Tools
50
Holding Box
51
(No Transcript)
52
Tools of the Trade
A Handy Yard Cart!
53
Tools of the Trade
Platform Scales Easy to Weigh and Move Fish
About.
54
Tools of the Trade
Disinfectant Tank
55
(No Transcript)
56
Tools of the Trade
Cleaning Quiet Zone
Quiet Zone
57
Tools of the Trade
Hauling Tank
58
Tools of the Trade
Compost bin for mortalities
59
Resources

• NC State Extension Web Site.
• WVU Extension
• Flowing Water Systems by Richard Soderberg.
• Visit other facilities.
• USTFA meetings.
• Springs of West Virginia
• Silver Cup Web Site
