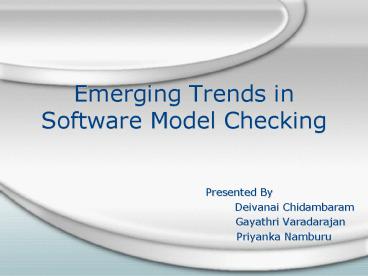

Emerging Trends in Software Model Checking

1
Emerging Trends in Software Model Checking

• Presented By
• Deivanai Chidambaram
• Gayathri Varadarajan
• Priyanka Namburu

2
Agenda

• Motivation
• Introduction
• Popular Model Checkers
• An Industrial Case Study
• Conclusion

3
An Ideal Verification Scheme

• Verification method should..
• Have a formal foundation
• Facilitate implementation of tool
• Has a higher degree of automation
• Lesser User Interaction
• Scalable
• Compatible to relate to complex artifacts

4
A Model Checking - A formal Definition

• Model checking Formal verification technique
  tuned for finding errors by comprehensively
  exploring the state spaces defined by a system.

5
(No Transcript)
6
Automata Based MC

• For explicit state model checking
• A finite state like automata modeled to accept
  infinite behaviors
• LTL specification used for specifying the number
  of accepting states.
• A run should have a non-empty intersection with
  the LTL listing.

7
LTL Specification

• Buchi-Automaton,A
• The Automaton
• Never Claim Automaton, A
• Condition for Acceptable Run
• L(B) ? L(A) F

8
When Software Model Checking is efficient?

• For application domains where the cost of just a
  handful of high-severity bugs is high
• When code inspections and scenario-by-scenario
  requirement-driven testing are critical
• the cost required to apply model checking is
  likely to be significantly offset by the high
  cost (and embarrassment) of severe software
  failures in the field.

9
Model Checking Tools for C Language

• SLAM
• BLAST

10

• Software Verification Tools
• Input-C Program Specification Property
• Output-Safe if program satisfies the property.
• else
• -Not safe and gives error
• trace

11
Overview of SLAM BLAST
A Survey of Tools for Model Checking and
Model-Based Development Elisabeth A. Strunk, M.
Anthony Aiello, John C. Knight,
Eds.Technical Technical Report CS-2006-17
Department of Computer Science University of
Virginia June 2006
12
SLAM

• Main goal-To check C programs for safety
  properties using model checking.
• Three main components
• -c2bpEvaluates a boolean abstraction
• -bebop Performs reachability analysis
• -Newton Verifies feasibility of error paths

13
contd

• Specification Language-SLIC (Specification
  Language for Interface Checking).
• Specifications
• -Sate machines
• -State variables
• -Set of events
• -State transitions

14
Working of SLAM
A Survey of Tools for Model Checking and
Model-Based Development Elisabeth A. Strunk, M.
Anthony Aiello, John C. Knight,
Eds.Technical Technical Report CS-2006-17
Department of Computer Science University of
Virginia June 2006
15

• C2bp
• -Input C program, set of predicates
• -Output Boolean program
• Bebop
• -Input Boolean program
• -Output Yes if error is reachable
• Newton
• -If path found, checks for feasibility.
• -If feasible, output error trace.
• -If path not found, additional predicates.

16
c2bp

• Computing boolean expression
• -Linear in size of program
• -Exponential in size of predicates
• c2bp modular abstraction in isolation
• -program
• -procedures
• -statements

17
Bebop

• Model checker
• Time consuming component
• States Bit vectors
• Provides error path

18
Newton

• Symbolically simulates the trace
• If trace spurious
• -new predicates, refined abstraction
• Else
• -Imprecise abstraction
• -SLAM invokes another refinement
• method-constrain.

19
Problems faced

• Dealing with pointers
• Dealing with imprecision
• Scalability

20
Constrain

• Examines each step of the trace.
• Refines the abstract transition relation.
• Improves accuracy of the abstraction.

21
Dealing with pointers

• Abstracting from C to boolean.
• In C, call-by-reference simulated.
• Boolean programs support call-by-value.

22

• Successfully checks control dominated properties.
• Handles recursive procedures.
• Satisfies properties of good model checker
• -Soundness
• -Completeness
• -Usefulness

23

• Precise in bug detecting.
• Error trace mapped to original program.
• Results
• -Largest driver processed60K loc
• -Largest abstraction several hundred boolean
  variables

24
BLAST

• Berkeley Lazy Abstraction Software Verification
  Tool
• Abstract-check-refine approach
• Concepts of
• -Lazy abstraction
• -Interpolation-based predicate theory

25
Methodology

• Input
• -C program
• -Specification property
• Output
• -Instrumented program with error label

26
A Survey of Tools for Model Checking and
Model-Based Development Elisabeth A. Strunk, M.
Anthony Aiello, John C. Knight,
Eds.Technical Technical Report CS-2006-17
Department of Computer Science University of
Virginia June 2006
27

• Spec.opt merges to form the instrumented program
• Instrumented program fed to pblast.opt (Model
  checker for BLAST)
• If no paths to error label, then safe and
  generate proof.
• If paths found then check for feasibility.

28

• If feasible, generate output trace.
• Else model refined further.

29

• BLAST specification language similar to C
  language.
• Specification looks for patterns
• Inserts checks, actions when patterns matched.

30
Abstract-Check-Refine Approach

• Three phases
• -Abstract
• -Check
• -Refine

31
Abstract phase

• Set of predicates to create abstraction.
• Set of truth assignments to represent abstracted
  states.

32
Check phase

• Checks safety property
• If abstracted model is safe then original program
  is safe else error path generated.
• If error phase spurious, go to refine phase.

33
Refine phase

• Add more predicates.
• Model refined further.

34
Lazy Abstraction

• To integrate phases
• Principles involved
• -On-the-fly abstraction
• -On-demand refinement

35
On-the fly abstraction

• Same level of precision not advisable some
  states unreachable
• Abstracted only when needed by check phase

36
On-demand refinement

• Model reused after refinement.
• Regions proven to be safe are not refined.

37
Comparison of SLAM BLAST

• Similarities
• -Static analysis
• -CEGAR
• -Extract finite state model from C prgm.
• -Both verify safety properties
• -Both tested on device drivers
• -Handle C language constructs

38

• Differences
• -Use of lazy abstraction in BLAST
• -Predicate discovery on-demand,
• hence conservation of time
• space.
• -With respect to specification language.

39

• Abstraction
• -In SLAM, boolean program before execution
• -IN BLAST, abstract reachability tree on-the-fly
  during execution.
• Recursive functions
• -SLAM handles
• -BLAST does not

40
SPIN

• Designed for analyzing logical consistency of
  software systems.
• Focused on proving correctness of process
  interactions.
• Abstracts internal sequential computations.
• Detects design errors

41
PROMELA

• System models in PROMELA (Process Meta Language)
• Easier for good abstraction
• Emphasis on process synchronization and
  coordination

42

• SPIN performs
• -Simulations of the system execution
• -Generate verifier in C
• SPIN reports on
• -Deadlocks
• -Unspecified receptions

43
Contd.

• -Unexecutable code
• -Flags incompleteness
• -Race conditions
• -Unwarranted assumptions
• Verifier used to
• -check logical consistency
• -verify correctness of system invariance

44
Architecture
An Introduction to the SPIN Model Checker Project
Report Tool Description and Analysis Xiang Yin
45

• Initiated from command line using XSPIN.
• Users specify high-level model in PROMELA.
• All correctness properties specified as LTL
  requirements.
• LTL translator translates LTL formula to PROMELA.

46

• Generates verification program from high level
  model.
• Verifier compiled and executed.
• If counter example detected, fed back to SPIN
  simulator.

47
Graphical Interface

• Optional, not a must.
• Eases the whole process of SPIN.
• Provides clean view of commands.
• Executes SPIN commands in the background.
• Graphical displays of message flows etc.

48
Modes of operation

• Two modes of operation
• -Simulation
• -Verification

49
Simulation

• Step-by-step trace of system execution.
• -Deals with larger state spaces
• Three forms
• -Random
• -Interactive
• -Guided
• Use-To inspect error trial or counter example.

50
Verification

• Verifier generated, compiled and run separately.
• Verification procedure based on reach ability
  analysis.
• Uses DFS or BFS.
• Constructed on-the-fly
• Avoids preconstruction of global state graph

51
Model checking software with verisoft

• - An Industrial case study

52
Verisoft - Call Processing Library

• Runs in Every Significant Base Station of Lucent
  Tech.
• Supports hand off
• In 3G - WNs, the call-processing software
  implements complex dynamic resource allocation
  algorithms to manage hand offs

53
Challenges

• large number of possible scenarios
• Module embedded in a highly networked environment
  composed of multiple processes, invoking
  call-processing functions through multiple
  interfaces.
• Huge application implemeting a complex
  architecture.

54

• Software Model Checking An Industrial Case Study

• Satish Chandra, Patrice Godefroid, Christopher
  Palm
• Proceedings of the 24th International Conference
  on Software Engineering

55
Limitation usingVerisoft MC

• Test automation.
• Integration into testing environment.
• Test drivers.
• Specifying properties.
• State explosion.

56
Conclusion

• Naïve Usage Chances of getting interesting
  feed-back is small.
• Effective Usage
• extremely effective test coverage
• hard-to-find bugs are deducted, and reducing
• Expertise is needed to limit state space
  explosion
• Trade off between cost of finding bugs and
  failure recovery

57

• Thank You.
