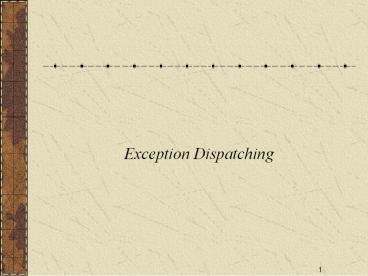

1
  • Exception Dispatching

2
Structured Exception Handling (1)
  • Windows introduced a facility known as structured
    exception handling
  • When (exceptions occur)
  • Allows applications to gain control
  • Application can fix condition and
  • Return to the place the exception occurred,
  • Unwind the stack (terminating execution of the
    subroutine that raised the exception),
  • Or declare back to the system that the exception
    isnt recognized and the system should continue
    searching for an exception handler that might
    process the exception.

3
Structured Exception Handling (2)
  • Although exception handling is made accessible
    through language extensions
  • It is a system mechanism
  • Not language-specific.
  • On x86
  • all exceptions have predefined interrupt numbers
    that directly correspond to the entry in the
    interrupt dispatch table (IDT).
  • Table on next page shows
  • x86-defined exceptions
  • Interrupt numbers
  • Because first entries of IDT are used for
    exceptions
  • Hardware interrupts are assigned entries later

4
(No Transcript)
5
Exception Dispatcher
  • Many exceptions are serviced by kernel module --
    exception dispatcher
  • Other simple exceptions are resolved by trap
    handler.
  • Exception dispatchers job is to find an
    exception handler to handle the exception.

6
Kernel Handle Exception
  • Kernel traps and handles exceptions to user
    programs.
  • For example, encountering a breakpoint while
    executing a program being debugged generates an
    exception, which the kernel handles by calling
    the debugger.
  • Kernel handles certain other exceptions by
    returning unsuccessful state code to caller.

7
Stack Frame
  • A few exceptions are allowed to filter back,
    untouched, to user mode.
  • For example, a memory access violation or an
    arithmetic overflow generates an exception.
  • Environment subsystem
  • Establish frame-based exception handlers to deal
    with these exceptions.
  • Frame-based refer to exception handlers
    association with particular procedure activation.
  • When a procedure is invoked, a Stack frame
    representing that activation of the procedure is
    pushed onto the stack.
  • Stack frame can associating with some exception
    handlers, each of which protects a particular
    block of code in source program.
  • When exception occurs, kernel search for an
    exception handler associated with current stack
    frame, if none exist, kernel search for previous
    one, and so on.
  • If still none exist, kernel call its own default
    one.

8
Trap frame
  • When exception occurs, a chain of events begins
    in kernel.
  • CPU hardware transfer control to kernel trap
    handler, which create a trap frame.
  • if (exception is resolved)
  • Trap frame allow system to resume where if left
    off.
  • Trap handler create an exception record
    containing the reason for exception and relative
    information.

9
Default exception handling
  • If exception occurred in kernel mode, exception
    dispatcher call a routine to locate a frame-based
    exception handler to handle it.
  • Unhandled kernel-mode exceptions are considered
    fatal operating system errors, you can assume
    dispatcher always finds an exception handler.
  • If it occurred in user mode, what exception
    dispatcher does is more complex, youll see in
    Chapter 6.
  • Windows subsystem has debugger port and exception
    port to receive notification of user-mode
    exceptions.
  • Kernel use these in its default exception
    handling.

10
(No Transcript)
11
Exception Dispatcher (1)
  • Exception dispatchers first action
  • See whether process that incurred exception has
    associated debugger process.
  • If (it does system is Windows 2000)
  • Exception dispatcher
  • Send first-chance debug message via local
    procedure call (LPC) to the debugger port
    associated with the process.
  • LPC message
  • Is sent to session manager process, which then
    dispatches it to appropriate debugger process.
  • On Windows XP and Server 2003
  • Exception dispatcher send debugger object message
    to debug object associated with process.

12
Exception Dispatcher (2)
  • If(No debugger process attached process
    debugger doesnt handle exception)
  • Exception dispatcher
  • Switches into user mode
  • Copy trap frame to user stack formatted as a
    CONTEXT data structure.
  • Call routine to find frame-based exception
    handler.
  • If(none is found none handles the exception)
  • Exception dispatcher
  • Switches back into kernel mode
  • Call debugger to allow user to do more debugging.

13
Exception Dispatcher (3)
  • If(debugger isnt running no frame-based
    handlers be found)
  • The kernel
  • Send message to exception port associated with
    threads process.
  • Exception port
  • Registered by environment subsystem that controls
    this thread.
  • Give the environment subsystem, which presumably
    is listening at the port, the opportunity to
    translate exception into environment-specific
    signal or exception.
  • CSRSS(Client/Server Run-Time Subsystem)
  • Present message box notifying user of fault and
    terminate process,
  • When (POSIX get message from kernel)
  • POSIX subsystem send POSIX-style signal to thread
  • If(kernel progresses this far in processing
    exception subsystem do not handle exception)
  • Kernel
  • Execute default exception handler to terminate
    process

14
Unhandled Exceptions
  • All Windows thread
  • Have an exception handler declared at the top of
    the stack that processes unhandled exceptions
  • The exception handler
  • Is declared in internal Windows start-of-process
    or start-of-thread function.
  • Start-of-process function
  • Run when first thread in a process begins
    execution.
  • Call main entry point in the image.
  • Start-of-thread function
  • Run when a user create additional threads.
  • Call user-supplied thread start routine specified
    in CreateThread call.

15
Windows Unhandled Exception Filter (1)
  • If(thread has unhandled exception)
  • Windows unhandled exception filter is called
  • Purpose of this function
  • Provide system-defined behavior for what to do

16
Windows Unhandled Exception Filter (2)
  • Two important value
  • Auto
  • Debugger
  • Auto
  • Tell unhandled exception filter Whether to
    automatically run debugger
  • Or, ask user what to do
  • Default 1
  • Launch debugger automatically.
  • Installing development tools (ex Visual Studio)
    changes this to 0
  • Debugger value
  • A string
  • Pointing to path of debugger executable to run in
    the case of unhandled exception

17
Debugger
  • Default debugger is Dr. Watson
  • \Windows\System32\Drwtsn32.exe
  • Not really a debugger
  • A postmortem tool
  • Activation
  • Capture state of the crashed application
  • Records it in
  • Log file (Drwtsn32.log)
  • Process crash dump file (User.dmp)
  • \Documents And Settings\All Users\Documents\DrWats
    on

18
(No Transcript)
19
Configuration for Dr. Watson
20
Log File Crash Dump File
  • Log file
  • Contain basic information
  • Exception code
  • Name of the failed image
  • List of loaded DLLs
  • Stack and instruction trace for the thread that
    incurred exception
  • Crash dump file
  • Contain private pages in process at the time of
    exception
  • This crash dump file can be opened by WinDbg
    (Windows debugger, comes with Debugging Tools
    package, or Visual Studio 2003 and later)
  • Overwritten each time a process crash.

21
Visual Notification (1)
  • Windows 2000 Pro.
  • Visual notification, default on
  • After generate crash dump and records information
    in log file.
  • Message box displayed by Dr. Watson

22
Visual Notification (2)
  • Dr. Watson process
  • Remains until message box is dismissed.
  • This is why visual notification is turned off by
    default in Windows 2000 Server system.
  • This default is used
  • Because
  • If(server application fail)
  • Usually nobody can dismiss message box.
  • Instead
  • Server applications should log errors to the
    Windows event log.

23
Message Box On Windows 2000
  • If(Auto value 0)
  • Message box is displayed
  • If (click OK)
  • Process exit
  • If (click Cancel)
  • Launch system defined debugger process.

24
Windows Error Reporting (1)
  • Windows XP and Server 2003 have Windows Error
    Reporting
  • More sophisticated error-reporting mechanism
  • Automates the submission of
  • User-mode process crashes
  • Kernel-mode system crashes
  • Configured
  • How to bring up dialog box ?
  • My Computer -gt Properties -gt Advanced -gt Error
    Reporting
  • Or, System -gt Error Reporting -gt local or domain
    group policy settings
  • Store settings
  • HKLM\Software\Microsoft\PCHealth\ErrorReporting

25
(No Transcript)
26
(No Transcript)
27
Windows Error Reporting (3)
  • When (catch an unhandled exception)
  • To see whether or not to initiate Windows Error
    Reporting
  • If (registry value 0 Debugger string
    contain Drwtsn32)
  • Unhandled exception filter
  • Load \Windows\System32\Faultrep.dll into failing
    process
  • Call its ReportFault function
  • ReportFault
  • Check error-reporting configuration
  • Purpose
  • To see whether this process crash should be
    reported
  • If so,
  • Create process running \Windows\System32\Dwwin.exe
    ,
  • which display message box announcing process
    crash
  • Along with option to submit error report to
    Microoft.
  • (as seen in figure of next page)

28
Windows Error Reporting (4)
