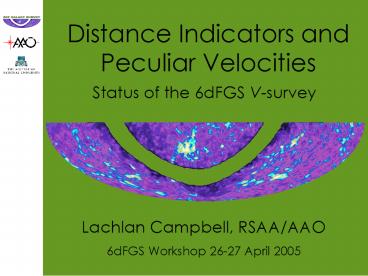

Distance Indicators and Peculiar Velocities

1
Distance Indicators and Peculiar Velocities
Status of the 6dFGS V-survey
Lachlan Campbell, RSAA/AAO 6dFGS Workshop 26-27 A
pril 2005
2
V-survey goals

• To map in detail the density and peculiar
  velocity fields over half the local volume out to
  15,000 km/s.

• To provide additional constraints on cosmological
  models, and better measurements of fundamental
  parameters, from statistics of these fields.

• To achieve these goals the aim was to calculate
  Dn-? distances for approximately 10-15000 bright
  early type galaxies.

3
Distance Indicators

• Present day ellipticals obey scaling relations
  involving their structural and dynamical
  properties. Populate the fundamental plane in 3D
  space defined by re , e , ? .

• Dn-? is a projection of the FP, where Dn is
  defined as the diameter which encloses a chosen
  mean surface brightness level.

4
Calibration Sample

• Sample with 272 galaxies in common with the SMAC
  survey, and 450 with ENEAR, both of which provide
  photometric parameters and velocity dispersions.

• Provide a basis for estimating external errors
  and understanding any systematic biases.


5
2MASS photometry
K12.75 z0.05

• Corrections for extinction, K corrections
  surface brightness dimming, and most importantly
  seeing effects (using the prescription of Saglia
  et al. 1993).
• Work by Hogg suggests there should be a small
  statistically insignificant offset between 2MASS
  and literature K band photometry.

K9.5 z0.013
6
(No Transcript)
7
(No Transcript)
8
Differences in FP parameter

• 2MASS appear to give a semi-major axis half-light
  radii.

• SMAC give circular half-light radii.
• 2MASS psf circularises small galaxies.
• Colour gradients between wavelengths.

K10.86 K11.58
9
(No Transcript)
10
(No Transcript)
11
Summary of Photometry

• 2MASS photometry internally consistent to 0.01dex
  or 2

• External comparison with both Optical and NIR
  photometry gives errors of 0.03 dex or 7


12
Velocity Dispersions

• Galaxy velocity dispersions are calculated using
  the two standard Fourier methods of
  cross-correlation (Tonry Davis 1979) and
  Fourier quotient (Sargent et al. 1979).
• Use synthetic SSP galaxy template spectra
  (Vazdekis 1999) to estimate the broadening of
  absorption lines, most significantly in the Mg II
  and Fe lines.
• The Fourier quotient pipeline is being managed at
  Durham University to provide an independent check
  on the pipeline at RSAA/AAO.

13
Instrumental dispersion
580V (VPH Grating) 600V
(Reflection Grating)
14
(No Transcript)
15
(No Transcript)
16
(No Transcript)
17
(No Transcript)
18
(No Transcript)
19
Summary of Velocity Dispersions

• 6dFGS sigmas internally consistent to better than
  6 based on comparisons between the pipelines.

• External comparison with both SMAC and ENEAR
  gives an error of 8.


20
(No Transcript)
21
V-survey Size

• Initial estimates of final numbers based on the
  minimum cuts listed for each parameter.

• All of the cuts assume a minimum R value of 5,
  and an initial total of 35 of the galaxies
  passing the z-quality and distance cuts.

22
Conclusions

• 2MASS photometry appears very reliable.
• 6dFGS velocity dispersions are as accurate as the
  best previous results.

• Therefore, we expect to at least match the
  standard previous distance accuracy of the FP of
  20, and for the hoped for numbers of galaxies.


23
(No Transcript)
24
(No Transcript)
25
(No Transcript)
26
(No Transcript)
27
(No Transcript)
28
(No Transcript)
29
(No Transcript)
30
(No Transcript)
31
(No Transcript)
32
(No Transcript)
33
(No Transcript)
