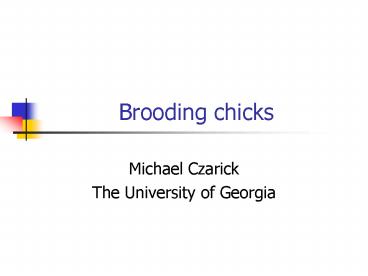

Title: Brooding chicks


1
Brooding chicks
  • Michael Czarick
  • The University of Georgia

2
Canada
3
Canada brooding
4
Canada
5
Barbados
6
Chicks cannot regulate their body temperature...
7
Chicks cannot regulate their body temperature...
  • Air temperature goes down.
  • a chicks body temperature goes down.

8
Chicks cannot regulate their body temperature..
9
Chicks cannot regulate their body temperature..
  • Air temperature goes down
  • a chicks body temperature goes down.
  • Chicks spend more time huddling.
  • Digestion and immune systems are impaired.

10
Chicks body temperature(air temperature of 68oF)
11
Hypothermia in humans
  • 97oF
  • begin to shiver
  • 95oF
  • violent shivering
  • speech difficulty
  • sluggish thinking
  • will require assistance to get out of hypothermia

12
Chicks cannot regulate their body temperature..
  • Slightly low brooding temperatures can have a big
    effect on performance.

13
Brooding Temperatures
  • Floor temperatures

14
Stratification
15
Stratification
16
Large differences in temperature with small
changes in height
17
Floor temperatures
18
Hot ceilings
19
Hot ceilings
20
Ceilings are cool at night or when it is raining
21
Brooding at 80oF vs 90oF(weight at 10 days)
22
Brooding at 80oF vs 90oF(feed conversion at 10
days)
23
Brooding temperatures and bird performance
  • Four different temperature schemes
  • week 1 week 2 week 3
  • 95 F 90 F 85 F
  • 90 F 85 F 80 F
  • 85 F 80 F 75 F
  • 80 F 75 F 70 F

24
Brooding temperatures and bird performance
25
Brooding temperatures and performance
26
Brooding temperatures and performance
27
Short term cold temperature exposure can also
have long term effects...
  • Subjected day-old-chicks to an air temperature of
    55oF for 45 minutes
  • Grew the birds out at normal temperatures and
    checked weights at 35 days of age
  • Compared to chicks which were not cold stress

28
Effects of a short term cold stress
29
Bird health issues
  • Runting/Stunting Syndrome

Helicopter wings
Uniformity problems
30
Runting/Stunting
  • Symptoms
  • Number of immobile chicks upon placement huddling
    around feed and water
  • Sometimes see feather abnormalities
  • Peak of problem 10-12 days
  • Large differences in weights

31
Runting/Stunting
32
Runting/Stunting
  • Built-up litter is clearly infectious
  • Short downtime appears to exacerbate the problem
  • Multi-age houses
  • Low brooding temperatures increase the effects of
    runting/stunting
  • lower bird weights poor uniformity

33
Runting/Stunting
  • Ways to minimize
  • RSS agents are clearly sensitive to heat.
  • heat treatment of house between flocks should
    help.
  • Clean house between flocks
  • Make sure you have 10 days of downtime
  • Brood chicks properly

34
(No Transcript)
35
(No Transcript)
36
Weight distribution
37
I am doing the same things so why am I doing
worse
38
Broiler Performance
39
Broiler Performance(sale age)
40
Broiler Performance(weight)
41
Broiler Performance(gain per day)
42
Broiler Performance(feed conversions)
43
1950s Bird
44
Genetics have changed
45
Modern broiler is very different...
  • In order to get the most out of the bird it is
    crucial to have the proper growing environment.
  • Air temperature
  • Air quality
  • Air movement
  • etc.
  • The bird is fine tuned for performance not
    hardiness.

46
Modern broiler
  • Is designed for performanceand as a result is
    not as tough as those grown in the past.

47
Potential performance problems
  • Heat stress

48
Potential performance problems
  • Health stress issues
  • Heart problems
  • Leg problems
  • Respiratory problems
  • Runting/stunting

49
Bird Weights (1991 - 1999)
50
Gain per day (1991 - 1999)
Daily Rate of Gain has Increased 12
51
Changing broiler
52
Brooding at 80oF vs 90oF(weight at 10 days)
53
Brooding at 80oF vs 90oF(weight at 10 days)
54
Dramatic changes in growing chickens
  • Genetics
  • Nutrition

55
Housing?
56
Brooding Temperatures
  • Floor temperature is crucial
  • MINIMUM floor temperature of 85oF
  • Ideal floor temperature 90 - 92oC with some areas
    of the house as warm as 105oC

57
Floor temperature in furnace house with
circulation fans
58
Floor temperature histogram
59
Floor temperatures in house with radiant brooders
60
Brooding Temperatures
  • Floor temperature is crucial
  • MINIMUM floor temperature of 85oF
  • Ideal floor temperature 90 - 22oF with some areas
    of the house as warm as 105oF
  • Dry litter

61
Damp Litter
62
Damp Litter
63
Wet Litter
64
Wet litter
65
Wet litter/no heat
66
Supplement heat
  • Unless the outside temperature never drops below
    85oF, houses should have supplemental heat to
    maintain 90oF.

67
House without supplemental heat
68
House without supplemental heat
69
Supplemental heat not added
70
Are heat lamps sufficient?
  • How much heating do they really do?

71
Small floor heated area
72
Cool floors away from lamp
73
Cool floors away from lights
74
Adjusting lamp height can help a little
75
Target temperature beneath should be 105oF
76
Are the chicks attracted to the heat or the light?
77
Are the attracting birds more than heating?
78
Chicks crowding to light
79
Chicks piling
80
Chicks piling
81
If lights primarily attract chicks
  • they should be placed near feed and water

82
Heat Lights/Lamps
  • Cover a VERY small area
  • Three square feet per lamp
  • 100 chicks per lamp?
  • Questionable benefits in most situations
  • Coverage area can be increased slightly by
    increasing height of lamp

83
Heat Lights/Lamps
  • Cover a VERY small area
  • Three square feet per lamp
  • 100 chicks per lamp?
  • Questionable benefits in most situations
  • Coverage area can be increased slightly by
    increasing height of lamp
  • Not all heat lamps are the same
  • Different lamps need to be studied

84
Heat Lights/Lamps
  • Cover a VERY small area
  • Three square feet per lamp
  • 100 chicks per lamp?
  • Questionable benefits in most situations
  • Coverage area can be increased slightly by
    increasing height of lamp
  • Not all heat lamps are the same
  • Different lamps need to be studied
  • Lights are not a heating system!

85
Are heat lamps really doing anything?
  • Some produces dont even use them and their
    performance is not that much different

86
Chick weights
87
If you want to produce good birds
  • You must have a heating system.

88
Pancake Brooders
  • Heat a much larger floor area than lights

89
Floor temperature profile(room air temperature
85oF)
Seek their own comfort zone
90
The amount of floor heating produced by an
individual brooder is much greater than a
light/lamp
5
91
Floor heat profile of pancake brooder
4 - 6
92
Coverage area can be increased by raising a
brooder
93
How much floor area is heated by a conventional
brooder?
  • Area 3.14 X R2
  • 3.14 X 25 ft2
  • 80 ft2 (approximately)

94
Pancake brooder floor heating coverage area
  • Approximately 100 square feet per brooder
  • Or
  • Approximately 1,200 chicks per brooder

95
Radiant brooders
  • Larger emitting surface tends to produce more
    radiant heat

110 in2
250 in2
96
Radiant brooders
  • Installed high above floor to distribute the
    large amount of radiant heat produced by a
    radiant brooder over a larger area.

97
(No Transcript)
98
(No Transcript)
99
Radiant brooder floor coverage area
100
Floor temperature profile
Radiant heat zone approximately 16 in diameter
101
How big is the active radiant heat zone of a
radiant brooder?
  • Area 3.14 X R2
  • 3.14 X 64 ft2
  • 200 ft2 (approximately)

102
Radiant brooders
103
Radiant brooders
104
Floor temperatures
105
Radiant brooders produce even more radiant heat
106
Radiant brooder coverage area
  • Approximately 200 square feet per brooder
  • Or
  • Approximately 2,400 chicks per brooder

107
Radiant brooders in Barbados
108
Ideal brooding temperatures
109
Ideal brooding temperatures
110
Chick weights
111
Radiant brooders too low
112
Radiant brooders too low
113
Radiant brooders too low
114
Radiant brooders too low
115
Brooder rings
  • In loose, poorly insulated houses where
    maintaining the proper house temperature is
    difficult if not impossible brooder rings should
    be strongly considered.

116
Brooding rings
117
Brooder ring acting as a thermal barrier
118
Brooding ring
119
Brooder ring
120
Brooding ring
121
(No Transcript)
122
(No Transcript)
123
How large should the brooder ring be?
  • It should be large enough that the chicks can get
    away from the heat if they want.

124
Brooder ring size
125
Radiant brooders
126
Brooder ring size
127
Brooder ring size
128
Radiant brooder too low in ring
129
Radiant brooder too low in ring
130
Brooder ring size
  • The higher the brooder heat output, the higher
    the brooder should be installed, the larger the
    ring should be.

131
Small radiant brooder
132
Brooder ring size
133
Medium sized brooder
134
Brooder ring size
135
Medium sized brooder
136
Medium sized brooder
137
Medium sized brooder
138
Large radiant brooders
139
Radiant Tube Heaters
140
(No Transcript)
141
Infrared Thermometers
142
If you are going to add brooders
  • You must tighten your houses.
  • Half the heat produced by a brooder is in the
    form of hot air.

143
Openings must be closed
144
Curtains must be held tightly against side wall
145
Top of curtain is not held tightly against side
of house
146
Curtains must be held tightly against side wall
147
Curtains must be very tight
148
Loose curtain
149
Curtains must have at least a 8 overlap at top
150
Curtains must be sealed at bottom
151
Curtains should be with stripped at bottom
152
Tight curtain
153
Curtain flaps with wood strip
  • Concept taken from pullet breeder houses to
    prevent light leakage.

154
Curtain flaps with wood strip
155
Curtain flaps with wood strip
156
Curtain flaps
157
Full curtain pocket
158
Tent brooding
159
Ideally the houses would be insulated
160
mczarick_at_engr.uga.edu
www.poultryventilation.com
