Resampling techniques

1

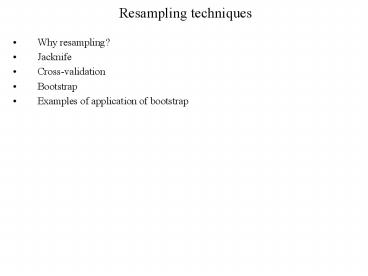

Resampling techniques

• Why resampling?
• Jacknife
• Cross-validation
• Bootstrap
• Examples of application of bootstrap

2
Why resampling?

• One of the purposes of statistics is to estimate
  some parameters and their reliability. Since
  estimators are functions of sample points they
  are random variables. If we could find
  distribution of this random variable (sample
  statistic) then we could estimate reliability of
  the estimators. Unfortunately apart from the
  simplest cases, sampling distribution is not easy
  to derive. There are several techniques to
  approximate them. These include Edgeworth
  series, Laplace approximation, saddle-point
  approximations. They give analytical forms for
  the approximate distributions. With advent of
  computers, computationally intensive methods are
  emerging. They work in many cases satisfactorily.

• Examples of simplest cases where sample
  distributions are known include
• Sample mean, when sample is from a population
  with normal distribution, has normal distribution
  with mean value equal to the population mean and
  variance equal to variance of the population
  divided by the sample size if population variance
  is known. If population variance is not known
  then variance of sample mean is approximated by
  the sample variance divided by n.
• Sample variance has the distribution of multiple
  of ?2 distribution. Again it is valid if
  population distribution is normal and sample
  points are independent.
• Sample mean divided by square root of sample
  variance has the multiple of the t distribution
  again normal and independence case
• For two independent samples from normal
  distribution ration of sample variances has the
  multiple of F-distribution.

3
Simulation technique

• One very simple yet powerful way of generating
  distribution for a statistic is simulation. It is
  done by considering assumptions about the
  population, generating random numbers under these
  assumptions and calculating statistic for the
  generated random samples. It is usually done
  1000-10000 times. Using the results we can build
  density of distribution, cumulative densities and
  design tests or any other inference we would like
  to make.
• The procedure works as follow
• Repeat N times
• 1) generate sample of the required size under
  assumptions
• 2) Calculate desired statistic and store it
• After this procedure we will have as if we have
  repeated experiment/observations N times. This
  procedure will work if the assumptions are valid
  or distribution of statistics is less sensitive
  to departures from assumptions.

4
Simulation techniques

• We can do this type of simulations using R. Let
  us write an example of a small generic function
  for simulation of desired statistics
• fsimul function(n,fstat, ...)
• resvector(lengthn)
• for( i in 1n)
• resifstat(...)
• res
• Only thing is remaining is to write a small
  function for statistic we want to generate
  distribution. Let us say that we want to simulate
  distribution of ratio of variances of two
  independent samples if both samples are from
  normal distributions
• vrstat function(k1,k2,mn1,mn2,sdd1,sdd2)
• var(rnorm(k1,meanmn1,sdsdd1))/var(rnorm(k2,me
  anmn2,sdsdd2))
• Once we have both functions we can generate
  distribution of statistics for ratio of variances
  (e.g. for sample sizes of 10 and 15 from
  population with N(0,1))
• vrdist fsimul(10000,vrstat,10,15,0.0,0.0,1.0,1.0
  )

5
Simulation techniques

• Using 10000 values we can generate desired
  distribution. From theory we know that ratio of
  variances of independent random samples of sizes
  10 and 15 should be F distribution with degrees
  of freedom (9,14). Figure shows that theoretical
  and simulated distributions are very similar.
• We can use this distribution for tests and other
  purposes. To find quantiles we can use the R
  function quantile
• quantile(vrdist,c(0.025,0.975)
• To generate cumulative distribution function we
  can use ecdf empirical cumulative distribution
  function
• ecv ecdf(vrdist) Generate cumulative
  density
• plot(ecdf) Plot ecdf
• ecv(value) calculate probability P(xltvalue)

Bars simulated distribution Red line
theoretical distribution
6
Simulation techniques

• Two small exercises
• Generate simulated distribution (density and
  cumulative) for a) sample maximum, b) sample
  minimum c) sample range (the distributions of
  the sample maximum and the sample minimum are
  known as extreme value distributions)
• Generate simulated density for the sample range
  divided by the sample standard deviation.

7
Resampling techniques

• Resampling techniques use data to calculate bias,
  prediction error and distribution functions.
• Three of the popular computer intensive
  resampling techniques are
• Jacknife. It is a useful tool for bias removal.
  It may work fine for medium and large samples.
• Cross-validation. Very useful technique for model
  selection. It may help to choose best model
  among those under consideration.
• Bootstrap. Perhaps one of the most important
  resampling techniques. It can reduce bias as well
  as can give variance of an estimator. Moreover it
  can give the distribution of the statistic under
  consideration. This distribution can be used for
  such wide variety purposes as interval
  estimation, hypothesis testing.

8
Jacknife

• Jacknife is used for bias removal. As we know,
  mean-square error of an estimator is equal to the
  square of the bias plus the variance of the
  estimator. If the bias is much higher than
  variance then under some circumstances Jacknife
  could be used.
• Description of Jacknife Let us assume that we
  have a sample of size n. We estimate some sample
  statistics using all the data tn. Then by
  removing one point at a time we estimate tn-1,i,
  where subscript indicates the size of the sample
  and the index of the removed sample point. Then
  new estimator is derived as
• If the order of the bias of the statistic tn is
  O(n-1) then after the jacknife the order of the
  bias becomes O(n-2).
• Variance is estimated using
• This procedure can be applied iteratively. I.e.
  for the new estimator jacknife can be applied
  again. First application of Jacknife can reduce
  bias without changing variance of the estimator.
  But its second and higher order application can
  in general increases the variance of the
  estimator.

9
Jacknife An example

• Let us take a data set of size 12 and perform
  jacknife for mean value.

data
mean 0) 368 390 379 260 404 318 352 359 216 222
283 332 323.5833 Jacknife
samples 1) 390 379 260 404 318 352 359
216 222 283 332 319.5455 2) 368
379 260 404 318 352 359 216 222 283 332
317.5455 3) 368 390 260 404 318
352 359 216 222 283 332 318.5455 4)
368 390 379 404 318 352 359 216 222 283
332 329.3636 5) 368 390 379 260
318 352 359 216 222 283 332
316.2727 6) 368 390 379 260 404 352 359
216 222 283 332 324.0909 7) 368
390 379 260 404 318 359 216 222 283 332
321.0000 8) 368 390 379 260 404 318
352 216 222 283 332 320.3636
9) 368 390 379 260 404 318 352 359 222
283 332 333.3636 10) 368 390 379
260 404 318 352 359 216 283 332
332.8182 11) 368 390 379 260 404 318 352 359
216 222 332 327.2727 12) 368
390 379 260 404 318 352 359 216 222 283
322.8182 tjack 12323.5833-11mean(t)
323.5833. It is equal to the sample. It is not
surprising since mean is an unbiased estimator
10
Cross-validation

• Cross-validation is a resampling technique to
  overcome overfitting.
• Let us consider a least-squares technique. Let us
  assume that we have a sample of size n
  y(y1,y2,,,yn). We want to estimate the
  parameters ?(?1, ?2,,, ?m). Now let us further
  assume that mean value of the observations is a
  function of these parameters (we may not know
  form of this function). Then we can postulate
  that function has a form g. Then we can find
  values of the parameters using least-squares
  techniques.
• Where X is a fixed (design) matrix. After
  minimisation of h we will have values of the
  parameters, therefore complete definition of the
  function. Form of the function g defines model we
  want to use. We may have several forms of the
  function. Obviously if we have more parameters,
  the fit will be better. Question is what would
  happen if we would have new observations. Using
  estimated values of the parameters we could
  estimate the square of differences. Let us say we
  have new observations (yn1,,,ynl). Can our
  function predict these new observations? Which
  function predicts future observations better? To
  answer to these questions we can calculate new
  differences
• Where PE is the prediction error. Function g that
  gives smallest value for PE have higher
  predictive power. Model that gives smaller h but
  larger PE corresponds to overfitted model.

11
Cross-validation Cont.

• If we have a sample of observations, can we use
  this sample and choose among given models. Cross
  validation attempts to reduce overfitting thus
  helps model selection.
• Description of cross-validation We have a sample
  of the size n (yi,xi) .
• Divide the sample into K roughly equal size
  parts.
• For the k-th part, estimate parameters using K-1
  parts excluding k-th part. Calculate prediction
  error for k-th part.
• Repeat it for all k1,2,,,K and combine all
  prediction errors and get cross-validation
  prediction error.
• If Kn then we will have leave-one-out
  cross-validation technique.
• Let us denote an estimate at the k-th step by
  ?k (it is a vector of parameters). Let k-th
  subset of the sample be Ak and number of points
  in this subset is Nk.. Then prediction error per
  observation is
• Then we would choose the function that gives the
  smallest prediction error. We can expect that in
  future when we will have new observations this
  function will give smallest prediction error.
• This technique is widely used in modern
  statistical analysis. It is not restricted to
  least-squares technique. Instead of least-squares
  we could could use other techniques such as
  maximum-likelihood, Bayesian estimation,
  M-estimation.

12
Bootstrap

• Bootstrap is one of the computationally expensive
  techniques. Its simplicity and increasing
  computational power makes this technique as a
  method of choice in many applications. In a very
  simple form it works as follows.
• We have a sample of size n. We want to estimate
  some parameter ?. The estimator for this
  parameter gives t. We want the distribution of t.
  For each sample point we assign probability
  (usually equal to 1/n, i.e. all sample points
  have equal probability). Then from this sample
  with replacement we draw another random sample of
  size n and estimate ?. This procedure is repeated
  B times. Let us denote an estimate of the
  parameter by tj at the j-th resampling stage.
  Bootstrap estimator for ? and its variance is
  calculated as
• It is a very simple form of application of the
  bootstrap resampling. For the parameter
  estimation, the number of the bootstrap samples
  is usually chosen to be around 200. When the
  distribution is desired then the recommended
  number is around 1000-2000
• Let us analyse the working of bootstrap in one
  simple case. Consider a random variable X with
  sample (outcome) space x(x1,,,,xM). Each point
  have the probability fj. I.e.
• f (f1,,,fM) represents the distribution of the
  population. The sample of size n will have
  relative frequencies for each sample point as

13
Bootstrap Cont.

• Then the distribution of conditional on f
  will be multinomial distribution
• Multinomial distribution is the extension of the
  binomial distribution and expressed as
• Limiting distribution of
• is multinormal distribution. Now if we resample
  from the sample then we should consider
  conditional distribution of the following (that
  is also multinomial distribution)
• Limiting distribution of
• is the same as the conditional distribution of
  the original sample. Since these two distribution
  converge to the same distribution then well
  behaved function of sample also will have the
  same limiting distributions. Thus if we use
  bootstrap to derive distribution of the sample
  statistic we can expect that in the limit it will
  converge to the distribution of sample statistic.
  I.e. following two function will have the same
  limiting distributions

14
Bootstrap Cont.

• If we could enumerate all possible resamples from
  our sample then we could build ideal bootstrap
  distribution (the number of samples is nn). In
  practice even with modern computers it is
  impossible to achieve. Usually from few hundred
  to few thousand bootstrap samples are used.
• Usually bootstrap works like
• Draw a random sample of size of n with
  replacement from the given sample of size n.
• Estimate parameter and get the estimate tj.
• Repeat step 1) and 2) B times and build
  frequency and cumulative distributions for t

15
Bootstrap Cont.

• While resampling we did not use any assumption
  about the population distribution. So, this
  bootstrap is a non-parametric bootstrap. If we
  have some idea about the population distribution
  then we can use it in resampling. I.e. when we
  draw randomly from our sample we can use
  population distribution. For example if we know
  that population distribution is normal then we
  can estimate its parameters using our sample
  (sample mean and variance). Then we can
  approximate population distribution with this
  sample distribution and use it to draw new
  samples. As it can be expected if assumption
  about population distribution is correct then
  parametric bootstrap will perform better. If it
  is not correct then non-parametric bootstrap will
  outperform its parametric counterpart.

16
Balanced bootstrap

• One of the variation of bootstrap resampling is
  balanced bootstrap. In this case, when
  resampling, one makes sure that the number of
  occurrences of each sample point is the same.
  I.e. if we make B bootstrap we try to make the
  total number of occurrences of xi equal to B in
  all bootstrap samples. Of course, in each sample
  some of the observation will be present several
  times and other will be missing. It can be
  achieved as follows
• Let us assume that the number of sample points is
  n.
• Repeat numbers from 1 to n, B times
• Find a random permutation of numbers from 1 to
  nB. Call it a vector N(nB)
• Take the first n points from 1 to n and the
  corresponding sample points. Estimate parameter
  of interest. Then take the second n points (from
  n1 to 2n) and corresponding sample points and do
  estimation. Repeat it B times and find bootstrap
  estimators, distributions.

17
Balanced bootstrap Example.

• Let us assume that we have 3 sample points and
  number of bootstraps we want is 3. Our
  observations are (x1,x2,x3)
• Then we repeat numbers from 1 to 3 three times
• 1 2 3 1 2 3 1 2 3
• Then we take one of the random permutations of
  numbers from 1 to 3x39. E.g.
• 4 3 9 5 6 1 2 8 7
• First we take observations x1,x3,x3 estimate the
  parameter
• Then we take x2,x3,x1 and estimate the parameter
• Then we take x2,x2,x1 and we estimate parameter.
• As it can be seen each observation is present 3
  times.
• This technique meant to improve the results of
  bootstrap resampling.

18
Bootstrap in R

• We can either write our own bootstrap resampling
  functions or use what is available in R. There is
  a generic function in R from the package boot
  that can do bootstrap sampling. Perhaps its worth
  spending some time and study working of this
  unction.
• To use boot function for a given statistic (let
  us take an example of mean) we need to write a
  function that calculates it for a given sample
  points. For example
• mnboot function(d,nn)mean(dnn) where nn
  is an integer vector of length that is equal to
  the length of d
• Now we can use boot function from R (make sure
  that boot package has been loaded)
• require(boot)
• mnb boot(del,mnboot,10000) Calculate
  bootstrap estimation for del 10000 times.

19
Bootstrap Example.

• Let us take the example we used for Jackknife. We
  generate 10000 (simple) bootstrap samples and
  estimate for each of them the mean value. Here is
  the bootstrap distribution of the estimated
  parameter. This distribution now can be used for
  various purposes (for variance estimation, for
  interval estimation, hypothesis testing and so
  on). For comparison the normal distribution with
  mean equal to the sample mean and variance equal
  to the sample variance divided by number of
  elements is also given (black line) .

It seems that the approximation with the normal
distribution was very good.
20
Bootstrap Example.

• Once we have bootstrap estimates we can use them
  for bias removal, variance estimation, interval
  estimation etc. Sequence of commands in R would
  be as follows
• read or prepare data and write a function for
  the statistic you want to estimate
• d1 c(368, 390, 379, 260, 404, 318,352, 359,
  216, 222, 283, 332)
• mnboot function(d,nn)mean(dnn) This
  function defines the statistic you want to
  calculate
• require(boot)
• nb 10000
• mnb boot(d1,mnboot,nb)
• calculate mean value and variance
• mean(mnbt)
• var(mnbt)
• hist(mnbt)
• calculate 95 confidence intervals
• quantile(mnbt,c(0.025,0.975))
• estimate empirical cumulative density
  functions
• ecv ecdf(mnbt)
• plot(ecv)

21
Bootstrap intervals

• Results of boot command can be used to estimate
  confidence intervals (i.e. interval where
  statistic would fall if we would repeat
  experiments many times). They can be calculated
  using boot.ci (from boot package). It calculates
  simple percentile intervals, normal approximation
  intervals, intervals corrected to skewness and
  median biasedness.
• If bootstrap variances are defined then
  t-distribution approximated intervals also are
  given.

22
Bootstrap Warnings.

• Bootstrap technique can be used for well behaved
  statistic (functions of observations). For
  example bootstrap does not seem to be good for
  extreme value estimations. Simulation may be used
  to design the distribution functions.
• Bootstrap can be sensitive to extreme outliers.
  It may be a good idea to deal with outliers
  before applying bootstrap (or calculating any
  statistic) or generate more more bootstrap
  samples (say instead of B we can generate
  (1a)B) and then deal with outliers after
  bootsrap estimations.
• For complicated statistics and large number of
  observations bootstrap may be very time
  consuming. Normal approximations to statistic may
  give reasonable results.

23
References

• Efron, B (1979) Bootstrap methods another look
  at the jacknife. Ann Statist. 7, 1-26
• Efron, B Tibshirani, RJ (1993) An Introduction
  to the Bootstrap
• Chernick, MR. (1999) Bootstrap Methods A
  practitioners Guide.
• Berthold, M and Hand, DJ (2003) Intelligent Data
  Analysis
• Kendalls advanced statistics, Vol 1 and 2

24
Exercise 2

• Differences between means and bootstrap
  confidence intervals
• Two species (A and B) of trees were planted
  randomly. Each specie had 10 plots. Average
  height for each plot was measured after 6 years.
  Analyze differences in means.
• A 3.2 2.7 3.0 2.7 1.7 3.3 2.7 2.6 2.9
  3.3
• B 2.8 2.7 2.0 3.0 2.1 4.0 1.5 2.2 2.7
  2.5
• Test hypothesis. H0 means are equal, H1 means
  are not equal
• Use var.test for equality of variances, t.test
  for equality of means.
• Use bootstrap distributions and define confidence
  intervals.
• Calculate power of the test
• Write a report.
