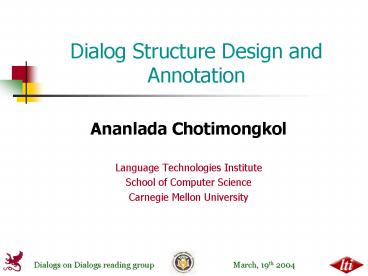

Dialog Structure Design and Annotation

1
Dialog Structure Design and Annotation

• Ananlada Chotimongkol
• Language Technologies Institute
• School of Computer Science
• Carnegie Mellon University

2
Out Line

• Existing Annotation Schemes
• Linguistic Oriented
• Engineering Oriented
• HCRC dialog structure
• Conversation Acts
• DAMSL
• Comparison
• Form-based dialog structure

3
Structure of a dialog

• Explain how the conversation is organized
• To create a theory of dialog in order to
  understand the meaning of the dialog
• Linguistic-Oriented
• To develop a procedure that support a computer
  agent in a dialog system
• Engineering-Oriented

4
Linguistic-Oriented

• Some are extended from discourse structure (focus
  on monologue text)
• Provide basic theory for the engineering-oriented
  one
• Speech Act Theory capture speakers intention
• Rhetorical Structure Theory explain the
  coherence between parts of text
• Dialog Grammar capture regular patterns in the
  dialog

5
Engineering-Oriented

• HCRC structure (Edinburgh)
• Conversation Acts (Rochester)
• DAMSL (Multiparty Discourse Group)

6
HCRC Dialog Structure

• Carletta, J., Isard, A., Isard, S., Kowtko, J.,
  Doherty-Sneddon, G., Anderson, A., HCRC dialogue
  structure coding manual, 1996
• http//www.ltg.ed.ac.uk/amyi/maptask/demo.html
• Domain map description
• Focus on describing the phenomenon occurs in the
  Map Task corpus
• But claim to be task-independent
• Focus on high level structure
• Can use in conjunction with other coding scheme

7
3-level structure

• Transaction a sub-dialog that accomplish a major
  goal of the task
• In Map Task 1 segment of the route
• Game (interaction, exchange) a set of utterances
  composes of an initiation and a sequence of
  responses that fulfills the initiations purpose
• Move (dialog act) an utterance or part of
  utterance that serves a particular propose e.g.
  as an initiation or a response

8
Move Coding Scheme

• Tradeoff between semantic distinction and coding
  consistency
• 12 moves from 3 categories
• Initiating Moves set up an expectation at the
  beginning of the game
• Instruct, Explain, Check, Align, Query-YN and
  Query-W
• Response follow the initiation and fulfill the
  expectation
• Acknowledge, Reply-Y, Reply-N, Reply-W and
  Clarify
• Ready occur in the transition between games

9
Game Coding Scheme

• Games purpose the name of games initiating
  move
• All games begin with an initiating move but not
  all initiating moves begin games
• Game can be nested e.g. contain clarification
  sub-dialog

10
Transaction Coding Scheme

• Divide the dialog into transactions
• Different between giver and followers
  perspectives
• For a giver, how he divides a route into sub-task
• 4 types of transactions normal, review, overview
  and irrelevant
• Each transaction (except irrelevant) is
  associated with a route segment on the map
• For a follower, how he perceives a segment and
  performs some actions
• 2 types of actions drawing a line and crossing
  out a line
• A transaction isnt nest (too large)

11
Discussion

• No real dialog application. Use as a data for
  analyzing phenomena in dialog
• Emphasize on how the information is conveyed e.g.
  as a question or a response, rather than what
  information is conveyed (concept)
• Annotate the purpose of the utterance in general
  e.g. instruct, explain, question, rather than the
  purpose that each utterance serves according to
  the task e.g. describe the movement or describe
  the landmark

12
Conversation Acts

• David R. Traum and Elizabeth A. Hinkelman,
  "Conversation Acts in Task-Oriented Spoken
  Dialogue", In Computational Intelligence,
  8(3)575--599, 1992. Also appears as TR 425,
  Computer Science Dept.
• Emphasize
• Mutual understanding between participants
• Dialog mechanisms that serve in coordination and
  maintenance of the dialog itself rather than the
  direct task.

13
Dialog units

• Utterance unit (UU)
• Continuous speech by the same speaker
• Each speaker turn can contain more than one UU
• Discourse Unit (DU)
• A sequence of an initial presentation and
  subsequent utterances by each party that are
  needed to make a unit grounded

14
Classes of Conversation acts

• 4 classes
• Turn-taking acts (sub-UU acts)
• Grounding acts (UU acts)
• Core speech acts (DU acts?)
• Argumentation acts (multiple DUs)
• More general than speech act theory

15
Turn-taking Act

• Can have more than one turn-taking act in an
  utterance (sub-UU act)
• Coordinate the control of the speaking channel
• Types of turn-taking acts
• take-turn, keep-turn, release-turn, assign-turn
  and pass-up-turn
• Turn-taking acts occur all the time
• Should we annotate all of them?
• Which one is important?

16
Grounding Act

• Correspond to one utterance unit (UU act)
• Coordinate mutual understanding
• Types of grounding acts
• Initiate (an initial component of a DU)
• Continue
• Acknowledge
• Repair
• ReqRepair
• ReqAck
• Cancel (close off the current DU as ungrounded)

17
Core Speech Act

• Similar to a traditional speech act
• Coordinates the local flow of changes in belief,
  intentions and obligations
• Types of core speech acts
• Inform, WHQ, YNQ, Accept, Request, Reject,
  Suggest, Eval, ReqPerm, Offer, Promise
• Doesnt correspond to any of dialog units?

18
Argumentation Act

• Compose of combinations of core speech acts
  (Multiple DUs act)
• Coordinate discourse purpose
• Is at the same level as Rhetorical Relations and
  Adjacency Pairs
• Types of argument acts Elaborate, Summarize,
  Clarify, QA, Convince, Find-Plan
• Build up hierarchy with in the same class
• The high level acts correspond to steps in task
  structure (task-dependent?)
• The lower level acts QA

19
DAMSL (Dialog Act Markup in Several Layers)

• Coding Dialogs with the DAMSL Annotation Scheme.
  Mark Core, James Allen. AAAI Fall Symposium on
  Communicative Action in Humans and Machines,
  1997.
• J. Allen and M. Core. Draft of DAMSL Dialog Act
  Markup in Several Layers, 1997.

20
DAMSL Tag Set

• Developed by Multiparty Discourse Group
• Contain primitive communicative actions that
  manipulates the common ground directly
• Allow multiple labels in multiple layers
• Eliminate the restriction in Speech Act Theory
• Design to be domain-independent
• But can add domain relevant acts
• The annotation can be used to
• Interpret utterances in dialog
• Design appropriate dialog strategy

21
DAMSL Annotation Scheme

• 3-layer of annotation for each utterance
• Forward Communicative Functions
• Backward Communicative Functions
• Utterance Features
• These 3 layers are orthogonal
• But some utterances may not have a label for
  every layer
• Can have more than one label in each layer
• Utterance segmentation is based on the intentions
  of the speaker
• An utterance can have several clauses or just an
  initial word

22
Forward Communicative Function

• Indicates how the current utterance constrains
  the future beliefs and actions
• Similar to actions in speech act theory
• Types of Forward Communicative Functions
• Statement
• Influencing Addressee Future Action
• Committing Speaker Future Action
• Performative (make a fact true by saying it)
• Other Forward Function

23
Backward Communicative Function

• Indicate how the current utterance relates to the
  previous dialog
• Types of Backward Communicative Functions
• Agreement (accept/reject)
• Understanding
• Answer (associate with info-request act)
• Information Relation (How this utterance relates
  to the previous one)
• Similar to Rhetorical Relations

24
Utterance Feature

• Capture content and form of utterance
• The features are
• Information Level task, task management,
  communication management
• Communicative Status abandoned, uninterpretable
• Syntactic Features conventional form,
  exclamatory form

25
Discussion

• Focus on the primitive purpose of the utterance
• Need more detail representation to get the key
  information in the utterance
• Also need higher level representations such as
  plans and discourse structures
• Are these 3 layers orthogonal?
• Are there too many tags for each utterance?

26
Comparison Levels of Annotation

• HCRC
• Transaction
• Game
• Move

• Conver. Acts
• Argumentation acts
• Core speech acts
• Grounding
• Turn-taking

• DAMSL
• Forward
• Backward
• Utterance Features

27
Comparison Levels of Annotation

• HCRC
• Transaction
• Game
• Move
• (The same level as all DAMSL tags)

• Conver. Acts
• Argumentation acts
• (Dialog Unit)
• Core speech acts
• Grounding
• Turn-taking

28
Comparison tags for utterance level

• HCRC
• Initiation
• Instruct, Explain, Check, Align, Query-YN and
  Query-W
• Response
• Acknowledge, Reply-Y, Reply-N, Reply-W and Clarify

• DAMSL
• Forward
• Statement, Influencing-Addressee-Future-Action,
  Committing- Speaker-Future Action, Performative
• Backward
• Agreement (accept/reject),
• Understanding,
• Answer, Information Relation

• Conver. Acts
• Inform, Suggest, Offer, Promise Request, ReqPerm,
  WHQ, YNQ, Accept, Reject, Eval,

29
Form-based dialog structure

• Why we need a new structure
• The existing structures are too general
• Want to capture domain information e.g. task
  structure, key concepts
• Want to create a dialog system from a structure
• Choose to work on a form-based dialog system
• Represent a structure of a dialog in term of
  forms and slots

30
Three-level organization

• Task (dialog)
• A task is a subset of conversation that serves
  a particular goal of a dialog.
• Episode (sub-task)
• A set of utterances that corresponds to a
  smaller step in a task
• Concept
• An important piece of domain information that
  the participants would like to communicate in the
  dialog

31
Form representation

• A form is a repository of related pieces of
  information (concepts)
• A sub-task is equivalent to form
• A sub-task is a smallest practical unit
• A task collection of forms (sub-tasks)

32
How the task can be accomplished using a form?

• The sub-task is accomplished by manipulating the
  form
• Fill in the slots
• Execute the form
• Discuss the result
• Operations

33
Operations

• Operation is an utterance or a part of an
  utterance (turn) that causes a unique consequence
  in the conversation
• U fill_form_info  I'D LIKE TO FLY TO
  ArLocHOUSTON ArLocTEXAS
• S access_DB
• inform_result I HAVE A NON-STOP ON CONTINENTAL

34
Question Answer pair

• QA are separated into 2 operations by a turn
  boundary
• The consequence of the answer is depended on the
  question especially the yes/no answer
• Dialog1
• U init_form  I NEED A HOTEL IN HOUSTON
• Dialog2
• S ask_init_form AND WOULD YOU NEED A HOTEL
  WHILE YOU'RE IN HOUSTON
• U respond YES

35
Lets Go

• Goal request information about the bus schedule
• Tasks (multiple system functions)
• Ask bus number
• Ask departure time
• Ask stop
• Etc.
• One form for each task (a simple task)
• Concept bus_number, hour, minute,
  depature_location

36
List of Operations

• Form-filling operations
• init_form
• fill_form_info
• change_form_info
• Form execution operations
• access_DB (task-specific)
• Discuss-result operations
• inform_result
• navigate_results

37
Air Travel Domain

• Goal Reserve a flight with optional hotel and
  car
• Tasks
• Reserve a flight
• Reserve a car
• Reserve a hotel
• But car and hotel are always parts of flight
  reservation.
• So it is better to think of them as sub-tasks
• One form for each sub-task
• Concept airline, city, date, time

38
Flight Reservation

• There are 3 form executions (DB access) in the
  flight reservation episode
• Retrieve departure flight
• Retrieve arrival flight
• Retrieve fare
• Fare is depended on the flights
• Embedded forms

Trip flight info flight info
Departure Leg
fare
Arrival Leg
39
Map Task description

• Conversation between 2 participants
• Giver has a map with a route on it
• Follower has a map without a route
• Task a giver tell the follower how to draw the
  route on the followers map
• The maps are not exactly the same

40
(No Transcript)
41
Map Task Characteristic

• More casual conversation
• Disfluency
• Repetition
• Anaphora
• No well-defined form
• No constraint from the backend
• There are many ways to describe a segment
• Need a lot of grounding processes

42
Map Task Structure

• Goal draw a map from a description
• Task draw a line (a route)
• Sub-task
• draw a segment of a line
• Locate a new landmark (can be embedded)

43
Grounding Process

• Create mutual understanding between participants
• Check understanding, correctness of communication
• Confirmation and clarification
• Define a new term
• Discuss the attributes of the object e.g. check
  landmark and create landmark

44
Grounding process in form-based structure

• Confirmation
• If yes, increases the confidence on the slot
  value
• If no, crosses out the value from the slot
• Clarification
• S ask_fill_form_info INTO ArLocINTERCONTINENTA
  L AIRPORT OR ArLocHOBBY
• U fill_form_info AT THE /UH/ ArLocINTERCONTINE
  NTAL

45
Grounding process in form-based structure (2)

• Define a new term
• A form is a collection of object attributes
• FOLLOWER fill_form_info  but golden beach is
  away in Locthe far right.
• Landmark golden beach
• Location the far right

46
Plane simulation task

• 3 participants works on the plane simulation
• Task take pictures of a list of targets
• Each participant has different roles flying the
  plane, navigating the route, taking a picture
• There are some restriction on controlling a plane
  such as speed, altitude and radius from a
  destination

47
Dialog Structure

• Task Take pictures of a given list of targets
• Sub-tasks Take a picture of one target
• Concept
• target
• waypoint
• distance
• speed
• altitude

48
Task Characteristic

• 3-party conversation
• Command Control style
• The physical actions have a time constraint
• Cant execute the form right away after all the
  slots get filled
• The list of the sub-tasks (targets) is not fixed
  and not known in advance

49
Sub-task

• Main sub-task take a picture of the target
• Also have to control the plane
• Set destination, altitude and speed (have
  restriction)
• Report the result in term of the plan status
  altitude, speed, destination and the distance
  from destination
• Grounding process
• Define a landmark as a target or a waypoint

50
Forms

• target form (take a picture)
• target name
• required distance from target
• control form contain only a single slot (fly a
  plane)
• Altitude
• Speed
• Destination (may have radius)
• grounding form (grounding process)
• object name
• attributes e.g. type of landmark
