Title: Orchestrating Messaging, Data Grid and Database


1

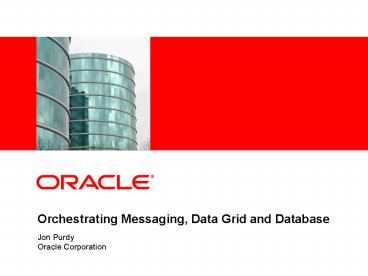

Orchestrating Messaging, Data Grid and Database
  • Jon Purdy
  • Oracle Corporation

2
Notes
  • Companies and Products
  • Oracle acquired Tangosol back in June
  • Coherence is a Data Grid solution
  • Questions are encouraged

3
Agenda
  • Technology Stack Overview
  • Introduction to Data Grid technology
  • Application State
  • Types of State
  • Challenges
  • Putting it together
  • How state is managed by application tiers
  • How to integrate application tiers
  • How Data Grids can fill in the gaps

4
Technology Stack Overview
  • There are many tools for building scalable,
    reliable systems
  • Messaging
  • Application Servers
  • Data Grids
  • Databases
  • What types of state do these manage?
  • When should each one be used?

5
Technologies
  • Messaging
  • Integration between systems (queues)
  • Distributing relevant data (topics)
  • Application Servers
  • Request processing
  • Conversational state
  • Data Grids
  • Scalability and performance
  • Conversational state and/or limited persistent
    state
  • Databases
  • Persistent state
  • Reliable, shared conversational state (if needed)

6
Technologies
Messaging
7
Data Grids What are they?
  • Special-purpose data management solution
  • Live, transactional data at in-memory speed
  • First class programmatic access
  • Built from the ground-up for in-memory efficiency
  • Avoids CPU overhead of disk management
  • Usually a native object view of data
  • Less flexible than a true database
  • Query optimization is an unsolvable problem
  • Three decades of RDBMS evolution offsets that
  • Less focus on long-term storage

8
Data Grids
  • Extend the coherency protocol to client
    applications
  • Take advantage of the native object view of
    data
  • Keep important data local for efficiency
  • OR/M can sometimes be slower than the actual
    query
  • Implementations
  • Oracle Coherence
  • GemStone GemFire
  • IBM ObjectGrid

9
A Brief History
10
Relational DBMS
  • Relational DBMS
  • Relational structure allows any view of data
  • Minimizes impact of data schema mistakes
  • Databases for The People
  • With 4GL tools, led to the Client-Server
    revolution
  • And even power users Microsoft Excel and Access
  • The critical ingredient Query Optimizer
  • DBMS assumes responsibility for optimizing data
    access

11
Relational DBMS
  • But
  • Static optimization (RBO) is not 100 reliable
  • Dynamic optimization (CBO) is not 100 reliable
  • Mistakes magnified with scale and load
  • Scalability and availability problems

12
Object DBMS
  • Brief appearance in late 80s / early 90s
  • Some impressive performance feats
  • Extremely efficient for intended access patterns
  • Data schema coupled to business logic
  • Difficult to evolve data schema
  • Market segment as a whole has died
  • A few stragglers left

13
The best of all worlds
  • Take the efficiency of an Object DBMS
  • In-memory data coupled to application access
    patterns
  • Consistent access patterns at runtime
  • Add scale-out as a primary objective
  • And leverage the RDBMS
  • Existing storage resources and skills
  • Loosely coupled data schemas

14
How does it work?
15
Partitioned Cache
16
Partitioned Cache
17
Partitioned Cache
18
Near Cache
19
  • Types of State
  • Characteristics

20
Types of State
  • Messages
  • Request/Response
  • Source user, message queue or another
    application tier
  • Show inventory list (display web page in
    browser)
  • Just a message from one system to another
  • Conversational State
  • Stateful Applications
  • Spans multiple requests (a conversation)
  • Add item to shopping cart (update HTTP session)
  • Internal state
  • Persistent State
  • Typically stored in a database
  • Place order (persist order to database)
  • Externally visible

21
Connecting the dots
  • Applications process requests, taking into
    account the context of those requests, to manage
    persistent data
  • Therefore, effective applications must ensure
    that
  • Requests are properly processed
  • Proper context is maintained
  • Persisted data is correct
  • All of this is done in a timely manner

22
Characteristics Messages
  • Short-lived
  • Interactive apps milliseconds to a few seconds
  • Integration similar, unless one of the systems
    is down
  • Immutable and single-writer pattern
  • By definition, each request submitted by a single
    system
  • Almost no way to corrupt state, and easy to avoid
    losing state
  • Stateless applications are very easy to scale
  • Simple request-response processing
  • Requests are often retry-able (idempotent)

23
Characteristics Conversational State
  • Longer-lived
  • A few seconds to several minutes
  • Mutable, but by a single user
  • Not quite single-writer
  • Simultaneous requests from a user
  • Multiple portlets in a portal application
  • Multiple clicks at the same time
  • Load-balancing issues failover/failback/rebalanci
    ng
  • Often recoverable
  • Worst case, by restarting the session

24
Characteristics Persistent State
  • Long-lived
  • Rarely less than a few days often many decades
  • Often have regulatory requirements for several
    years
  • Mutable and globally shared
  • Possible interaction and contention from all
    users
  • Concurrency and data consistency are hard to
    combine
  • The entire application shares one persistent state

25
Summary Managing State
26
  • Types of State
  • Challenges

27
Challenges
  • Messages
  • Most considerations relate to interactions
    between systems
  • These interactions are effectively distributed
    transactions
  • It is critical to manage these transactions
    both reliably and efficiently

28
Challenges
  • Conversational state
  • Most applications can tolerate modest corruption
    (or loss) of conversational state (or do anyway)
  • Those that cant assume this will generally place
    this state in a reliable data store, or avoid
    conversational state altogether
  • While technology solutions exist, scaling
    stateful applications remains a challenge

29
Challenges
  • Persistent state
  • As the System of Record, persistent state is
    the most valuable asset
  • Databases are the default option for properly
    managing persistent state
  • However, scaling and performance concerns often
    move data management out of the database,
    increasing the difficulty of managing it correctly

30
Impact of lost/corrupted data
  • Messages
  • User gets a failed request
  • User resubmits request (click again)
  • Impact limited in scope (one user) and time (one
    request)
  • Conversational State
  • Users session is corrupted or missing
  • If detected by the system, user may need to log
    in again and start over
  • If not detected, the user will usually (but not
    always) notice
  • Impact limited in scope (one user) and time (one
    session)
  • Persistent State
  • Persistent State is the primary objective!
  • For the user Payment received but order not
    shipped
  • For everyone Inventory levels are incorrect
  • Impact is global for all users and for all time!

31
Critical Areas of Concern
  • Messages
  • Conversational State
  • Persistent State

32
  • Messaging
  • Compare, Contrast, Integrate

33
Messaging
  • Topics
  • One-to-many subscribers sign up to topics of
    interest
  • All subscribers receive messages as they occur
  • Emphasis on fast delivery to many subscribers
    (performance, scalability)
  • Queues
  • Used primarily for communication between two
    systems
  • Physical decoupling of sender and receiver
  • Emphasis on reliable message delivery
    (durability)
  • Implementations
  • TIBCO Rendezvous, IBM MQSeries

34
Messages
  • Requests typically flow through multiple systems
  • Message Queue ? App Server ? Database
  • Browser ? Web Server ? App Server ? Database
  • Ensure that each request is processed
  • even if a participating service fails
  • Failure of either client or server can result in
    dropped or duplicated requests
  • Most common requirement is once and only once
    but other variants may be acceptable (at most
    once, at least once)

35
Traditional Message Processing
  • Integrating multiple systems may require
    distributed transactions (XA)
  • Distributed transactions
  • Simple to integrate minimal effect on
    application architecture
  • E.g. enlist both the database and the queue
  • Slow (disk forces)
  • Tendency to cause lock contention (two-phase
    locking)
  • Not 100 reliable (heuristic failures)
  • Not widely supported (lack of support,
    compatibility issues)

36
Idempotency
  • Concept
  • If the client knows the server can handle
    duplicate requests
  • Then the client can err on the side of re-sending
    in doubt requests
  • A partial failure results in a complete retry
  • No need to use XA to coordinate client and server
  • Impact
  • May have a noticeable impact on application
    architecture
  • Fast
  • Very reliable

37
Message Processing with XA
  • JMS begin TX
  • DB begin TX
  • Read message
  • Write to database
  • Prepare JMS
  • Prepare DB
  • Commit JMS
  • Commit DB
  • If the prepare phase fails in either JMS or DB,
    the DB transaction is rolled back, and the JMS
    message is left in the queue
  • If the commit phase fails, that is a heuristic
    failure the state of the transaction is unknown

38
Idempotent Message Processing with Local
Transactions
  • JMS begin TX
  • DB begin TX
  • Read message
  • Write to DB (Idempotent)
  • Commit DB
  • Commit JMS
  • If commit to DB fails, the entire operation is
    aborted the message is still in the queue
  • If commit to JMS fails, the JMS de-queue is
    rolled back (but the DB commit isnt)
  • The next time the message is processed, the write
    to the DB will occur, but the operation wont
    have undesired side effects

39
Data Grid and Messaging
  • Data Grids can be used as a messaging fabric
  • But introduces global visibility of a new
    infrastructure piece
  • Established players have more mature solutions
  • And operations team know these products
  • Messaging usually used within the Data Grid
  • Not between disparate applications
  • One exception
  • Data Grids can use write-behind queueing to avoid
    the need for a dedicated message broker
  • Queue the messages in memory, not on disk
  • Slight reduction in durability but reduces
    operating costs

40
  • Application Server
  • Compare, Contrast, Integrate

41
Application Servers
  • Application containers
  • Provide a framework for managing requests and
    (usually) conversational state
  • May manage lifecycle of application deployment
    packages
  • Also service directories (JNDI / Jini lookup
    services)
  • Implementations
  • JavaEE WebLogic, WebSphere, JBoss, Oracle AS,
    etc.
  • Compute Grid Platform Symphony, DataSynapse
    GridServer
  • Jini Blitz, GigaSpaces
  • Spring
  • Requests
  • Route incoming requests (e.g. from TCP socket) to
    application components
  • Conversational State
  • JavaEE HTTP sessions (conversation between user
    and web server)
  • Jini JavaSpaces (conversation between multiple
    processes)

42
Conversational State Topologies
  • In-memory (no replication)
  • Fastest, most scalable option
  • Server failure results in data loss
  • Single-server visibility (dependent on sticky
    load balancer)
  • In-memory (replication)
  • Fast, scalable (implementations vary)
  • Widely available, sufficient for most use cases
  • Most implementations are not fully coherent under
    load or failure
  • Database persistence
  • Higher complexity and lower performance
  • Achieves data consistency, commonly available
  • Scales with database server (for better or worse)

43
Conversational State
  • Unreliable conversational state
  • No in-memory replication (data loss)
  • Incoherent in-memory replication (data
    corruption)
  • Tools
  • Idempotent processing
  • Reliable data store
  • Concept
  • Use application and data store to verify
    correctness on commit
  • Verify order placement on web page
  • Use optimistic concurrency on database to check
    values
  • Use idempotent processing to retry request chain
  • Buyer corrects shopping cart and resumes checkout
    process
  • Or for closed-loop systems, recover missing
    conversational state by replaying requests or
    re-loading from database (selectively persisted
    for performance)

44
  • Database
  • Compare, Contrast, Integrate

45
Database
  • The only real solution for persistence?
  • Permanent System of Record
  • Guaranteed data consistency
  • Operations
  • Perhaps the most widely deployed technology
  • In-house operations teams already know how to use
  • Strongest query technology (robust cost-based
    optimizers)
  • Plenty of support 3rd party tool vendors,
    consultants, documentation, discussion forums,
    etc.

46
Database
  • Usually the easiest and most reliable solution
    for managing persistent state
  • But supply
  • Absolute requirement for data consistency
  • Consistency requirements make scaling difficult
    (but possible)
  • may not meet demand
  • Front tiers are inexpensive and easy to scale
  • Scaling on the front causes massive load on the
    back
  • Offloading can help with managing persistent data
  • Eventually faces diminishing returns from
    overhead and complexity

47
Offloading via Caching
  • Keep a local partial data set for faster access
  • Beneficial for read-heavy applications
  • Gained popularity by mitigating the EJB BMP N1
    problem
  • Limited gains for transactions and queries
  • Relatively transparent to application
    architecture
  • Weak requirements for data consistency
  • With optimistic concurrency, data consistency is
    delegated to SoR
  • For presentation layer, dirty reads are often
    acceptable

48
Offloading Analytics
  • Run queries against a copy of the System of
    Record
  • System of Reference
  • Data consistency is important
  • Depends on usage
  • Generally operating against a point-in-time
    snapshot
  • Data resilience is a Quality of Service
    consideration
  • Recoverable from the System of Record
  • Failure will affect availability but not results

49
Offloading Events
  • Changes to the System of Record may need to
    trigger additional processing
  • Challenges
  • Ensuring all changes of any relevant state are
    handled in a timely manner
  • Absolute data consistency required for change
    events and the context of those events (ordering,
    subscribers, etc)
  • Hard to do all of these
  • Absolute data consistency
  • Fan-out of events from transactions
  • Timely delivery of events

50
Offloading Transactions
  • The System of Record must manage all transactions
    related to its owned data
  • But a given piece of data may have different
    owners over even short periods of time
  • Important to identify which system owns each
    piece of data
  • Usually achieved by owning part of the
    permanent store
  • Data consistency required

51
Data Grids can help
  • Conversational state
  • Combine the data consistency of a database with
    the performance of local in-memory data
  • Persistent state
  • Running queries in the data grid can remove the
    query load on a database
  • Committing transactions in-memory then persisting
    in batches can reduce the transaction load of a
    database
  • Abstraction of data sources

52
Data Source Integration - Read Through
53
Data Source Integration -Write Through
54
Data Source Integration -Write Behind
55
Data Grid Data Source Integration
  • Data Integration occurs in the Data Service
  • Integration uses the domain model
  • The data is both live and shared
  • Events provide bi-directional flow
  • Applications can respond to events

Data Service Clients
56
Summary of Data Grid Integration Points
  • Messaging
  • Data Grid can be used for internal application
    messaging
  • Application Server
  • Scale data availability reliably along with
    processing power
  • Database
  • Offload transactions and analytics to Data Grid
    for higher throughput

57
The Spectrum
Integration
Messaging Topics, Queues
Data Consistency
Application Servers Requests JavaEE, Jini,
Compute Grid Conversational HTTP Sessions,
Stateful EJBs, JavaSpaces
Scalable Performance
Data Grids Data Grid, In-Memory Database
Database
58
  • Thank You!
Write a Comment
User Comments (0)
About PowerShow.com
