RASC 2000 1

1
magne_at_ieee.org
hans_at_ieee.org
Abonyij_at_fmt.vein.hu

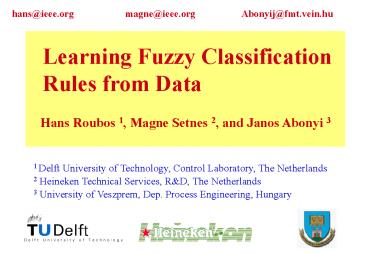

Learning Fuzzy ClassificationRules from Data
Hans Roubos 1, Magne Setnes 2, and Janos Abonyi 3
1 Delft University of Technology, Control
Laboratory, The Netherlands 2 Heineken Technical
Services, RD, The Netherlands 3 University of
Veszprem, Dep. Process Engineering, Hungary
2
Goal of this work

• Automatic design of fuzzy rule-based classifiers
  based on data with both high accuracy and high
  transparency.
• Show that different tools for modeling and
  complexity reduction can be favorably combined
• feature selection,
• fuzzy model identification,
• rule base simplification,
• constrained genetic optimization.

3
Outline

• Transparency and accuracy issues
• Proposed modeling method
• Iterative complexity reduction
• Three modeling schemes
• Examples Wine data
• Conclusion

4
What makes a good fuzzy classifier?

• Accuracy
• Classification error
• Certainty degree
• Local models/global models
• Transparency and Interpretability
• Moderate number of rules
• Distinguishability
• Normality
• Coverage

5
Coding of the fuzzy classifier

• Fuzzy classifier structure
• Certainty factor

class
no. of rules
degree of firing
decision
6
Proposed modeling method
reduce input space
good initial model structure
Feature selection
create rule base
Data clustering
Initialize
introduces some error
Project clusters
reduce premise
Fuzzy Set merging
Iterate
GA with multi-objective MSE
redundancy
Global optimization
Global Optimization
Finish
multi-objective MSE transparency
final model
7
Initial fuzzy model

• Data-driven initialization
• Each class is approximated an elipsoid based on
  statistical properties of the data.
• Other methods fixed partitioning, clustering,
  e.g. C-means, Gustafson-Kessel, splitting trees
  e.g. LOLIMOT.
• Note that projection introduces error!

8
Feature selection

• Improves prediction and interpretability
  capabilities.
• Fischer interclass separability criterion
• Based on statistical properties of the labeled
  data,between-class and within-class scatter, a
  feature ranking is made.
• Fuzzy models are made by adding features
  one-by-one, according the ranking, in an
  iterative way.
• The initial model to proceed with is chosen from
  the performance curve.

9
Similarity driven rule base simplification
A
B

• Sets are merged in iterative way by checking if
  S(A,B) gt ? (default ? 0.5 ).
• Sets equal to the universal set are removed.
• If only one set remains in an input domain then
  the feature is left out.
• If two antecedent parts of rules become similar
  the consequents are merged and double rule are
  removed.

10
Aggregated similarity measure S

• Search for redundancy
• Aggregated similarity measure S for the complete
  rulebase

11
Genetic multi-objective optimization

• Classification error
• Multi-objective function
• ??-1,1 determines whether similarity is
  rewarded (?lt0) or penalized (?gt0).
• (In addition, CF may also be included)

12
GA-coding of the fuzzy model

• Triangular membership functions
• Chromosome coding
• The consequent variables can also be appended if
  these are also subject to optimization.

13
Real-coded Genetic Algorithm

• 1. Load data and initial fuzzy model (FM)
• 2. Make a prototype chromosome from initial FM
• 3. Calculate constraints and create initial
  population P0
• 4. Repeat until termination conditions tT
  (a) deal with constraints on the fuzzy
  sets (b) evaluate Pt by simulation and obtain Jt
  (c) select chromosomes for operation (d)
  select chromosomes for deletion (e) operate on
  chromosomes (f) create new population Pt1


Initialize Evaluate Select Operate
14
Three modeling schemes
15
Wine data classification problem

• 179 samples, 3 classes, 13 attributes

16
Wine data Scheme 1

• Fischer interclass separability
  ranking8,5,11,2,3,9,10,6,7,4,1,12,13
• Classifiers are made by adding features one by
  one.
• 400 GA-iterations in the optimization.
• Best results with first 5 or 7 features, giving 2
  and1 misclassification.
• CF5 0.96,0.94,0.94 and CF7
  0.94,0.99,0.97.
• Final classifiers contain 15 and 21 fuzzy sets .


17
Wine data Scheme 2

• Eight inputs were removed in 3 iterations3,5,
  2,4,8,9, 6,12.
• 200 GA-iterations in loop and 400 in final
  optimization.
• CF 0.96,0.94,0.94, 1 misclassification
• Final classifier contains 5 features defined
  by11 fuzzy sets.

18
Wine data Scheme 3

• 7,4,1,12,13 were selected based on Fischer
  interclass ranking.
• Initial model contains 9 misclassifications.
• 200 GA-iterations in loop and 400 in final
  optimization.
• 4 and 3 additional fuzzy sets were removed .
• CF 0.93,0.91,0.91, 3 misclassifications.
• Final classifier contains 4 features and 9 fuzzy
  sets.

19
Classifier obtained by scheme 1,2 and 3
1.
2.
3.
20
Classifier of scheme 2
21
Discussion (1)

• This method and some variations were also
  successfully applied to (NAFIPS99,
  FUZZ-IEEE00,TFS00)
• Iris data, Wisconsin breast cancer data.
• Function approximation Sugenos rule base.
• Nonlinear dynamic plant of Wang and Yen.
• Dynamic model pressure in fermentor, Diesel
  engine

22
Discussion (2)

• All three schemes resulted in compact and
  transparent models with 4-5 features and 9-15
  fuzzy sets.
• The Fischer interclass separability tool is not
  necessary to make the smallest models for the
  Wine data but still reduces the amount of
  GA-iterations.
• The interclass separability results in open-loop
  feature selection while the similarity analysis
  results in a closed-loop feature selection.
• In similarity based-reduction, features can be
  removed from single rules. This is not the case
  in the presented open-loop feature selection but
  is under investigation.

23
Conclusion and future work

• The proposed method provides accurate and
  transparent rule-based classifiers in a
  semi-automatic way.
• The evolutionary optimization is naturally
  combined with the complexity reduction
  techniques.
• Study other multi-objective criteria for MIMO
  system identification, controller design and
  high-dimensional data-mining problems.
