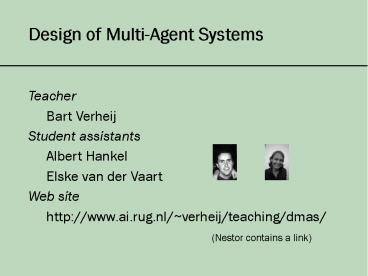

Design of Multi-Agent Systems

1
Design of Multi-Agent Systems

• Teacher
• Bart Verheij
• Student assistants
• Albert Hankel
• Elske van der Vaart
• Web site
• http//www.ai.rug.nl/verheij/teaching/dmas/
• (Nestor contains a link)

2
Overview

• Deductive reasoning agents
• Planning
• Agent-oriented programming
• Concurrent MetateM
• Practical reasoning agents
• Practical reasoning intentions
• Implementation deliberation
• Implementation commitment strategies
• Implementation intention reconsideration

3
Deductive Reasoning Agents

• Decide what to do on the basis of a theory
  stating the best action to perform in any given
  situation
• ?, ? Do(a) with a ? Ac
• where
• ? is such a theory (typically a set of rules)
• ? is a logical database that describes the
  current state of the world
• Ac is the set of actions the agent can perform

4
Deductive Reasoning Agents

• But
• Theorem proving is in general neither fast nor
  efficient
• Calculative rationality (rationality with respect
  to the moment calculation started) requires a
  static environment
• Encoding of perception environment into logical
  symbols isnt straightforward
• So
• Use a weaker logic
• Use a symbolic, not logic-based representation

5
Overview

• Deductive reasoning agents
• Planning
• Agent-oriented programming
• Concurrent MetateM
• Practical reasoning agents
• Practical reasoning intentions
• Implementation deliberation
• Implementation commitment strategies
• Implementation intention reconsideration

6
Planning STRIPS

• Only atoms and their negation
• Only represent changes
• Blocks world (blocks a robot arm)
• Stack(x,y)
• Pre Clear(y), Holding(x)
• Del Clear(y), Holding(x)
• Add ArmEmpty(y), On(x,y)

7
Problems with planning

• Frame problem
• Describe what does not change by an action
• Qualification problem
• Describe all preconditions of an action
• Ramification problem
• Describe all consequences of an action
• Prediction problem
• Describe the duration that something remains true

8
Overview

• Deductive reasoning agents
• Planning
• Agent-oriented programming
• Concurrent MetateM
• Practical reasoning agents
• Practical reasoning intentions
• Implementation deliberation
• Implementation commitment strategies
• Implementation intention reconsideration

9
Agent-oriented programming

• Agent0 (Shoham)
• Key idea directly programming agents in terms of
  intentional notions like belief, commitment, and
  intention
• In other words, the intentional stance is used as
  an abstraction tool for programming!

10
Agent-oriented programming

• Shoham suggested that a complete AOP system will
  have 3 components
• a logic for specifying agents and describing
  their mental states
• an interpreted programming language for
  programming agents (example Agent0)
• an agentification process, for converting
  neutral applications (e.g., databases) into
  agents

11
Agent-oriented programming

• Agents in Agent0 have four components
• a set of capabilities (things the agent can do)
• a set of initial beliefs
• a set of initial commitments (things the agent
  will do)
• a set of commitment rules

12
Agent-oriented programming

• Each commitment rule contains
• a message condition
• a mental condition
• an action
• On each agent cycle
• The message condition is matched against the
  messages the agent has received
• The mental condition is matched against the
  beliefs of the agent
• If the rule fires, then the agent becomes
  committed to the action (the action gets added to
  the agents commitment set)

13
A commitment rule in Agent0

• COMMIT(
• ( agent, REQUEST, DO(time, action)
• ), msg condition
• ( B,
• now, Friend agent AND
• CAN(self, action) AND
• NOT time, CMT(self, anyaction)
• ), mental condition
• self,
• DO(time, action)

14
A commitment rule in Agent0

• Meaning
• If I receive a message from agent which requests
  me to do action at time, and I believe that
• agent is currently a friend
• I can do the action
• At time, I am not committed to doing any other
  action
• then I commit to doing action at time

15
Overview

• Deductive reasoning agents
• Planning
• Agent-oriented programming
• Concurrent MetateM
• Practical reasoning agents
• Practical reasoning intentions
• Implementation deliberation
• Implementation commitment strategies
• Implementation intention reconsideration

16
Concurrent METATEM

• Concurrent METATEM is a multi-agent language in
  which each agent is programmed by giving it a
  temporal logic specification of the behavior it
  should exhibit
• These specifications are executed directly in
  order to generate the behavior of the agent
• Temporal logic is classical logic augmented by
  modal operators for describing how the truth of
  propositions changes over time

17
Concurrent METATEM

• important(agents)it is now, and will always be
  true that agents are important
• ?important(ConcurrentMetateM)sometime in the
  future, ConcurrentMetateM will be important
• ?important(Prolog)sometime in the past it was
  true that Prolog was important
• (?friends(us)) U apologize(you)we are not
  friends until you apologize
• ?apologize(you)tomorrow (in the next state), you
  apologize

18
Concurrent METATEM

• MetateM is a framework for directly executing
  temporal logic specifications
• The root of the MetateM concept is Gabbays
  separation theoremAny arbitrary temporal logic
  formula can be rewritten in a logically
  equivalent past ? future form.
• This past ? future form can be used as execution
  rules

19
Concurrent METATEM

• A MetateM program is a set of such rules
• Execution proceeds by a process of continually
  matching rules against a history, and firing
  those rules whose antecedents are satisfied
• The instantiated future-time consequents become
  commitments which must subsequently be satisfied

20
Concurrent METATEM

• Execution is thus a process of iteratively
  generating a model for the formula made up of the
  program rules
• The future-time parts of instantiated rules
  represent constraints on this model
• All asks at some time in the past are followed
  by a give at some time in the future

21
Concurrent METATEM

• Execution is thus a process of iteratively
  generating a model for the formula made up of the
  program rules
• The future-time parts of instantiated rules
  represent constraints on this model
• ConcurrentMetateM provides an operational
  framework through which societies of MetateM
  processes can operate and communicate

22
(No Transcript)
23
Overview

• Deductive reasoning agents
• Planning
• Agent-oriented programming
• Concurrent MetateM
• Practical reasoning agents
• Practical reasoning intentions
• Implementation deliberation
• Implementation commitment strategies
• Implementation intention reconsideration

24
Practical reasoning

• Practical reasoning is reasoning directed towards
  actions the process of figuring out what to do
• Practical reasoning is a matter of weighing
  conflicting considerations for and against
  competing options, where the relevant
  considerations are provided by what the agent
  desires/values/cares about and what the agent
  believes. (Bratman)
• Practical reasoning is distinguished from
  theoretical reasoning theoretical reasoning is
  directed towards beliefs

25
Practical reasoning

• Human practical reasoning consists of two
  activities
• deliberationdeciding what state of affairs we
  want to achieve
• means-ends reasoningdeciding how to achieve
  these states of affairs
• The outputs of deliberation are intentions

26
Intentions in practical reasoning

1. Intentions pose problems for agents, who need to
   determine ways of achieving them.If I have an
   intention to ?, you would expect me to devote
   resources to deciding how to bring about ?.
2. Intentions provide a filter for adopting other
   intentions, which must not conflict.If I have an
   intention to ?, you would not expect me to adopt
   an intention ? such that ? and ? are mutually
   exclusive.
3. Agents track the success of their intentions, and
   are inclined to try again if their attempts
   fail.If an agents first attempt to achieve ?
   fails, then all other things being equal, it will
   try an alternative plan to achieve ?.

27
Intentions in practical reasoning

1. Agents believe their intentions are
   possible.That is, they believe there is at least
   some way that the intentions could be brought
   about. Otherwise intention-belief inconsistency
2. Agents do not believe they will not bring about
   their intentions.It would not be rational of me
   to adopt an intention to ? if I believed ? was
   not possible. Otherwise intention-belief
   incompleteness
3. Under certain circumstances, agents believe they
   will bring about their intentions.It would not
   normally be rational of me to believe that I
   would bring my intentions about intentions can
   fail. Moreover, it does not make sense that if I
   believe ? is inevitable that I would adopt it as
   an intention.

28
Intentions in practical reasoning

1. Agents need not intend all the expected side
   effects of their intentions.If I believe ??? and
   I intend that ?, I do not necessarily intend ?
   also. (Intentions are not closed under
   implication.)This last problem is known as the
   side effect or package deal problem.

29
Intentions in practical reasoning

• Intentions are stronger than mere desires
• My desire to play basketball this afternoon is
  merely a potential influencer of my conduct this
  afternoon. It must vie with my other relevant
  desires . . . before it is settled what I will
  do. In contrast, once I intend to play basketball
  this afternoon, the matter is settled I normally
  need not continue to weigh the pros and cons.
  When the afternoon arrives, I will normally just
  proceed to execute my intentions. (Bratman, 1990)

30
Practical reasoning (abstract)

• Current beliefs and perception determine next
  beliefs
• Current beliefs and intentions determine next
  desires
• Current beliefs, desires and intentions determine
  next intentions
• Current beliefs, desires and available actions
  determine a plan

31
Overview

• Deductive reasoning agents
• Planning
• Agent-oriented programming
• Concurrent MetateM
• Practical reasoning agents
• Practical reasoning intentions
• Implementation deliberation
• Implementation commitment strategies
• Implementation intention reconsideration

32
Implementing practical reasoning agents
B B_initial I I_initial loop p
see B brf(B,p) //Update world
model I deliberate(B) ?
plan(B,I) //Use means-end reasoning execute(?)
end
33
Interaction between deliberation and planning

• Both deliberation and planning take time, perhaps
  too much time.
• Even if deliberation is optimal (maximizes
  expected utility), the resulting intention may no
  longer be optimal when deliberation has finished.
• (Calculative rationality)

34
Deliberation

• How does an agent deliberate?
• Option generationin which the agent generates a
  set of possible alternatives
• Filteringin which the agent chooses between
  competing alternatives, and commits to achieving
  them.

35
Implementing practical reasoning agents
B B_initial I I_initial loop p
see B brf(B,p) D option(B,I) //
Deliberate (1) I filter(B,D,I) //
Deliberate (2) ? plan(B,I) execute(?) e
nd
36
Overview

• Deductive reasoning agents
• Planning
• Agent-oriented programming
• Concurrent MetateM
• Practical reasoning agents
• Practical reasoning intentions
• Implementation deliberation
• Implementation commitment strategies
• Implementation intention reconsideration

37
Commitment Strategies

• The following commitment strategies are commonly
  discussed in the literature of rational agents
• Blind commitmentA blindly committed agent will
  continue to maintain an intention until it
  believes the intention has actually been
  achieved. Blind commitment is also sometimes
  referred to as fanatical commitment.
• Single-minded commitmentA single-minded agent
  will continue to maintain an intention until it
  believes that either the intention has been
  achieved, or else that it is no longer possible
  to achieve the intention.
• Open-minded commitmentAn open-minded agent will
  maintain an intention as long as it is still
  believed possible.

38
Commitment Strategies

• An agent has commitment both to ends (i.e., the
  wishes to bring about), and means (i.e., the
  mechanism via which the agent wishes to achieve
  the state of affairs)
• Currently, our agent control loop is
  overcommitted, both to means and ends
• Modification replan if ever a plan goes wrong

39
B B_initial I I_initial loop p
see B brf(B,p) D option(B,I) I
filter(B,D,I) ? plan(B,I) while not
empty(?) do a head(?) execute(a)
//Start plan execution ? tail(?) p
see B brf(B,p) //Update world
plan if not sound(?,B,I) then ?
plan(B,I) //Replan if necessary end end en
d
40
Commitment Strategies

• Still overcommitted to intentions Never stops to
  consider whether or not its intentions are
  appropriate
• Modification stop to determine whether
  intentions have succeeded or whether they are
  impossible(Single-minded commitment)

41
B B_initial I I_initial loop p
see B brf(B,p) D option(B,I) I
filter(B,D,I) ? plan(B,I) while not
(empty(?) or succeeded(B,I) or impossible (B,I)
do a head(?) //Check whether intentions
succeeded execute(a) //and are still
possible ? tail(?) p see B
brf(B,p) if not sound(?,B,I) then ?
plan(B,I) end end end
42
Overview

• Deductive reasoning agents
• Planning
• Agent-oriented programming
• Concurrent MetateM
• Practical reasoning agents
• Practical reasoning intentions
• Implementation deliberation
• Implementation commitment strategies
• Implementation intention reconsideration

43
Intention Reconsideration

• Our agent gets to reconsider its intentions once
  every time around the outer control loop, i.e.,
  when
• it has completely executed a plan to achieve its
  current intentions or
• it believes it has achieved its current
  intentions or
• it believes its current intentions are no longer
  possible.
• This is limited in the way that it permits an
  agent to reconsider its intentions
• Modification Reconsider intentions after
  executing every action

44

• B B_initial
• I I_initial
• loop
• p see
• B brf(B,p)
• D option(B,I)
• I filter(B,D,I)
• ? plan(B,I)
• while not (empty(?) or succeeded(B,I) or
  impossible (B,I) do
• a head(?)
• execute(a)
• ? tail(?)
• p see
• B brf(B,p)
• D option(B,I) //Reconsider (1)
• I filter(B,D,I) //Reconsider (2)
• if not sound(?,B,I) then
• ? plan(B,I)
• end

45
Intention Reconsideration

• But intention reconsideration is costly!A
  dilemma
• an agent that does not stop to reconsider its
  intentions sufficiently often will continue
  attempting to achieve its intentions even after
  it is clear that they cannot be achieved, or that
  there is no longer any reason for achieving them
• an agent that constantly reconsiders its
  attentions may spend insufficient time actually
  working to achieve them, and hence runs the risk
  of never actually achieving them
• Solution incorporate an explicit meta-level
  control component, that decides whether or not to
  reconsider

46

• B B_initial
• I I_initial
• loop
• p see
• B brf(B,p)
• D option(B,I)
• I filter(B,D,I)
• ? plan(B,I)
• while not (empty(?) or succeeded(B,I) or
  impossible (B,I) do
• a head(?)
• execute(a)
• ? tail(?)
• p see
• B brf(B,p)
• if reconsider(B,I) then //Decide whether to
  reconsider or not
• D option(B,I)
• I filter(B,D,I)
• end
• if not sound(?,B,I) then

47
Overview

• Deductive reasoning agents
• Planning
• Agent-oriented programming
• Concurrent MetateM
• Practical reasoning agents
• Practical reasoning intentions
• Implementation deliberation
• Implementation commitment strategies
• Implementation intention reconsideration
