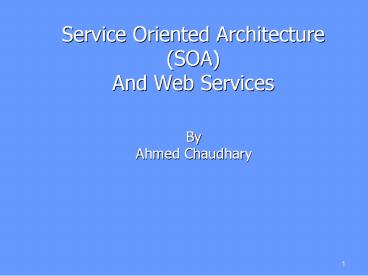

Service Oriented Architecture SOA And Web Services

1
Service Oriented Architecture (SOA)And Web
Services

• By
• Ahmed Chaudhary

2
Presentation overview

• Introduction to SOA
• Through Examples and Metaphors
• Introduction to Web Services
• Brief overview of XML Technologies
• Comparison of SOA and services with other
  paradigms

• Benefits and limitations of SOA

3
A business trip in the not so distant future
4
(No Transcript)
5
Information Technology used in this trip

• Keeping track of all the customer contacts in an
  online repository

• Obtaining Company Contact Information from an
  External Service

• Online Calendar Services
• Getting Updates on Clients to Be Visited While on
  the Road

• Travel Agency Service
• Car Rental Service
• Airlines and Hotel
• Services as Commodities

6
Another Example
7
SOA Explained

• A service-oriented architecture is essentially a
  collection of services.

• These services communicate with each other
• Some mechanism of connecting services to each
  other is needed. Those connections are Web
  Services.

8
What is a service ?

• A function that is well-defined
• Self-contained
• Does not depend on the context or state of other
  services.

9
The Mail-Order Business

• A Mail-Order Business is Asynchronous
• Work Requests Arrive in Bags of Mail
• Product Arrives in Shipments
• Each Message (Order) Is a Transaction
• Goods Are Prepared and Packed
• Payment Is Processed
• Stuff is Shipped
• Standards and Interchangeability Required
• Both Goods and Forms
• Mail-Order Is a Service-Oriented Architecture!
• Well defined functions
• Self-contained
• Independent

10
How Services Work
11
Web Services

• Web services are the mechanism for connecting
  services programmatically and are based on
  standards.

• Other existing connection mechanisms
• CORBA
• DCOM
• EDI etc.

12
How Web Services Work
13
More on Web Services

• Web services can be published, located, and
  invoked across the Web.

• The standards required to do so are
• Simple Object Access Protocol (SOAP), also known
  as service-oriented architecture protocol, an
  XML-based RPC and messaging protocol

• Web Service Description Language (WSDL), a
  descriptive interface and protocol binding
  language

• Universal Description, Discovery, and Integration
  (UDDI), a registry mechanism that can be used to
  look up Web service descriptions


14
Some points about Web Services

• Services arent tied to user interfaces.
• Services can be implemented in any language,
  COBOL, Java, etc., but all services must support
  the same invocation/communication protocols (for
  example XML/SOAP)

15
Introduction to XML and related Technologies
16
What is XML?

• XML stands for EXtensible Markup Language
• XML is a markup language much like HTML
• XML was designed to describe data
• XML tags are not predefined. You must define your
  own tags

17
An Example
18
What is an XML Schema?

• The purpose of an XML Schema is to define the
  building blocks of an XML document

• defines elements that can appear in a document
• defines which elements are child elements
• defines the order of elements
• defines the number of child elements
• defines data types for elements and attributes

19
What is SOAP?
20
What is WSDL?

• WSDL stands for Web Services Description
  Language.

• WSDL is a document written in XML.
• The document describes a Web service. It
  specifies the location of the service and the
  operations (or methods) the service exposes.

21
Comparisons of SOA
22
SOA vs CORBA DCOM
23
SOA vs. Enterprise Integration Architecture (EIA)

• EIA is being reactive
• SOA is being proactive

24
Services vs. Components

• A service is a coarse-grained processing and maps
  to a business function

• A component typically maps to business entities
  and the business rules


25
An example component model
26
Revisiting the Business Trip
27
(No Transcript)
28
Why do we need SOA?

• There's little "green field" anymore
• New stuff needs existing stuff
• Existing stuff needs new stuff
• Heterogeneous Systems
• No single OS-family / HW-platform
• Deal with "Big Bang" Effect
• Everything keeps drifting farther away from
  everything else

• Access/Manipulate data from anywhere

29
SOA Benefits

• Leverage existing assets.
• Easier to integrate and manage complexity.
• More responsive and faster time-to-market.
• Reduce cost and increase reuse.
• Be ready for what lies ahead.

30
SOA Limitations

• SOA requires an environmental framework
• Pending security issues
• Handling Transactions

31
Summary

• SOA is an architectural style that encourages the
  creation of loosely coupled business services
  Loosely coupled services that are interoperable
  and technology-agnostic enable business
  flexibility
• An SOA solution consists of a composite set of
  business services that realize an end-to-end
  business process

• Each service provides an interface-based service
  description to support flexible and dynamically
  re-configurable processes

32
Q A
