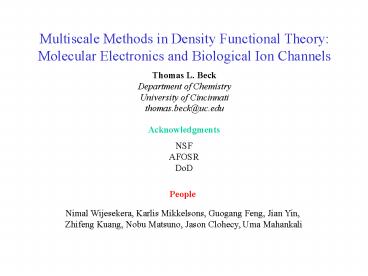

Multiscale Methods in Density Functional Theory:

1
Multiscale Methods in Density Functional
Theory Molecular Electronics and Biological Ion
Channels
Thomas L. Beck Department of Chemistry University
of Cincinnati thomas.beck_at_uc.edu
Acknowledgments
NSF AFOSR DoD
People
Nimal Wijesekera, Karlis Mikkelsons, Guogang
Feng, Jian Yin, Zhifeng Kuang, Nobu Matsuno,
Jason Clohecy, Uma Mahankali
2
Applications
Molecular Electronics Diodes, Wires, Transistors?
DV
I
e
Au
Au
S
S
3
Ion transport through membrane channels
W

-
P
M
-


4
Comparison of the closed and open state of
Potassium channels
Closed KcsA channel
Open MthK channel
5
HOLE search on KcsA(all figures below are
produced by modified HOLE program)
6
Chloride Channel
7
Poisson-Boltzmann Potential of StClC 1KPL in
Membrane
8
Poisson-Boltzmann Potential of StClC 1KPL in
Membrane (63/136)
9
Figure 8. Results of molecular dynamics runs at
400, 500, and 600 K on E. coli channel with added
hClC-2 proton sensor. Main protein was held
fixed while addition was allowed to move. Six
runs are superimposed for each temperature. Figure
s generated by DeepView v. 3.7b2
10
HOLE search on StClC
11
Alternative Approaches
Electrostatic continuum model
12
Proposed Approach
Simple Moderate Complex

• PNP theory

200mV
?(e(r) ??(r) ) -4??(r) Szeci J(r,t)
-D?ci(r, t) b ?V(r)ci(r, t)
At steady-state dc(r,t)/dt 0, 0 ?.J
?.?ci(r, t) b ?V(r)ci(r) where VU zi e?
i 1,2.. N
static charge
mobile charge
Upon Slotboom transformation, 0 ?.eeff(r) (? ?
(r)) where eeff exp(- bV) and ?i exp (bV) ci
Laplace Equation
13
Proposed Approach
Simple Moderate Complex
25.0 3.0 mM
Concentration (mM)
3-D PNP solver results shown
grid point
14
Equations to Solve
15
Kohn-Sham Equations
Nonlinear!
16
Finite-difference representation (Poisson)
(Results from Taylor series expansion of the
function)
17
2-d 4th order Laplacian
18
(No Transcript)
19
Iterative relaxation efficiency
Eigenvalues of update matrix (weighted Jacobi)
Longest wavelength modes
Critical slowing down
MG
20
Multigrid V-cycle
MG accelerates convergence by decimating error
components with all wavelengths!
2 relaxations per level
Correct, relax
Restrict, relax
21
Alternative cycles
V-cycle
Full multigrid (FMG) good preconditioning
22
Efficiency
23
Glycine (15 states)
Benzene dithiol (21 states)
24
Electron density
25
Convergence glycine, 15 states
26
Polyelectrolyte simulation configuration bias
MC with multigrid Poisson-Boltzmann solution for
each configuration
