Reengineering TCP Vegas

1

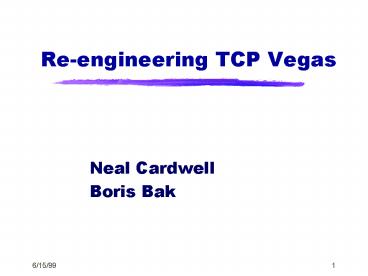

Re-engineering TCP Vegas

• Neal Cardwell
• Boris Bak

2
Building a Better TCP

• In deciding when to send, TCP errs on the side of
  simplicity
• Doesnt find the right rate
• Sends in bursts
• Some more aggressive approaches
• TCP Vegas finding the right rate
• Pacing smoothing the bursts
• Old ideas, but not deployed
• Dont fully understand benefits, costs

3
Overview

• Congestion control review
• The current approach its problems
• An alternative TCP Vegas
• Implementing Vegas in the real world
• The devil is in the details
• Problems and patches

4
Congestion Control The Problem

• How fast should TCP send?
• Assumptions
• IPs best-effort service model
• Primary feedback
• ACKs from receiver
• Packet loss
• No information from routers
• Perhaps info from past or current flows along the
  same path

5
The Sub-Problems

• Finding the right rate at startup
• Staying at the right rate
• Reacting to changes
• Path or traffic changes
• More or less bandwidth available

6
TCP Reno

• cwnd bounds un-ACKed packets
• ssthresh guess as to safe cwnd
• By default, probe for more bandwidth
• slow start cwnd 1.5 each RTT
• congestion avoidance cwnd.5 each RTT
• Packet loss signals congestion
• Fast retransmit, fast recovery cwnd/2
• Retransmission timeout cwnd1

7
Problems with TCP Reno

• During slow start
• Underutilizes and then swamps path
• No right rate cwnd traces a sawtooth
• Underutilizes path
• Increases queuing delay
• Causes loss, reducing throughput
• Inherently biased against long RTTs

8
Alternatives Startup

• Original Jacobson 88 always cwnd1.5
• Several studied in Allman, Paxson 99
• Tracking slow start flights BP95
• Closely-spaced ACKs Hoe 96
• Tracking closely-spaced ACKs AD98
• Receiver-side estimation AP99
• But no studies w/ typical paths

9
Alternatives Steady-State

• Original Jacobson 88 always cwnd
• CARD Jain 89 RTT
• Tri-S Wang, Crowcroft 91 rate
• DUAL Wang,Crowcroft 92 RTT
• TCP Vegas Brakmo,Peterson 94 rate
• Buffer-Fill Avoidance Awadallah, Rai 98 RTT
• New, from UCB (Mo, Walrand 99) RTT, rate

10
TCP Vegas

• In congestion avoidance
• cwnd (actual rate)x(baseRTT) 2 pkts
• Each RTT, tweak cwnd by 1 pkt if needed
• During slow start
• To reduce overshoot, increase cwnd only every
  other RTT
• Exit slow start when
• cwnd gt (actual rate)x(baseRTT) 1 pkt

11
Vegas in Theory and Practice

• In isolation, 3-70 higher BW than Reno
• Loses to Reno b/c it queues few packets
• In steady state, 2 pkts queued per flow
• No loss
• Stable
• Basically fair w.r.t. other Vegas flows
• No RTT bias, unlike Reno
• Slight bias toward newer connections

12
Our Experience

• Plan implement Vegas for Linux
• 2 months fixing Linux TCP bugs
• Found problems with Vegas
• Some fixed, some are works in progress...
• This congestion control business is tricky
  stuff...

13
Time Stamp Granularity

• Arizona Vegas used 1ms
• Linux has 10ms-granularity time in kernel
• Nice for smoothing out noise? Nope!
• RTT to UCB goes from 2 ticks to 3 - whoa!
• Need resolution much smaller than typical RTT to
  avoid granularity artifacts
• We now use microsecond resolution

14
Slow Start Problems

• Vegas slow start is too slow...
• Increase by 1.5x every other RTT
• Most flows are short, so...ouch!
• But still eventually overshoots
• Suppose cwnd of W bottleneck BW
• It will send 1.5W for two RTTs before slowing
  down
• Our implementation increases every RTT
• Need a better heuristic for exiting slow start

15
Delayed ACKs

• When receivers delayed ACK timer fires
• Causes 100ms delay that looks just like queuing
• Artificially small actual rate
• Can compensate by min filtering
• When receiver ACKs every other packet
• Sender sends burst of two packets
• Only get RTT sample for 2nd packet of bursts
• But this packet was queued behind the 1st
• Can compensate by allowing gt1 packets queued

16
Idleness Bug

• Arizona Vegas assumes flow never idle
• thus always has recent actual rate info
• On restart from idle, must wait until we get
  fresh info before making a decision
• Our implementation incorporates this fix

17
Loss Hurts Vegas More

• TCP uses duplicate ACKs to detect losses
• So big windows help loss recovery
• But Vegas tries to keep a small window
• For my 512Kbps line, Vegas cwnd4
• If Vegas loses 2 packets to my house, RTO
• Could compensate w/ NetReno Lin, Kung 98
• Send new packet out for every duplicate ACK
• No RTO unless all packets in flight are lost

18
Route Changes

• Long noted If new route is longer, this looks
  like queuing delay
• Vegas slows when it should speed up!
• Simulated proposals choose baseRTT as min of
  RTTs over last N ACKs or T secs
• Our experience tricky depends on bandwidth,
  delay

19
Persistent Queuing

• Long noted Vegas cant distinguish propagation
  delay from persistent queuing
• New flows get bigger baseRTT, cwnd
• Two approaches
• OK prioritizes short flows
• Not OKcauses unacceptable queuing delay
• Proposal treat as route change
• We have yet to try this

20
Conclusions

• Hard to fine-tune and be robust to
• Random queuing delay
• Delayed ACKs
• Route changes
• Link layer loss, retransmission, compression
• Reno may be dumb, but its robust
• I still have high hopes for Vegas...

21
Future Directions

• Lots of experiments tweaking
• Different approaches to slow start
• Different heuristics for detecting route change
• Low bandwidth, and high bandwidth-delay
• Integrate Vegas with FACK
• Competing with Reno more aggressive?
• What if we could get help from routers?...

22
Bibliography Experience

• L. Brakmo, S. O'Malley, and L. Peterson. TCP
  Vegas New techniques for congestion detection
  and avoidance. SIGCOMM 94. ftp//ftp.cs.arizona.e
  du/xkernel/Papers/vegas.ps
• L. S. Brakmo and L. L. Peterson, "TCP Vegas End
  to End Congestion Avoidance on a Global
  Internet. IEEE JSAC, Vol. 13, No. 8, October
  1995. ftp//ftp.cs.arizona.edu/xkernel/Papers/jsac
  .ps.Z
• J.S. Ahn, Peter B. Danzig, Z. Liu and L. Yan,
  "Evaluation of TCP Vegas Emulation and
  Experiment. SIGCOMM 95. http//catarina.usc.edu/y
  axu/Vegas/Reference/vegas95.ps

23
Bibliography Modeling

• T. Bonald. Comparison of TCP Reno and TCP Vegas
  via Fluid Approximation. http//www.inria.fr/mist
  ral/personnel/Thomas.Bonald/postscript/vegas.ps.gz

• J. Mo, R. La, V. Anantharam, J. Walrand.
  Analysis and Comparison of TCP Reno and Vegas.
  INFOCOM 99. http//walrandpc.eecs.berkeley.edu/Pap
  ers/vegas.pdf
• G. Hasegawa, M. Murata, H. Miyahara. Fairness
  and Stability of Congestion Control Mechanism of
  TCP. INFOCOM 99.
